| Model: | |
|---|---|
Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP20, Dry & Damp
60W, 96W, 100W
UL & cUL, FCC, Class 2, CE, RoHS, REACH
60W 96W 100W ON/ OFF LED Lights LED Power Supply 12v 124v 36v 48v ac input
Output: | Constant Voltage |
Input voltage range: | 100-277VAC |
PFC design: | Built-in active PFC function,PF＞0.95 |
Efficiency: | Up to 89% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full plastic protection housing, for dry and damp locations (US) |
Dimming function: | Non-dimmable |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

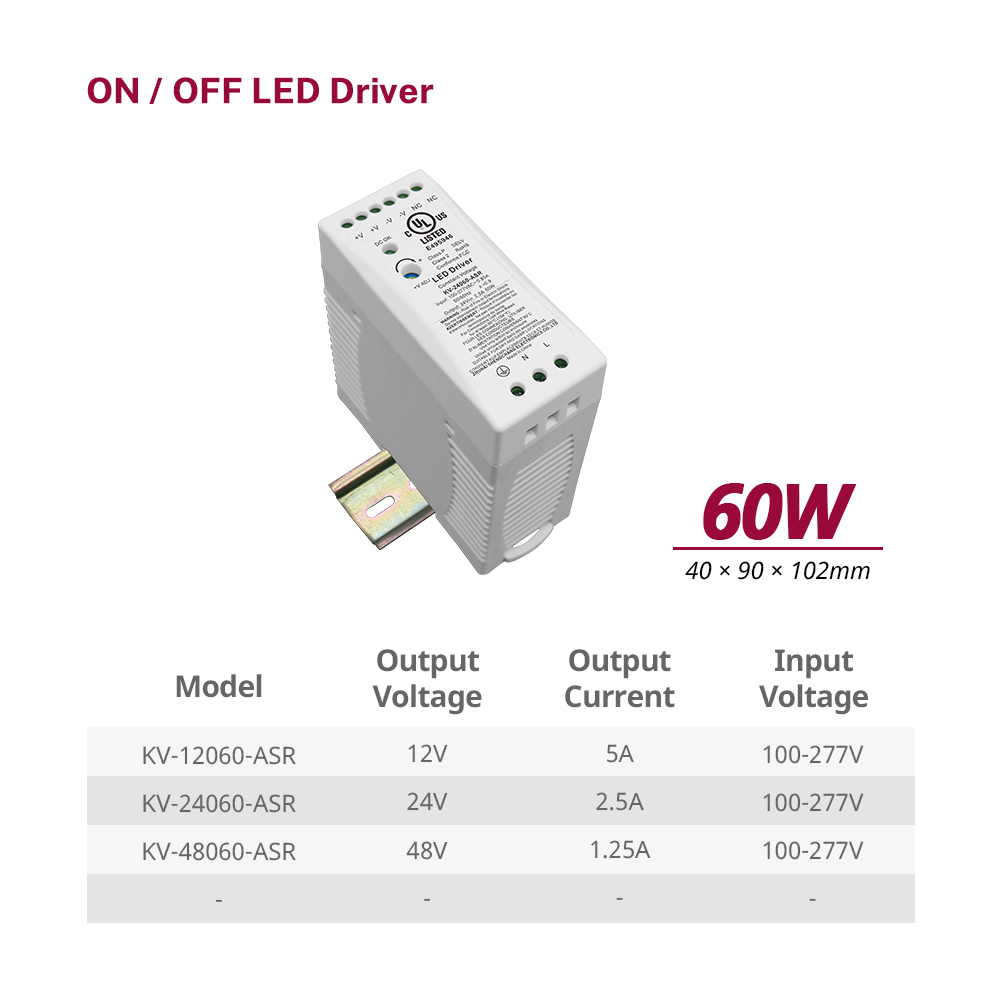

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | KV-12060-ASR | 12V | 5A | 40*90*102mm | 0.3KG |
KV-24060-ASR | 24V | 2.5A | |||
KV-48060-ASR | 48V | 1.25A | |||
96W | KV-24096-ASR | 24V | 4A | 55*90*102mm | 0.38KG |
KV-36096-ASR | 48V | 2A | |||
100W | KV-12100-ASR | 12V | 8.34A | ||
KV-24100-ASR | 24V | 4.17A | |||
KV-48100-ASR | 48V | 2.08A |
60W 96W 100W ON/ OFF LED Lights LED Power Supply 12v 124v 36v 48v ac input
Output: | Constant Voltage |
Input voltage range: | 100-277VAC |
PFC design: | Built-in active PFC function,PF＞0.95 |
Efficiency: | Up to 89% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full plastic protection housing, for dry and damp locations (US) |
Dimming function: | Non-dimmable |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | KV-12060-ASR | 12V | 5A | 40*90*102mm | 0.3KG |
KV-24060-ASR | 24V | 2.5A | |||
KV-48060-ASR | 48V | 1.25A | |||
96W | KV-24096-ASR | 24V | 4A | 55*90*102mm | 0.38KG |
KV-36096-ASR | 48V | 2A | |||
100W | KV-12100-ASR | 12V | 8.34A | ||
KV-24100-ASR | 24V | 4.17A | |||
KV-48100-ASR | 48V | 2.08A |
