Fɛn dilannenw Detail

Aw bɛ yan: So / Fɛn minnu bɛ dilan / Triac Dimmable LED Sofɛrɛ / KVF-TDW Seri 100-277V CV sariyasun / 300W Triac Dimmable LED Kuran dilancogo CV 100vac ka se 277vac ma

Fɛn dilannenw ka kulu

doni tali

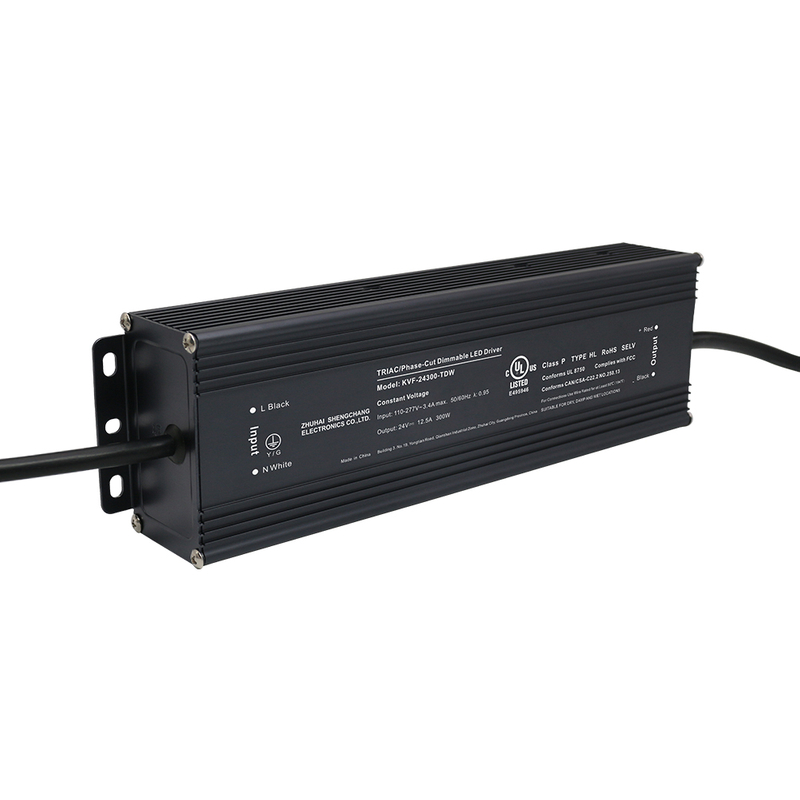

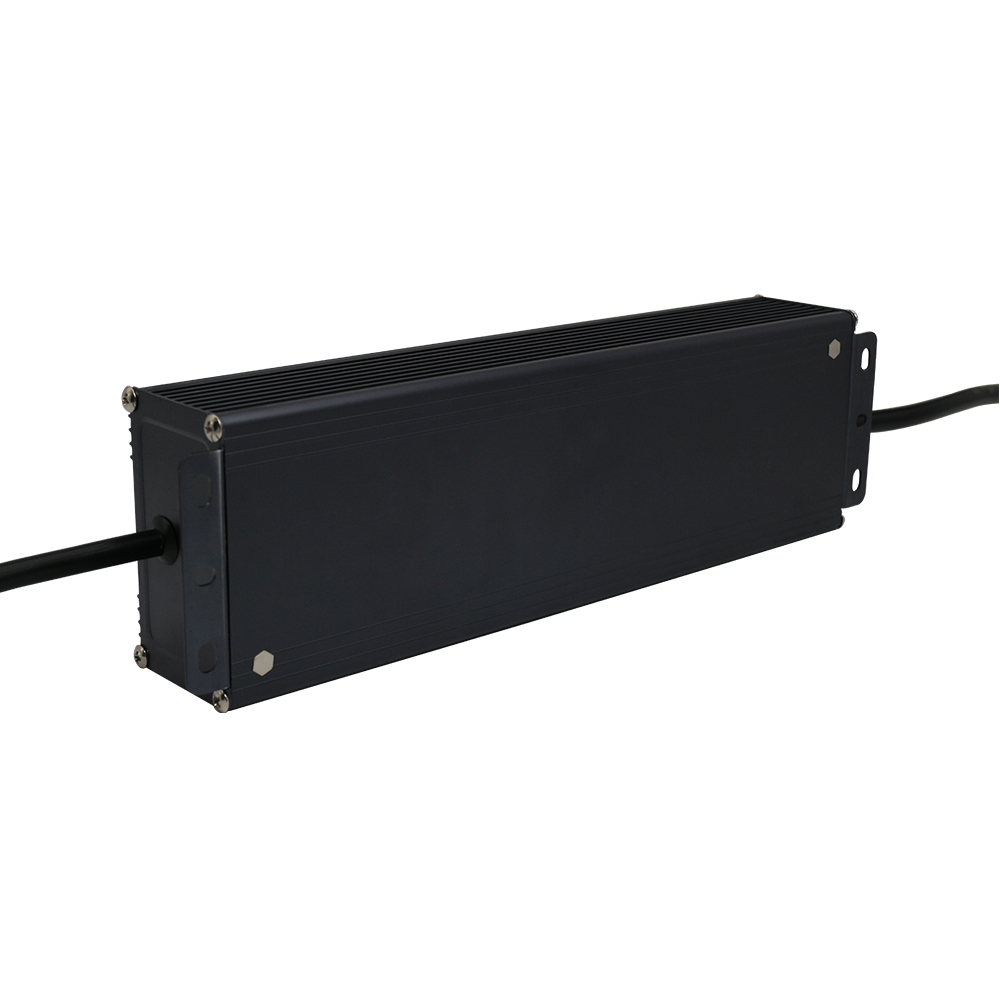

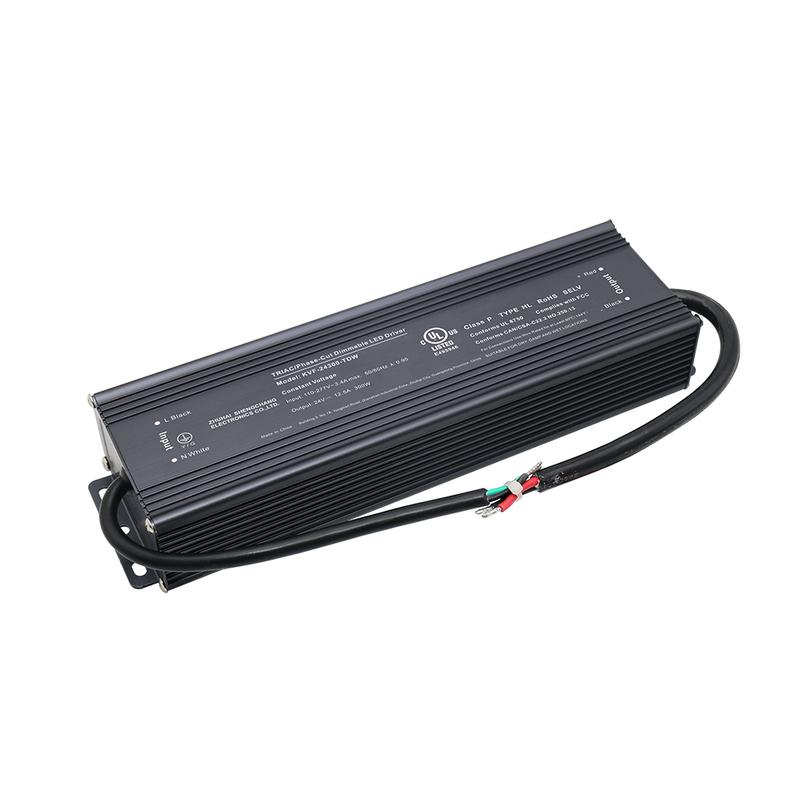

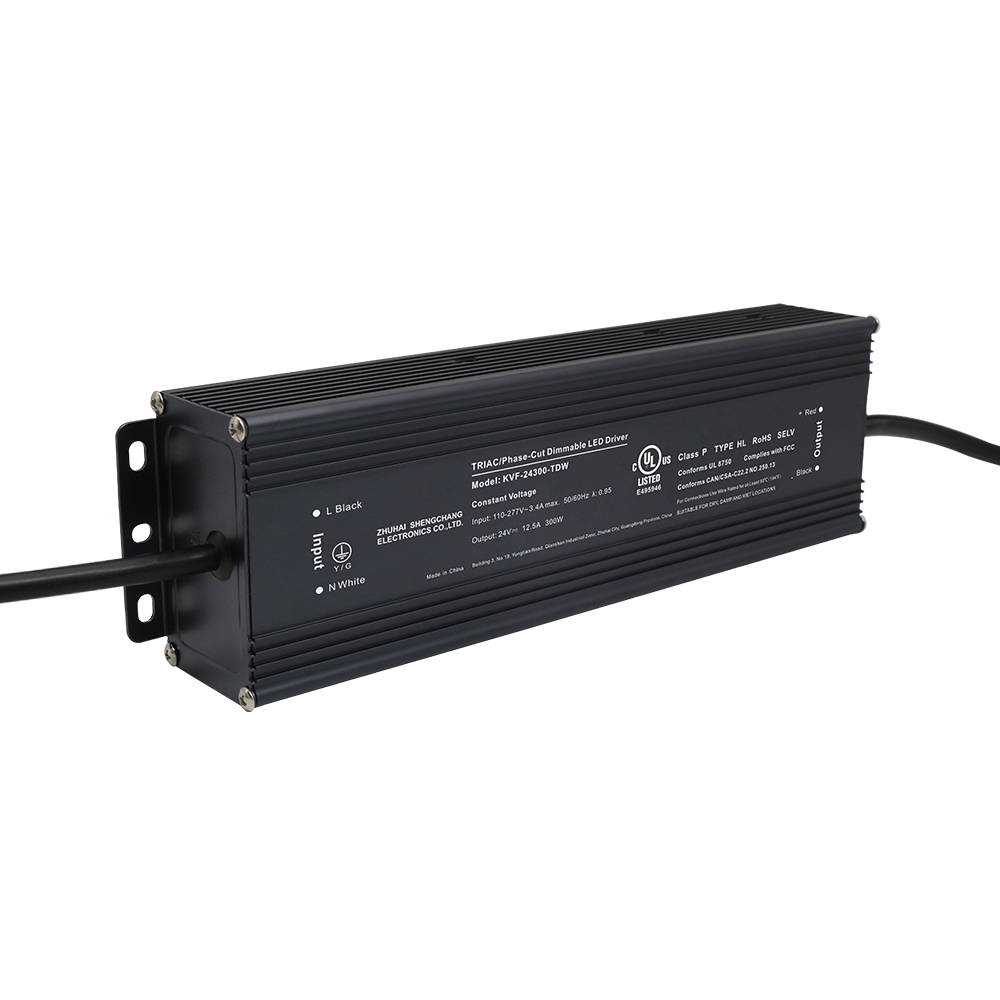

300W Triac Dimmable LED Kuran dilancogo CV 100vac ka 277vac

Ouput Seko ni dɔnko:
300W ye
A sɔrɔli:
Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

  • KVF-TDW ye baara kɛ

  • Triac (Triac) ye

  • Dogolen

  • Voltage basigilen

  • Dimming (Dimming) bɛ kɛ

  • IP66, Jalen & Ji, Ji

  • 110-277VAC ye

  • 300W ye

  • 12/ 24/ 36/ 48V. Bamako, Mali

  • UL & cUL, FCC, CE, RoHS, ƝƐNABƆLI

Nafa

300W Triac Dimmable LED Kuran dilancogo CV 100vac ka 277vac


Ameriki ka patenti No. 9 942 959; No 10 039 167 ye; No. 9 661 710 ye; No. 9 961 724 ye


Bɔli: 1.1.

Voltage basigilen

Labɛnko ɲuman:

110-277VAC ye

PFC dilancogo:

PFC baarakɛcogo baarakɛta min bɛ don a kɔnɔ

Nɔ kaɲi:

Fo ka se 91,7% ma .

Lakanali minnu bɛ kɛ:

Kurukuru/ doni tɛmɛnen/ funteni tɛmɛnen

Funteni bɔli:

Nɛnɛ bɛ kɛ ni fiɲɛ jiginni ye fu

Ji-yɔrɔ-ko baarakɛcogo:

Aluminiyɔmu so lakanani dafalen, so kɔnɔ yɔrɔ jalenw, jisuma ani jisuma yɔrɔw kama

Dimming baarakɛcogo:

Fasa dimi : baara kɛ ni Forward phase, MLV ani Reverse phase, ELV, TRIAC dimmers ye

Dimming range: 1. Bamako, Mali.

0-100% ye .

Waleyali:

A bɛnnen don LED yeelenbɔcogo ma

Garanti min bɛ sɔrɔ:

San 5 garanti

Dɔ wɛrɛw:

PWM bɔli, Se hakɛ caman PF≥0.95, dimi min tɛ flicker ye


Kɛrɛnkɛrɛnnenya la

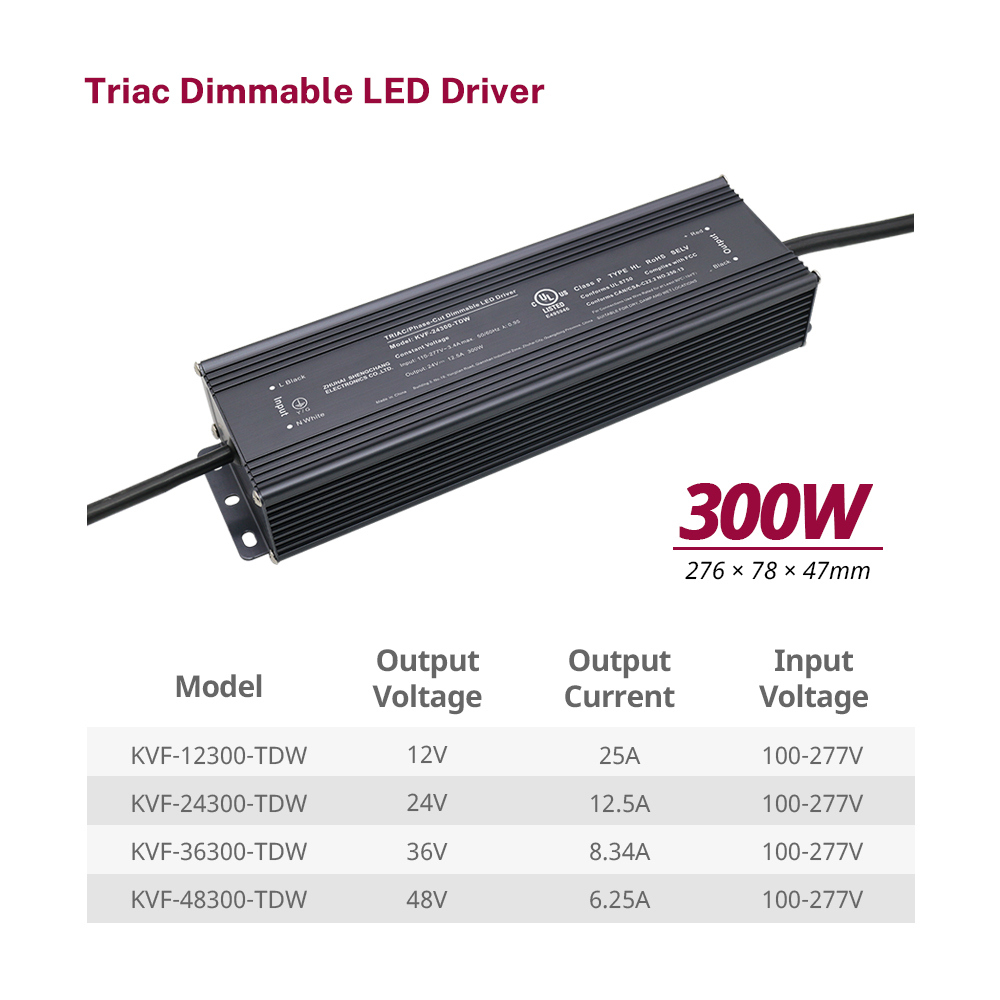

Bɔli Sebaaya

Model Numɛri

Bɔli VoltaFe

Bɔli Kuran

Kundama

WeiFht ye

300W ye

KVF-12300-TDW ye baara kɛ

12V

25A

276*78*47mm ye

Kilo 1,6 ye

KVF-24300-TDW ye baara kɛ

24V

12.5A

KVF-36300-TDW ye baara kɛ

36V

8.33A

KVF-48300-TDW ye baara kɛ

48V ye

6.25A




Triac LED Sofɛrɛ ka Wiring Diagram

Triac LED Sofɛrɛ ka Wiring Diagram


Triac LED Driver Wiring Diagram (1) Bamako, Mali.Triac LED Driver Wiring Diagram (2) Bamako, Mali.


Triac LED Driver Size(aw ye spec telesarse lajɛ)

300W Triac Dimmable LED Kuran dilancogo CV 100vac ka 277vac


AW KA ƝƐNABƆLI NƆGƆYA NI AW KA TRIAC 0-10V DIMMER YE

A DILANNI KA DISA: tile bɛɛ lafiyalen ni free-flicker-tip design kura ye min bɛ ɲɛ to kɛnɛya la ka mɛn


ka telesarize spec_300W Triac dim. CV bolibaga KVF-TDW 12V&24V&36V&48V.pdf
