60W 96W 100W 120W 0-10V Dimmable tension constante LEDDriver 200V -347V AC

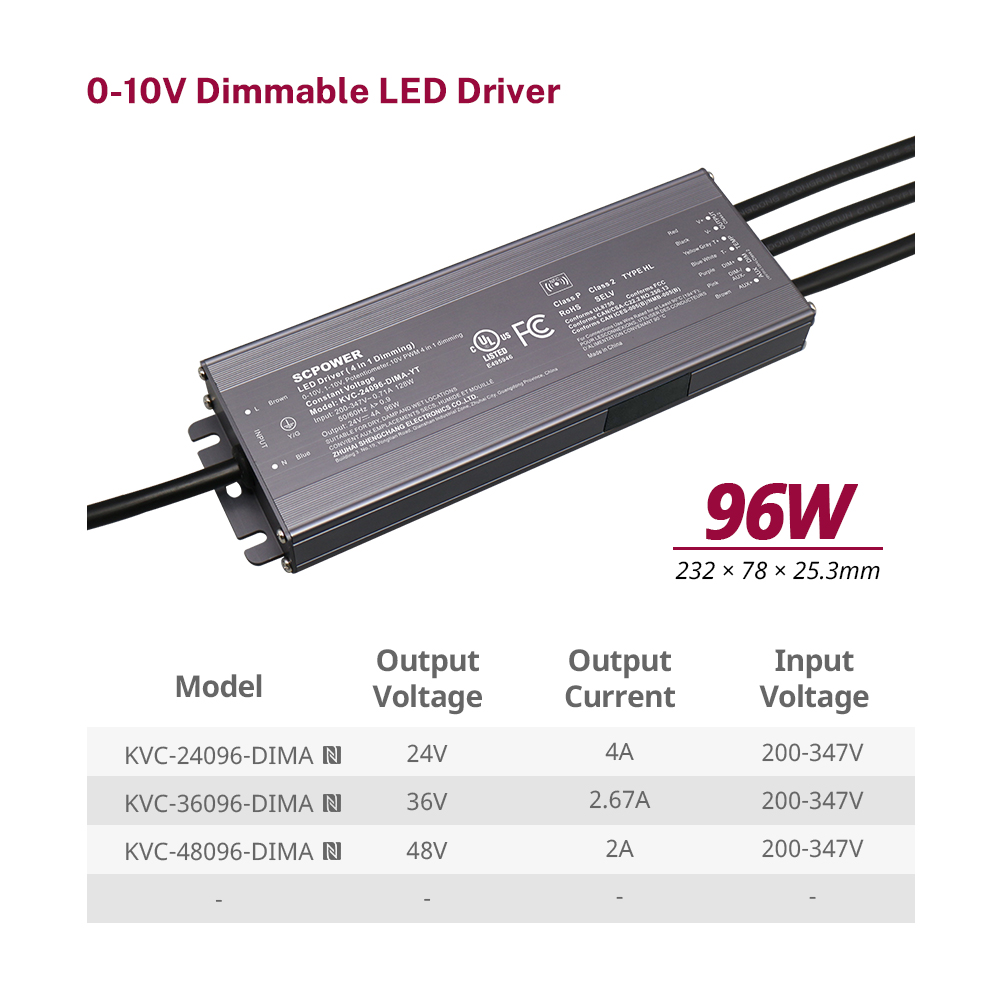

96W 0-10V Dimmable Constant Voltage LEDDriver 200V -347V AC

60W 96W 100W 120W 0-10V Dimmable tension constante LEDDriver 200V -347V AC

Ouput Seko ni dɔnko:	60W ye 96W ye 100W ye 120W ye
A sɔrɔli:



Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

Dimming suguya:
0-10V ye
Isolated Type:
Dogolen
Bɔli suguya:
Voltage basigilen
Bɔli siraw:
Dimming, RGB ye
IP hakɛ:
IP66, Jalen & Ji, Ji
Voltage min bɛ don a kɔnɔ:
100-277VAC ye
Bɔli Sebaaya:
60W, 96W, 100W, 120W ye
Voltage de bɔli: 1.1.
12/ 24/ 36/ 48V. Bamako, Mali
Seereyali:
UL & cUL ka baara

Nafa

60W 96W 100W 120W 0-10V Dimmable tension constante LEDDriver 200V -347V AC

Flicker-free,bɔli dimming frequency 20KHz sera exemption hakɛ ma,

Digital dimming, yeelen kelen kɔlɔsili,ni dɛmɛnan kuran & funteni kɔlɔsili

Bɔli: 1.1.	Voltage basigilen
Labɛnko ɲuman:	200-347VAC ye
PFC dilancogo:	PFC baarakɛcogo baarakɛta min bɛ don a kɔnɔ
Nɔ kaɲi:	Fo ka se 88% ma .
Lakanali minnu bɛ kɛ:	Kurukuru/ doni tɛmɛnen/ funteni tɛmɛnen
Funteni bɔli:	Nɛnɛ bɛ kɛ ni fiɲɛ jiginni ye fu
Ji-yɔrɔ-ko baarakɛcogo:	Lakanali dafalen Aluminiyɔmu so, yɔrɔ jalenw, jisuma ani yɔrɔ ɲiginnenw kama
Dimming baarakɛcogo:	0-10V dimi: 0-10V/1-10V/Potentiyomɛtiri/10V PWM 4 in 1
Dimming range: 1. Bamako, Mali.	0,1-100% ye .
NFC baarakɛcogo	Fine tune bɔli voltage, sɛbɛnni ani kalan ladɛrɛsi
Waleyali:	A bɛnnen don LED yeelen ni taamasiyɛn lamaga-lamagali baarakɛcogo ma
Garanti min bɛ sɔrɔ:	San 5 garanti

Kɛrɛnkɛrɛnnenya la

Bɔli Sebaaya	Model Numɛri	Voltage (Bɔli) min bɛ bɔ	Bɔli Kuran	Kundama	Girinya
60W ye	KVC-12060-DIMA ye baara kɛ	12V	5A	2007825,1mm ye
	KVC-24060-DIMA ye baara kɛ	24V	2.5A
	KVC-36060-DIMA ye baara kɛ	36V	1.67A
	KVC-48060-DIMA ye baara kɛ	48V ye	1.25A

96W ye	KVC-24096-DIMA ye baara kɛ	24V	4A	2327825,3mm ye	0,83kg ye
	KVC-36096-DIMA ye baara kɛ	36V	2.67A
	KVC-48096-DIMA ye baara kɛ	48V ye	2A
100W ye	KVC-12100-DIMA ye baara kɛ	12V	8.33A
	KVC-24100-DIMA ye baara kɛ	24V	4.17A
	KVC-36100-DIMA ye baara kɛ	36V	2.78A
	KVC-48100-DIMA ye baara kɛ	48V ye	2.08A
120W ye	KVC-12120-DIMA ye baara kɛ	12V	10A
	KVC-24120-DIMA ye baara kɛ	24V	5A
	KVC-36120-DIMA ye baara kɛ	36V	3.33A
	KVC-48120-DIMA ye baara kɛ	48V ye	2.5A
