Fɛn dilannenw Detail

Aw bɛ yan: So / Fɛn minnu bɛ dilan / DALI-2 Dimmable LED Driver ye / Kuran min bɛ kɛ tuma bɛɛ / DP2 10W 20W 40W 60W Constant Current DALI 2 Push Class 2 LED Driver

Fɛn dilannenw ka kulu

doni tali

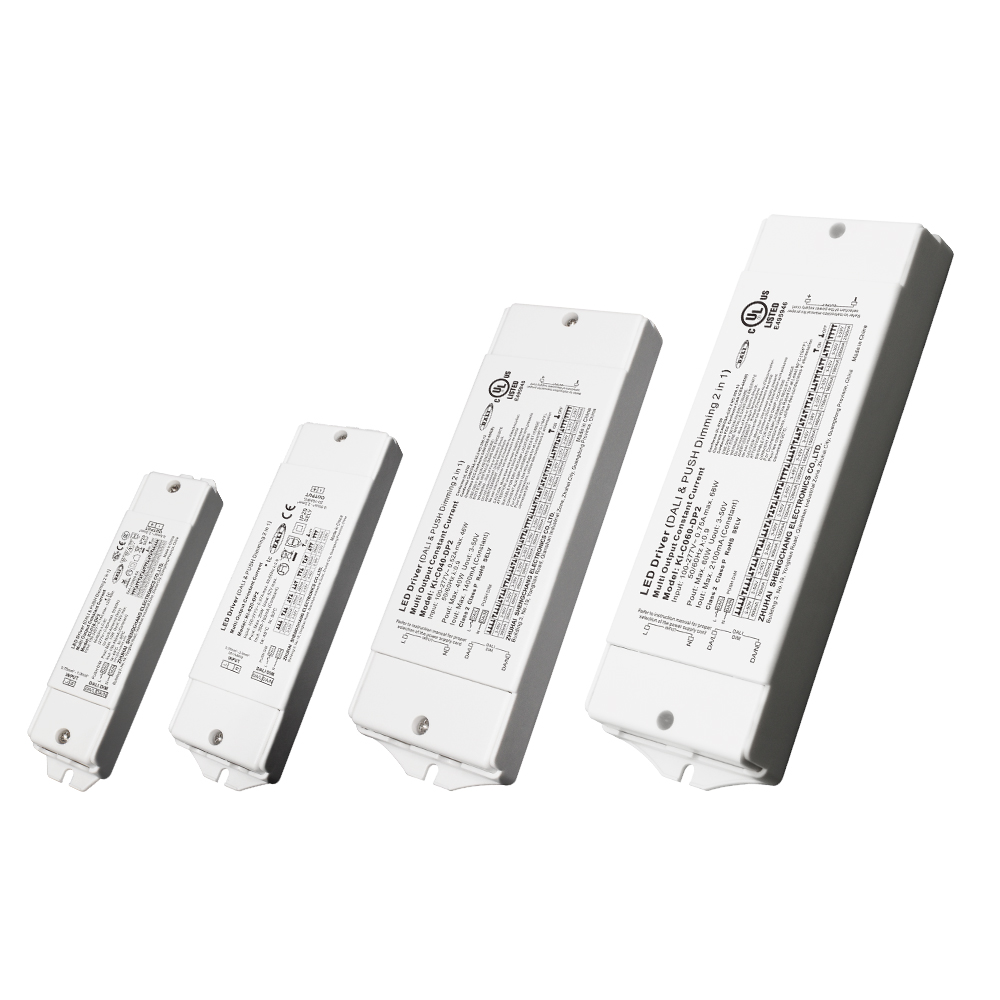

DP2 10W 20W 40W 60W Kuran basigilen DALI 2 Push Class 2 LED Driver

Mɔdɛli:
10W ye
20W ye
40W ye
60W ye
A sɔrɔli:
Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

  • DALI-2 Push ye

  • Dogolen

  • Kuran min bɛ kɛ tuma bɛɛ

  • Dimming (Dimming) bɛ kɛ

  • IP20, Jalen & Jalen

  • 100-277VAC ye

  • 10W, 20W, 40W, 60W ye

  • 3V-42V ye

  • RoHS, ƝƐNABƆLI

Nafa

DP2 10W 20W 40W 60W Kuran basigilen DALI 2 Push Class 2 LED Driver



Kɛrɛnkɛrɛnnenya la


Bɔli Sebaaya

Model Numɛri

Bɔli

Kundama

Girinya

10W ye

KI-010-DP2 ye

3-42V 100mA ye

135*30*20mm ye

0,10kg ye

3-42V 150mA ye

3-42V 200mA ye

3-40V 250mA ye

3-33V 300mA ye

3-29V 350mA ye

3-25V 400mA ye

3-22V 450mA ye

20W ye

KI-020-DP2 ye

3-42V 250mA ye

159,5 * 43 * 20mm ye

0,15kg ye

3-42V 350mA ye

3-42V 400mA ye

3-42V 450mA ye

3-40V 500mA ye

3-36V 550mA ye

3-33V 600mA ye

3-29V 700mA ye

40W ye

KI-040-DP2 ye

3-50V 300mA ye

171,5 * 54 * 20mm ye

0,17Kg ye

3-50V 350mA ye

3-50V 400mA ye

3-50V 450mA ye

3-50V 500mA ye

3-50V 550mA ye

3-50V 600mA ye

3-50V 650mA ye

3-50V 700mA ye

3-50V 800mA ye

3-45V 900mA ye

3-40V 1000mA ye

3-37V 1100mA ye

3-34V 1200mA ye

3-31V 1300mA ye

3-29V 1400mA ye

60W ye

KI-060-DP2 ye

3-50V 600mA ye

192,5*62*24mm ye

0,30kg ye

3-50V 700mA ye

3-50V 800mA ye

3-50V 900mA ye

3-50V 1000mA ye

3-50V 1100mA ye

3-50V 1200mA ye

3-46V 1300mA ye

3-43V 1400mA ye

3-40V 1500mA ye

3-38V 1600mA ye

3-35V 1700mA ye

3-33V 1800mA ye

3-32V 1900mA ye

3-30V 2000mA ye

3-29V 2100mA ye



DALI-2 LED Kuran dilancogo Wiring Diagram

DALI-2 LED Kuran dilancogo




DALI-2  LED Kuran dilancogo  hakɛ:

Triac & 0-10V LED Kuran dilancogo hakɛ



ka telesarize Spec_10W DALI2 & PUSH dim. LED CC Sofɛrɛ KI-DP2.pdf

ka telesarize Spec_20W DALI2 & PUSH dim. LED CC Sofɛrɛ KI-DP2 .pdf

ka telesarize Spec_40W DALI2 & PUSH dim. LED CC Sofɛrɛ KI-DP2.pdf

ka telesarize Spec_60W DALI2 & PUSH dim. LED CC Sofɛrɛ KI-DP2.pdf
