| Ouput Power: | |
|---|---|
0-10V
Isolated
Constant Voltage
Dimming
IP66, Dry & Damp, Wet
100-277VAC
300W, 320W, 360W
12/ 24/ 36/ 48V
TUV, CB, CE, RoHS, REACH

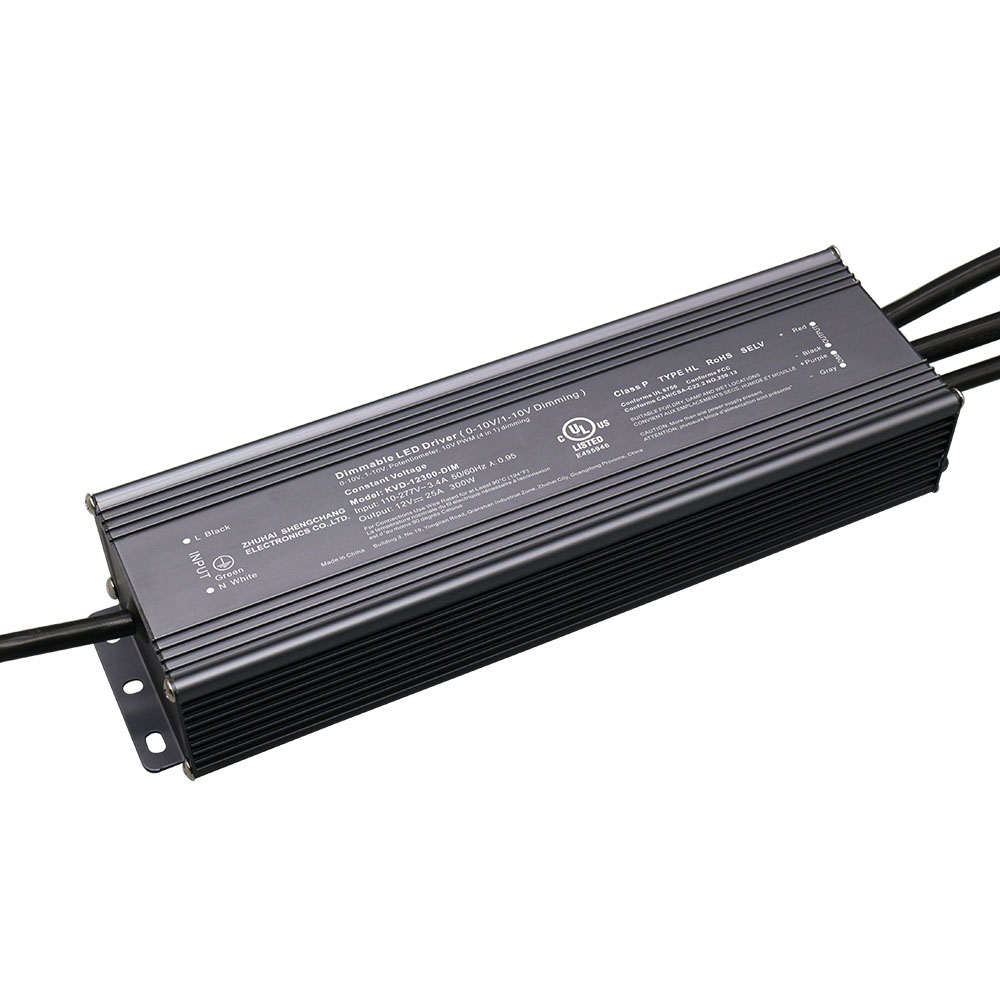

300W 320W 360W 0-10V Dimmable LED Power Supply CV for fixture
Output: |
Constant Voltage |
Range: |
100-265VAC |
PFC design: |
Built-in active PFC function |
Protections: |
Short circuit/ over load/ over temperature |
Heat dissipation: |
Cooling by free air convection |
Waterproof performance: |
For dry, damp & wet location |
Dimming function: Dimming range: |
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 0-100% |
Application: |
Suitable for LED lighting and moving sign applications |
Warranty: |
5 years warranty |
Output Power |
Model Number |
Output Voltage |
Output Current |
Input Voltage |
Size |
Weight |
Size |
300W |
KVG-12300-A-DIM |
12V |
25A |
100-265V AC |
276*78*47mm |
1.70kg |
390*325*185mm/10pcs /CTN |
KVG-24300-A-DIM |
24V |
12.5A |
|||||
KVG-36300-A-DIM |
36V |
8.33A |
|||||
KVG-48300-A-DIM |
48V |
6.25A |
|||||
320W |
KVG-12320-A-DIM |
12V |
26.67A |
||||
KVG-24320-A-DIM |
24V |
13.34A |
|||||
KVG-36320-A-DIM |
36V |
8.89A |
|||||
KVG-48320-A-DIM |
48V |
6.67A |
|||||
360W |
/ |
12V |
30A |
||||
KVG-24360-A-DIM |
24V |
15A |
|||||
KVG-36360-A-DIM |
36V |
10A |
|||||
KVG-48360-A-DIM |
48V |
7.5A |
0-10V LED Power Supply
300W / 320W / 360W 0-10V LED Power Supply Size:
