Foirgneamh 3, Uimh.
|
| Cumhacht Ouput: | |
|---|---|
TRÍian
Scoite amach
Voltas leanúnach
Ditimiúil
IP66, tirim & taise, fliuch
200-240VAC
60W
12/24/48V
ENEC, TUV, CE, ROHS, REACH

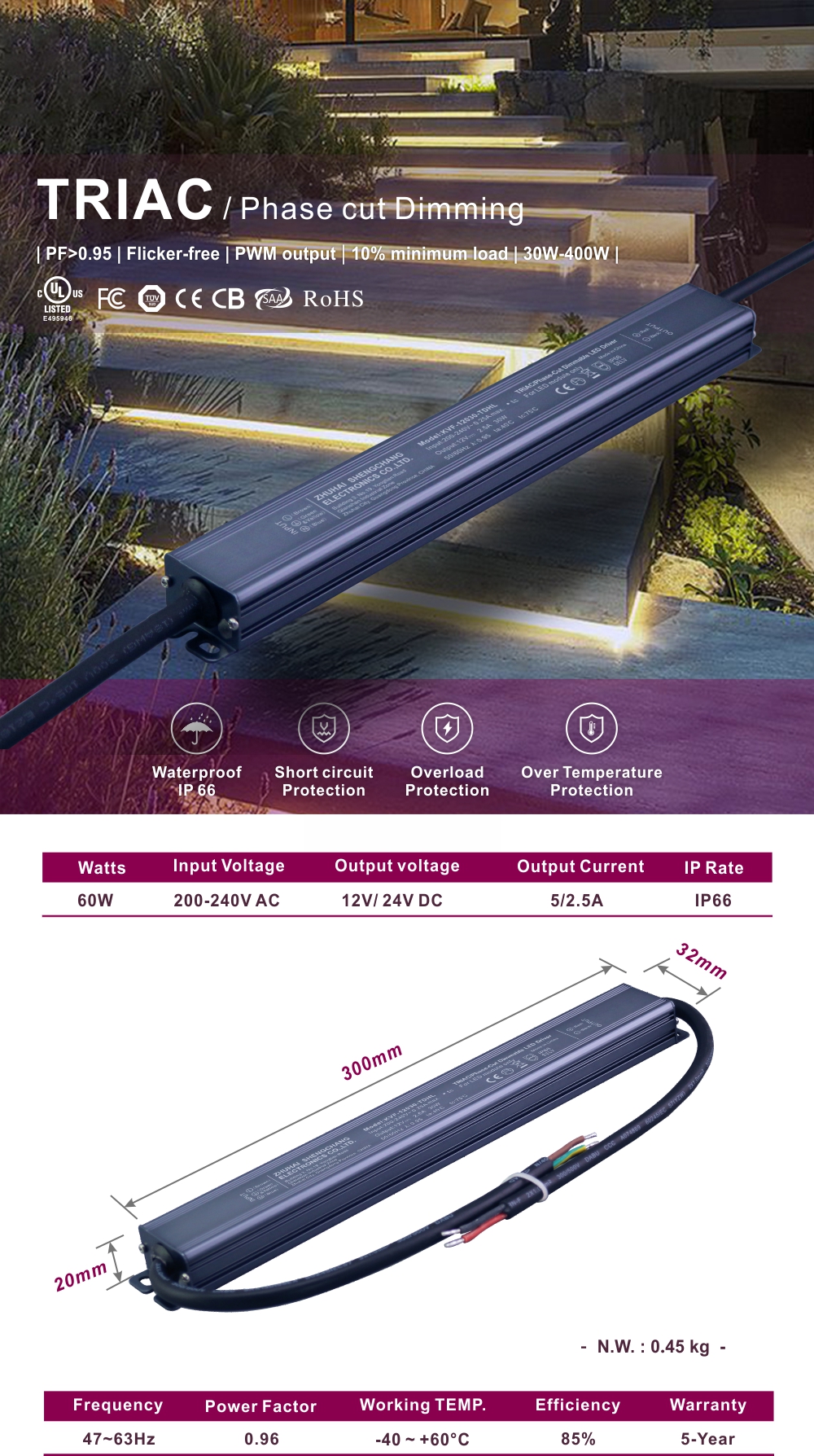

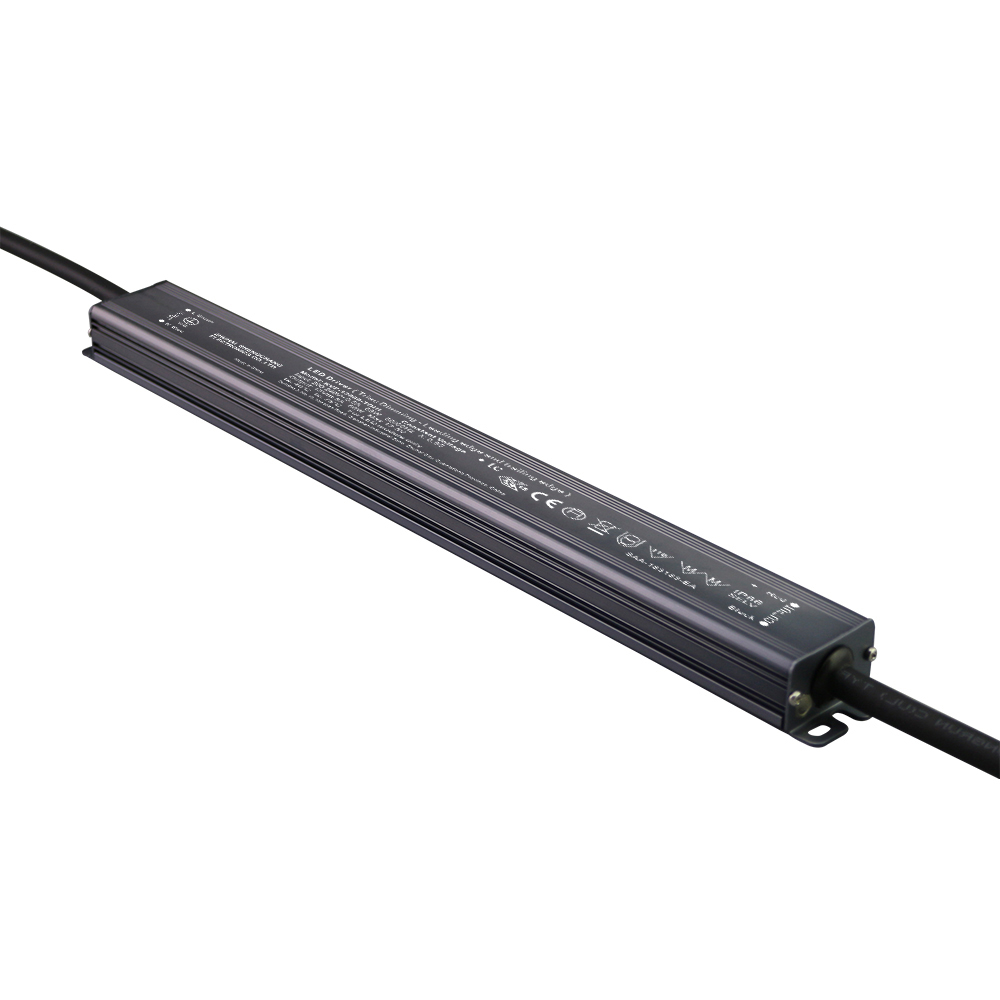

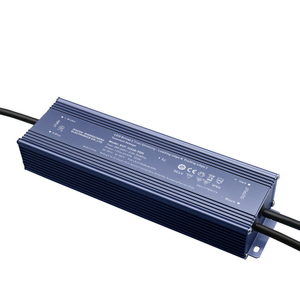

60 Watt CV Soláthar Cumhachta Solais Dimmable Dimmable le haghaidh Daingneáin Soilsithe LED
Aschur: |
Voltas leanúnach |
Raon: |
200-240VAC |
Dearadh PFC: |
Feidhm PFC gníomhach tógtha isteach |
Éifeachtúlacht: |
Suas le 85% |
Cosaintí: |
Ciorcad gearr/ os cionn ualach/ níos mó ná teocht |
Díscaoileadh teasa: |
Fuarú le comhiompar aeir saor in aisce |
Feidhmíocht uiscedhíonach: |
IP66 |
Feidhm dimming: |
Céim Dimming: Oibrigh le Leading Edge agus Trailing Edge, Dimmers Triac |
Raon dimming: |
0-100% |
Iarratas: |
Oiriúnach chun soilsiú LED a chur i bhfeidhm |
Barántas: |
Barántas 5 bliana |
Cumhacht aschuir |
Uimhir shamhail |
Voltas aschuir |
Sruth aschuir |
Méid |
Ualach |
Voltas ionchuir |
Ráta |
30W |
KVF-12030-TDHL |
12V |
2.5A |
260*32*20mm |
0.35kg |
100-277V AC |
IP 66 |
KVF-2403030-TDHL |
24V |
1.25A |
|||||
KVF-48030-TDHL |
48V |
0.63A |
|||||
36W |
KVF-12036-TDHL |
12V |
3a |
260*32*20mm |
0.35kg |
||
KVF-24036-TDHL |
24V |
1.5A |
|||||
KVF-48036-TDHL |
48V |
0.75A |
|||||
60W |
KVF-12060-TDHL |
12V |
5a |
300*32*20mm |
0.45kg |
||
KVF-24060-TDHL |
24V |
2.5A |
|||||
KVF-48060-TDHL |
48V |
1.25A |
|||||
96W |
KVF-24096-TDHL |
24V |
4A |
330*32*23mm |
0.55kg |
||
KVF-48096-TDHL |
48V |
2a |
|||||
100W |
KVF-12100-TDHL |
12V |
8.34A |
330*32*23mm |
0.55kg |
||
KVF-24100-TDHL |
24V |
4.17a |
|||||
KVF-48100-TDHL |
48V |
2.09a |
|||||
150W |
KVF-12150-TDHL |
12V |
12.5a |
368*32*23mm |
0.60kg |
||
KVF-24150-TDHL |
24V |
6.25a |
|||||
KVF-48150-TDHL |
48V |
3.13a |

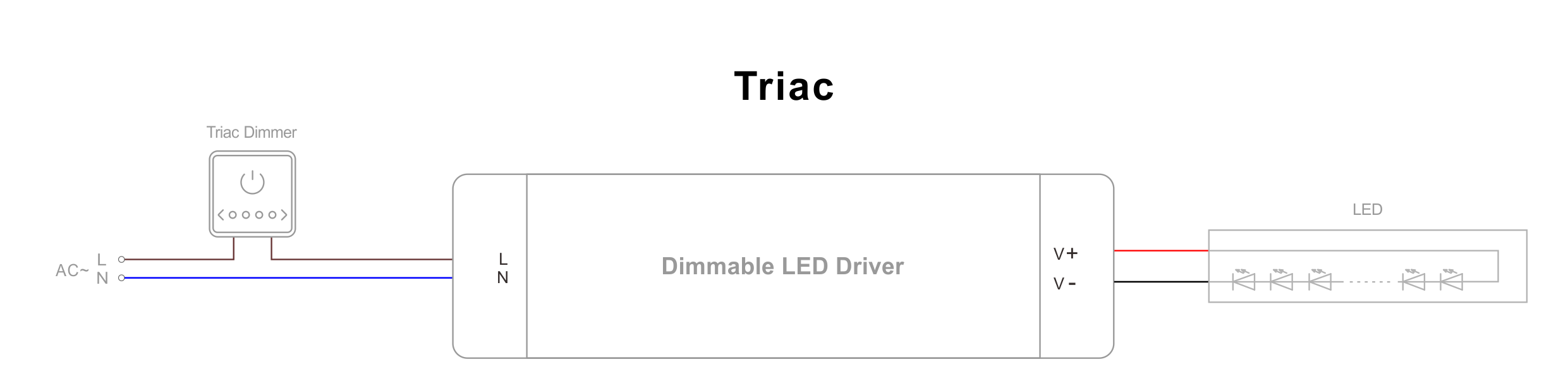

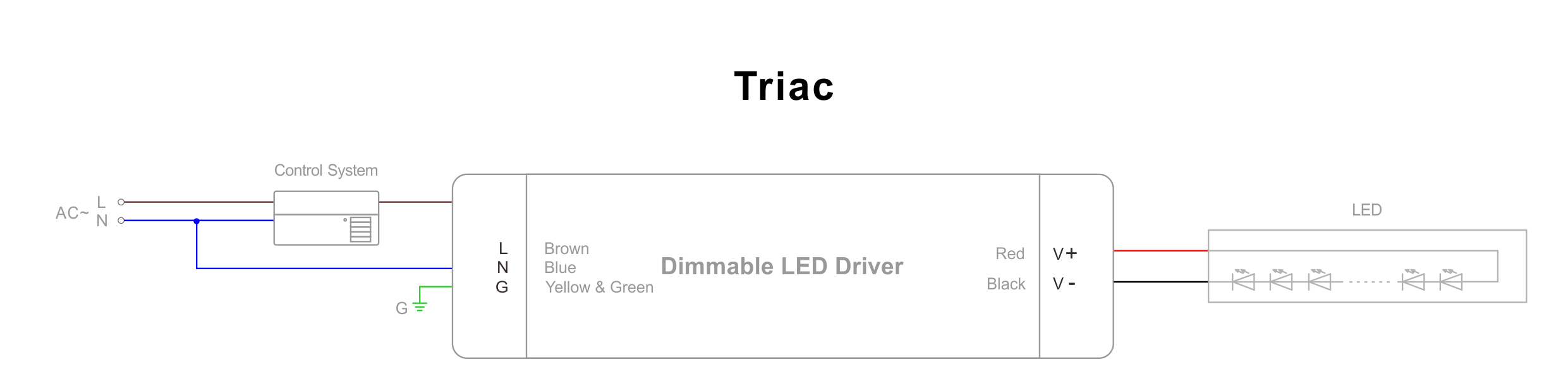

Léaráid sreangaithe tiománaí faoi stiúir triac

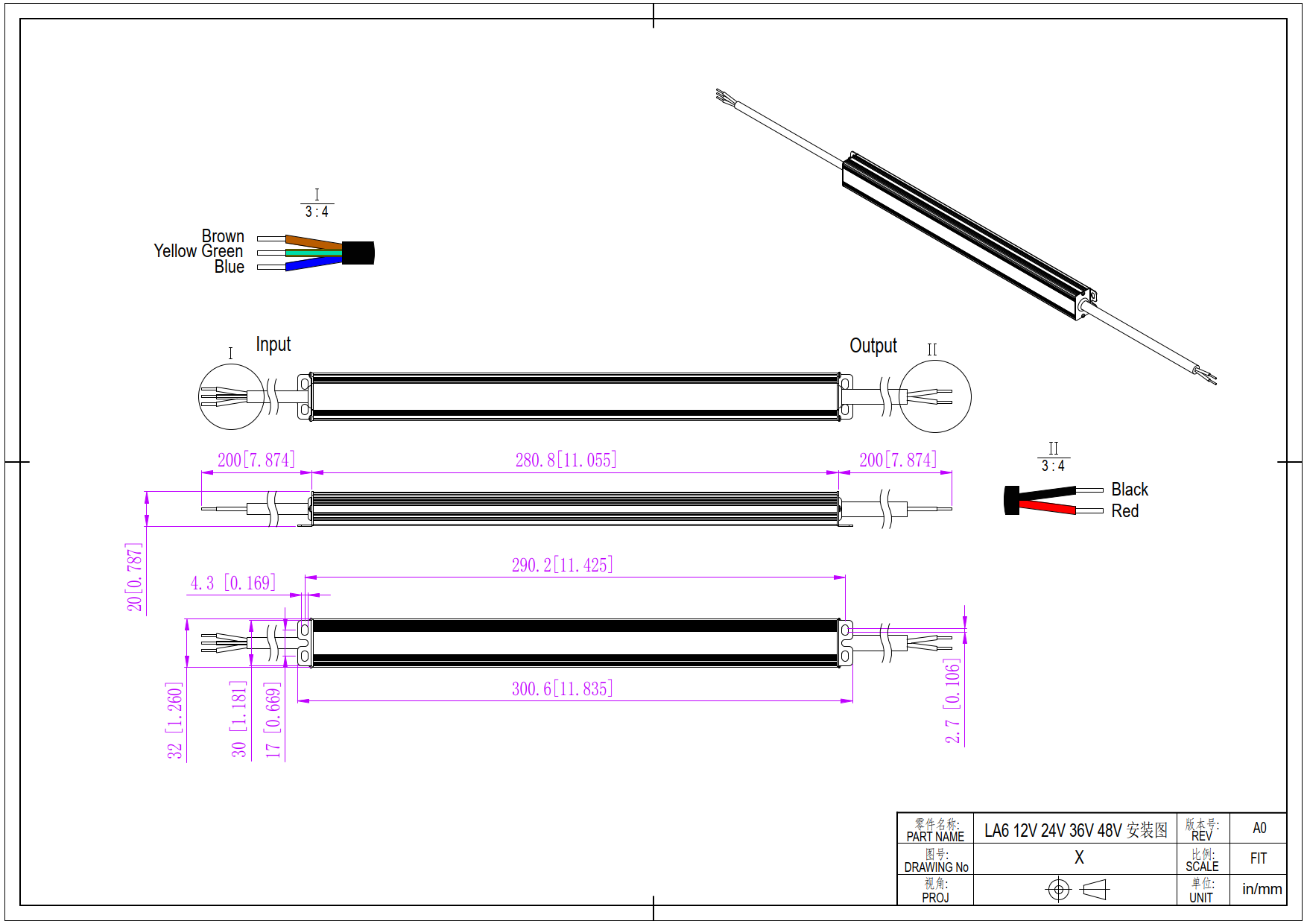

Méid tiománaí faoi stiúir triac （Féach an t -íoslódáil spec）
