| Cumhacht Ouput: | |
|---|---|
BLE (Casambi, Tuya, Saol Cliste
Scoite amach
Voltas leanúnach
Dimming, CCT, RGBCW
IP66, tirim & taise, fliuch
100-277VAC
60W, 96W, 100W, 120W, 150W, 200W, 300W
12/24/36/48V
CE, ROHS, Reach

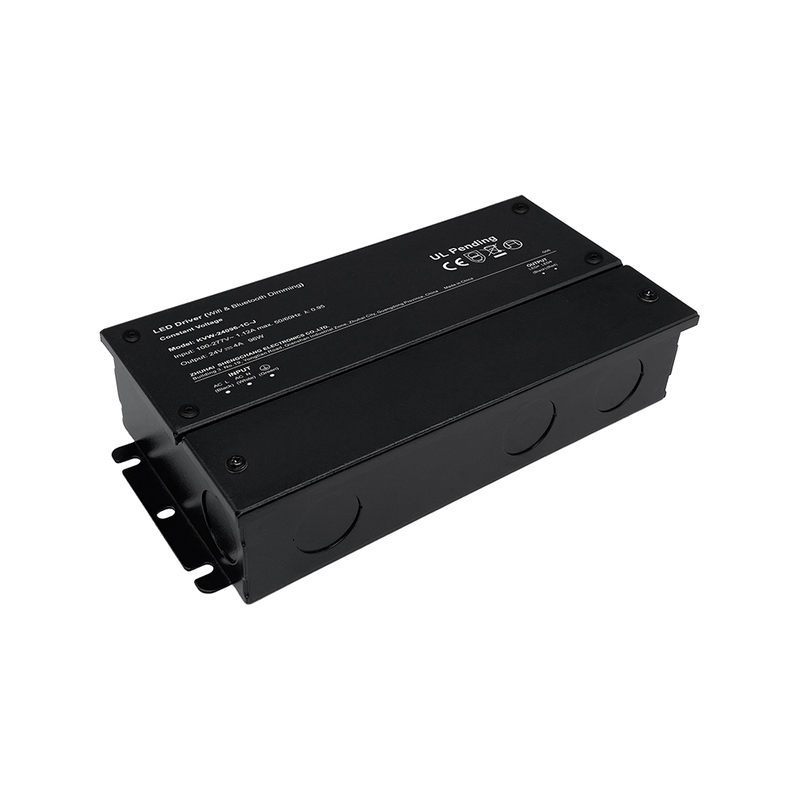

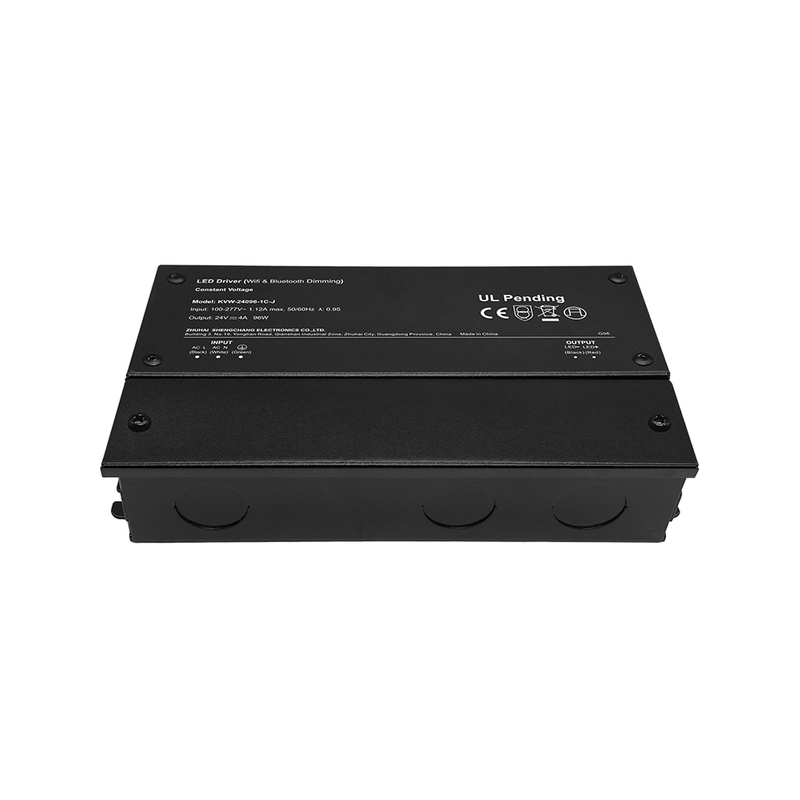

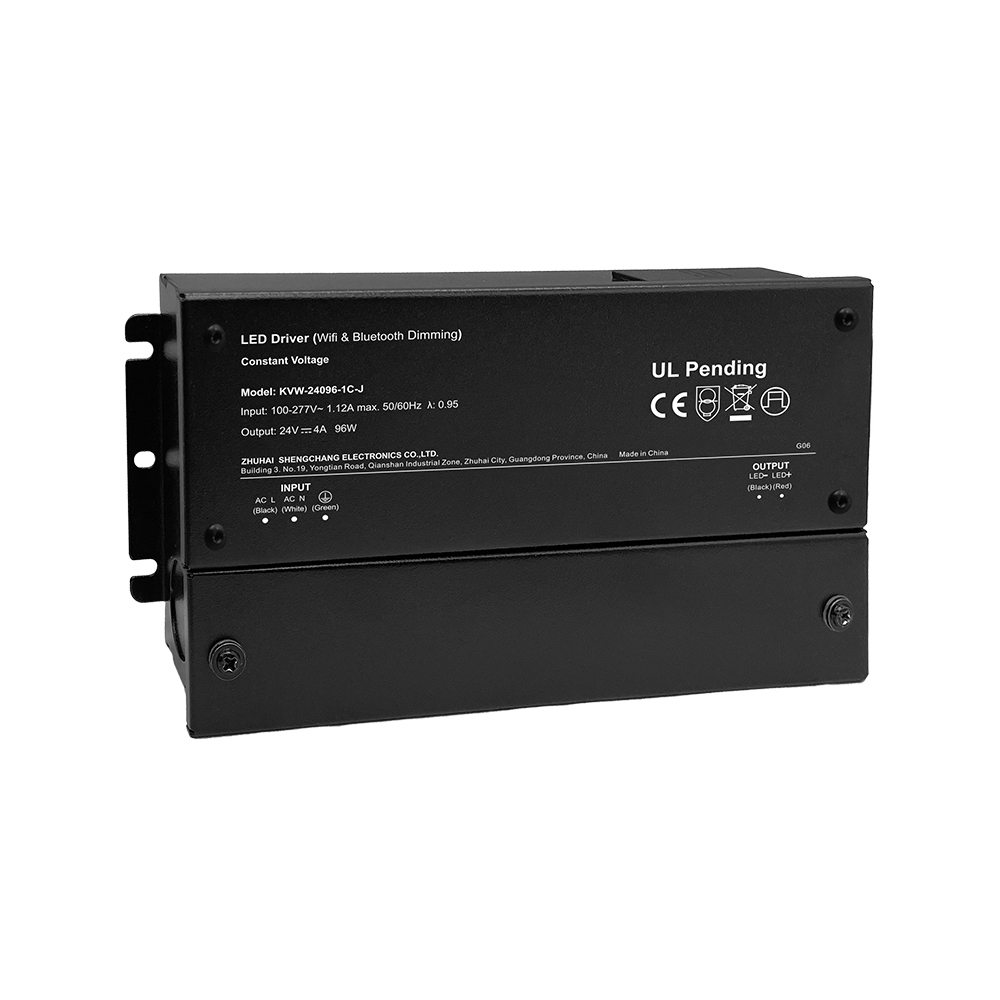

60W - 300W CV RGB CW Dath Aonair 1 - 5 Cainéal Ble Dimming Tuya Silvair Casambi Soláthairtí Cumhachta faoi stiúir do Stráice LED
Aschur: |
Voltas leanúnach |
Raon: |
100-277VAC |
Dearadh PFC: |
Feidhm PFC gníomhach tógtha isteach |
Éifeachtúlacht: |
Suas le 91% |
Cosaintí: |
Ciorcad gearr/ os cionn ualach/ níos mó ná teocht |
Díscaoileadh teasa: |
Fuarú le comhiompar aeir saor in aisce |
Feidhmíocht uiscedhíonach: |
Bosca Acomhal Tógtha Tiomána, le haghaidh suíomhanna tirime, tais agus fliucha （US） |
Feidhm dimming |
Bluetooth Casambi Wireless Dim., Arna rialú trí aip soghluaiste a úsáid le haghaidh dimming |
Raon dimming: |
1-100% |
Iarratas: |
Oiriúnach chun soilsiú LED a chur i bhfeidhm |
Barántas: |
Barántas 5 bliana |
Daoine eile: |
Flicker saor in aisce, aschur 8kHz PWM chun an leibhéal díolúine a bhaint amach |
Cumhacht aschuir |
Uimhir mhúnla |
Voltas aschuir |
Sruth aschuir |
Fachtóir lucht |
Méid |
Ualach |
60W |
KVB-12060-XC-J |
12V |
5a |
PF 0.98 |
188*94.5*42.7mm |
1.02kg |
KVB-24060-XC-J |
24V |
2.5A |
||||
KVB-36060-XC-J |
36V |
1.67 |
||||
KVB-48060-XC-J |
48V |
1.25A |
||||
96W |
KVB-24096-XC-J |
24V |
4A |
PF 0.98 |
||
KVB-36096-XC-J |
36V |
2.67a |
||||
KVB-48096-XC-J |
48V |
2a |
||||

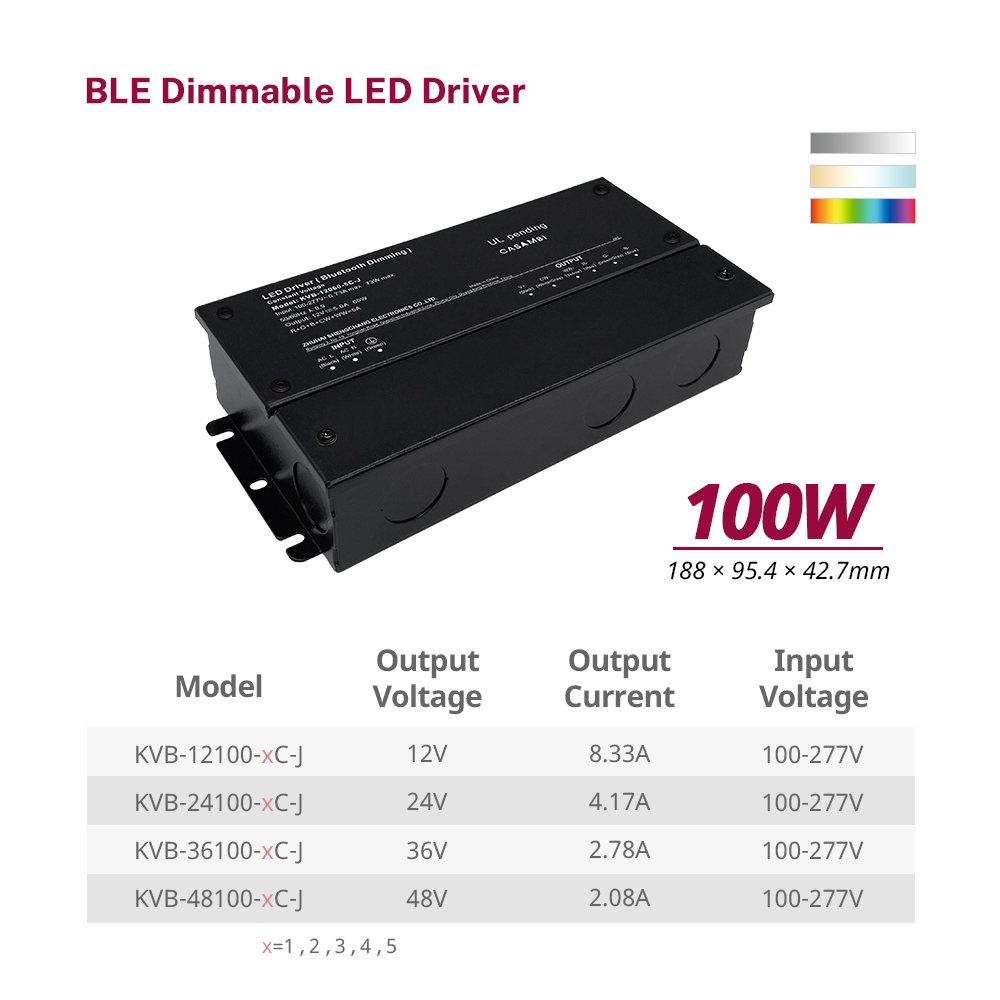

100W |
KVB-12100-XC-J |
12V |
8.34A |
PF 0.99 |
||
KVB-24100-XC-J |
24V |
4.17a |
||||
KVB-36100-XC-J |
36V |
2.78a |
||||
KVB-48100-XC-J |
48V |
2.09a |
||||
120W |
KVB-12120-XC-J |
12V |
10A |
PF 0.99 |
||
KVB-24120-XC-J |
24V |
5a |
||||
KVB-36120-XC-J |
36V |
3.33A |
||||
KVB-48120-XC-J |
48V |
2.5A |
||||
150W |
KVB-12150-XC-J |
12V |
12.5a |
PF 0.99 |
293*125*40mm (l*w*h) |
1.81kg |
KVB-24150-XC-J |
24V |
6.25a |
||||
KVB-36150-XC-J |
36V |
4.17a |
||||
KVB-48150-XC-J |
48V |
3.13a |
||||

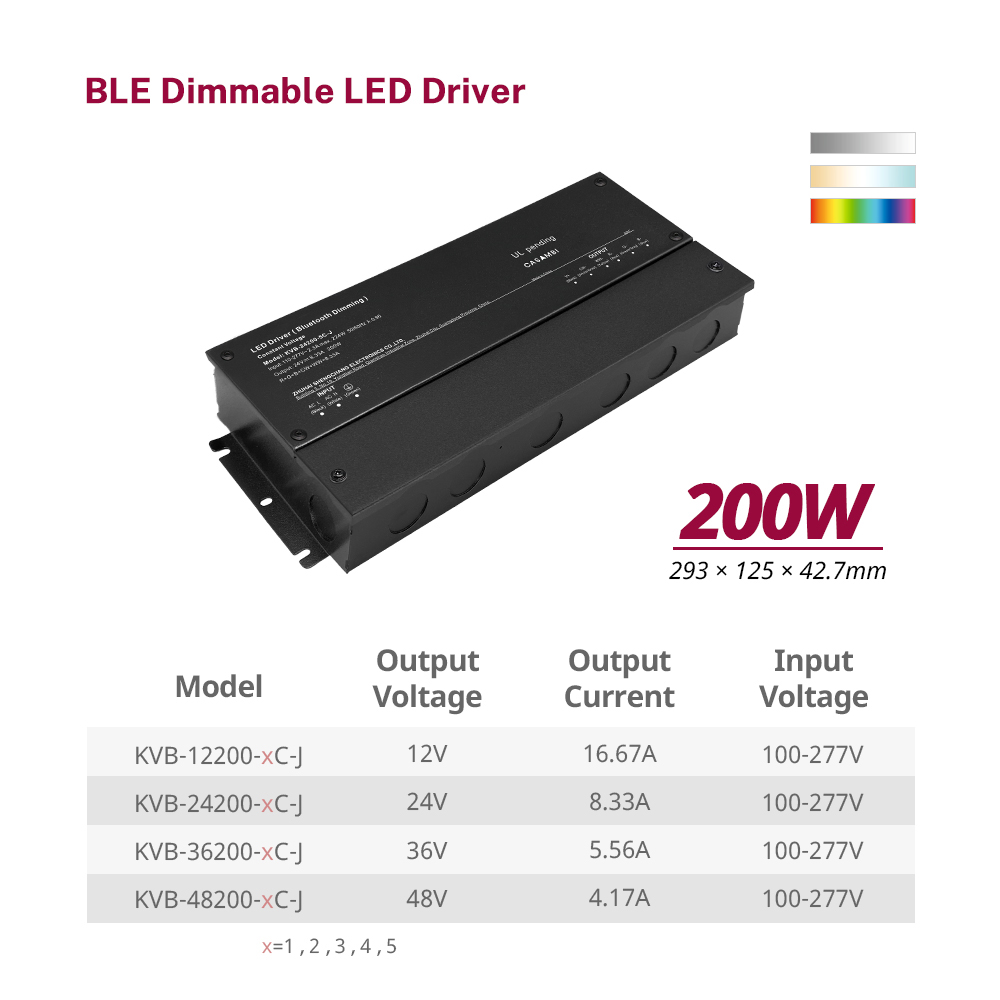

200w |
KVB-12200-XC-J |
12V |
16.67a |
PF 0.98 |
||
KVB-24200-XC-J |
24V |
8.34A |
||||
KVB-36200-XC-J |
36V |
5.56a |
||||
KVB-48200-XC-J |
48V |
4.17a |
||||

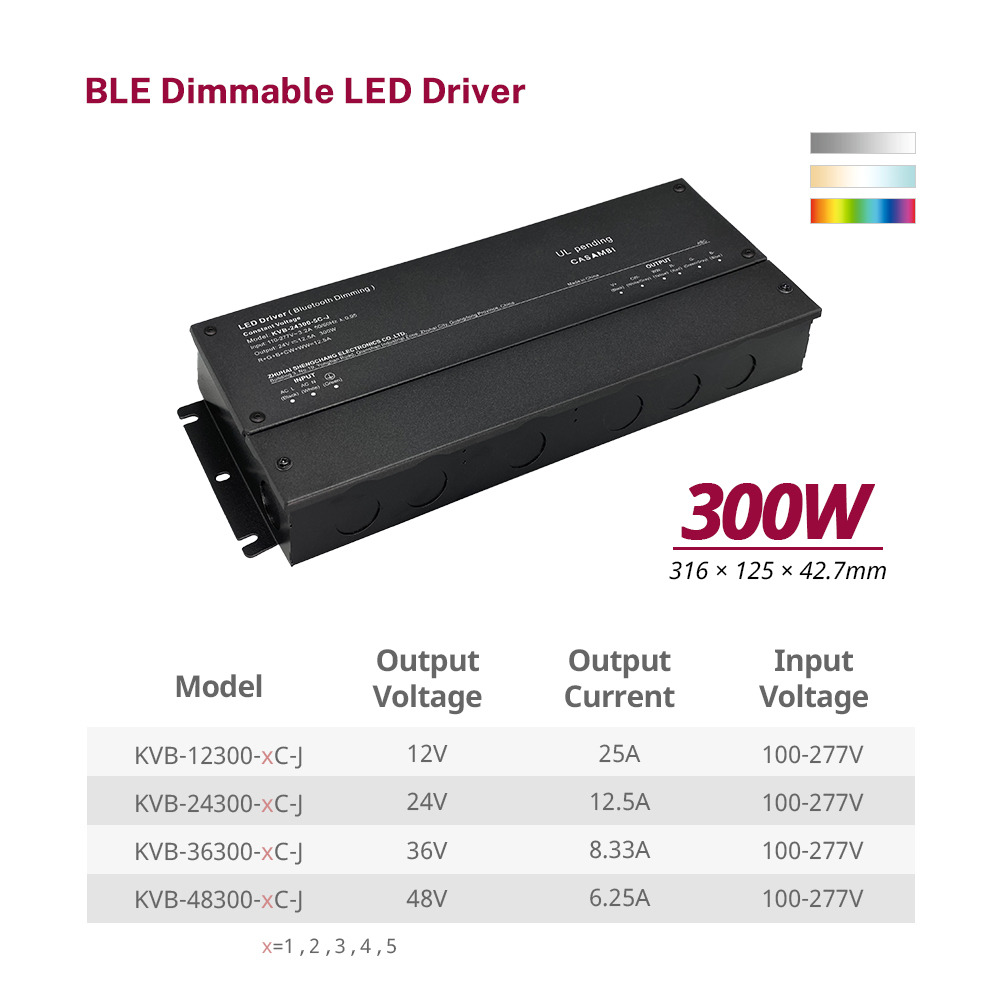

300W |
KVB-12300-XC-J |
12V |
25a |
PF 0.99 |
316*125*40mm (l*w*h) |
1.98kg |
KVB-24300-XC-J |
24V |
12.5a |
||||
KVB-36300-XC-J |
36V |
8.33A |
||||
KVB-48300-XC-J |
48V |
6.25a |
||||
