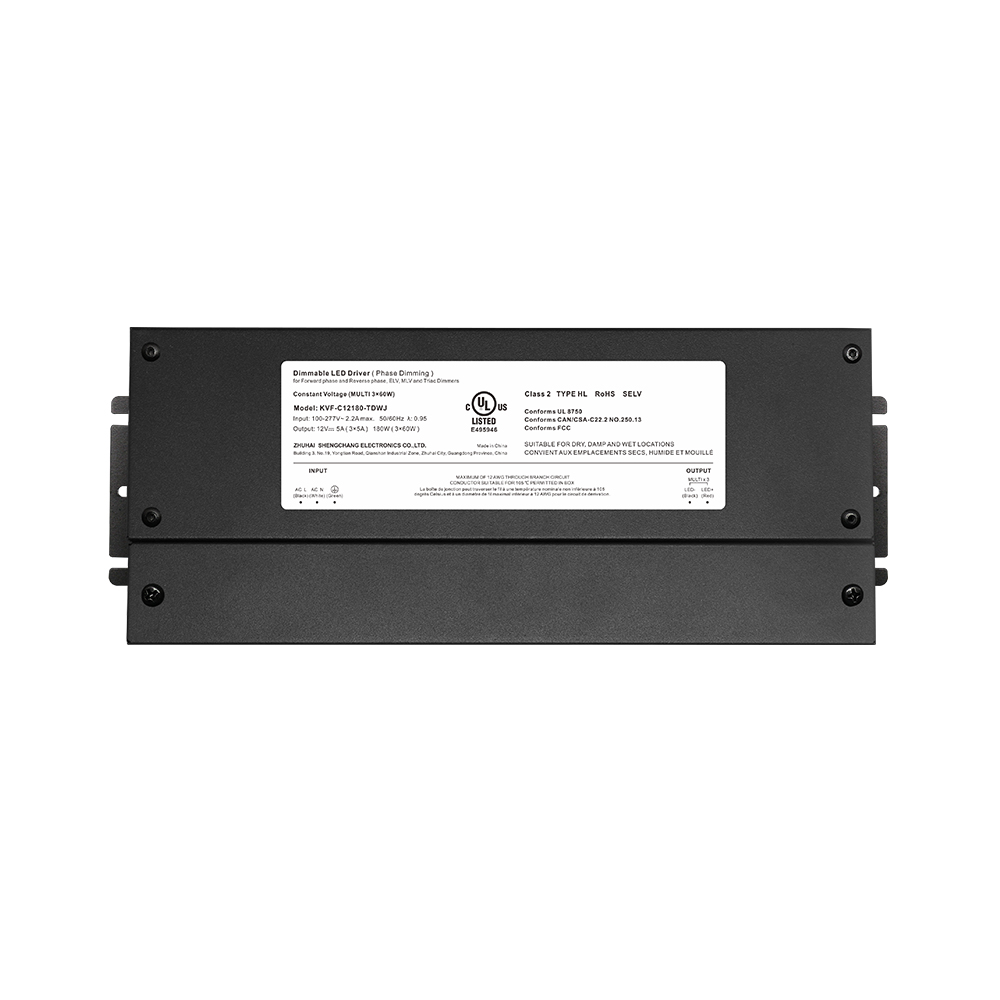

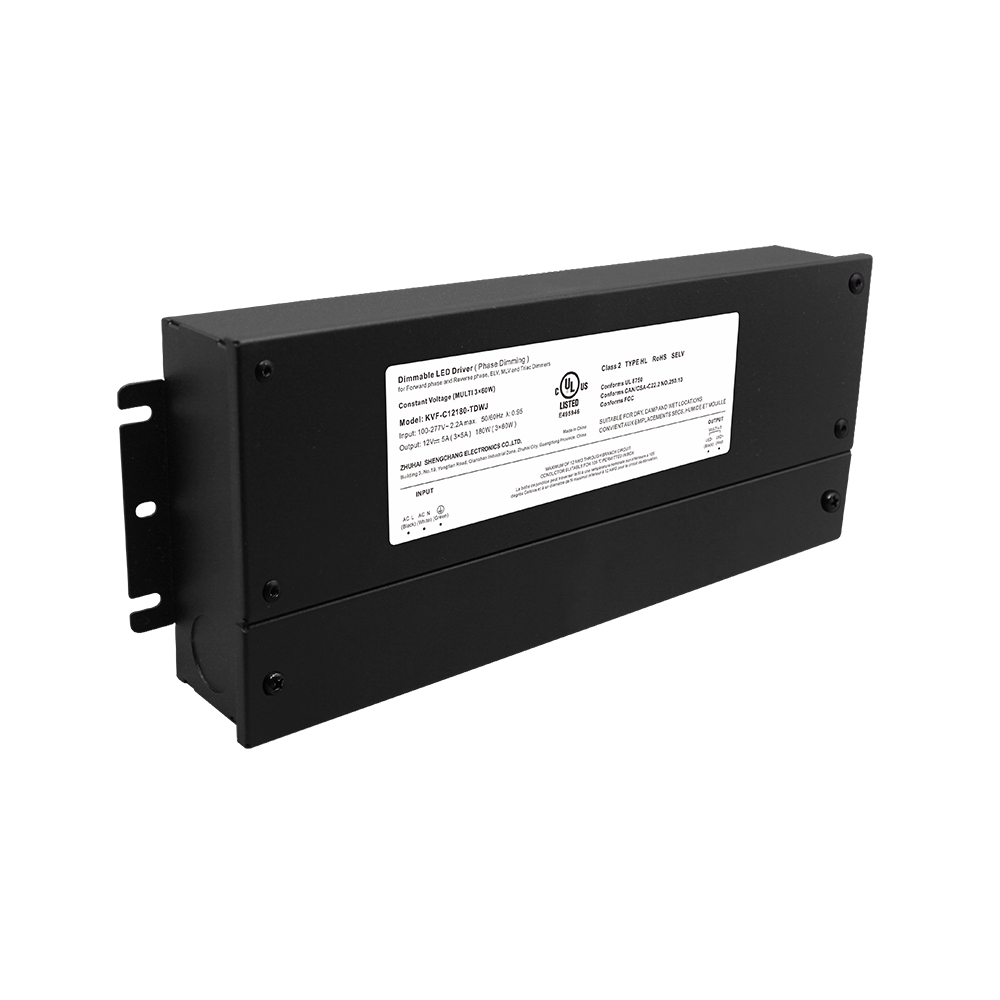

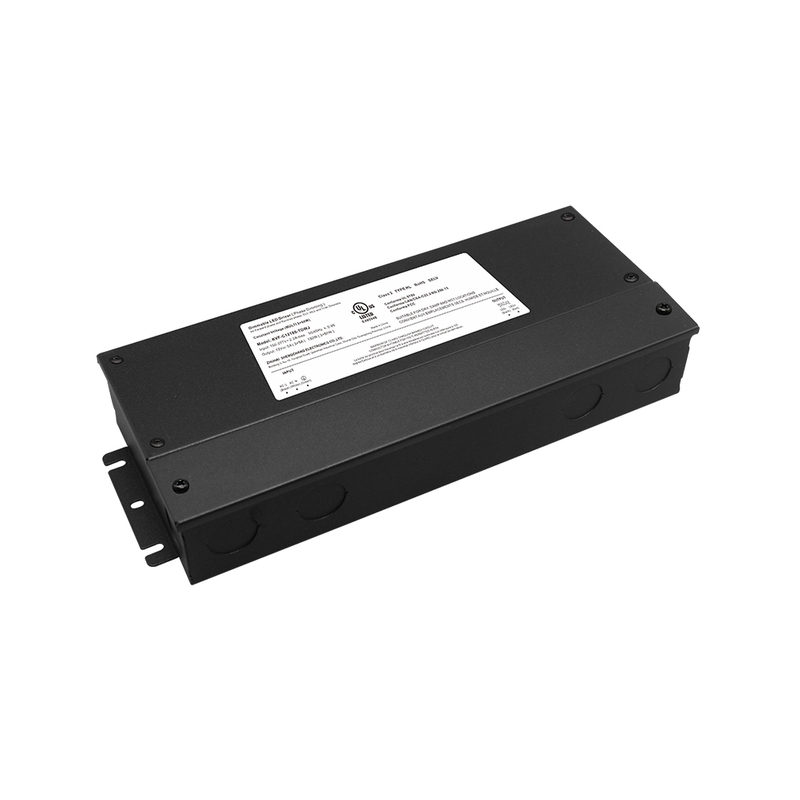

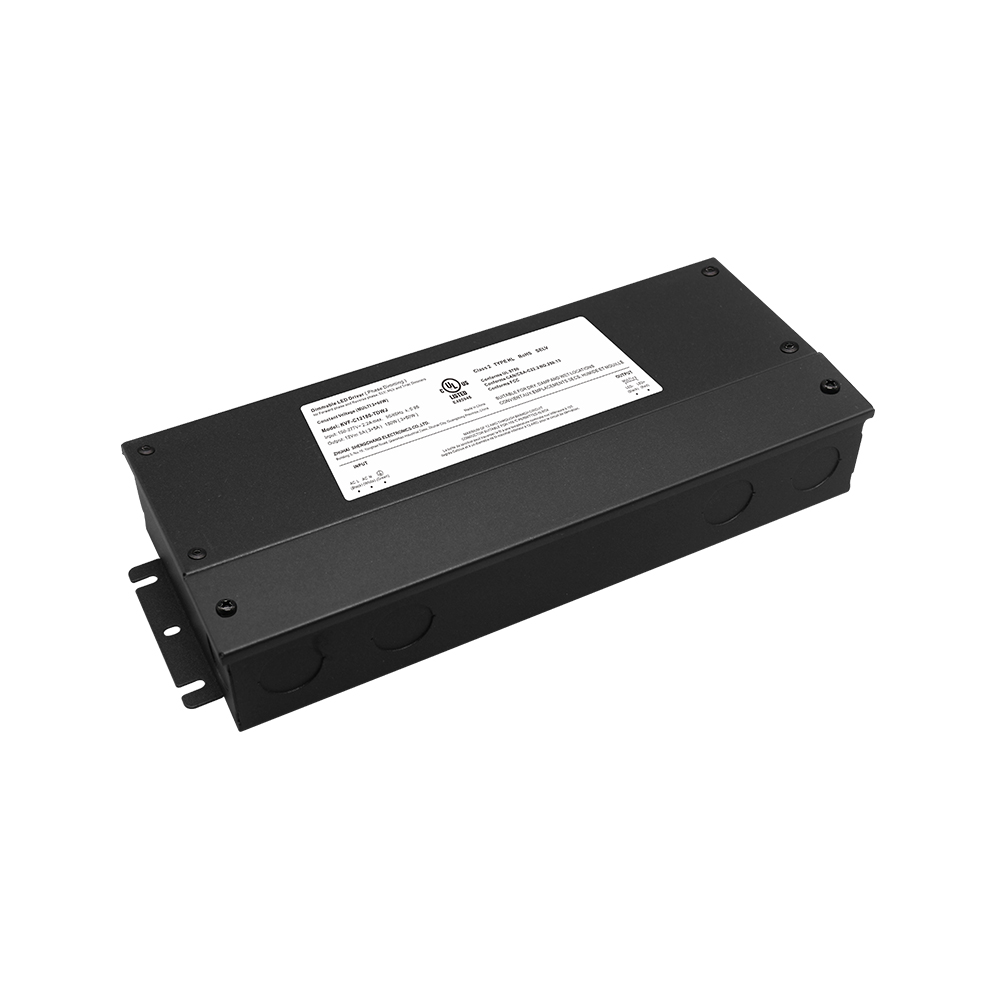

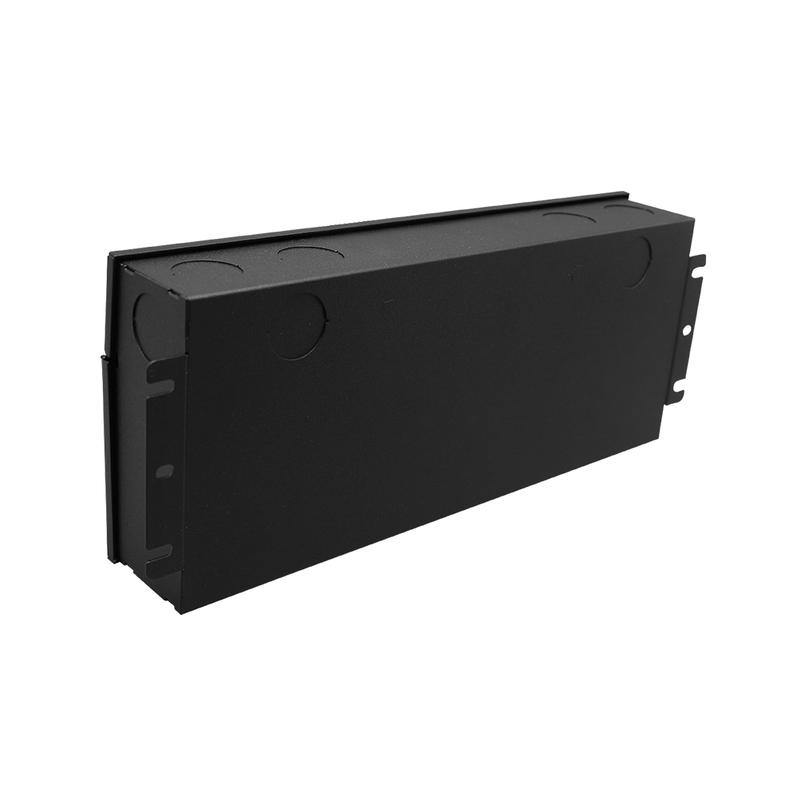

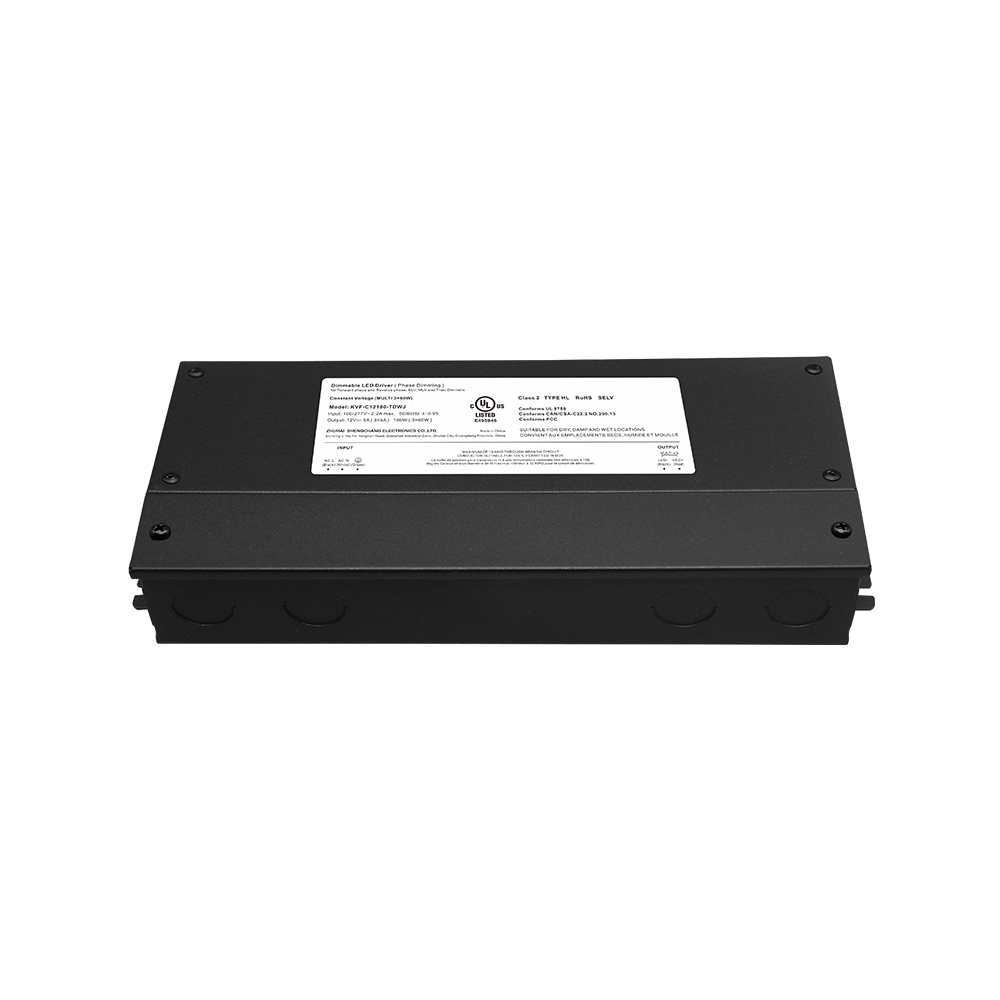

180W 192W 288W 300W 384W Triac Dimmable Class 2 Output LED Power Supply CV miaraka amin'ny Junction Box

180W 192W 288W 300W 384W Triac Dimmable Class 2 Output LED Power Supply CV miaraka amin'ny Junction Box

Hery mivoaka:	180W Kilasy 2 192W Kilasy 2 288W Kilasy 2 300W Kilasy 2 384W Kilasy 2
misy:



anontanio aloha Ampio amin'ny harona

Modely:
KVF-TDWJ
Karazana fanamaivanana:
Triac
Karazana mitoka-monina:
mitoka-monina
Karazana vokatra:
Voltage tsy miova
Fantsona Output:
Dimming
IP tahan'ny:
IP66, maina & mando, mando
Vola miditra:
100-277VAC
Hery mivoaka:
180W, 192W, 288W, 384W
Volavolan'ny vokatra:
12/24/36/48V
Fanamarinana:
UL & cUL, FCC, Class 2, CE, RoHS, REACH

tombony

180W 192W 288W 300W 384W Triac Dimmable Class 2 Output LED Power Supply CV miaraka amin'ny Junction Box

Patent US No. 9.942.959; No. 10.039.167; No. 9 661 710; No. 9 961 724

US Patents No. 11.723.164

Output:	Voltage tsy miova
Sarona:	100-277VAC
PFC famolavolana:	Fampiasa PFC mavitrika ao anatiny
Fiarovana:	Short circuit/ over load/ over temperature
Fandroahana hafanana:	Mangatsiaka amin'ny alàlan'ny convection rivotra maimaim-poana
Fampisehoana tsy tantera-drano:	Ho an'ny toerana maina, mando & mando
Fandevenana asa:	Fandevenana ny dingana: miasa miaraka amin'ny dingana mandroso, MLV ary dingana miverina, ELV, TRIAC dimmers.
Famaritana ny elanelana:	0-100%
Fampiharana:	Mety amin'ny fampiharana ny jiro LED
antoka:	5 taona garantie
hafa:	Famoahana PWM, hery avo lenta PF≥0.95, tsy misy flicker dimming

famaritana

Hery mivoaka	Output	Laharana modely	Volavolan'ny fivoahana	Output Current	Size	lanja

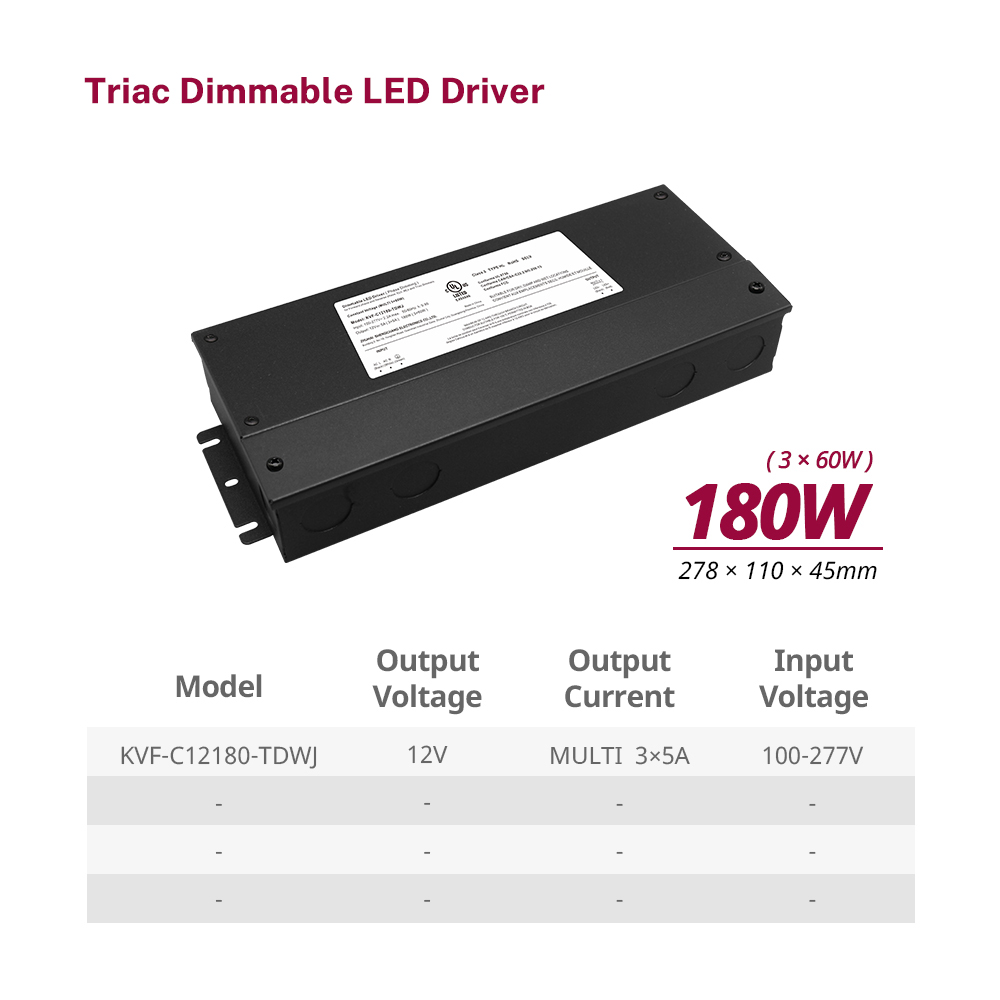

60W (60W * 1)	1 fantsona	KVF-12060-TDWJ	12V	5A * 1	18894.540mm	1,03 kg
180W (60W * 3)	3 fantsona	KVF-C12180-TDWJ	12V	5A * 3	2767847mm	1,6 kg
300W (60W * 5)	5 fantsona	KVF-C12300-TDWJ	12V	5A * 5	30111045mm	1,88 kg

96W (96W * 1)	1 fantsona	KVF-24096-TDWJ	24V	4A	2307043mm	1,12 kg
		KVF-36096-TDWJ	36V	2.67A
		KVF-49696-TDWJ	48V	2A
192W (96W * 2)	2 fantsona	KVF-C24192-TDWJ	24V	4A * 2	2767847mm	1,6 kg
		KVF-C36192-TDWJ	36V	2.67A * 2
		KVF-C48192-TDWJ	48V	2A * 2
288W (96W * 3)	3 fantsona	KVF-C24288-TDWJ	24V	4A * 3	30111045mm	1,88 kg
		KVF-C36288-TDWJ	36V	2.67A * 3
		KVF-C48288-TDWJ	48V	2A * 3
384W (96W * 4)	4 fantsona	KVF-C24384-TDWJ	24V	4A * 4	3227844mm	1,95 kg
		KVF-C36384-TDWJ	36V	2.67A * 4
		KVF-C48384-TDWJ	48V	2A * 4
