Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP20, Dry & Damp
100-277VAC
8W, 30W, 36W, 60W, 96W, 100W, 150W
UL & cUL, FCC, Class 2, CE, RoHS, REACH

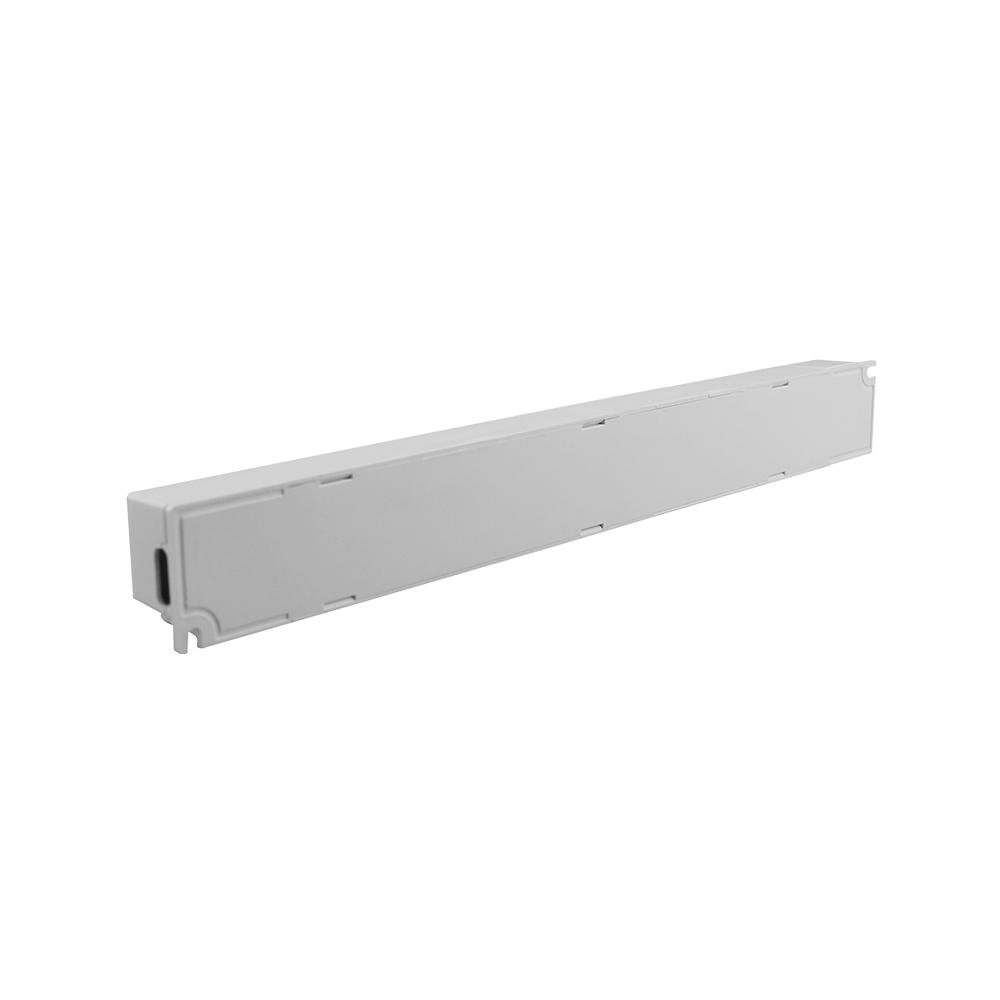

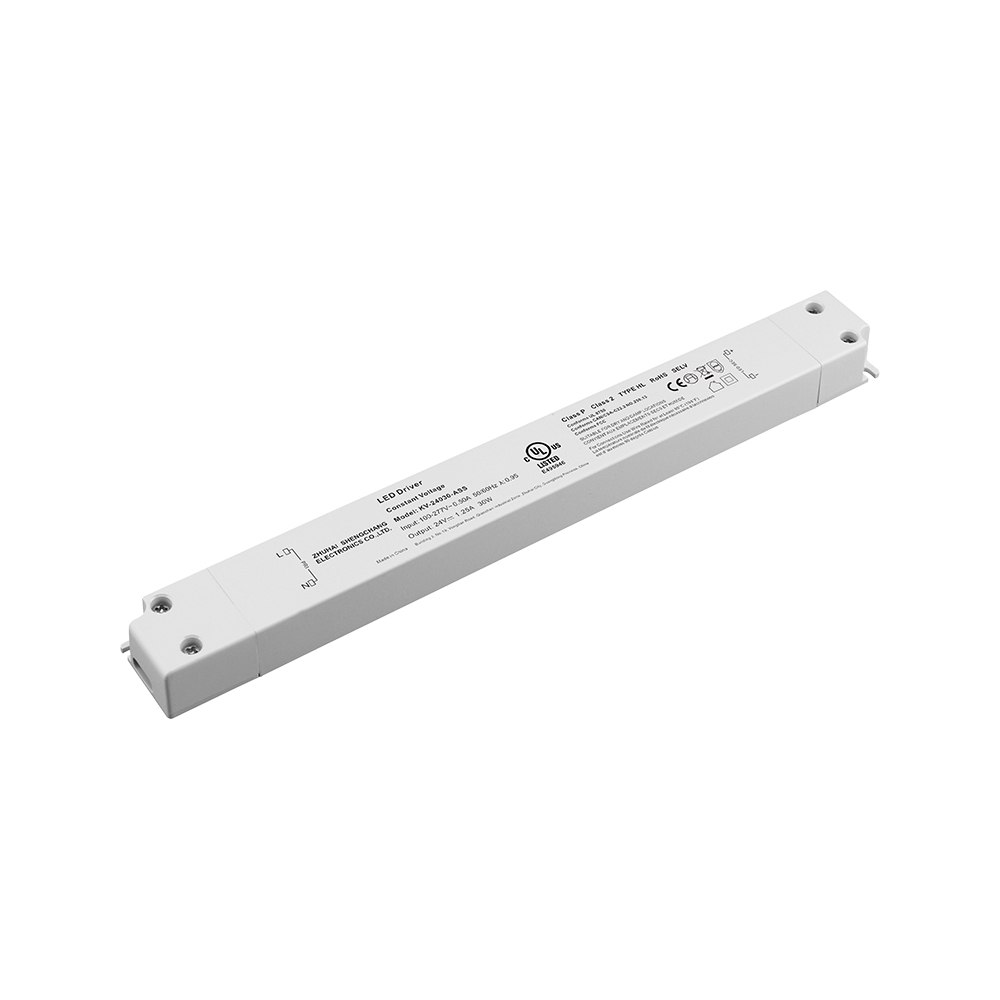

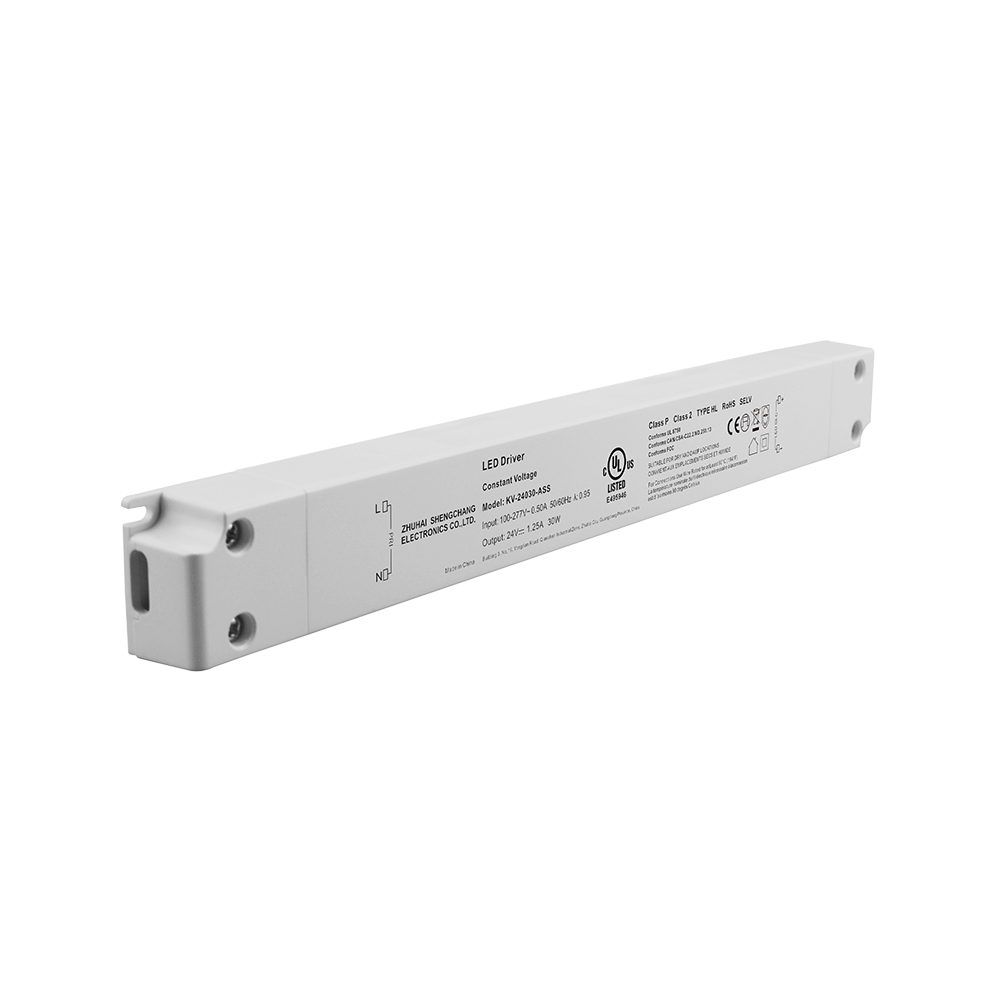

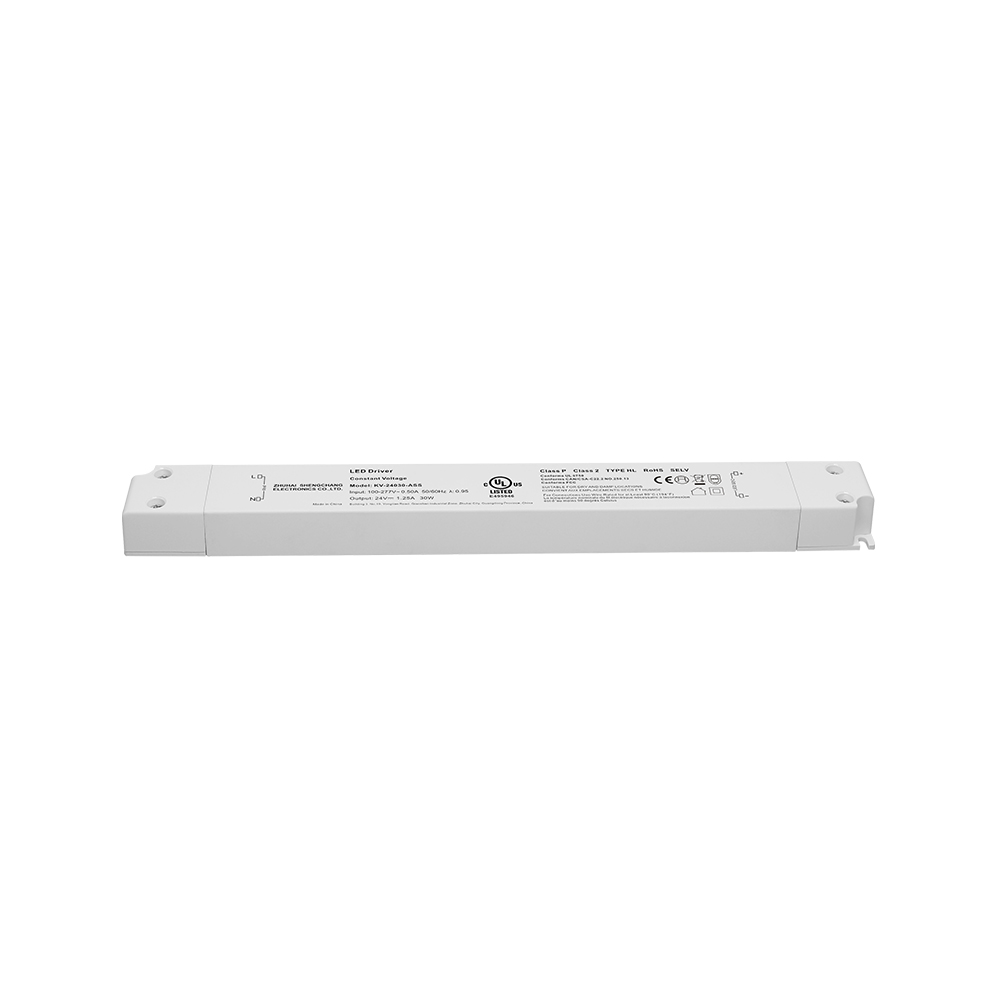

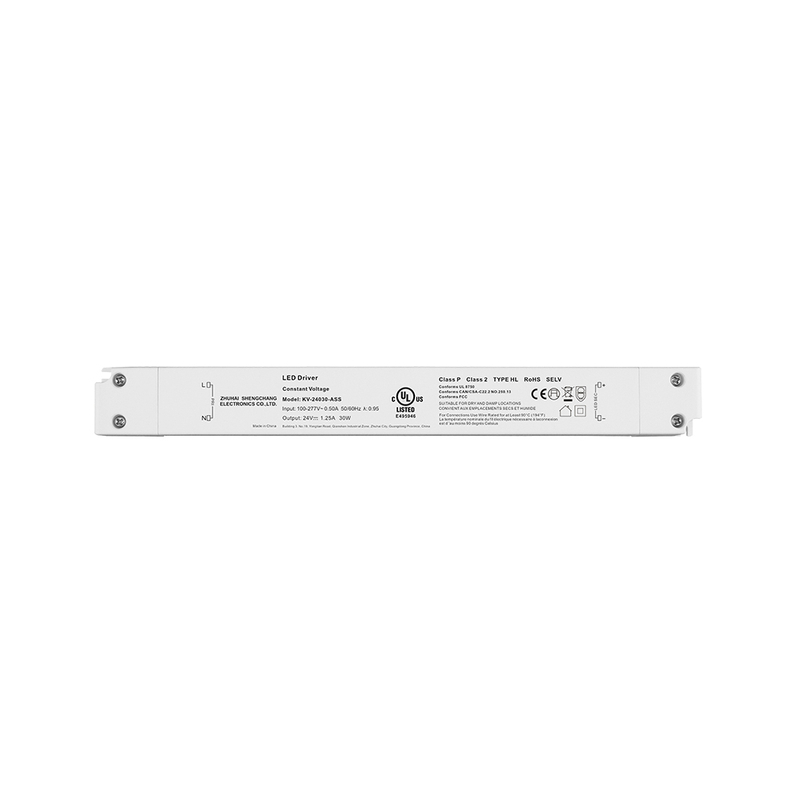

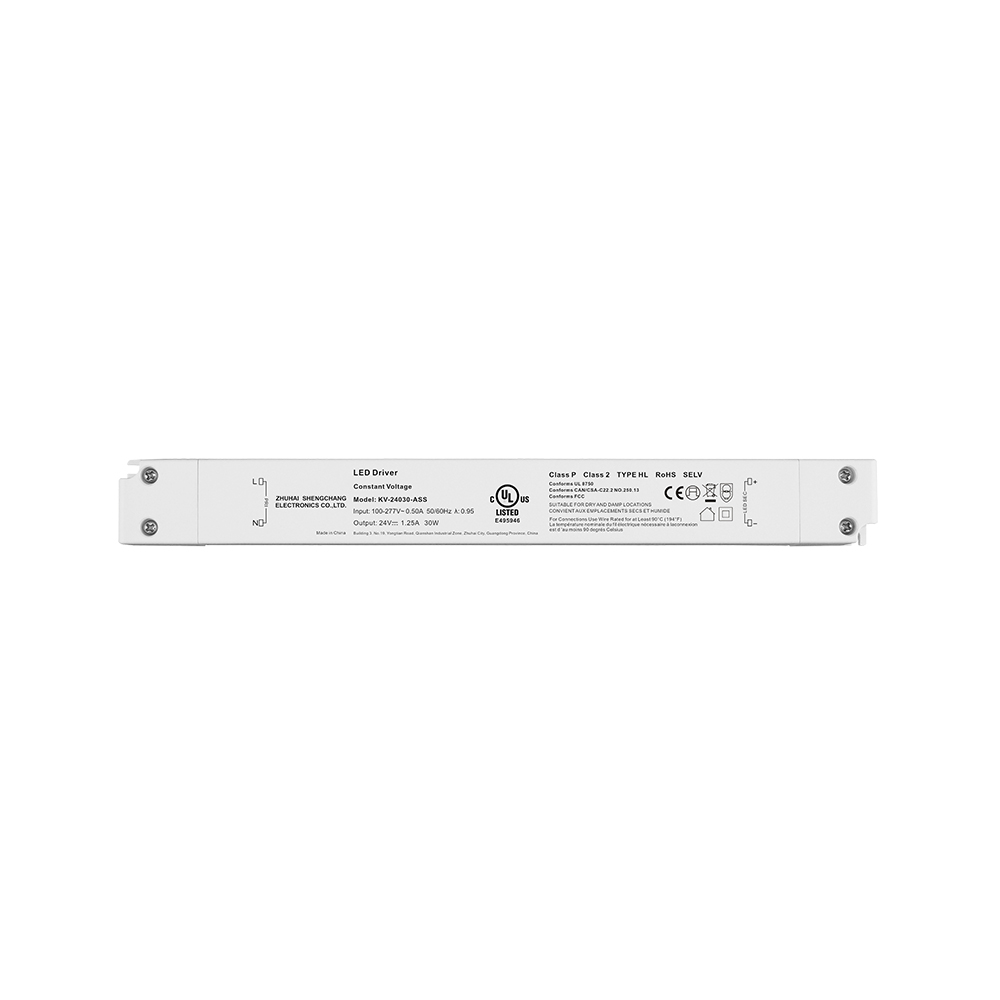

30W 36W 60W 96W 100W 150W ON/ OFF LED Lights LED Power Supply 12v 124v 36v 48v ac input - Linear Plastic LED Driver
Output: | Constant Voltage |
Input voltage range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 88% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp location(US) |
Dimming function: | Non-dimmable |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

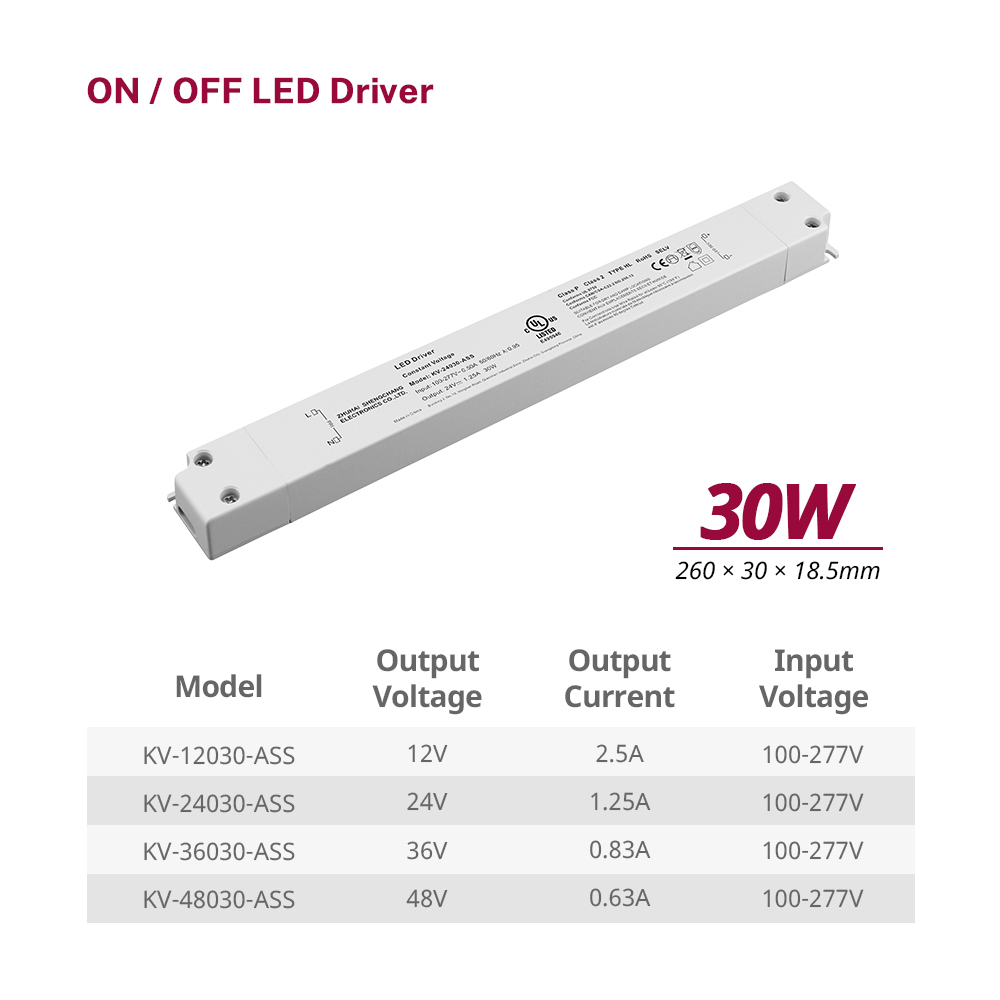

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KV-12030-ASS | 12V | 2.5A | 260*30*18.5mm | |
KV-24030-ASS | 24V | 1.25A | |||
KV-36030-ASS | 36V | 0.83A | |||
KV-48030-ASS | 48V | 0.63A | |||
36W | KV-12036-ASS | 12V | 3A | ||
KV-24036-ASS | 24V | 1.5A | |||
KV-36036-ASS | 36V | 1A | |||
KV-48036-ASS | 48V | 0.75A | |||
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | KV-12060-ASS | 12V | 5A | 300*30*18.5mm | |
KV-24060-ASS | 24V | 2.5A | |||
KV-36060-ASS | 36V | 1.67A | |||
KV-48060-ASS | 48V | 1.25A | |||
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
96W | KV-12096-ASS | 24V | 4A | 330*30*22mm | 0.32KG |
KV-24096-ASS | 36V | 2.67A | |||
KV-36096-ASS | 48V | 2A | |||
100W | KV-12100-ASS | 12V | 8.34A | ||
KV-24100-ASS | 24V | 4.17A | |||
KV-36100-ASS | 36V | 2.78A | |||
KV-48100-ASS | 48V | 2.08A | |||
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KV-12150-ASS | 12V | 12.5A | 368*30*22.5mm | |
KV-24150-ASS | 24V | 6.25A | |||
KV-36150-ASS | 36V | 4.17A | |||
KV-48150-ASS | 48V | 3.13A |
