How to Choose the Right 800W/1000W High-Power Constant Voltage Dimmable LED Driver for the North American Market?

As North American commercial buildings, hotels, and architectural lighting projects increasingly use long-run constant voltage LED strips, linear lights, and magnetic track lights, the demand for high-power constant voltage dimming power supplies is also growing.

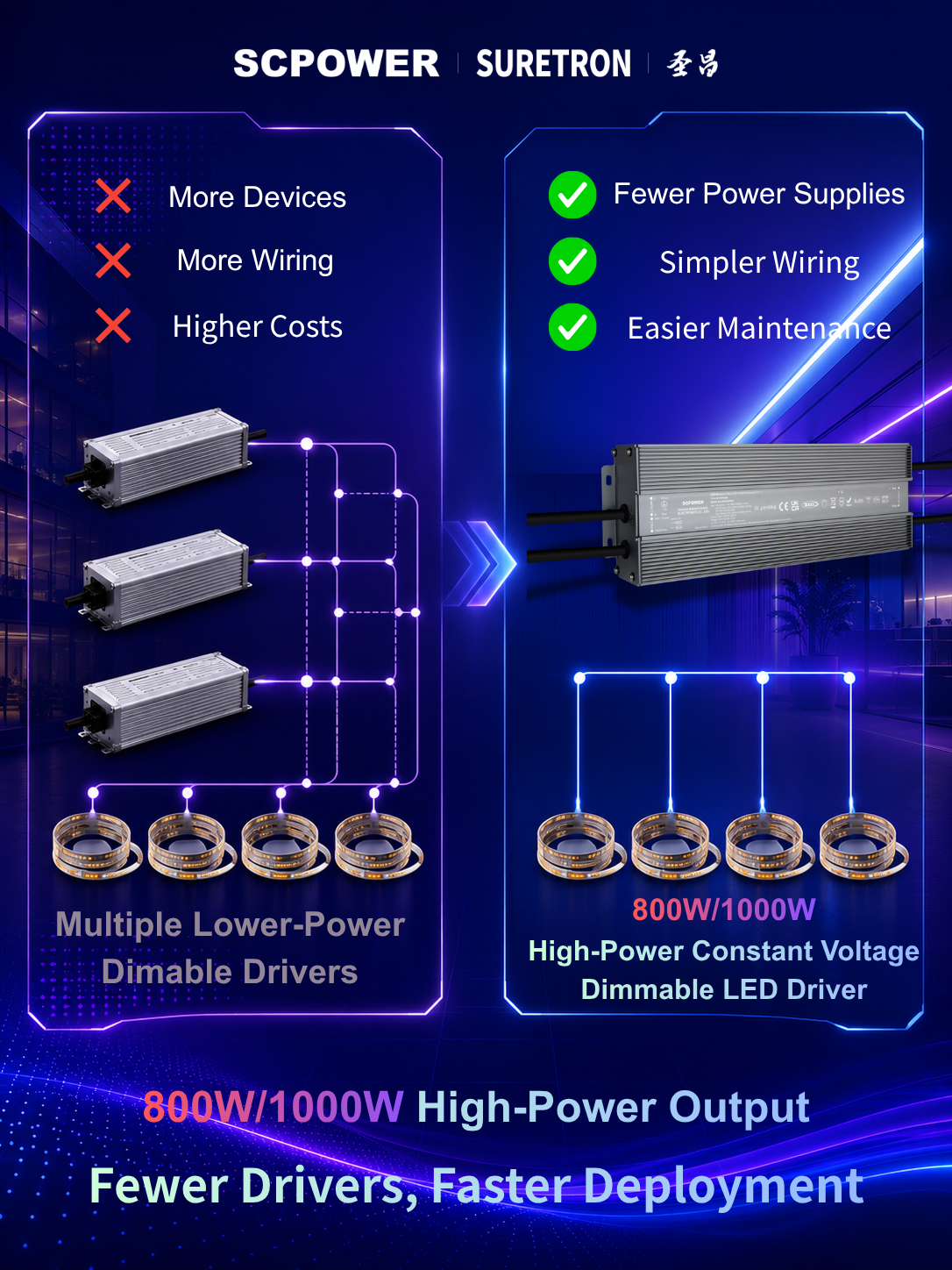

Compared with using multiple mid- or low-power units, an 800W or 1000W high-power power supply can reduce equipment count, simplify wiring, and lower maintenance complexity.

So, what should you look for when choosing an 800W/1000W high-power constant voltage dimming power supply for North American projects?

Does it meet North American certifications and electrical requirements?

Does it support major dimming protocols such as DALI-2, D4i, DMX512, and 0-10V?

Does it offer high efficiency, reliable protection, and stable long-term operation?

Does it support NFC or other fast configuration methods for easier installation and commissioning?

1.Meet North American Safety Certifications and Electrical Requirements

For North American projects, an LED dimming power supply should meet relevant safety standards such as UL 8750 and applicable project requirements, including FCC requirements and specifications such as Class 2, Class P, and Type HL.

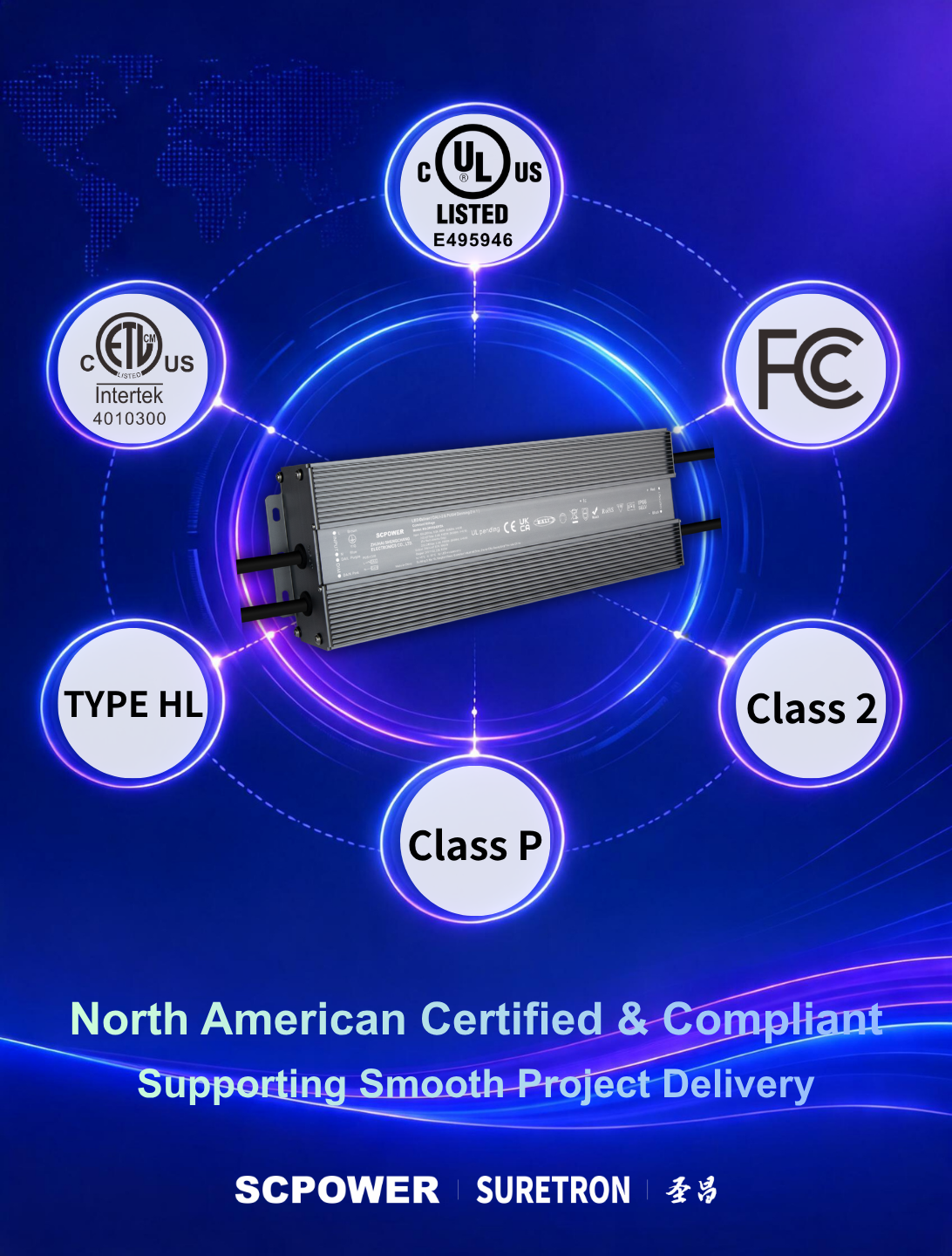

Suretron 800W/1000W high-power constant voltage LED dimming power supplies are UL, ETL, and FCC certified and meet Class 2, Class P, and Type HL requirements, as well as ICES, RoHS, and REACH requirements. This helps customers meet North American market access and project requirements more efficiently.

2.Support Major Dimming Protocols for Better Project Compatibility

North American lighting projects use a wide range of control systems. Different applications may require different dimming solutions.

According to research from the American Council for an Energy-Efficient Economy (ACEEE), 0-10V, DALI-2, and DMX are among the commonly used dimming protocols in North American lighting applications. 0-10V is widely used in commercial buildings for its simple wiring and cost efficiency. DALI-2 supports individual addressing and group control, making it suitable for smart buildings. DMX512 provides fast, multi-channel control and is commonly used for architectural and stage lighting.

Data source

https://www.aceee.org/sites/default/files/proceedings/ssb24/assets/attachments/20240722163153672_c19e8020-f906-4eaa-a220-71a7c749c92f.pdf?utm_source=chatgpt.com

Therefore, when selecting an 800W or 1000W high-power constant voltage dimming power supply, make sure it is compatible with the project's control system to avoid additional commissioning costs caused by compatibility issues.

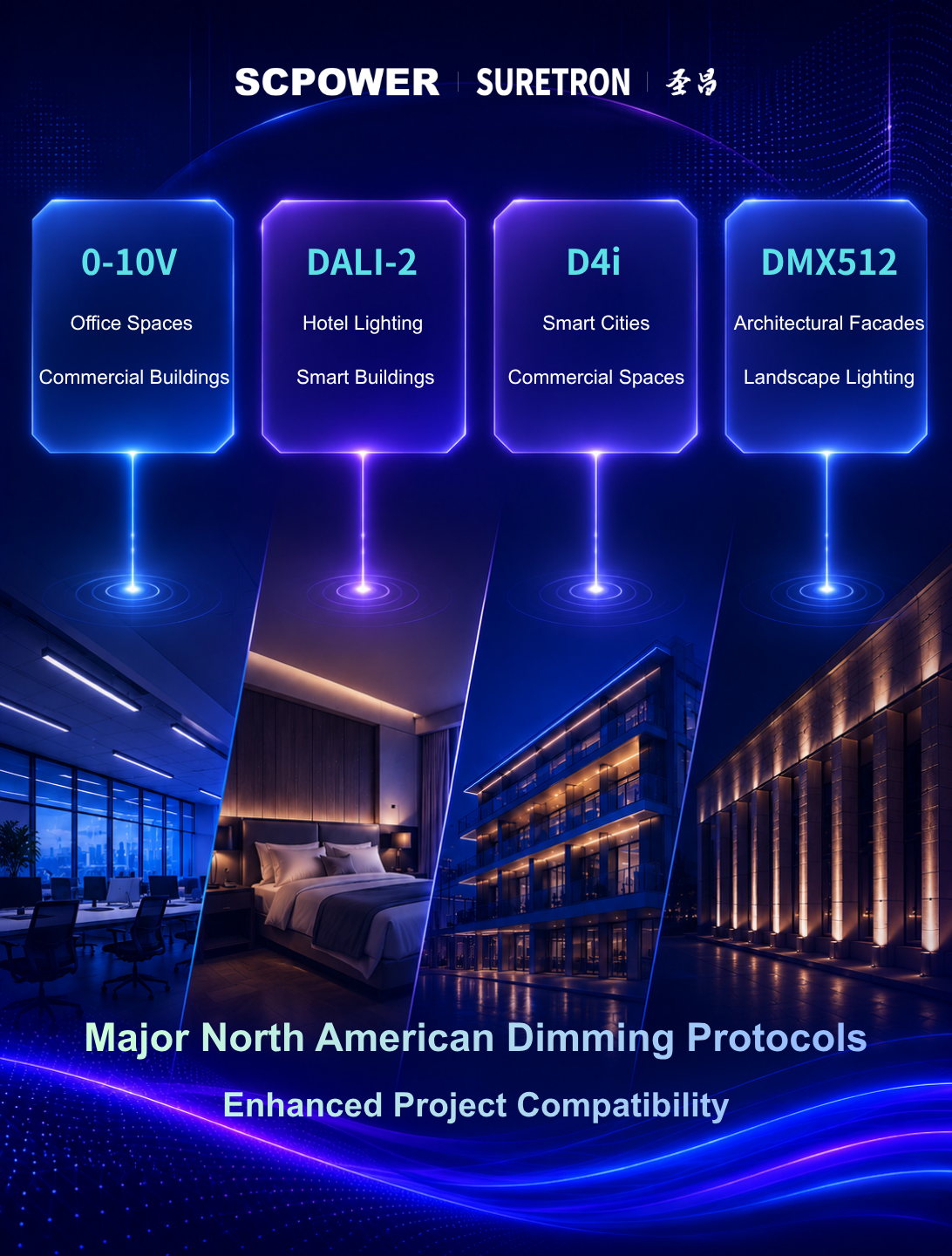

Suretron 800W/1000W high-power constant voltage dimming power supplies are available in DALI-2, D4i, DMX512, 0-10V, and non-dimming versions, allowing flexible selection for different project requirements.

3.Ensure Reliable Long-Term Operation for Large Lighting Projects

Lighting systems in hotels, commercial spaces, and architectural projects not only provide illumination but also influence the overall atmosphere and visual experience. Power supply failures or unstable output can affect lighting performance, increase maintenance costs, and even disrupt normal operations.

For these projects, pay close attention to efficiency, thermal management, output stability, and protection functions.

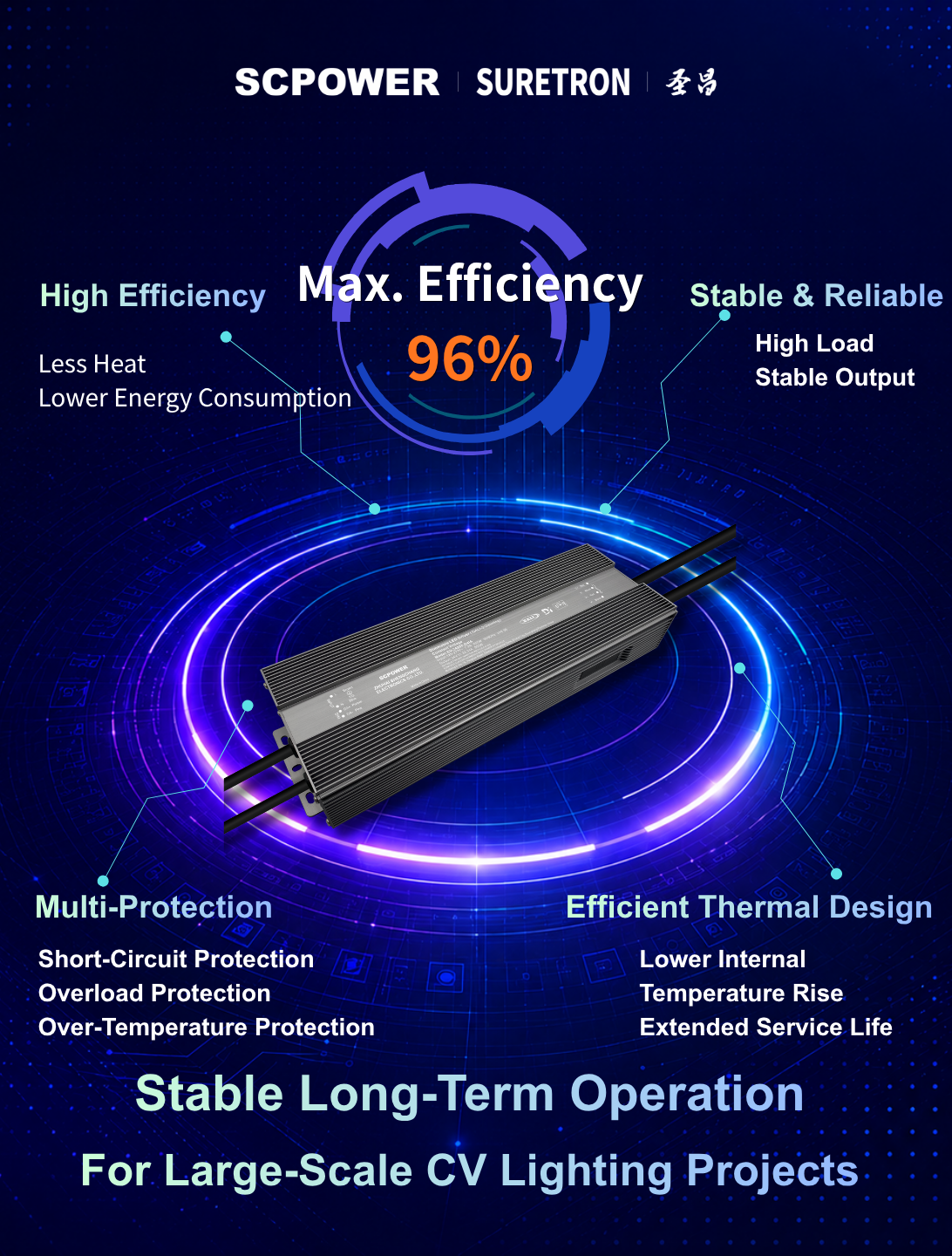

Suretron 800W/1000W high-power constant voltage dimming power supplies offer efficiency of up to 96%. High efficiency helps reduce energy loss and heat generation, contributing to lower internal temperatures and improved long-term reliability.The products also feature effective thermal management for stable output under continuous high-load operation, along with short-circuit, overload, and over-temperature protection to reduce the risk of damage and provide more reliable lighting performance.

4.Enable Fast Configuration and Commissioning

For large North American projects that require multiple LED dimming power supplies, fast parameter configuration can reduce on-site commissioning time and improve installation efficiency.

Suretron 800W/1000W high-power constant voltage dimming power supplies support NFC programming, enabling fast configuration of parameters such as address settings and fine output voltage adjustment. Batch programming is also supported, making project commissioning and maintenance more efficient.

Designed for the North American market, Suretron 800W/1000W high-power constant voltage LED dimming power supplies combine stable output, certification compliance, multiple dimming protocols, NFC programming, and high efficiency.They provide a smart, efficient, and reliable solution for large-scale constant voltage lighting projects across North America.

FAQ

1.What projects are 800W/1000W high-power constant voltage dimming power supplies suitable for?

They are suitable for large commercial buildings, hotels, offices, exhibition spaces, and architectural lighting projects using long-run LED strips, linear lights, magnetic track lights, and other constant voltage lighting systems.

2.Why choose a UL-certified LED dimming power supply for North American projects?

UL certification is widely recognized for product safety in North America and is an important requirement for many lighting projects. Choosing a UL-certified LED dimming power supply helps meet local safety and project requirements and improves product suitability for the North American market.

3.How do I choose between an 800W and 1000W power supply?

Selection should be based on the actual load, design margin, and potential future expansion. Consider the total LED load, operating conditions, and system requirements rather than relying only on the rated power.

4.What dimming methods are commonly used in large North American constant voltage lighting projects?

Common options include DALI-2, D4i, DMX512, 0-10V, and non-dimming solutions. Always make sure the LED dimming power supply supports the control protocol required by the project.
