In commercial lighting projects, selecting a dimming driver is not simply about choosing a product—it’s about making a more critical decision:
Do you need precise management, or dynamic lighting performance?
The two mainstream solutions today—DALI-2 and DMX512—represent fundamentally different control logics. Choosing the wrong one doesn’t just affect lighting experience; it can also increase long-term maintenance costs and system complexity.
In real-world applications, the differences between DALI-2 and DMX512 are mainly reflected in three aspects: control logic, dimming performance, and application scenarios.
1.Control Logic
DALI-2 adopts a bi-directional communication mechanism. The system can not only send commands but also receive feedback from luminaires, such as brightness levels, energy consumption, and even fault status.
This makes it more like a manageable lighting system, ideal for projects requiring centralized control and long-term operation.
In contrast, DMX512 uses unidirectional communication, focusing on fast response and real-time control.
It controls lighting through channels, enabling precise point-to-point operation. Although it lacks feedback capability, it offers greater flexibility for dynamic lighting effects.
2.Dimming Performance
DALI-2 emphasizes stability and consistency.
For example, in office environments, it ensures uniform brightness transitions across fixtures, avoiding flickering or inconsistency—making it ideal for long-duration usage.
DMX512, on the other hand, focuses on dynamics and rhythm.
It can achieve complex lighting effects such as color transitions, chasing sequences, and scene changes, making it more suitable for creating ambiance and visual impact.
3.Application Scenarios
For spaces dominated by functional lighting, such as offices, shopping malls, and hotels, DALI-2 is generally the better choice.
It can integrate with building management systems to enable energy efficiency and automation.

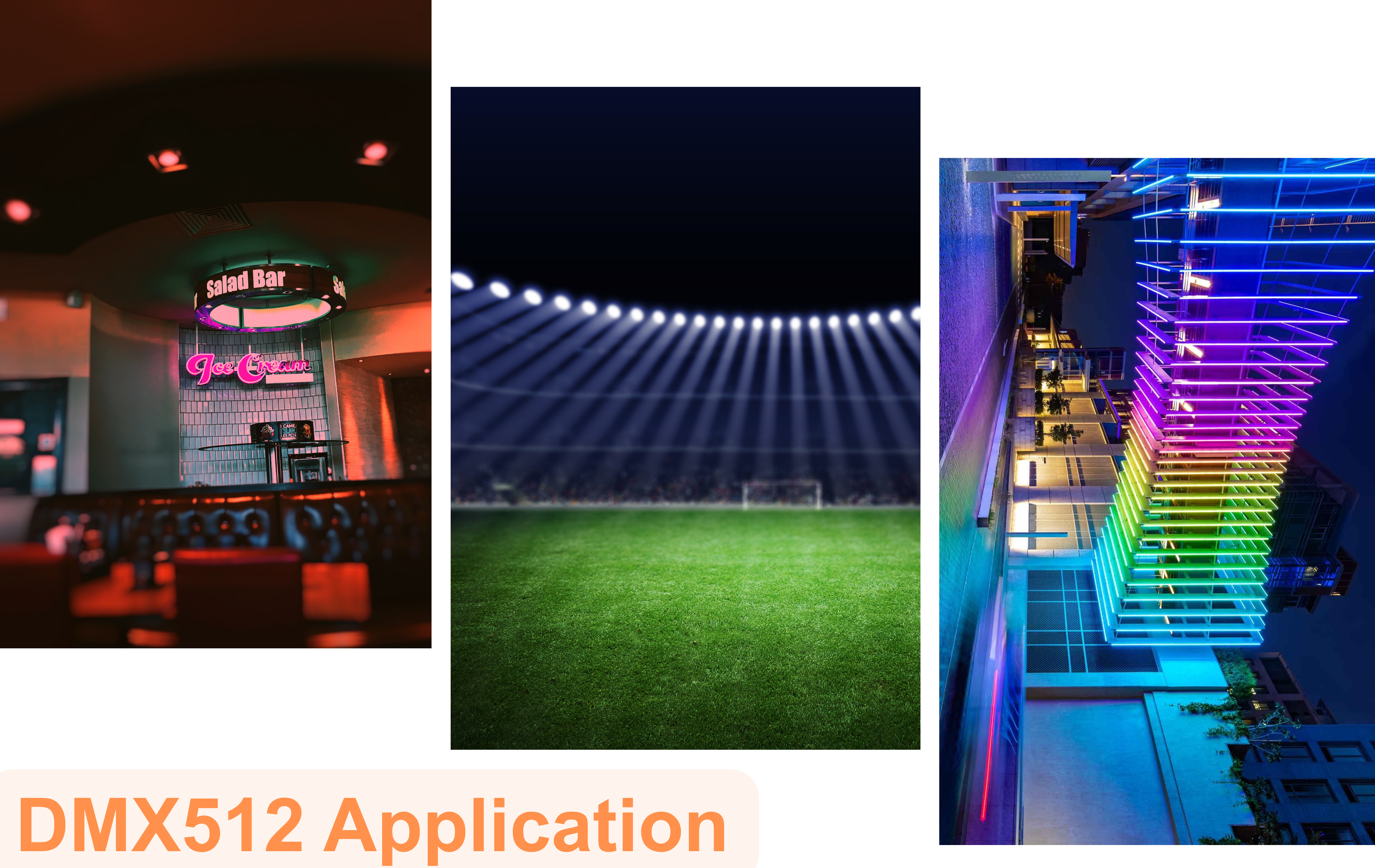

For effect-oriented lighting scenarios—such as façades, hospitality spaces, theaters, or exhibition halls—DMX512 has clear advantages, offering greater flexibility for creative lighting design.
Feature
DALI-2
DMX512
Communication
Bi-directional (with feedback)
Unidirectional
Control Method
Grouping & device management
Channel-based point control
Dimming Style
Smooth & stable
Fast & dynamic
Typical Applications
Commercial / office lighting
Entertainment / façade lighting

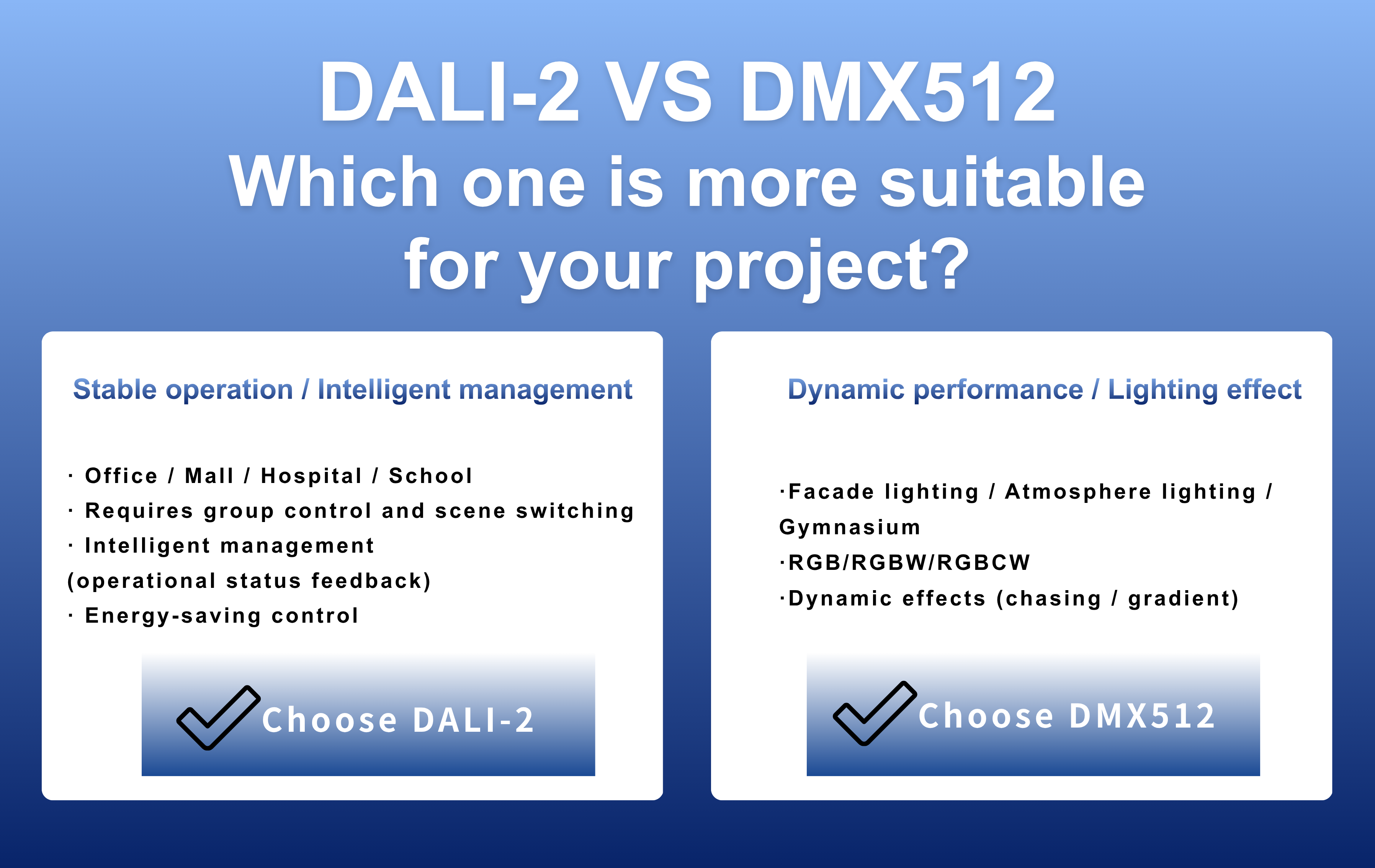

How to Choose Based on Your Project?
Key Question
If your answer is…
Recommended Protocol
Why
What is the core goal?
Stable operation & centralized management
✅ DALI-2
Supports grouping, scenes, and system-level control
Dynamic effects & visual impact
✅ DMX512
Strong performance in dynamic lighting
Is intelligent maintenance needed?
Yes (status, faults, energy monitoring)
✅ DALI-2
Bi-directional communication enables monitoring
No, only lighting control required
✅ DMX512
Simpler unidirectional control
Type of lighting?
Functional lighting (downlights, panels)
✅ DALI-2
Stable and comfortable dimming
RGB / RGBW / strips / façade
✅ DMX512
Multi-channel color & effect control
Need complex effects?
No (basic dimming & scenes)
✅ DALI-2
Sufficient and more stable
Yes (chasing, fading, music sync)
✅ DMX512
Faster response, better effects
Project scale & complexity?
Large-scale / smart building
✅ DALI-2
Scalable and standardized
Small to mid-scale / standalone
✅ DMX512
Simpler architecture
Future expansion?
Likely to expand or modify
✅ DALI-2
Flexible reconfiguration
One-time setup, minimal changes
✅ DMX512
Efficient fixed control
Conclusion
Choosing a dimming system is not a matter of comparing technologies, but of matching the right solution to the project’s needs.
In practice, DALI-2 is better suited for building stable and efficient functional lighting systems, while DMX512 excels in delivering expressive and dynamic lighting effects.
Based on these differentiated requirements, Suretron’s DALI-2 and DMX512 dimmable drivers have been widely applied in office buildings, commercial complexes, and hospitality projects.
With reliable performance in dimming precision, system compatibility, and long-term stability, they help customers achieve more efficient and flexible lighting control solutions.
