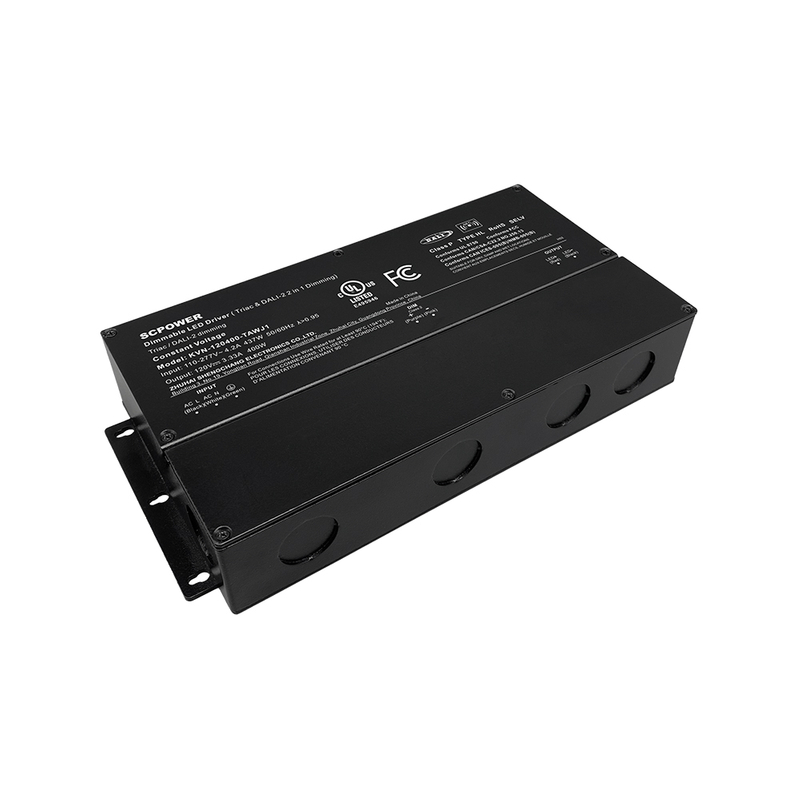

150W 200W 400W 600W CV Triac DALI-2 LED Strip Kuranko 120 V 1250 5000 mA DC Kɛnɛma

150W CV Triac DALI-2 LED Strip Kuranko 120 V 1250 5000 mA DC Kɛnɛma

150W 200W 400W 600W CV Triac DALI-2 LED Strip Kuranko 120 V 1250 5000 mA DC Kɛnɛma

Mɔdɛli:	150W ye 200W ye 400W ye 600W ye
A sɔrɔli:



Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

Mɔdɛli:
KVN-TAWJ1 ye
Dimming suguya:
DALI-2 D4i ye
Isolated Type:
Non isolé (ka bɔ ɲɔgɔn na).
Bɔli suguya:
Voltage basigilen
Bɔli siraw:
Dimming (dimi) ye
IP hakɛ:
IP66, Jalen & Jalen
Voltage min bɛ don a kɔnɔ:
100-277VAC ye
Bɔli Sebaaya:
150W, 200W, 400W, 600W ye
Seereyali:
UL & cUL, CE, RoHS, ƝƐNABƆLI

Nafa

150W 200W 400W 600W CV Triac DALI-2 LED Strip Kuranko 120 V 1250 5000 mA DC Kɛnɛma

Bɔli: 1.1.	Voltage basigilen
Labɛnko ɲuman:	100-277VAC ye
PFC dilancogo:	Factor high power factor active PFC latilenni 0,98walima ka tɛmɛ o kan
Nɔ kaɲi:	Fo ka se 91,5% ma .
Lakanali minnu bɛ kɛ:	Kurukuru/ Doni tɛmɛnen/ Funteni tɛmɛnen/ Voltage tɛmɛnen
Funteni bɔli:	Nɛnɛ bɛ kɛ ni fiɲɛ jiginni ye fu
Ji-yɔrɔ-ko baarakɛcogo:	Yɔrɔ jalenw ni jisumayɔrɔw kama
Dimming baarakɛcogo:	Ni dimi suguya caman bɛ yen : tirisitɛri / 0-10V / 1-10V / 10V PWM / potentiomètre / DMX512 / DALI-2 DT6 / Casambi / graffiti
Dimming range: 1. Bamako, Mali.	0,09%-100% 244Hz ) 、 0,1%-100% 800Hz ) 、 ( ( 4KHz 0,1 -100% ( )%
Waleyali:	A bɛnnen don LED yeelenbɔcogo ma
Garanti min bɛ sɔrɔ:	San 5 garanti
Dɔ wɛrɛw:	PWM bɔli, flicker-free dimming

Kɛrɛnkɛrɛnnenya la

Bɔli Sebaaya	Model Numɛri	Voltage (Bɔli) min bɛ bɔ	Bɔli Kuran	Kundama	Girinya
150W ye	KVN-120150-TAWJ1 ye baara kɛ ni a ye	120V ye	1.25A	205,411842,7mm ye
200W ye	KVN-120200-TAWJ1. Bamako, Mali	120V ye	1.67A	205,411842,7mm ye
400W ye	KVN-120400-TAWJ1 ye baara kɛ ni a ye	120V ye	3.33A	23211640mm ye
600W ye	KVN-120600-TAWJ1 ye baara kɛ ni a ye	120V ye	5A	2798540mm ye

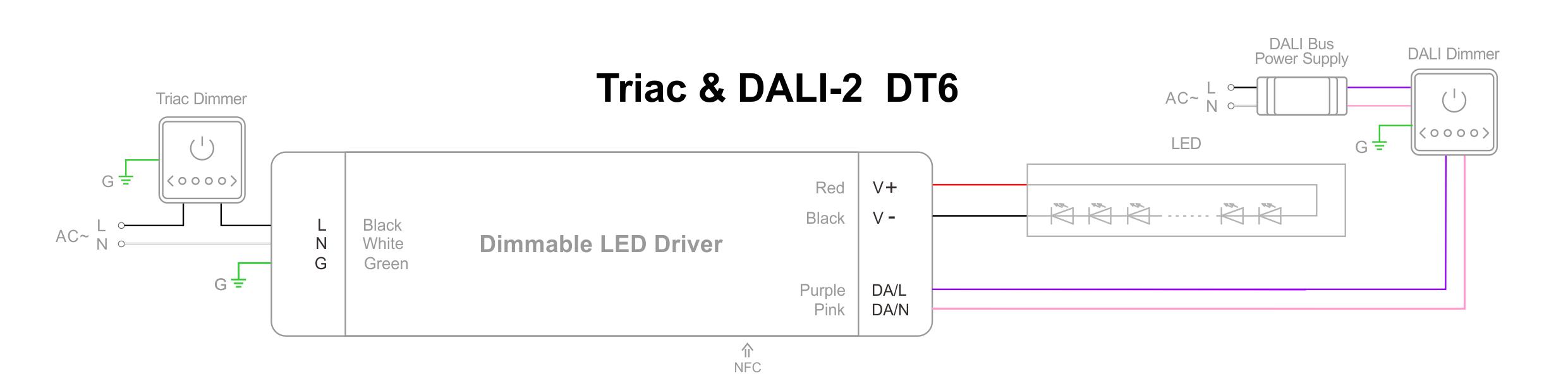

Triac DALI-2 LED Strip Kuran dilancogo Wiring Diagram

KVN-TAWJ1-3 ye

Fɛn dilannenw ɲɛfɔli:

A dabɔra walasa ka fanga di LED sɛrɛkiliw ma minnu fanga ka bon, nin sofa in bɛ watti suguya caman di (150W, 200W, 400W, 600W) walasa ka bɛn tigitigi porozɛw ma minnu ka bon walima minnu ka kan ka kɛ ni yeelen ye. A ka kokuradonni min bɛ bɔ kɛnɛ kan, o ye bɛnkan fila ye ni Triac (ɲɛnamaya-yɔrɔ) ani DALI-2 nizɛri dimming protocoles fila bɛɛ ye — ka izini ɲɛmɔgɔw ka fɛn caman sɛgɛsɛgɛli ni u kɔlɔsili di. Fɛn min bɛ se ka da a kan, o ye fanga saniyalen, sabatilen ye sigida lamini na, jagokɛyɔrɔ yeelen na, ani fɛn dilanni yeelen na.
