DALI-2 D4i
Non isolated
Constant Voltage
Dimming
IP66, Dry & Damp
100-277VAC
150W, 200W, 400W, 600W
UL & cUL, CE, RoHS, REACH

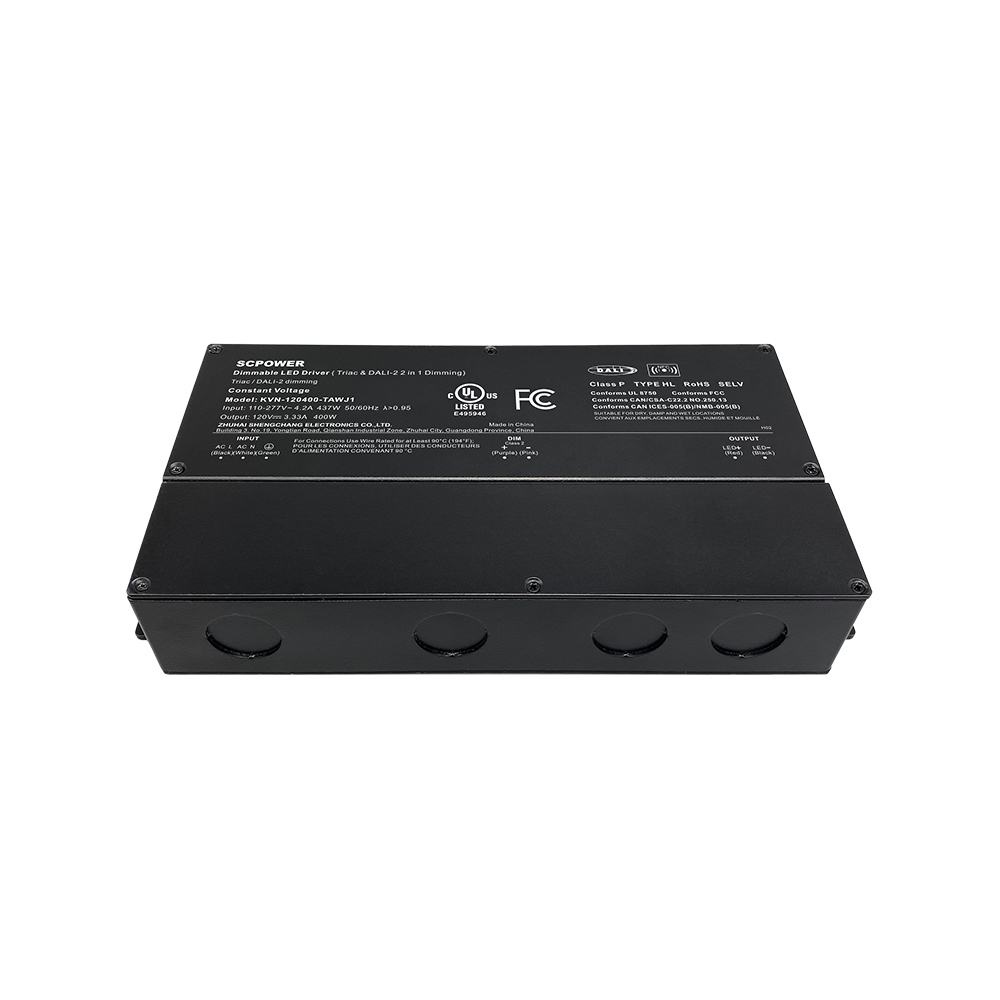

150W 200W 400W 600W CV Triac DALI-2 LED Strip Power Supply 120 V 1250 5000 mA DC Outdoor
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | High power factor active PFC correction 0.98or more |
Efficiency: | Up to 91.5% |
Protections: | Short circuit/ Over load/ Over temperature/Over voltage |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations |
Dimming function: | With a variety of dimming options: thyristor / 0-10V / 1-10V / 10V PWM / potentiometer / DMX512 / DALI-2 DT6 / Casambi / graffiti |
Dimming range: | 0.09%-100%（244Hz）、0.1%-100%（800Hz）、0.1%-100%（4KHz）、0.15%-100%（20KHz） |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |

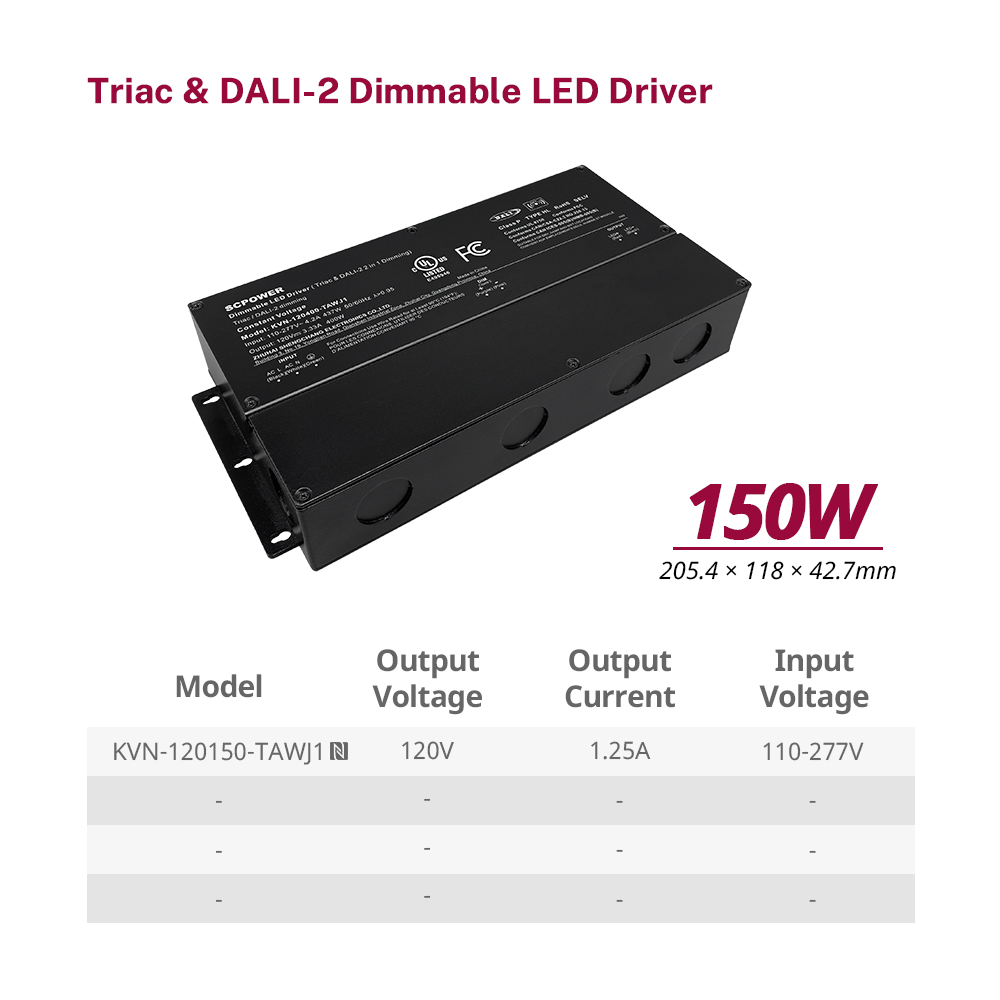

150W | KVN-120150-TAWJ1 | 120V | 1.25A | 205.4*118*42.7mm | |
200W | KVN-120200-TAWJ1 | 120V | 1.67A | ||

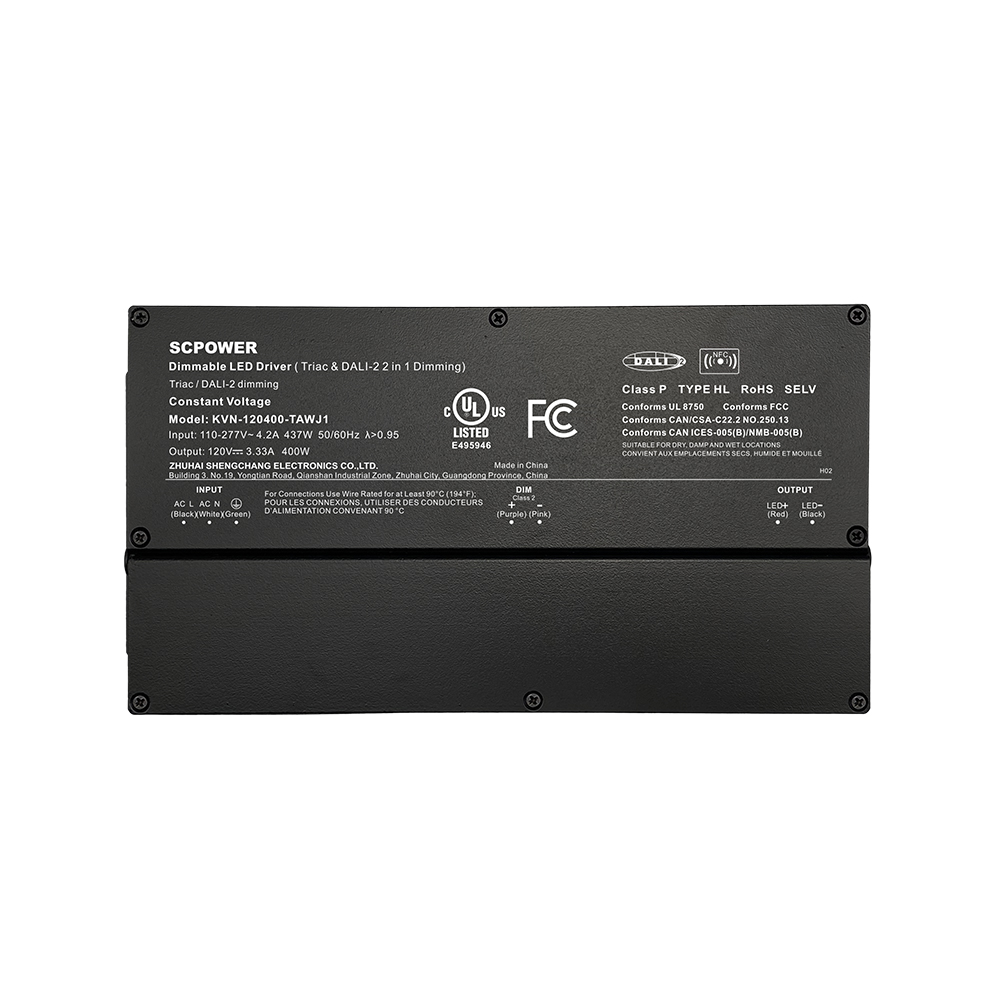

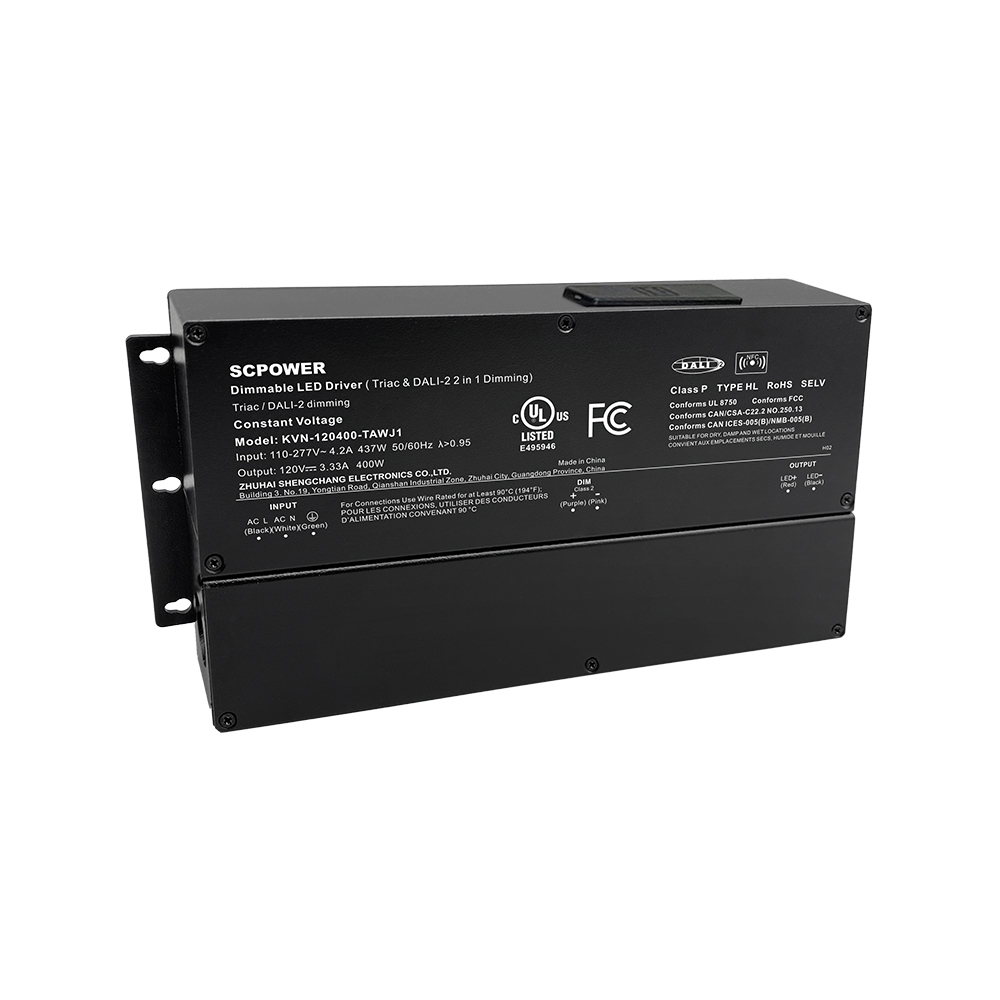

400W | KVN-120400-TAWJ1 | 120V | 3.33A | 232*116*40mm | |
600W | KVN-120600-TAWJ1 | 120V | 5A | 279*85*40mm |
Triac DALI-2 LED Strip Power Supply Wiring Diagram
Product Description:
Engineered to power high-intensity LED strips, this driver offers multiple wattage options (150W, 200W, 400W, 600W) to precisely match projects of any scale or brightness requirement. Its standout innovation lies in dual compatibility with both Triac (leading-edge) and DALI-2 digital dimming protocols—delivering industry-leading flexibility and control. The trusted solution for pure, stable power in residential ambiance, commercial lighting, and architectural illumination.
