DALI-2 D4i
Non isolated
Constant Voltage
Dimming
IP66, Dry & Damp
100-277VAC
150W, 200W, 400W, 600W
UL & cUL, FCC, CE, RoHS, REACH

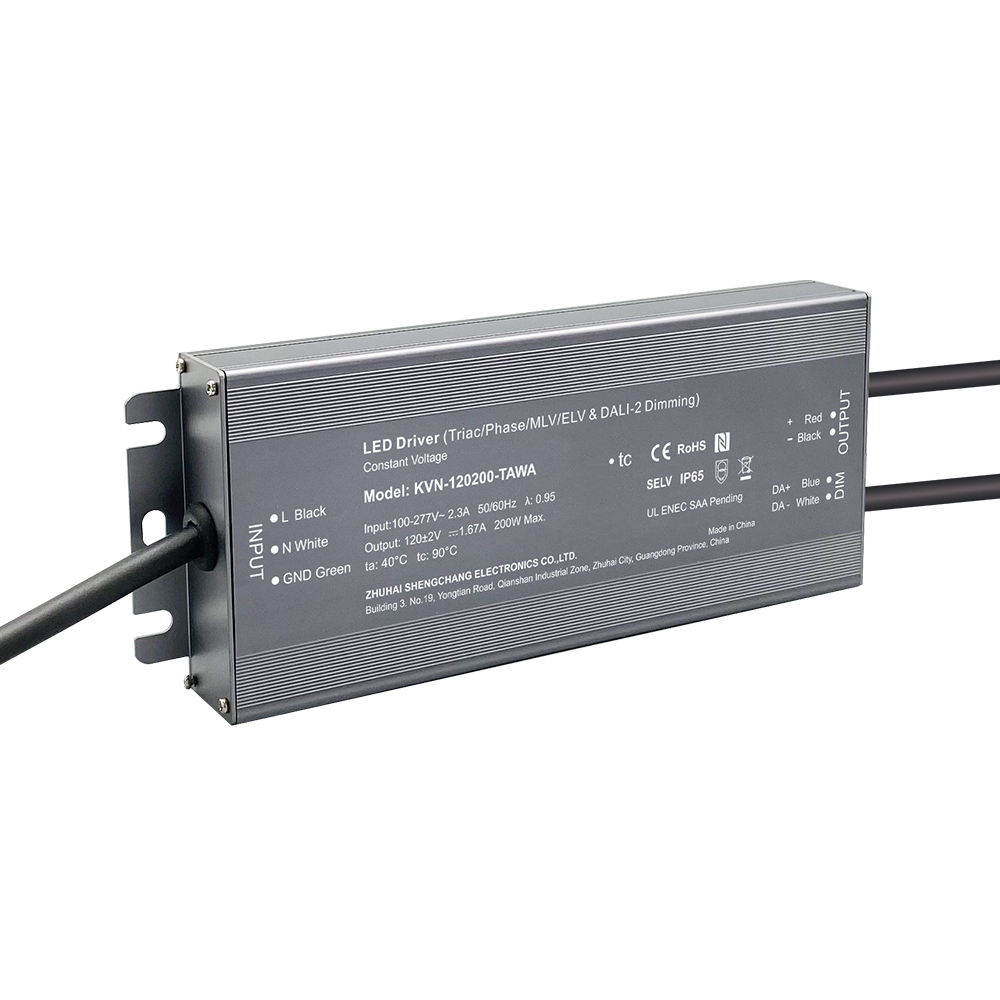

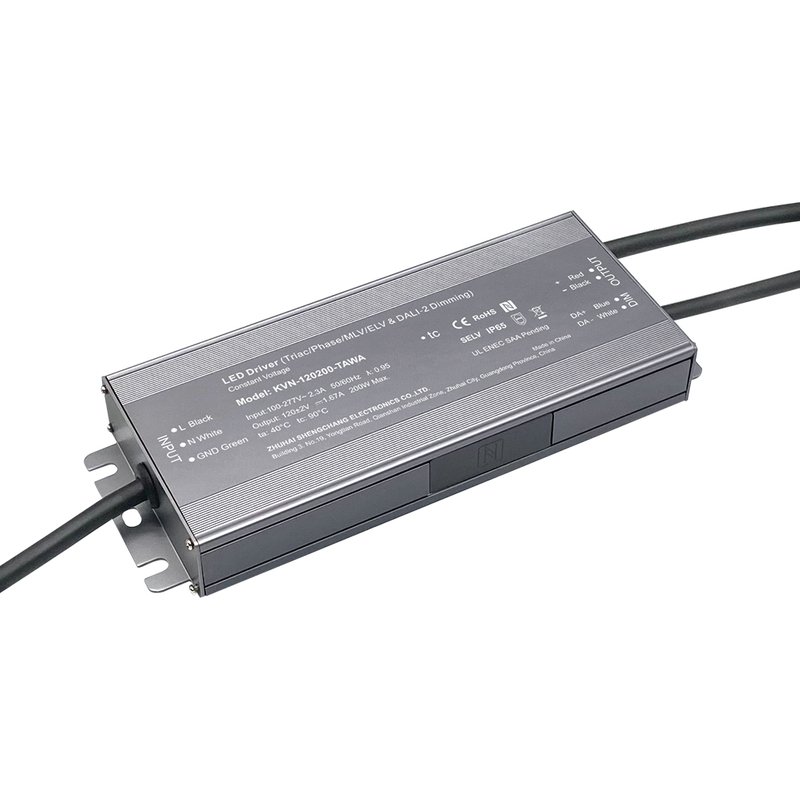

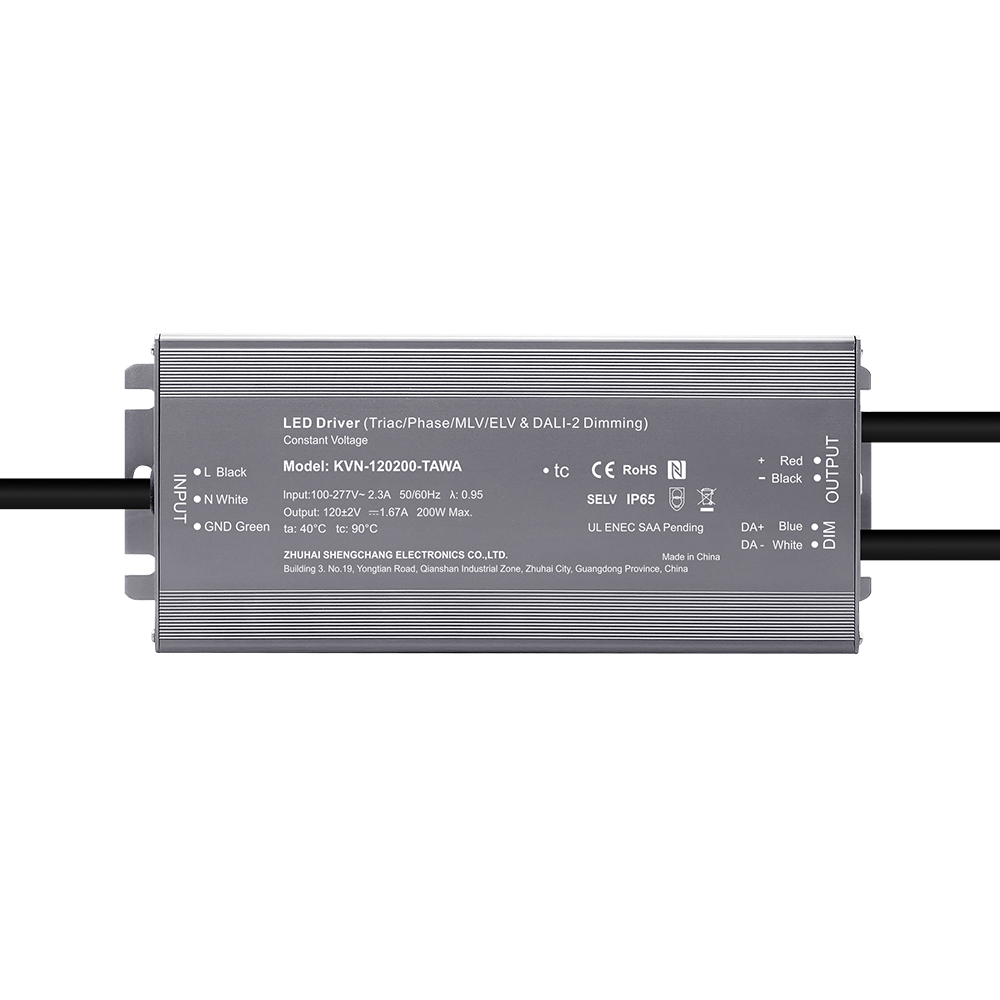

150W 200W 400W 600W CV Triac DALI-2 LED Strip Power Supply 120 Volt LED Lighting
Output Type: | Constant Voltage |
Input Range: | 100-277VAC |
PFC design: | High power factor active PFC correction 0.98 or more |
Protections: | Short circuit / Over load / Over temperature / Over voltage |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations |
Design features: | Non-isolated solution, constant output voltage 120v, high efficiency, high power factor, low harmonics，Available in a variety of dimming modes, 5-in-1 or 2-in-1 or a single specific dimming mode |
Dimming function: | With a variety of dimming options: thyristor / 0-10V / 1-10V / 10V PWM / potentiometer / DMX512 / DALI-2 DT6 / Casambi / graffiti |
Dimming range: | 0.09%-100%（244Hz）、0.1%-100%（800Hz）、0.1%-100%（4KHz）、0.15%-100%（20KHz）、 |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, flicker-free dimming |

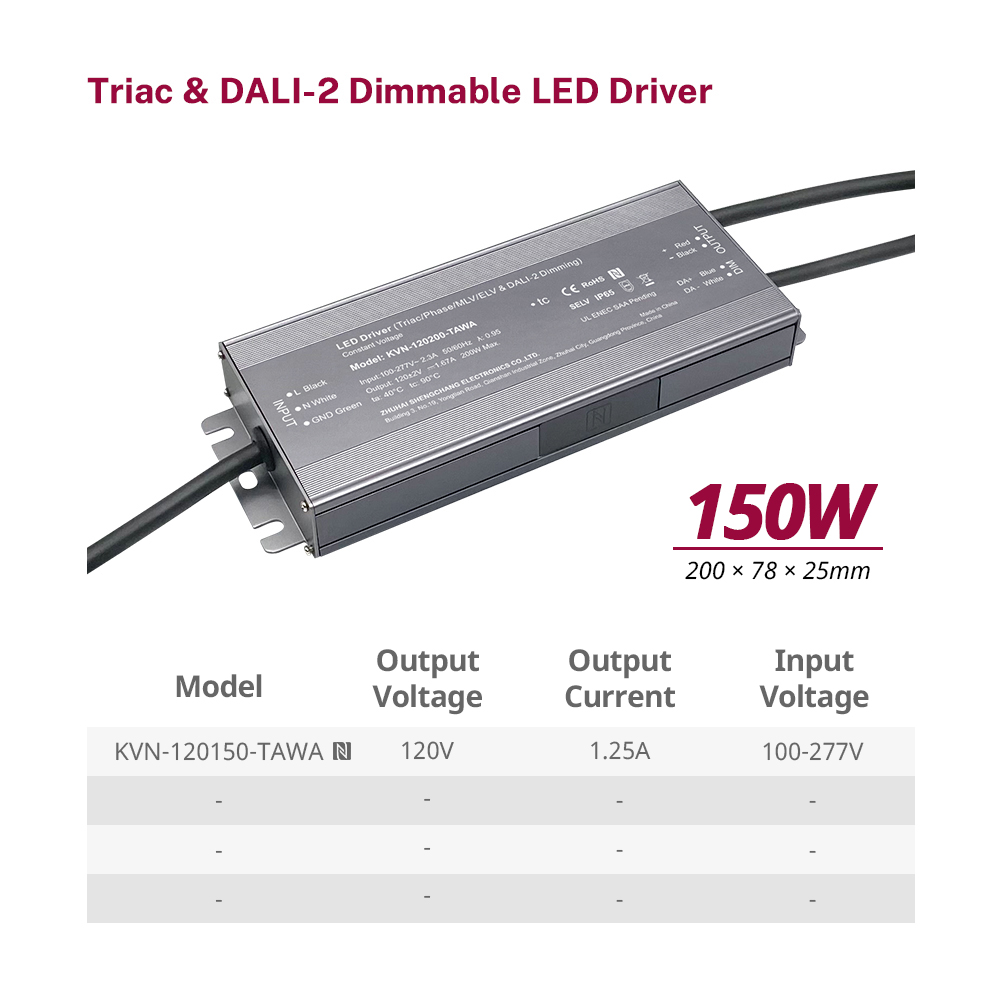

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TAWA | 120V | 1.25A | 200*78*25mm | |
200W | KVN-120200-TAWA | 120V | 1.67A | ||
400W | KVN-120400-TAWA | 120V | 3.33A | 232*78*32mm | |
600W | KVN-120600-TAWA | 120V | 5A | 279*85*40mm |
Triac DALI-2 LED Strip Power Supply Wiring Diagram
Product Description:
This high performance constant voltage LED power supply is designed to drive LED strip lights, offering 150W, 200W, 400W and 600W power options to meet lighting needs of different sizes and brightness. It is perfectly adapted to the 120V North American voltage standard and innovatively supports both Triac cutting-edge phase-cut dimming and DALI-2 digital dimming protocols, providing you with unrivaled dimming compatibility and flexibility. Whether it's for home ambiance, commercial space lighting or architectural lighting projects, this power supply provides pure, stable and reliable power for your LED strip lights.
Dual Dimming Compatibility:
Triac Dimming Support: Seamlessly compatible with standard Triac (leading-edge) dimmers widely used in North America, enabling smooth and effortless brightness adjustment.
DALI-2 Certified: Compliant with the latest DALI-2 standard for seamless integration into advanced DALI smart lighting control systems, enabling precise group control, scene settings, and energy management.
Pure Constant Voltage (CV) Output: Delivers stable DC voltage (e.g., 12V/24V; see specs by model) to ensure uniform LED strip brightness and extended lifespan.
High Power Options: Choose from 150W, 200W, 400W, or 600W outputs to flexibly power single or parallel-connected LED strips—ideal for small décor projects to large commercial installations.
High Efficiency & Energy Savings: Premium components and advanced topology design achieve high conversion efficiency (typically ≥91.5%), reducing energy waste and operational costs for a greener solution.
Quiet Operation & Long Lifespan: Optimized thermal design with smart fan cooling (high-wattage models) or fanless operation (select models) ensures low noise and extended durability.
Applications:
Residential Lighting: Under-cabinet lighting, ceiling coves, stair railing accents, wall niche illumination
Commercial & Hospitality: Retail display case lighting, restaurant/bar mood lighting, hotel hallway/guest room decor
Architectural Accents: Building façade outlines, signboard backlighting
Integrated Furniture Lighting: Custom furniture with built-in LED strips
Exhibition & Display: Show booths, store windows, museum display case lighting
Order Now and Transform Your Lighting Experience
