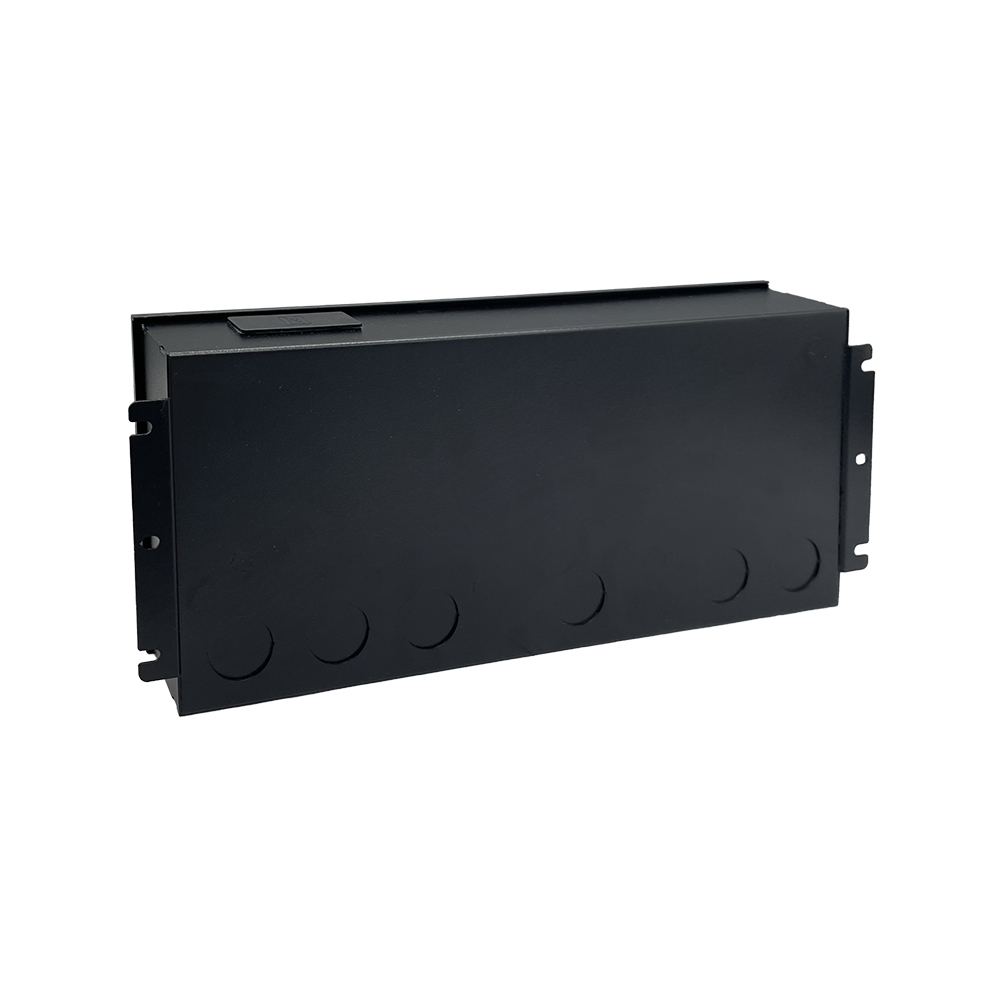

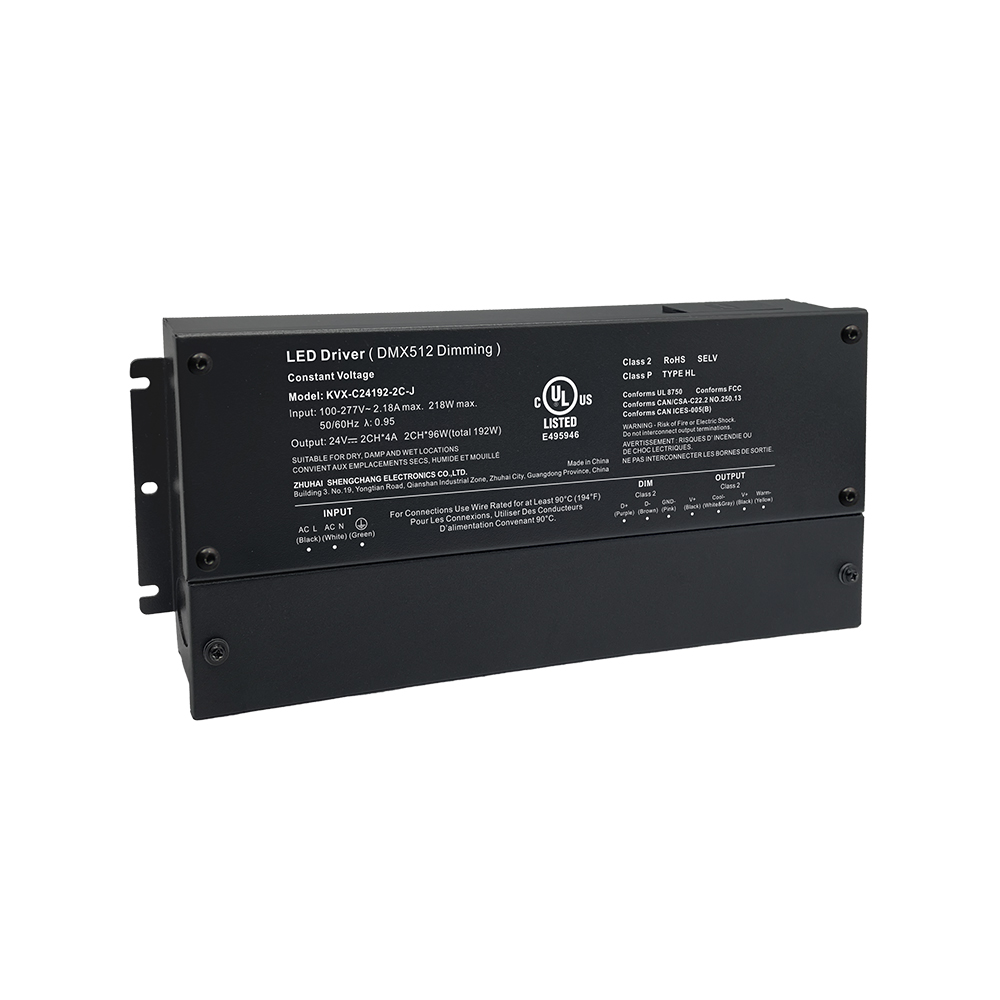

300W Kalasi 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Driver 1 2 3 4 5 Kanalw

300W Kalasi 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Driver 1 2 3 4 5 Kanalw

Ouput Seko ni dɔnko:	300W ye 300W Kalanso2
A sɔrɔli:



Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

Mɔdɛli:
KVX-CJ ye
Dimming suguya:
DMX512 ye
Isolated Type:
Dogolen
Bɔli suguya:
Voltage basigilen
Bɔli siraw:
Dimming, CCT, RGBCW ye baara kɛ ni a ye
IP hakɛ:
IP66, Jalen & Ji, Ji
Voltage min bɛ don a kɔnɔ:
100-277VAC ye
Bɔli Sebaaya:
300W ye
Voltage de bɔli: 1.1.
12/ 24/ 36/ 48V. Bamako, Mali
Seereyali:
UL & cUL, FCC, Kalanso 2nan

Nafa

150W 200W Kalasi 2 CV RGB CW DMX Dimmable LED Driver 12 24 36 48 Volt

Bɔli: 1.1.	Voltage basigilen
Labɛnko ɲuman:	110-277VAC ye
PFC dilancogo:	PFC baarakɛcogo baarakɛta min bɛ don a kɔnɔ
Nɔ kaɲi:	Fo ka se 93% ma .
Lakanali minnu bɛ kɛ:	Kurukuru/ doni tɛmɛnen/ funteni tɛmɛnen
Funteni bɔli:	Nɛnɛ bɛ kɛ ni fiɲɛ jiginni ye fu
Ji-yɔrɔ-ko baarakɛcogo:	Aluminiyɔmu so lakanani dafalen, yɔrɔ jalenw, jisuma, ɲiginnenw kama
Dimming baarakɛcogo:	DMX512 ani RDM dim. Digital dimming, yeelen kelen kɔlɔsili, DMX512 signal-side isolation
Dimming range: 1. Bamako, Mali.	0,1-100% ye .
NFC baarakɛcogo	Fine tune bɔli voltage, sɛbɛnni ani kalan ladɛrɛsi
ProNFC ye	A bɛnnen don LED yeelen ni taamasiyɛn lamaga-lamagali baarakɛcogo ma
Garanti min bɛ sɔrɔ:	San 5 garanti

Kɛrɛnkɛrɛnnenya la

Bɔli Sebaaya	Kanal	Model Numɛri	Voltage (Bɔli) min bɛ bɔ	Bɔli Kuran	Dɔ wɛrɛw fana bɛ sariyasun	Kundama	Girinya
300W ye	1 Kanal Dimming	KVX-12300-1C-J ye baara kɛ	12V	25A	Kalasi P, TYPE HL, Wet	316 * 125 * 42,7mm (L * W * H) ye.	Kilo 1,15 ye
		KVX-24300-1C-J ye baara kɛ	24V	12.5A
		KVX-36300-1C-J ye baara kɛ	36V	8.33A
		KVX-48300-1C-J ye baara kɛ	48V ye	6.25A
	2 Kanalw CCT	KVX-12300-2C-J ye baara kɛ	12V	25A	Kalasi P, TYPE HL, Wet
		KVX-24300-2C-J ye baara kɛ	24V	12.5A
		KVX-36300-2C-J ye baara kɛ	36V	8.33A
		KVX-48300-2C-J ye baara kɛ	48V ye	6.25A
	3 Kanalw RGB	KVX-12300-3C-J ye baara kɛ	12V	25A	Kalasi P, TYPE HL, Wet
		KVX-24300-3C-J ye baara kɛ	24V	12.5A
		KVX-36300-3C-J ye baara kɛ	36V	8.33A
		KVX-48300-3C-J ye baara kɛ	48V ye	6.25A
	4 Kanalw RGBW	KVX-C12300-4C-J ye baara kɛ ni	12V	25A	Kalasi P, TYPE HL, Wet
		KVX-C24300-4C-J ye baara kɛ	24V	12.5A	Kalasi2 , Kalasi P, TYPE HL, Wet
		KVX-C36300-4C-J ye baara kɛ	36V	8.33A
		KVX-C48300-4C-J ye baara kɛ	48V ye	6.25A
	5 Kanalw RGBCW	KVX-C12300-5C-J ye baara kɛ	12V	25A	Kalasi2 , Kalasi P, TYPE HL, Wet
		KVX-C24300-5C-J ye baara kɛ	24V	12.5A
		KVX-C36300-5C-J ye baara kɛ	36V	8.33A
		KVX-C48300-5C-J ye baara kɛ	48V ye	6.25A

DMX Sofɛrɛ ka Wiring Diagram

300W Kalasi 2 RGB CW DMX Dimmable LED Driver 1 2 3 4 5 kanal

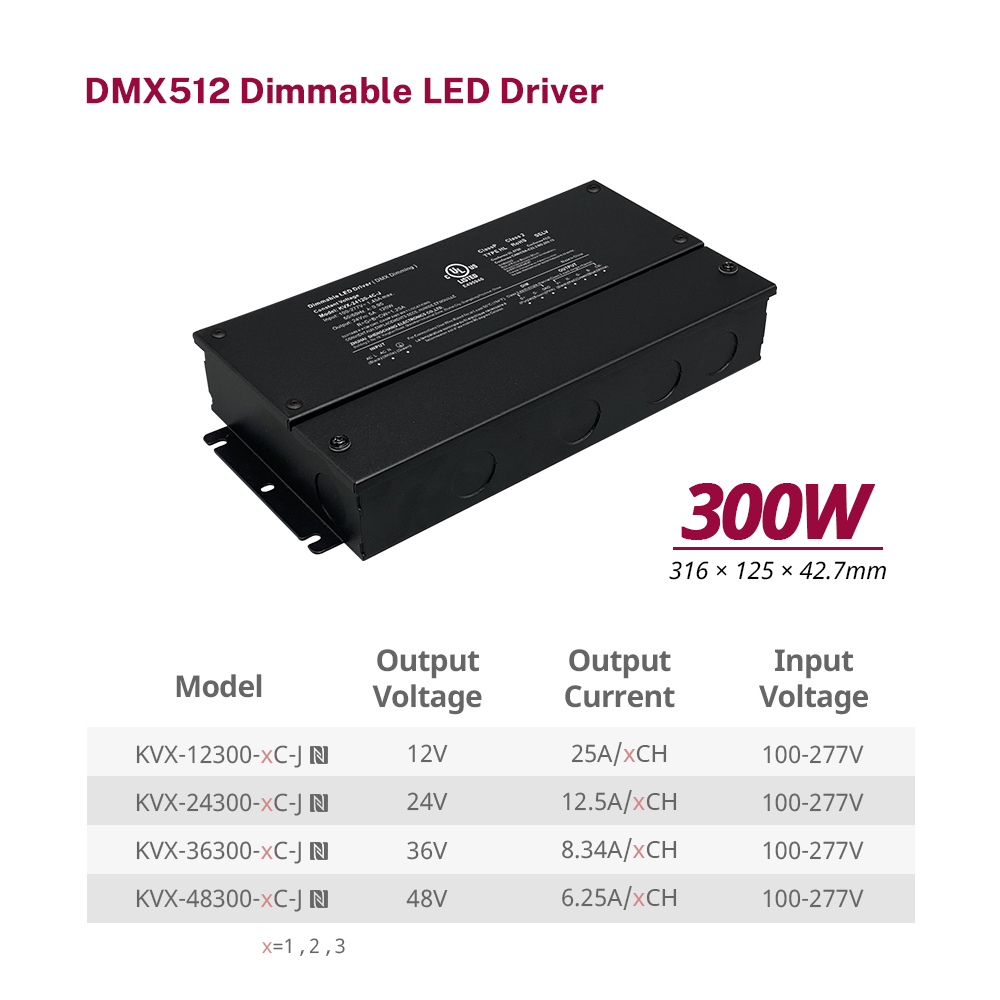

300W RGBCW DMX LED Sofɛrɛw bonya:

300W RGB CW DMX Dimmable LED Sofɛrɛ hakɛ

Cogojirali

Nin seriyali in dabɔra DMX RDM full color dimming application kama, kɛrɛnkɛrɛnnenya la, a bɛnnen don fɛn dilanni, seko ni dɔnko ani mise, ɲɛnajɛ, jatigila, kɛnɛyako ani duguw labɛncogo ma.
