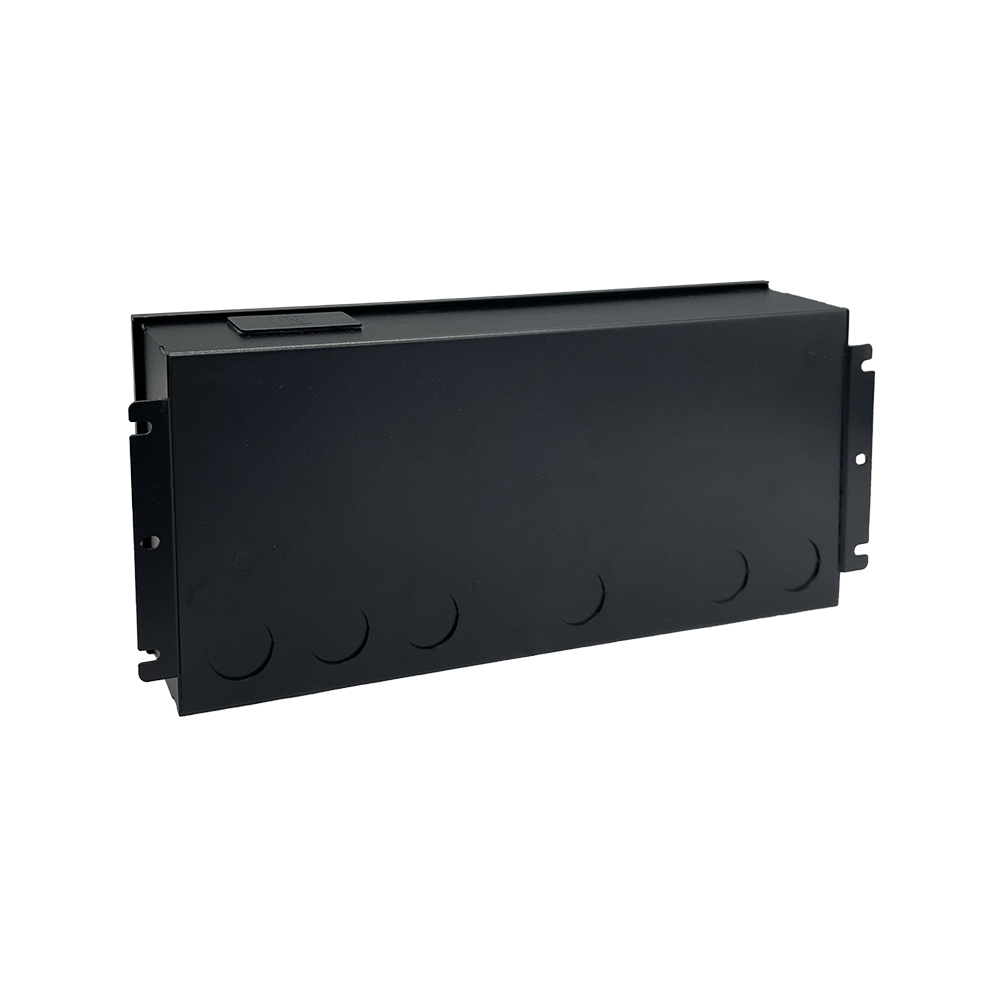

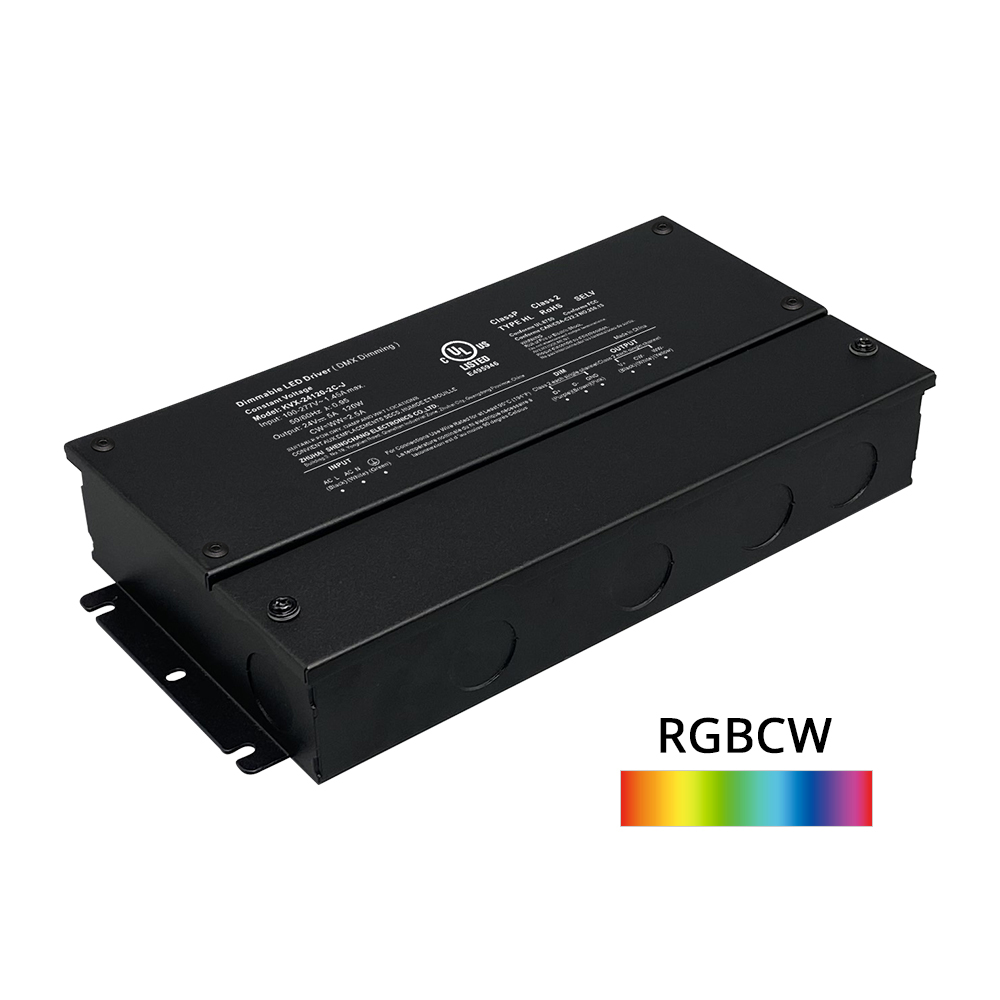

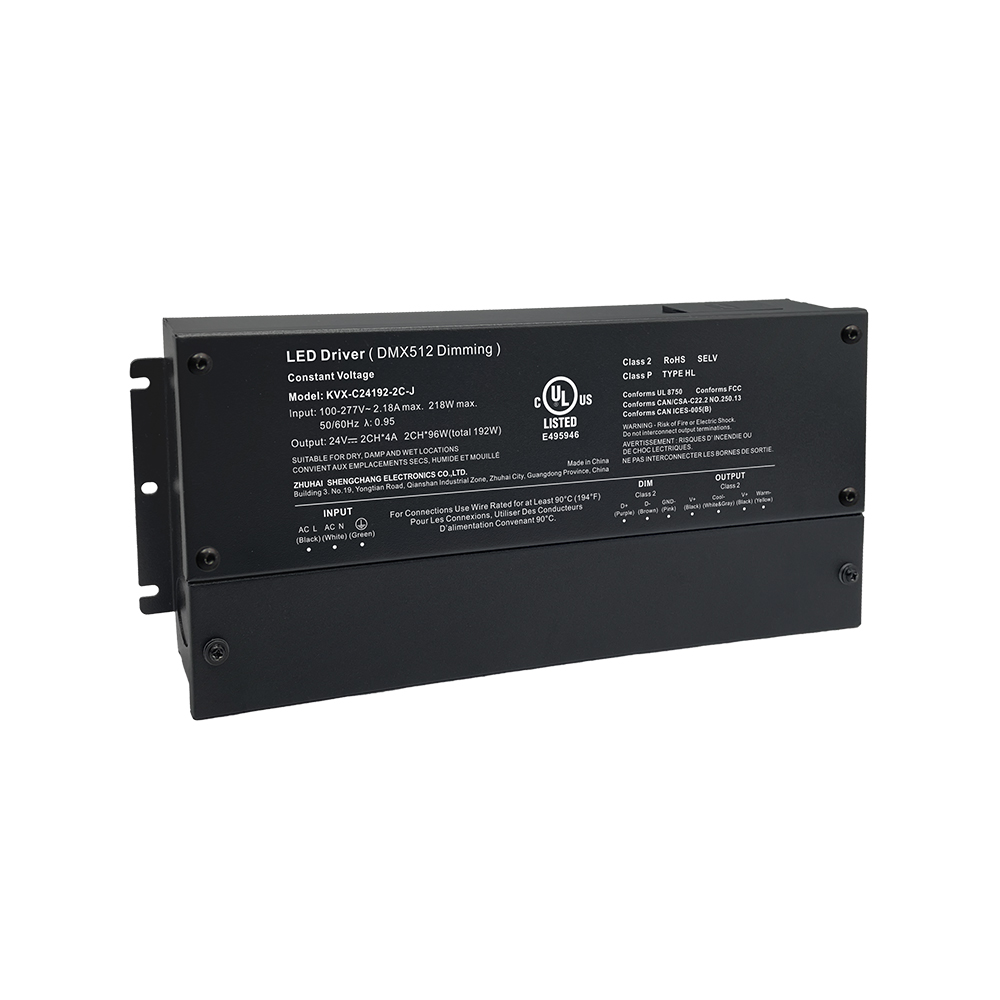

300W Icyiciro cya 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Umushoferi 1 2 3 4 5 Imiyoboro

300W Icyiciro cya 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Umushoferi 1 2 3 4 5 Imiyoboro

Imbaraga za Ouput:	300W 300W Icyiciro2
Kuboneka:



Baza Ongeraho Igitebo

Ubwoko bwa Dimming:
DMX512
Ubwoko bwitaruye:
Kwigunga
Ubwoko bw'ibisohoka:
Umuvuduko uhoraho
Imiyoboro isohoka:
Dimming, CCT, RGBCW
Igipimo cya IP:
IP66, Kuma & Damp, Itose
Umuvuduko winjiza:
100-277VAC
Imbaraga zisohoka:
300W
Umuvuduko w'amashanyarazi:
12/24/36 / 48V
Icyemezo:
UL & cUL, FCC, Icyiciro cya 2

Ibyiza

150W 200W Icyiciro cya 2 CV RGB CW DMX Ikigereranyo cya LED Umushoferi 12 24 36 48 Volt

Ibisohoka:	Umuvuduko uhoraho
Urwego:	110-277VAC
Igishushanyo cya PFC:	Byubatswe mubikorwa bya PFC
Gukora neza:	Kugera kuri 93%
Kurinda:	Inzira ngufi / hejuru yumutwaro / hejuru yubushyuhe
Gukwirakwiza ubushyuhe:	Gukonjesha ukoresheje umwuka wubusa
Imikorere idakoresha amazi:	Amazu yuzuye ya aluminium, kubutaka bwumutse, butose, ahantu hatose
Igikorwa cyo kugabanya:	DMX512 na RDM dim. Kugabanuka kwa digitale, kugenzura urumuri rumwe, DMX512 ibimenyetso-kuruhande
Urwego ruciriritse:	0.1-100%
Imikorere ya NFC	Hindura neza ibisohoka voltage, andika kandi usome adresse
ProNFC	Birakwiye kumurika LED no kwimura ibimenyetso byimikorere
Garanti:	Garanti yimyaka 5

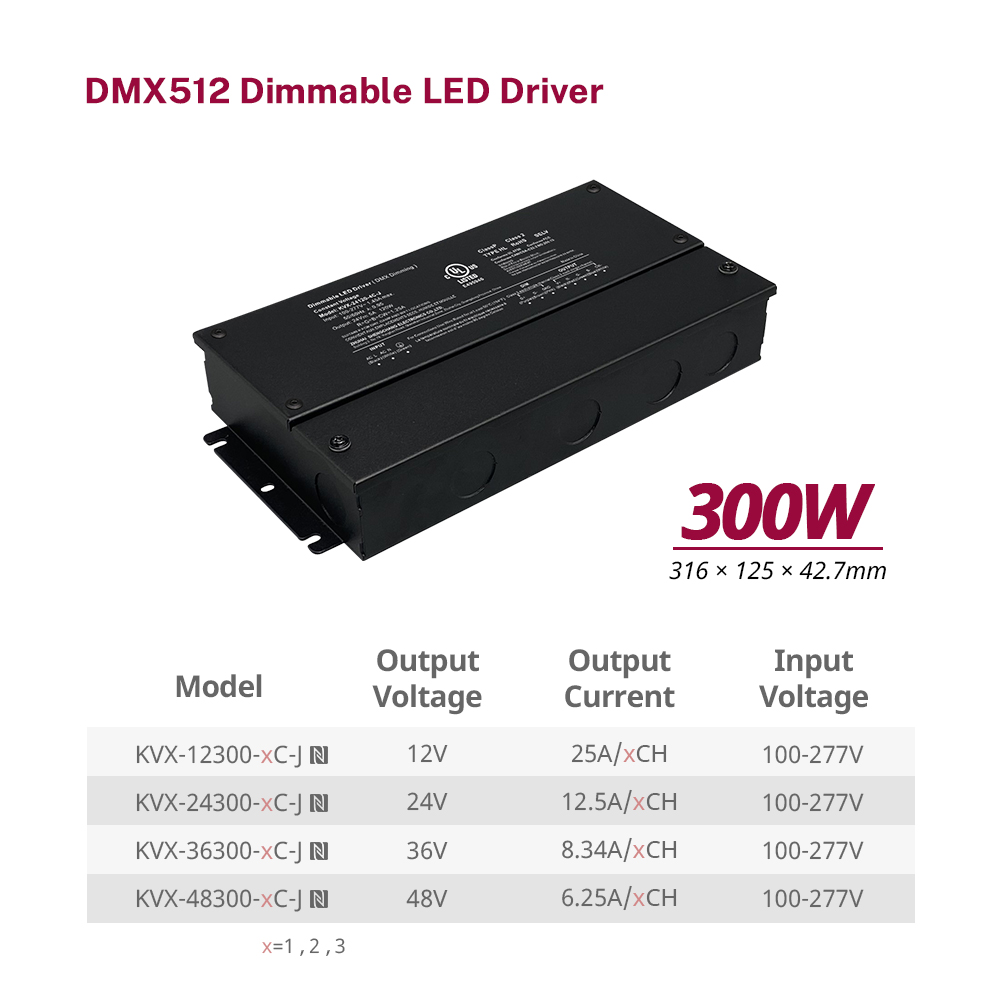

Ibisobanuro

Imbaraga zisohoka	Umuyoboro	Umubare w'icyitegererezo	Umuvuduko w'amashanyarazi	Ibisohoka Ibiriho	Abandi basanzwe	Ingano	Ibiro
300W	1 Umuyoboro	KVX-12300-1C-J	12V	25A	Icyiciro P, TYPE HL, Itose	316 * 125 * 42.7mm (L * W * H)	1.15kg
		KVX-24300-1C-J	24V	12.5A
		KVX-36300-1C-J	36V	8.33A
		KVX-48300-1C-J	48V	6.25A
	Imiyoboro 2 CCT	KVX-12300-2C-J	12V	25A	Icyiciro P, TYPE HL, Itose
		KVX-24300-2C-J	24V	12.5A
		KVX-36300-2C-J	36V	8.33A
		KVX-48300-2C-J	48V	6.25A
	Imiyoboro 3 RGB	KVX-12300-3C-J	12V	25A	Icyiciro P, TYPE HL, Itose
		KVX-24300-3C-J	24V	12.5A
		KVX-36300-3C-J	36V	8.33A
		KVX-48300-3C-J	48V	6.25A
	Imiyoboro 4 RGBW	KVX-C12300-4C-J	12V	25A	Icyiciro P, TYPE HL, Itose
		KVX-C24300-4C-J	24V	12.5A	Icyiciro2 , Icyiciro P, TYPE HL, Itose
		KVX-C36300-4C-J	36V	8.33A
		KVX-C48300-4C-J	48V	6.25A
	Imiyoboro 5 RGBCW	KVX-C12300-5C-J	12V	25A	Icyiciro2 , Icyiciro P, TYPE HL, Itose
		KVX-C24300-5C-J	24V	12.5A
		KVX-C36300-5C-J	36V	8.33A
		KVX-C48300-5C-J	48V	6.25A

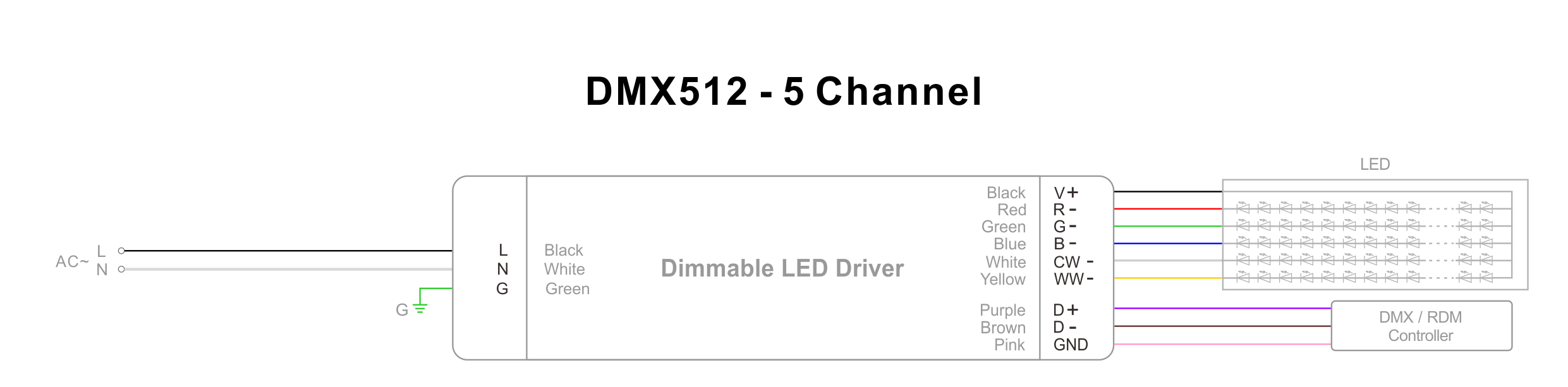

Igishushanyo mbonera cya DMX

300W Icyiciro cya 2 RGB CW DMX Dimmable LED Umushoferi 1 2 3 4 5 umuyoboro

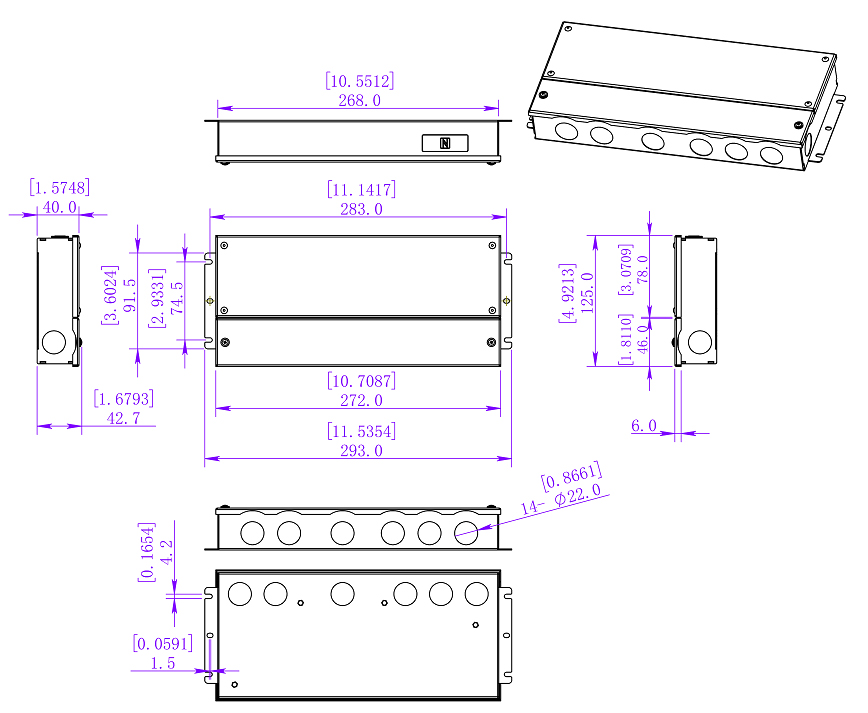

300W RGBCW DMX LED Abashoferi Ingano:

300W RGB CW DMX Ingano ya LED Ingano

Ibisobanuro

Uru ruhererekane rwateguwe kuri DMX RDM yuzuye ibara risa neza, cyane cyane rikwiranye nububiko, ubuhanzi ningoro ndangamurage, imyidagaduro, kwakira abashyitsi, ubuvuzi n’imiterere yimijyi.
