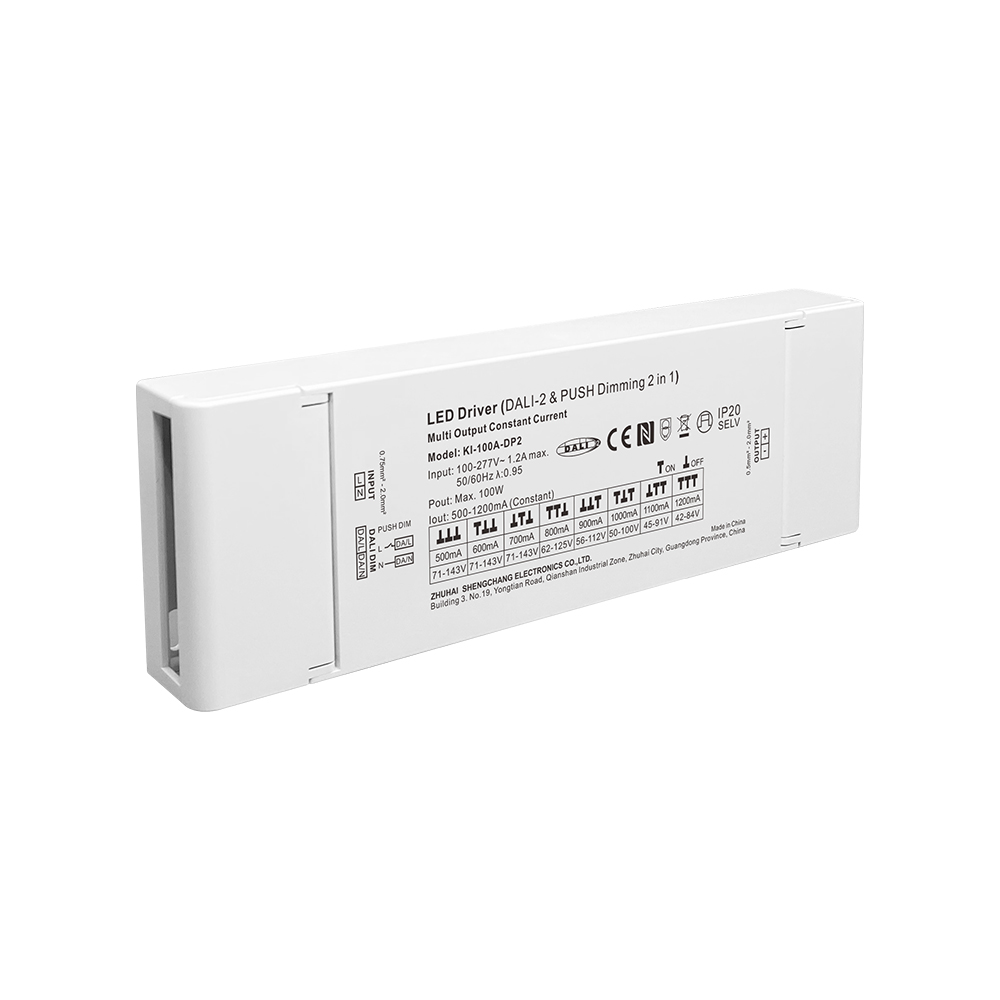

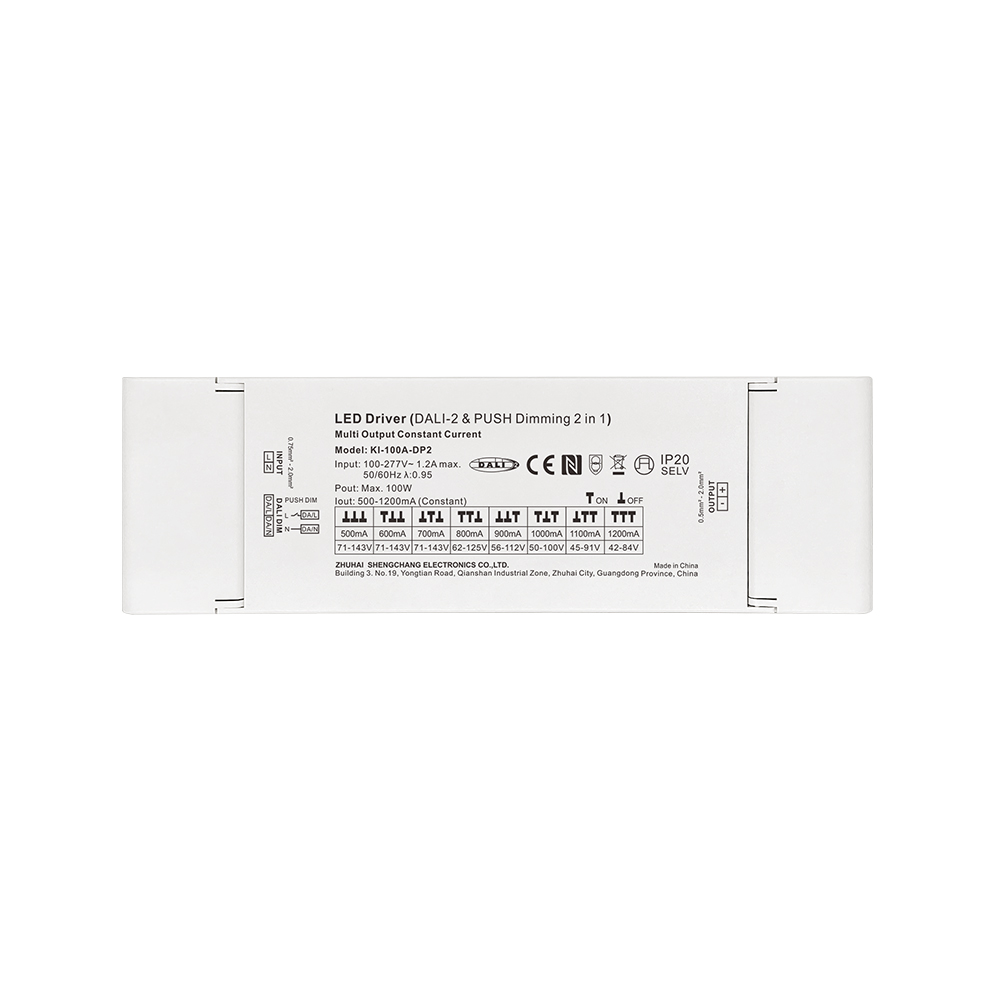

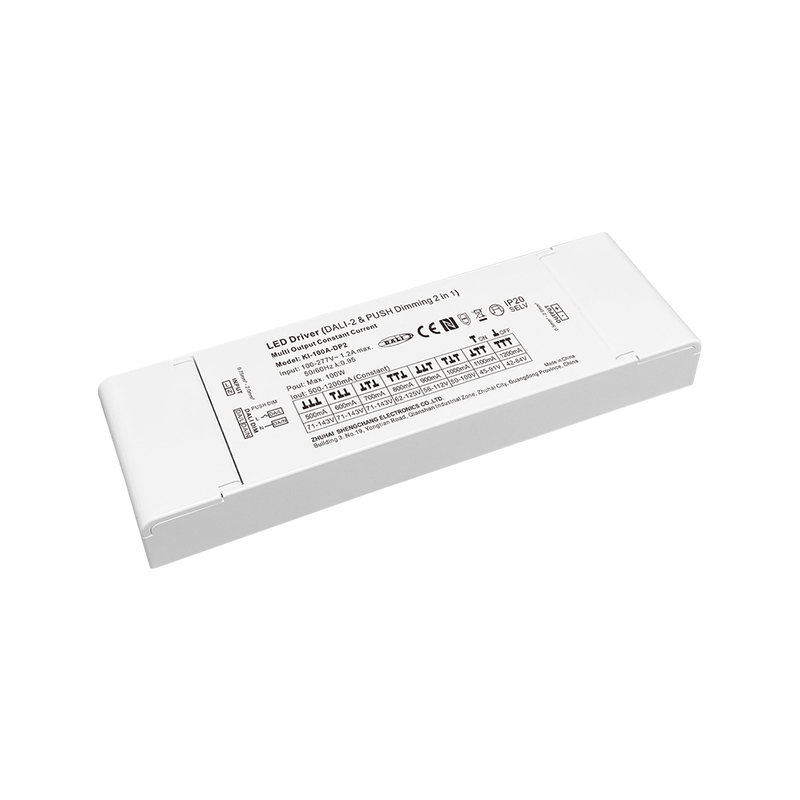

DP2 100W Constant Current RGBW RGB DALI-2 Push Dimmable Driver LED DALI

Input Range:

120-277VAC  50/60HZ

Protections:

Short circuit / Over load / Over temperature / Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20 can be used indoor (EU); Full plastic protection housing,for dry and damp locations (US)

Design features:

①The maximum output current of each channel can be adjusted individually via NFC, while the maximum output current of each channel is adjusted simultaneously through the switches

②The address size can be set from 0 to 255 via NFC

③It has the function of lamp temperature detection

④If the DALI signal line is not connected, only the 4th channel of the 4 channels will be output normally, and the remaining 3 channels will be turned off.

⑤If the DALI signal line is connected and all 4 channels are loaded normally, the total power of the 4 channels can reach 100W. If any one or more of them are open or short, the loaded one will be limited

to 25% of the maximum output

Dimming function:

DP2 Dimming

Dimming range:

0.1%-100%

Application:

Suitable for the application of LED lighting

Warranty:

5 years warranty

Others:

flicker-free dimming
