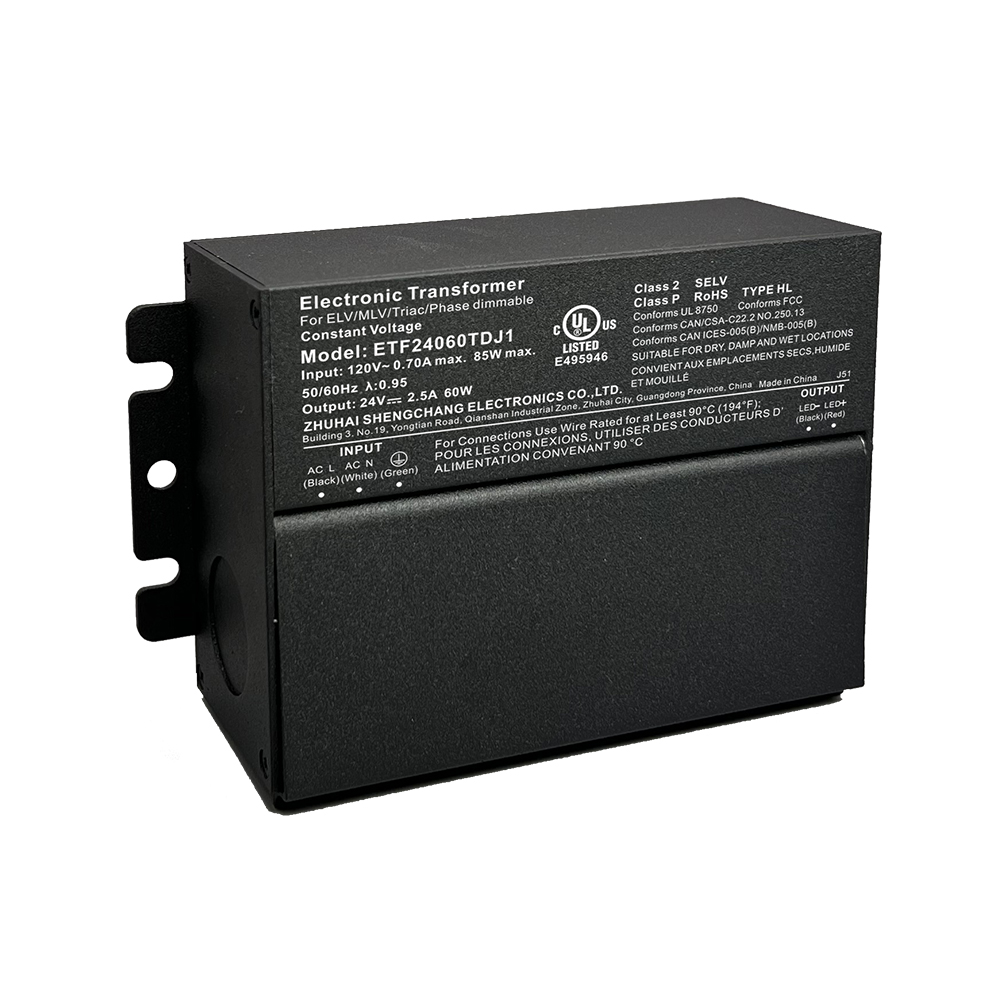

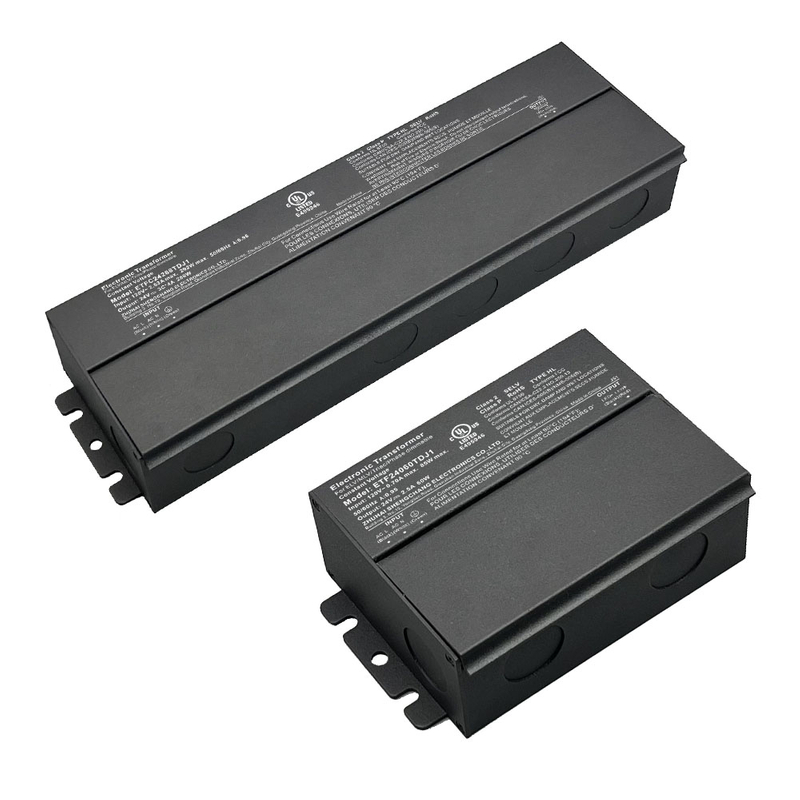

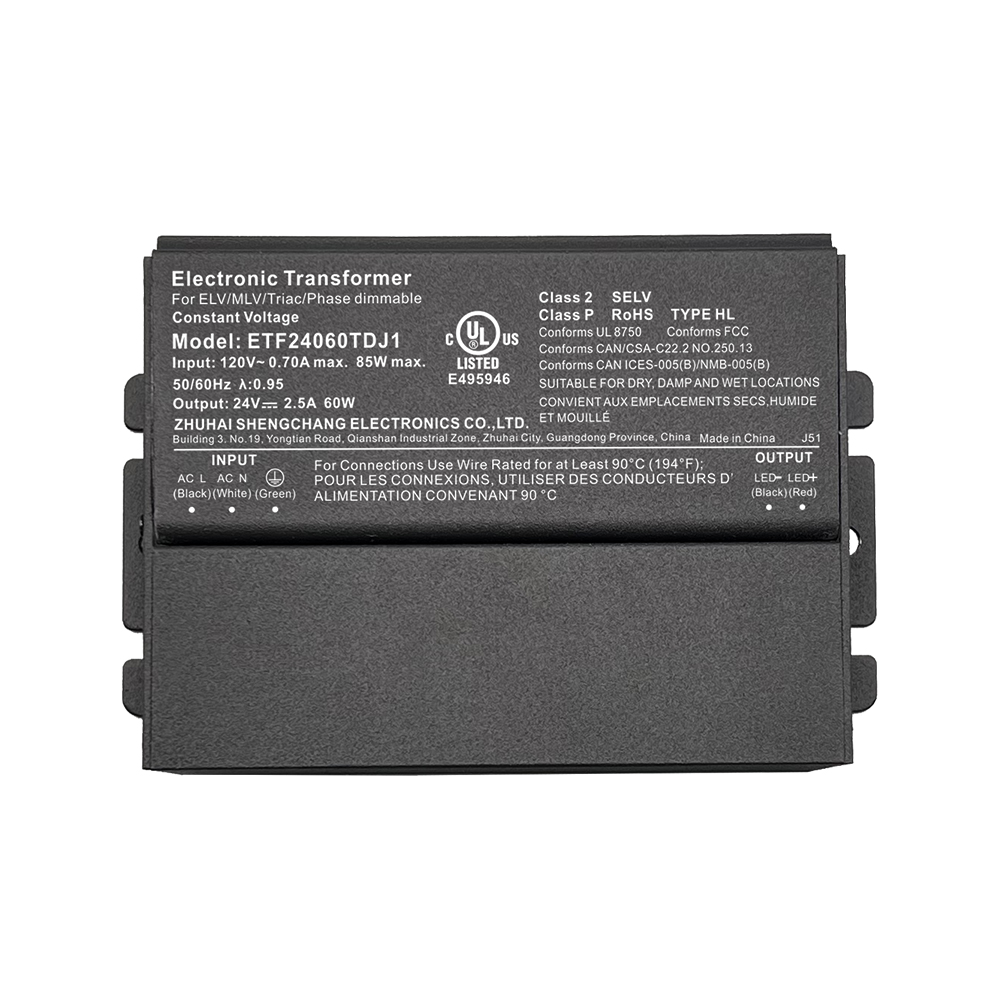

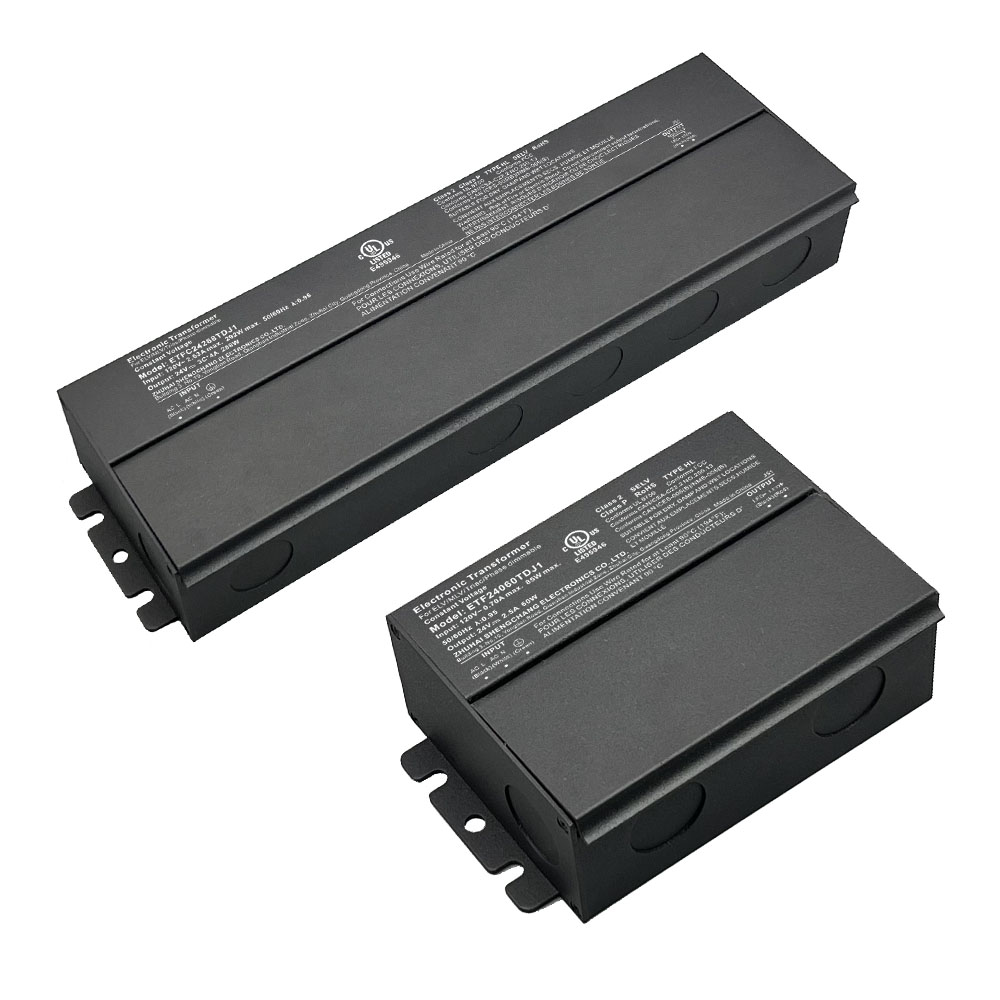

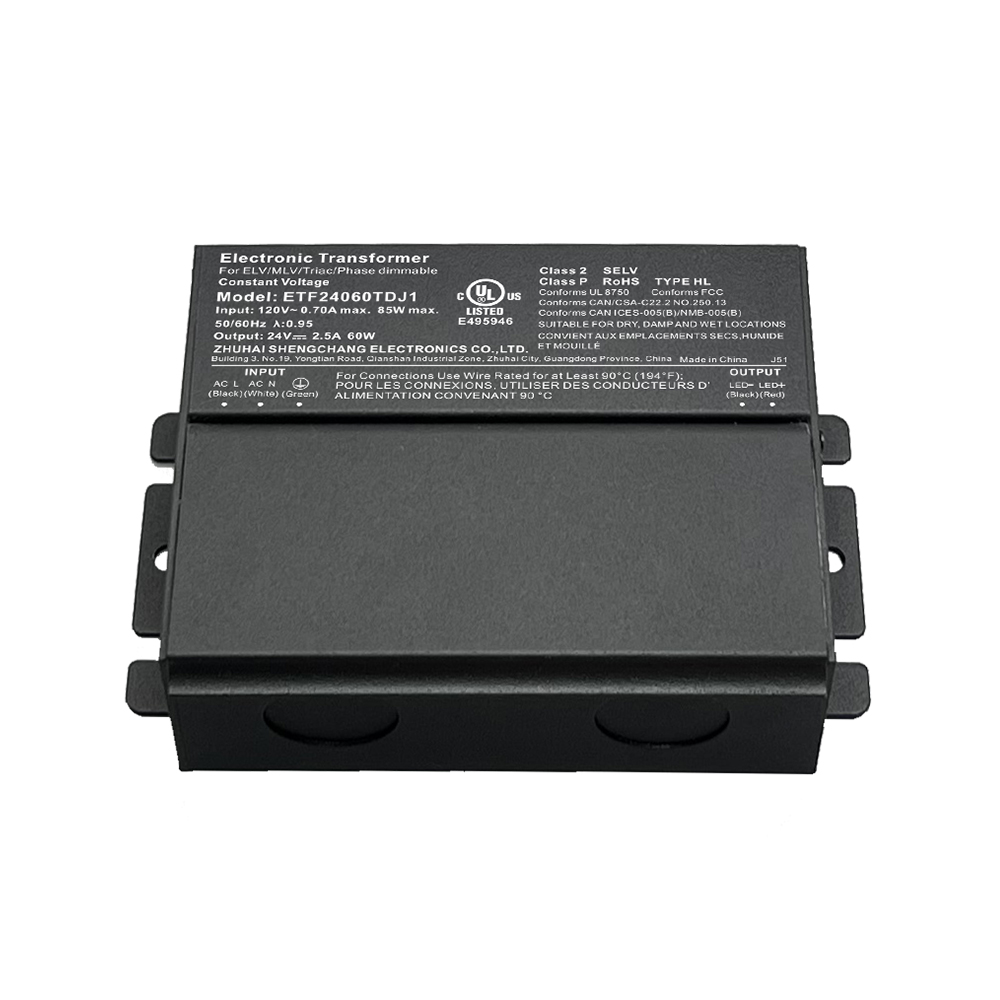

30-300W Triac Dimmable Outdoor Low Voltage Transformer 12V 24V DC

Output Power:
30W
45W
60W
96W
120W
150W
180W
192W
200W
288W
300W
Beskikberens:
Freegje Taheakje oan Basket

  • ETF-TDJ

  • Triac

  • Isolearre

  • Konstante spanning

  • Dimmen

  • IP66

  • 100-130VAC

  • 30W, 45W, 60W, 96W, 120W, 150W, 200W, 300W, 180W, 192W, 288W

  • 12/24V

  • UL & cUL, FCC, Klasse 2, RoHS, REACH

Foardiel

30-300W Triac Dimmable Outdoor Low Voltage Transformer 12V 24V DC


Features

● Dimming funksje: Elektroanyske Transformer Triac / ELV / MLV dimming

● Dimming berik: 0-100%

● Waterproof prestaasjes: Foar droege, fochtige en wiete lokaasjes

● Ynfier: 120VAC

● THD: THD <20% @ 120V Max. lade

● Utfiertype: Konstante spanning

● Lytse grutte: 166,4x103,5x40,4 mm / 6,55x4,07x1,59 inch (L*W*H)

● Laden: Super leech laden fersyk, wurket perfekt by 20-100% laden

● Beskermingen: koartsluting / Over load

● Kompatibiliteit: Kompatibel mei populêre dimmers op 'e merk, Lutron-CL, Diva-searje ensafuorthinne

● Applikaasje: LED strip / LED tape / LED module, Residential Lighting, Commercial Lighting

● Garânsje: 5 jier garânsje

Spesifikaasje


Model Number

Output Power

Output Voltage

Output Strom

Grutte

Gewicht

ETF12030TDJ

30W
Klasse 2

12V

2.5A

114.9*80*40.4mm

0.175KG

ETF24030TDJ

24V

1.25A

ETF12045TDJ

45W
klasse 2

12V

3.75A

114.9*80*40.4mm

0.175KG

ETF24045TDJ

24V

1.88A

ETF12060TDJ

60W
Klasse 2

12V

5A

126.4*80*40.4mm

0.35KG

ETF24060TDJ

24V

2.5A

ETF24096TDJ

96W
klasse 2

24V

4A

126.4*80*40.4mm

0.35KG

ETF12120TDJ

120W
2*60W
Klasse 2

12V

MULTI 2*5A

197.4*80*40.4mm

0.64KG

ETF24120TDJ

24V

MULTI 2*2.5A

ETF24150TDJ

150W

24V

6.25A

166.4*103.5*40.4mm

0.826KG

ETF12180TDJ

180W
3*60W
Klasse 2

12V

MULTI 3*5A

278.8*80*40.4mm

0.93KG

ETF24192TDJ

192W
2*96W
Klasse 2

24V

MULTI 2*4A

197.4*80*40.4mm

0.64KG

ETF24200TDJ

200W

24V

8.34A

166.4*80*40.4mm

0.826KG

ETF24288TDJ

288W
3*96W
Klasse 2

24V

MULTI 3*4A

278.8*80*40.4mm

0.93KG

ETF24300TDJ

300W

24V

12.5A

166.4*103.5*40.4mm

0.826KG


Triac LED Driver Wiring Diagram

Triac LED Driver Wiring Diagram

Low Voltage Transformer 12V 24V Wiring diagram


download spec_30W TRIAC ELV MLV Transformer ETF-TDJ 12V&24V.pdf

download spec_45W TRIAC ELV MLV Transformer ETF-TDJ 12V&24V.pdf

download spec_60W TRIAC ELV MLV Transformer ETF-TDJ1 12V&24V.pdf

download spec_96W TRIAC ELV MLV Transformer ETF-TDJ1 24V.pdf

download spec_120W TRIAC ELV MLV Transformer ETF-C-TDJ1 12V&24V.pdf

download spec_150W TRIAC ELV MLV Transformer ETF-TDJ1 24V.pdf

download spec_180W TRIAC ELV MLV Transformer ETF-C-TDJ1 12V.pdf

download spec_192W TRIAC ELV MLV Transformer ETF-C-TDJ1 24V.pdf

download spec_200W TRIAC ELV MLV Transformer ETF-TDJ1 24V.pdf

download spec_288W TRIAC ELV MLV Transformer ETF-C-TDJ1 24V.pdf

download spec_300W TRIAC ELV MLV Transformer ETF-TDJ1 24V.pdf
