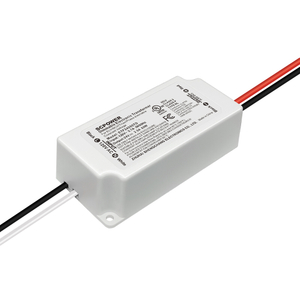

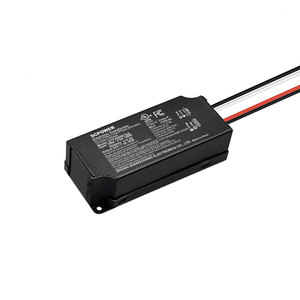

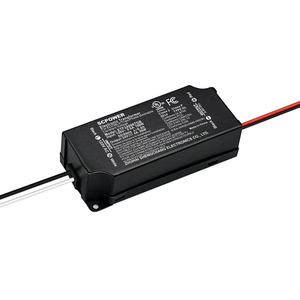

60 96 120 150 180 192 200 288 300 Watt Triac Dimmable Outdoor Low Voltage Transformer 12V 24V DC
Dimming function:
Electronic Transformer Triac/ ELV/ MLV dimming
Dimming range:
0-100%
Certificates:
UL listed, Class 2, Class P, Type HL, SELV, RoHS
Location of application:
Dry , damp and Wet locations
Input:
120VAC
THD:
THD<20%@120V Max. load
Output type:
Constant voltage
Loading:
Super low loading request, works perfect at 20-100% load
Protections:
Short circuit / over load
Compatibility:
Compatible with popular dimmers in the market, Lutron-CL, Diva series and so on.
Application:
• LED strip/ LED tape/ LED module
• Residential Lighting
• Commercial Lighting
Warranty:
5 years warranty
Triac LED Driver Wiring Diagram
Triac LED Driver Wiring Diagram
