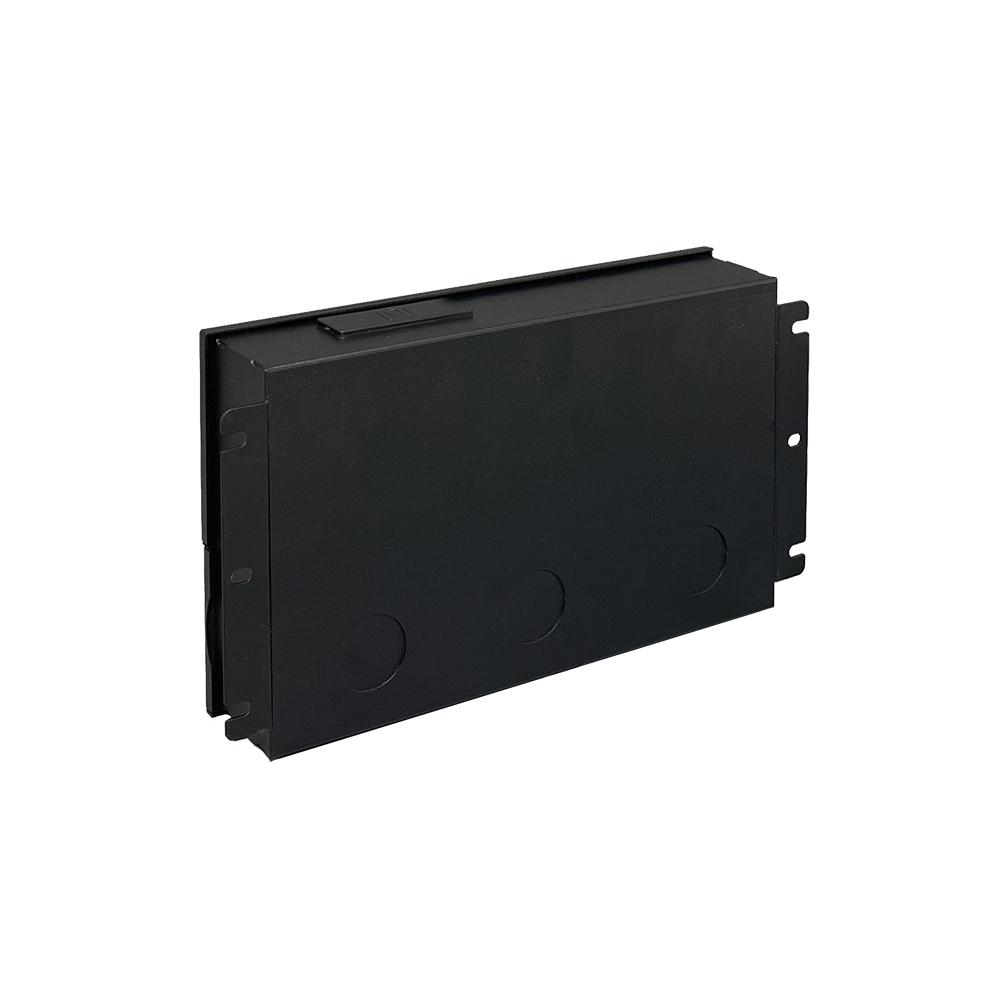

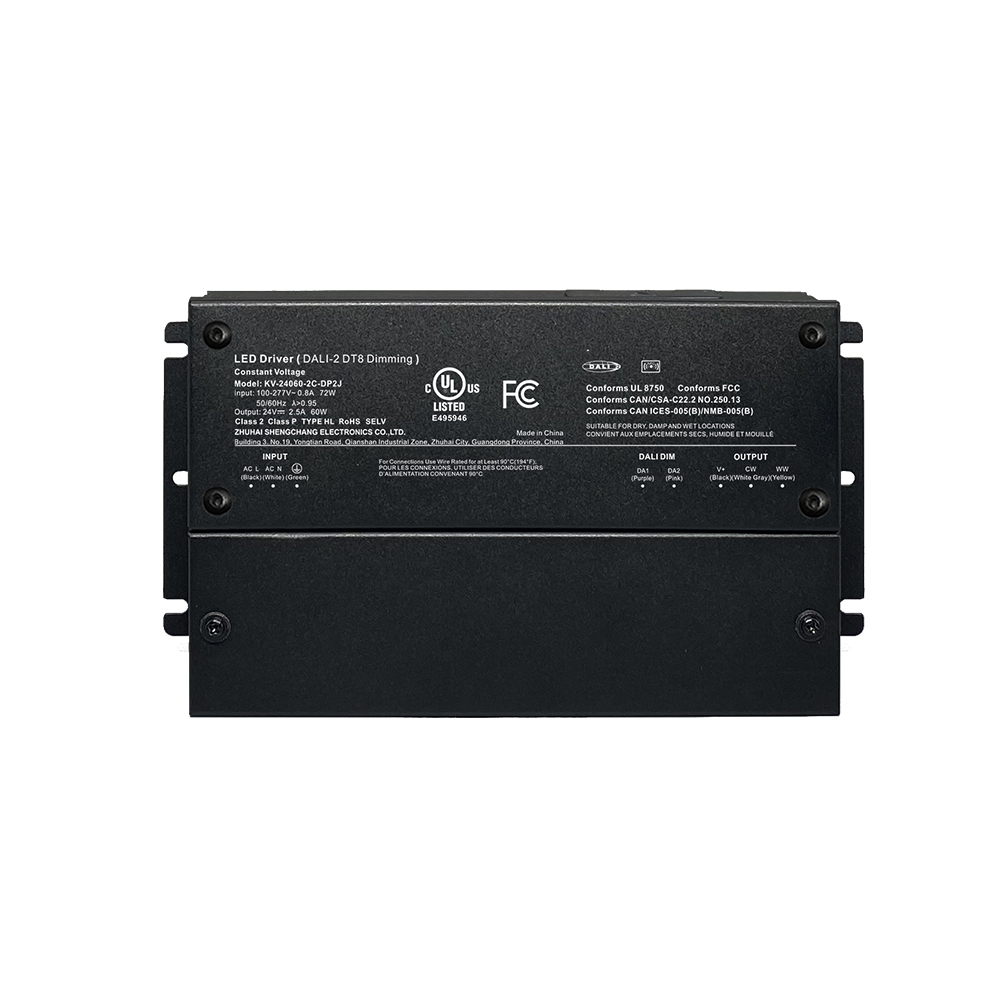

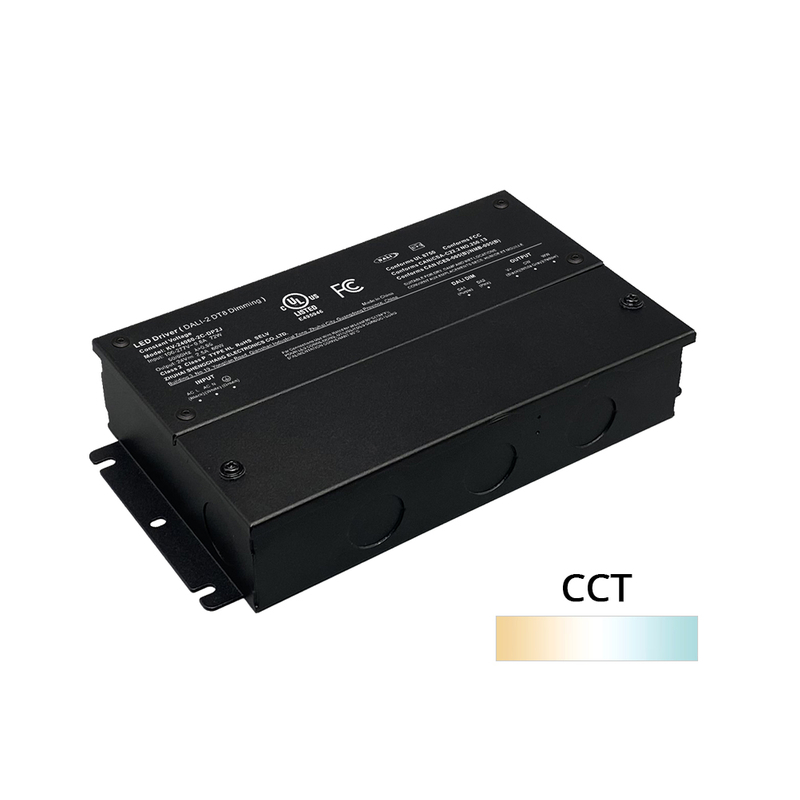

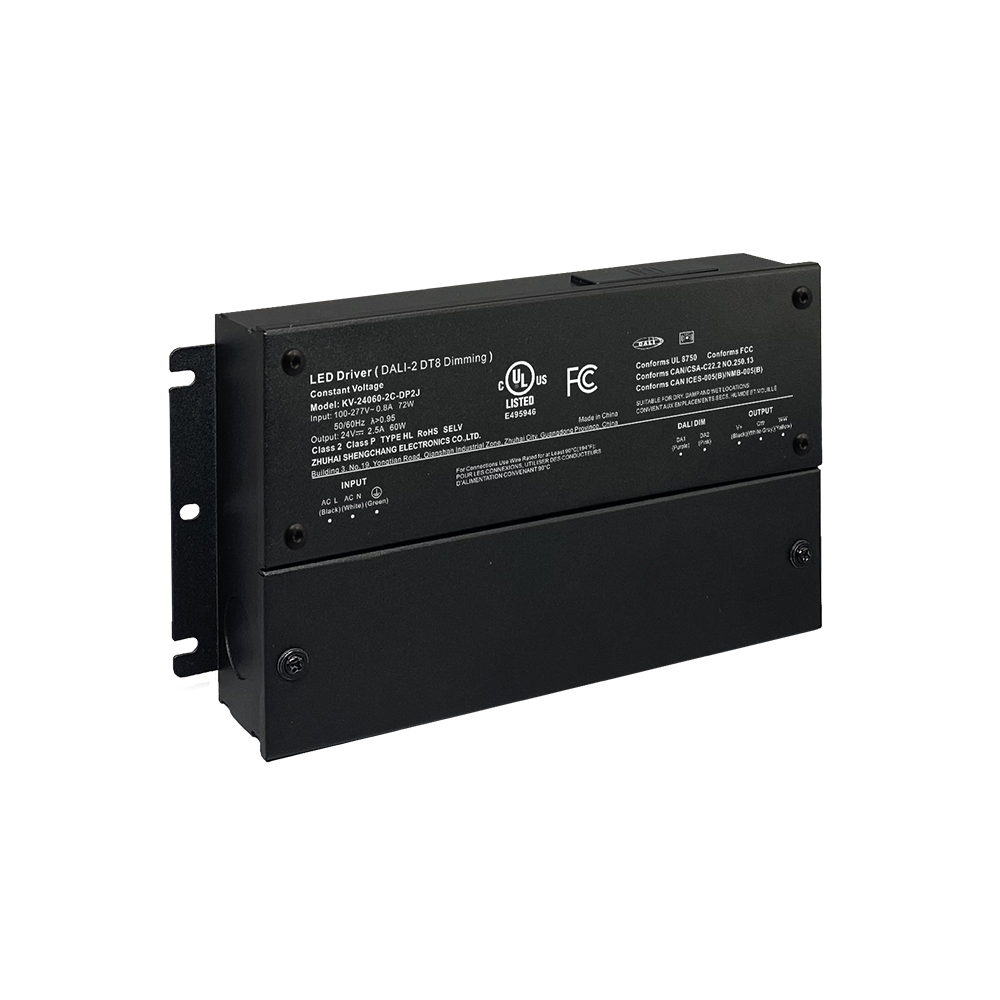

DP2 60W 75W CV CCT DALI-2 Push Dimming LED Driver mei Junction Box

Output Power:
60W
75W
Beskikberens:
Freegje Taheakje oan Basket

  • DALI-2 Druk

  • Isolearre

  • Konstante spanning

  • Dimming, CCT

  • IP66, droech en fochtich, wiet

  • 100-277VAC

  • 60W, 75W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Klasse 2

Foardiel

60W 75W CV CCT DALI-2 Push Dimming LED Driver mei Junction Box


Utfier:

Konstante spanning

Berik:

100-277VAC

PFC ûntwerp:

Ynboude aktive PFC-funksje

Beskermings:

koartsluting / oer load / oer temperatuer

Heat dissipation:

Cooling troch frije lucht konveksje

Waterproof prestaasjes:

Ynboude junction box driver, foar droege, fochtige, wiete lokaasjes (FS)

Dimmen funksje:

DALI-2 & PUSH 2 yn 1 dimming (CCT), PWM útfierfrekwinsje 4KHz Stroboskopyske ûntheffing

Dimming berik:

0-100% dimdjipte: 0,1%

NFC funksje

1) Oanpasse útfier spanning bytsje 2) opsetten adres

Oanfraach:

Geskikt foar LED-ferljochting en ferpleatse tekenapplikaasjes

Garânsje:

5 jier garânsje
Spesifikaasje


NW

Model Number

Output Power

Output Voltage

Output Strom

Grutte

NW

1 Channel
Dimming

KV-12060-DP2J

60W

12V

5A

202.5*114.2*42.7mm

KV-24060-DP2J

24V

2.5A

KV-36060-DP2J

36V

1.67

KV-48060-DP2J

48V

1.25A

KV-12075-DP2J

75W

12V

6.25A

KV-24075-DP2J

24V

3.13A

KV-36075-DP2J

36V

2.08A

KV-48075-DP2J

48V

1.56A

2 Channel
CCT

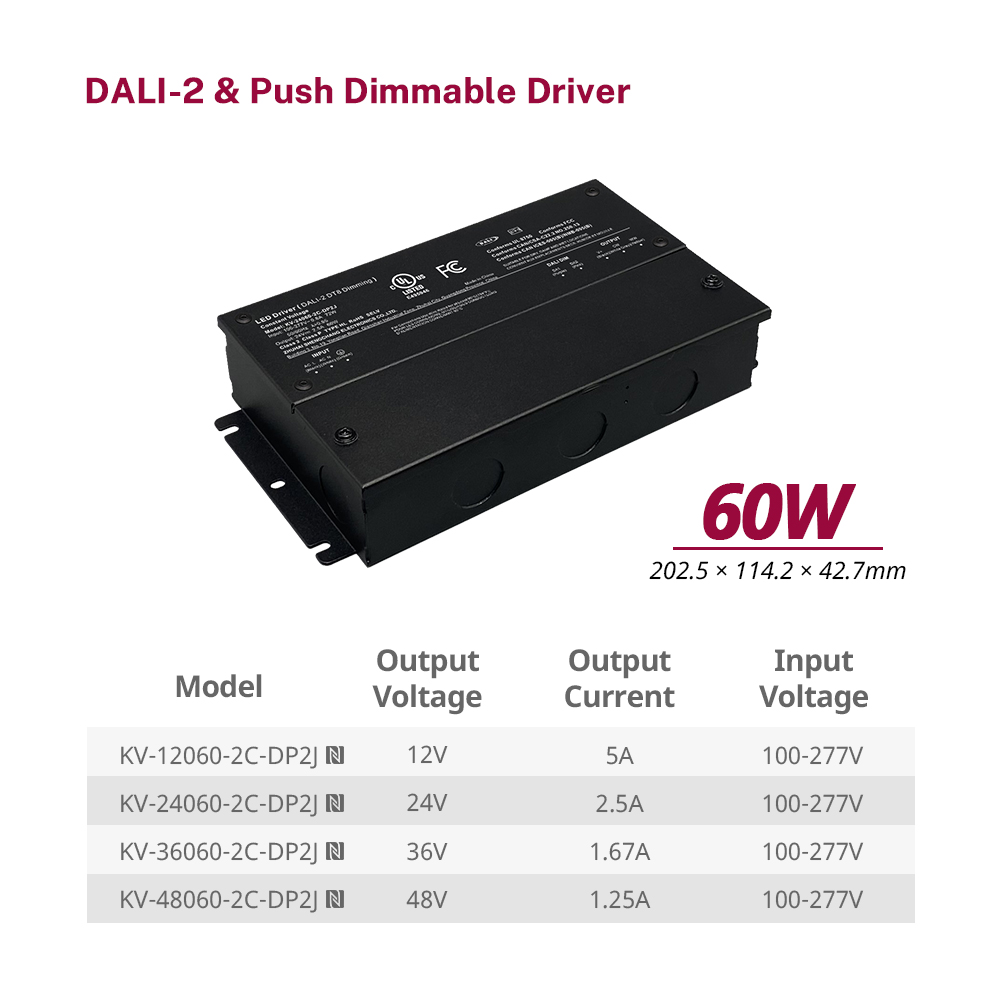

KV-12060-2C-DP2J

60W

12V

5A

KV-24060-2C-DP2J

24V

2.5A

KV-36060-2C-DP2J

36V

1.67

KV-48060-2C-DP2J

48V

1.25A

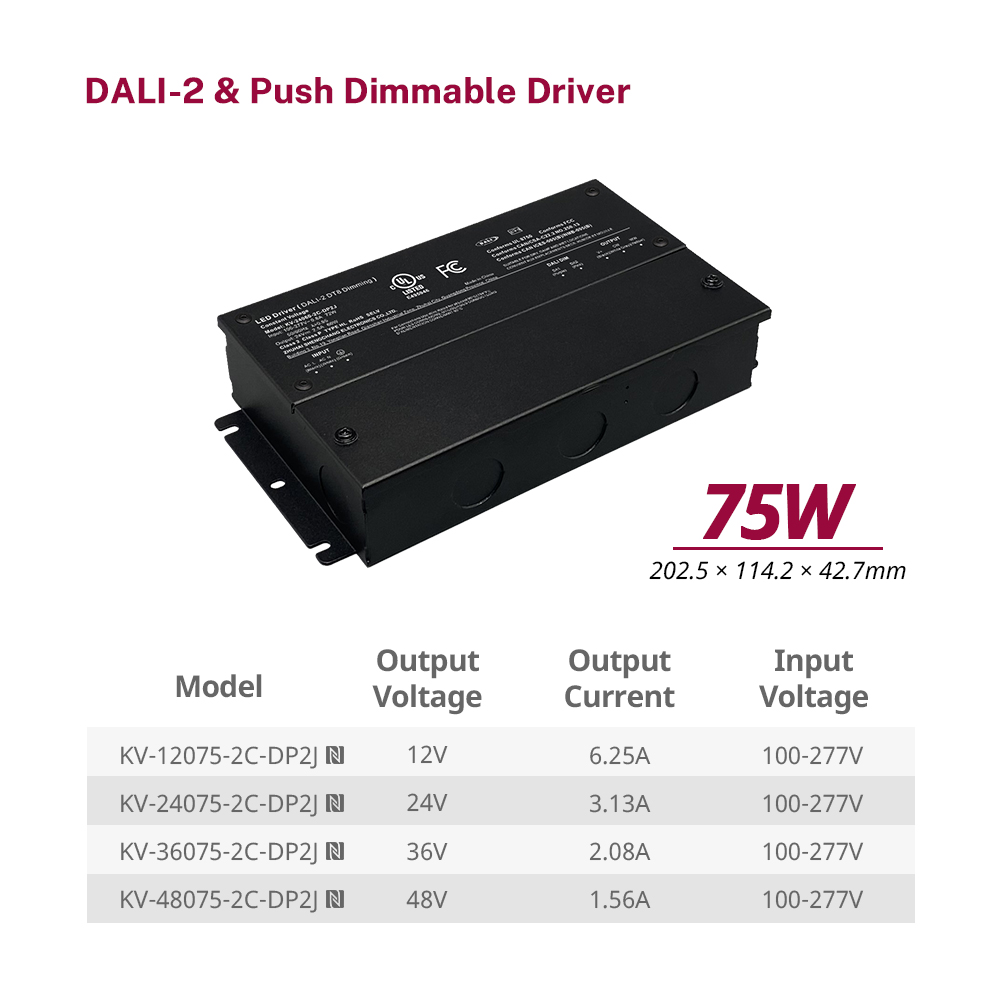

KV-12075-2C-DP2J

75W

12V

6.25A

KV-24075-2C-DP2J

24V

3.13A

KV-36075-2C-DP2J

36V

2.08A

KV-48075-2C-DP2J

48V

1.56A


download spec_60w dali-2 push dim. cv stjoerprogramma KV-DP2J 12v 24v 36v 48v.pdf

download spec_75W DALI-2 dim. CV-bestjoerder KV-DP2J 12V & 24V & 36V & 48V.pdf
