Ebintu Ebikwata ku

Oli wano: Ewaka / Ebintu ebikolebwa / DALI-2 Ddereeva wa LED asobola okuzikira / Voltage etakyukakyuka DT8 RGB CW 1-5 Omukutu (KV-C-DP2 Series) / Ddereeva wa LED eya Push Dimming DP2 60W 75W CV CCT DALI-2 ng’erina Junction Box

Ekika ky'ebintu

okutikka

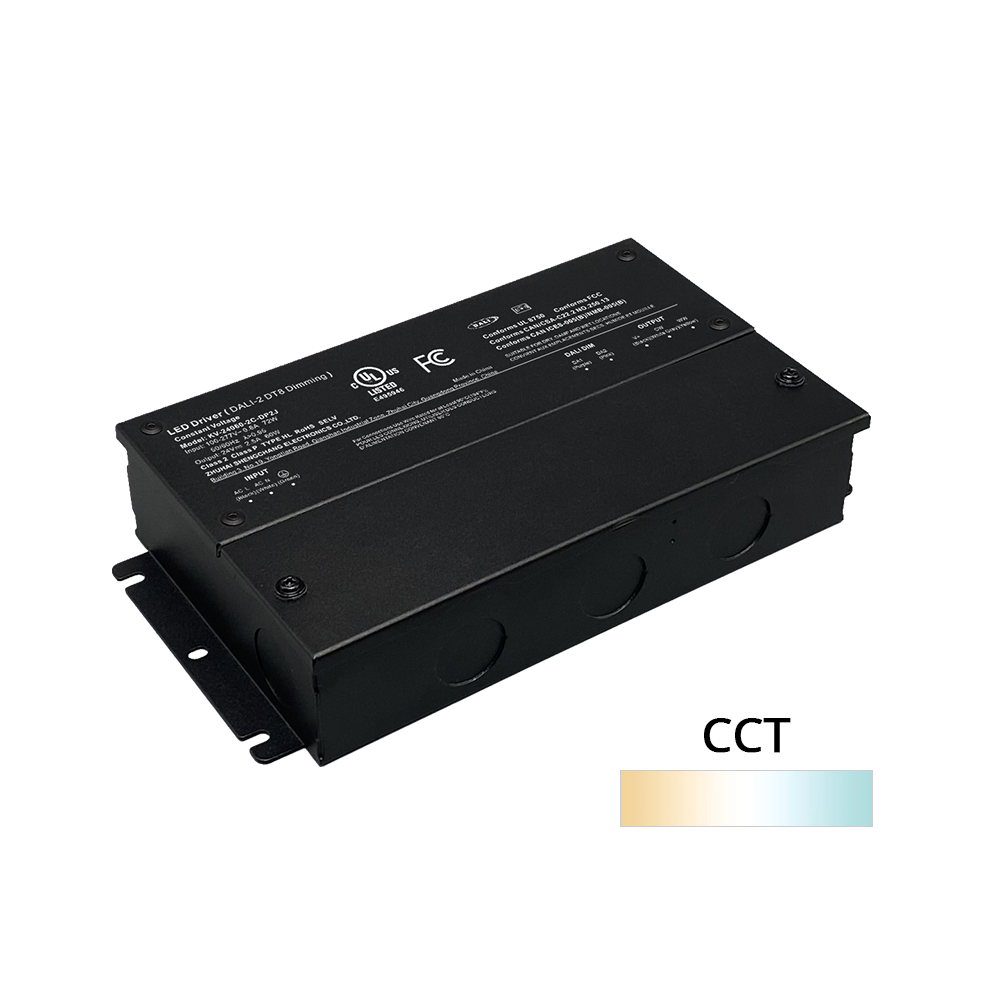

DP2 60W 75W CV CCT DALI-2 Ddereeva wa LED akuba okuziba nga alina Junction Box

Amaanyi ga Ouput:
60W
75W
Okubeerawo:
Buuza Yongera ku Basket

  • DALI-2 Okusika

  • Kifikkiriza

  • Voltage etakyukakyuka

  • Okuzibikira, CCT

  • IP66, Enkalu & Ennyogovu, Ennyogovu

  • 100-277VAC

  • 60W, 75W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Ekibiina kya 2

Ekirungi kya

60W 75W CV CCT DALI-2 Ddereeva wa LED eya Push Dimming nga alina Junction Box


Ebifulumizibwa:

Voltage etakyukakyuka

Ebanga:

100-277VAC

Dizayini ya PFC:

Omulimu gwa PFC ogukola oguzimbibwamu

Obukuumi:

short circuit/ okutikka okusukkiridde/ okusukka ebbugumu

Okusaasaanya ebbugumu:

Okunyogoza nga tuyita mu kukyusa empewo ey’obwereere

Omulimu gw’okuziyiza amazzi:

Built-in Junction box driver , ku bifo ebikalu, ebinyogovu, ebibisi(US)

Omulimu gw’okuzibikira:

DALI-2 & PUSH 2 mu 1 dimming (CCT), PWM okufuluma frequency 4KHz Stroboscopic okusonyiyibwa

Dimming range:

0-100% obuziba bw'okuzikira: 0.1%

Omulimu gwa NFC

1) Teekateeka voltage efuluma katono 2) okuteekawo endagiriro

Okusaba:

Esaanira okutaasa kwa LED n’okukozesa obubonero obutambula

Waranti:

Waranti ya myaka 5
Okunnyonnyola


NW

Ennamba ya Model

Amaanyi agafuluma

Voltage efuluma

Ebifulumizibwa Current

Obunene

NW

1
Okuziba Omukutu

KV-12060-DP2J

60W

12V

5A

202.5 * 114.2 * 42.7mm

KV-24060-DP2J

24V

2.5A

KV-36060-DP2J

36V

1.67

KV-48060-DP2J

48V

1.25A

KV-12075-DP2J

75W

12V

6.25A

KV-24075-DP2J

24V

3.13A

KV-36075-DP2J

36V

2.08A

KV-48075-DP2J

48V

1.56A

2 Omukutu gwa
CCT

KV-12060-2C-DP2J

60W

12V

5A

KV-24060-2C-DP2J

24V

2.5A

KV-36060-2C-DP2J

36V

1.67

KV-48060-2C-DP2J

48V

1.25A

KV-12075-2C-DP2J

75W

12V

6.25A

KV-24075-2C-DP2J

24V

3.13A

KV-36075-2C-DP2J

36V

2.08A

KV-48075-2C-DP2J

48V

1.56A


okufuna spec_60w dali-2 okusika okuzikira. ddereeva wa cv KV-DP2J 12v 24v 36v 48v.pdf

okufuna spec_75W DALI-2 ekizikiza. Omuvuzi wa CV KV-DP2J 12V&24V&36V&48V.pdf
