Foirgneamh 3, Uimh.
 |
| Múnla: | |
|---|---|
TRIAC 0-10V
Scoite amach
Voltas leanúnach
Ditimiúil
IP20, tirim & taise
200-240VAC
10W, 20W, 40W, 60W
3V-42V
SAA, ENEC, CB, CE, ROHS, REACH
10 20 40 60 60 Watt CC TRIAC 0-10V Tiománaí LED Dimmable 220 230 240 Volt
Aschur: | Sruth leanúnach |
Raon: | 200-240VAC |
Dearadh PFC: | Feidhm PFC gníomhach tógtha isteach |
Cosaintí: | Ciorcad Gearr/ Over Teocht |
Díscaoileadh teasa: | Fuarú le comhiompar aeir saor in aisce |
Feidhmíocht uiscedhíonach: | IP20 (AE) |
Feidhm dimming: | Céim Dimming: Oibrigh le Leading Edge, MLV agus Imeall Trailing, ELV, Dimmers Triac 0-10V Dimming: 0-10V/1-10V/potentiometer/10V PWM 4 in 1 |
Raon dimming: | 1-100% |
Iarratas: | Oiriúnach chun soilsiú faoi stiúir faoi dhíon a chur i bhfeidhm |
Barántas: | Barántas 5 bliana |
Cumhacht aschuir | Uimhir shamhail | Aschur | Méid | Ualach |
10w | KIG-010-DH | 3-42V 100mA | 135*30*20mm | 0.10kg |
3-42V 150mA | ||||
3-42V 200MA | ||||
3-40V 250mA | ||||
3-33V 300mA | ||||
3-29V 350MA | ||||
3-25V 400mA | ||||
3-22V 450MA | ||||
20w | KIG-020-DH | 3-42V 250mA | 159.5*43*20mm | 0.15K |
3-42V 350MA | ||||
3-42V 400mA | ||||
3-42V 450MA | ||||
3-40V 500mA | ||||
3-36V 550MA | ||||
3-33V 600mA | ||||
3-29V 700mA | ||||
40w | KIG-040-DH | 3-50V 300mA | 171.5*54*20mm | 0.17kg |
3-50V 350mA | ||||
3-50V 400mA | ||||
3-50V 450MA | ||||
3-50V 500mA | ||||
3-50V 550mA | ||||
3-50V 600mA | ||||
3-50V 650MA | ||||
3-50V 700mA | ||||
3-50V 800mA | ||||
3-45V 900mA | ||||
3-40V 1000mA | ||||
3-37V 1100mA | ||||
3-34V 1200mA | ||||
3-31V 1300mA | ||||
3-29V 1400mA | ||||
60W | KIG-060-DH | 3-50V 600mA | 192.5*62*24mm | 0.30kg |
3-50V 700mA | ||||
3-50V 800mA | ||||
3-50V 900mA | ||||
3-50V 1000mA | ||||
3-50V 1100mA | ||||
3-50V 1200mA | ||||
3-46V 1300mA | ||||
3-43V 1400mA | ||||
3-40V 1500mA | ||||
3-38V 1600mA | ||||
3-35V 1700mA | ||||
3-33V 1800mA | ||||
3-32V 1900ma | ||||
3-30V 2000mA | ||||
3-29V 2100mA |

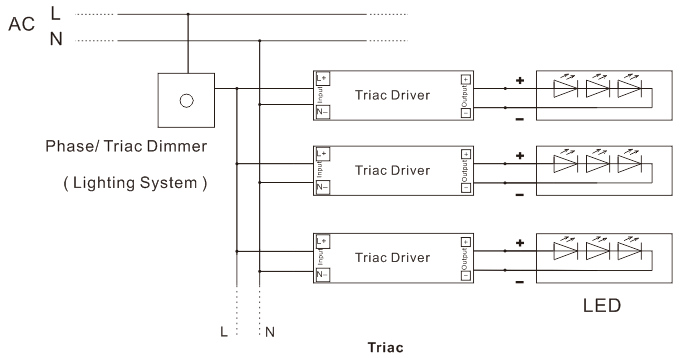

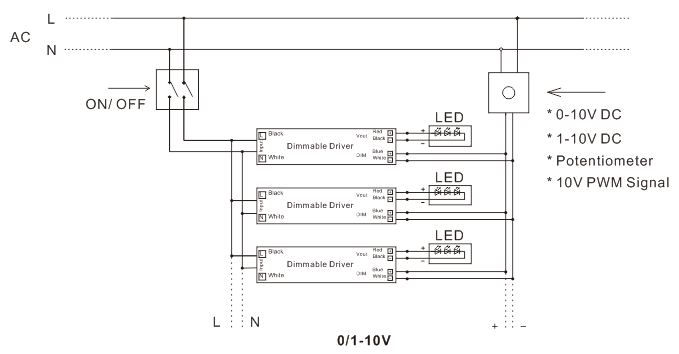

Soláthar cumhachta faoi stiúir TRIAC & 0-10V
TRIAC & 0-10V Soláthair Cumhachta faoi stiúir : Méid
10 20 40 60 60 Watt CC TRIAC 0-10V Tiománaí LED Dimmable 220 230 240 Volt
Aschur: | Sruth leanúnach |
Raon: | 200-240VAC |
Dearadh PFC: | Feidhm PFC gníomhach tógtha isteach |
Cosaintí: | Ciorcad Gearr/ Over Teocht |
Díscaoileadh teasa: | Fuarú le comhiompar aeir saor in aisce |
Feidhmíocht uiscedhíonach: | IP20 (AE) |
Feidhm dimming: | Céim Dimming: Oibrigh le Leading Edge, MLV agus Imeall Trailing, ELV, Dimmers Triac 0-10V Dimming: 0-10V/1-10V/potentiometer/10V PWM 4 in 1 |
Raon dimming: | 1-100% |
Iarratas: | Oiriúnach chun soilsiú faoi stiúir faoi dhíon a chur i bhfeidhm |
Barántas: | Barántas 5 bliana |
Cumhacht aschuir | Uimhir shamhail | Aschur | Méid | Ualach |
10w | KIG-010-DH | 3-42V 100mA | 135*30*20mm | 0.10kg |
3-42V 150mA | ||||
3-42V 200MA | ||||
3-40V 250mA | ||||
3-33V 300mA | ||||
3-29V 350MA | ||||
3-25V 400mA | ||||
3-22V 450MA | ||||
20w | KIG-020-DH | 3-42V 250mA | 159.5*43*20mm | 0.15K |
3-42V 350MA | ||||
3-42V 400mA | ||||
3-42V 450MA | ||||
3-40V 500mA | ||||
3-36V 550MA | ||||
3-33V 600mA | ||||
3-29V 700mA | ||||
40w | KIG-040-DH | 3-50V 300mA | 171.5*54*20mm | 0.17kg |
3-50V 350mA | ||||
3-50V 400mA | ||||
3-50V 450MA | ||||
3-50V 500mA | ||||
3-50V 550mA | ||||
3-50V 600mA | ||||
3-50V 650MA | ||||
3-50V 700mA | ||||
3-50V 800mA | ||||
3-45V 900mA | ||||
3-40V 1000mA | ||||
3-37V 1100mA | ||||
3-34V 1200mA | ||||
3-31V 1300mA | ||||
3-29V 1400mA | ||||
60W | KIG-060-DH | 3-50V 600mA | 192.5*62*24mm | 0.30kg |
3-50V 700mA | ||||
3-50V 800mA | ||||
3-50V 900mA | ||||
3-50V 1000mA | ||||
3-50V 1100mA | ||||
3-50V 1200mA | ||||
3-46V 1300mA | ||||
3-43V 1400mA | ||||
3-40V 1500mA | ||||
3-38V 1600mA | ||||
3-35V 1700mA | ||||
3-33V 1800mA | ||||
3-32V 1900ma | ||||
3-30V 2000mA | ||||
3-29V 2100mA |
Soláthar cumhachta faoi stiúir TRIAC & 0-10V
TRIAC & 0-10V Soláthair Cumhachta faoi stiúir : Méid
