10 20 40 60 Watt CC CC TRIAC Dimming LED Subministración LED 220 230 240 Volt
Saída: |
Corrente constante |
| CAMPO: |
200-240vac |
Deseño PFC: |
Función PFC activa incorporada |
Proteccións: |
Curtocircuíto/ excesivo temperatura |
Disipación de calor: |
Refrixeración por convección de aire libre |
Rendemento impermeable: |
IP20 |
Función de escurecemento: |
Dimming Triac/Fase Cut: Traballa con Dimmer de triac de borde liderado ou trazado |
Rango de escurecemento: |
1-100% |
Aplicación: |
Adecuado para a aplicación de iluminación LED interior |
Garantía: |
5 anos de garantía |
Potencia de saída |
Número de modelo |
Saída |
Tamaño |
Peso |

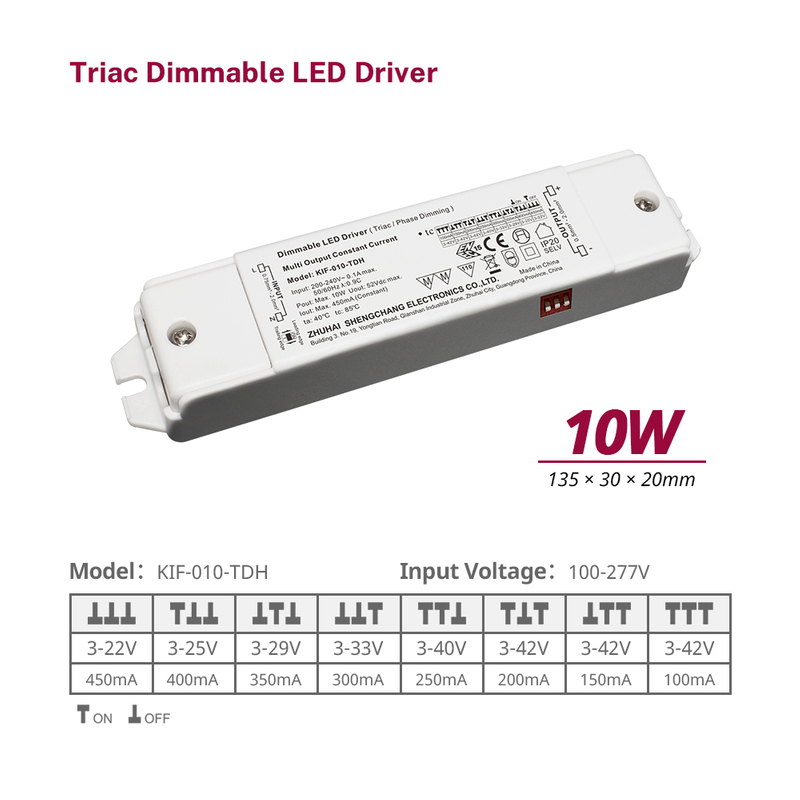

10W |
KIF-010-TDH |
3-42V 100mA |
135*30*20mm |
0,10 kg |
3-42V 150mA |
3-42V 200MA |
3-40V 250mA |
3-33V 300mA |
3-29V 350MA |
3-25V 400mA |
3-22V 450MA |
20W |
KIF-020-TDH |
3-42V 250mA |
159,5*43*20mm |
0,15kg |
3-42V 350MA |
3-42V 400mA |
3-42V 450MA |
3-40V 500mA |
3-36V 550mA |
3-33V 600mA |
3-29V 700mA |
40W |
KIF-040-TDH |
3-50V 300mA |
171,5*54*20mm |
0,17kg |
3-50V 350mA |
3-50V 400mA |
3-50V 450mA |
3-50V 500mA |
3-50V 550mA |
3-50V 600mA |
3-50V 650mA |
3-50V 700mA |
3-50V 800mA |
3-45V 900mA |
3-40V 1000mA |
3-37V 1100mA |
3-34V 1200mA |
3-31V 1300MA |
3-29V 1400mA |
60W |
KIF-060-TDH |
3-50V 600mA |
192,5*62*24mm |
0,30kg |
3-50V 700mA |
3-50V 800mA |
3-50V 900mA |
3-50V 1000mA |
3-50V 1100mA |
3-50V 1200mA |
3-46V 1300MA |
3-43V 1400mA |
3-40V 1500mA |
3-38V 1600MA |
3-35V 1700MA |
3-33V 1800MA |
3-32V 1900MA |
3-30v 2000ma |
3-29V 2100MA |
Diagrama de cableado de alimentación LED Triac LED
Fonte de alimentación led Triac
Triac : da fonte de alimentación LED Tamaño
