150W 200W Triac Dimmable LED famatsiana herinaratra CV 12Volt 24Volt 36Volt 48Volt

150W Triac Dimmable LED famatsiana herinaratra CV 12Volt 24Volt 36Volt 48Volt

150W 200W Triac Dimmable LED famatsiana herinaratra CV 12Volt 24Volt 36Volt 48Volt

Hery mivoaka:	150W 200W
misy:



anontanio aloha Ampio amin'ny harona

Karazana fanamaivanana:
Triac
Karazana mitoka-monina:
mitoka-monina
Karazana vokatra:
Volontany tsy miova
Fantsona Output:
Dimming
IP tahan'ny:
IP66, maina & mando, mando
Vola miditra:
110-277VAC
Hery mivoaka:
150W, 200W
Volavolan'ny Output:
12/24/36/48V
Fanamarinana:
UL & cUL, FCC, CE, RoHS, REACH

tombony

150W 200W Triac Dimmable LED famatsiana herinaratra CV 12Volt 24Volt 36Volt 48Volt

Output:	Volontany tsy miova
Sarona:	110-277VAC
PFC famolavolana:	Fampiasa PFC mavitrika ao anatiny
fahombiazana:	hatramin'ny 87%
Fiarovana:	Short circuit/ over load/ over temperature
Fandroahana hafanana:	Mangatsiaka amin'ny alalan'ny convection rivotra maimaim-poana
Fampisehoana tsy tantera-drano:	Fiarovana tanteraka ny trano aluminium, ho an'ny toerana maina, mando ary mando
Fandevenana asa:	Fandevenana ny dingana: miasa miaraka amin'ny dingana mandroso, MLV ary dingana miverina, ELV, TRIAC dimmers.
Saran'ny dimming:	0-100%
Fampiharana:	Mety amin'ny fampiharana ny jiro LED
antoka:	5 taona garantie
hafa:	Famoahana PWM, hery avo lenta PF≥0.95, tsy misy flicker dimming

famaritana

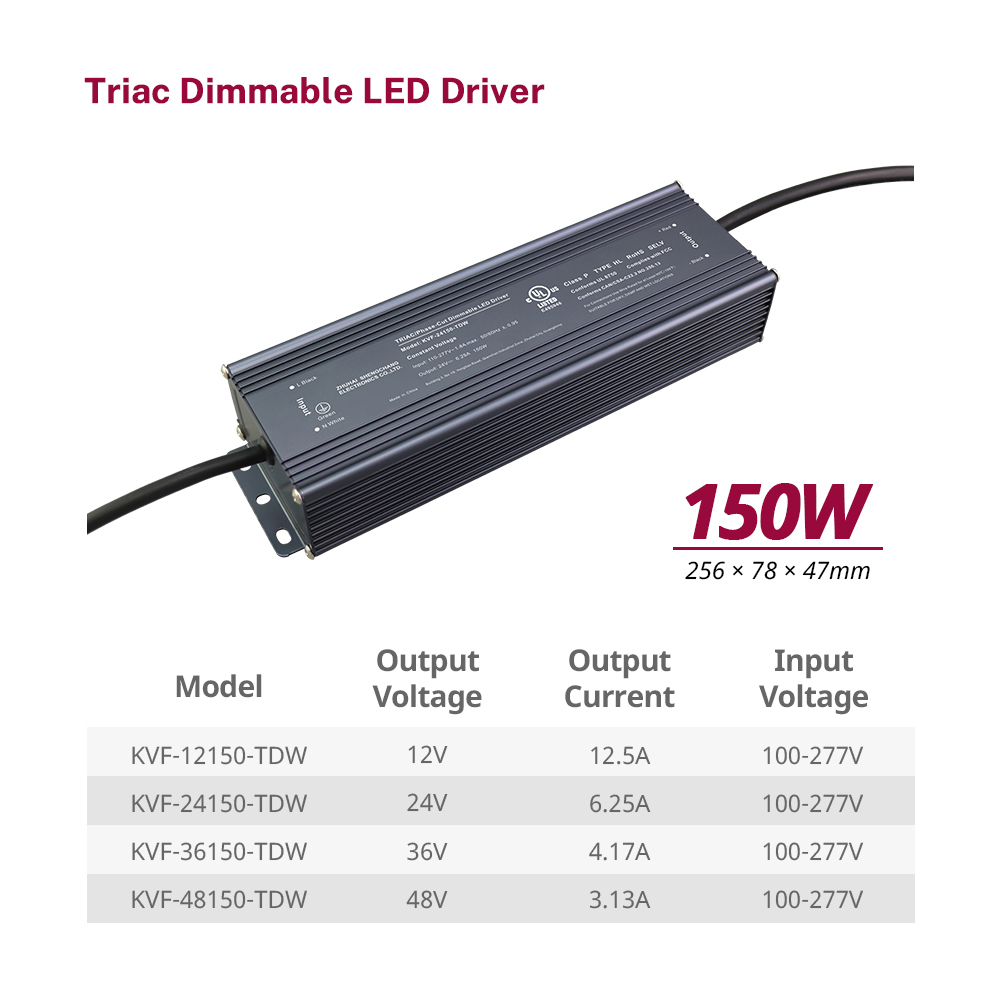

Hery mivoaka	Laharana modely	Voltage Output	Output Current	Size	lanja
150W	KVF-12150-TDW	12V	12.5A	2567847mm	1,45 kg
	KVF-24150-TDW	24V	6.25A
	KVF-36150-TDW	36V	4.17A
	KVF-48150-TDW	48V	3.13A
200W	KVF-12200-TDW	12V	16.67A
	KVF-24200-TDW	24V	8.34A
	KVF-36200-TDW	36V	5.56A
	KVF-48200-TDW	48V	4.17A
