Ibicuruzwa birambuye

Uri hano: Murugo / Ibicuruzwa / Guhindura Amashanyarazi / Umuvuduko uhoraho 100-277VAC / 30W 36W 60W 80W 120W CV Umurongo wa Plastike Umushoferi Guhindura Amashanyarazi hamwe nagasanduku kihariye.

Icyiciro cyibicuruzwa

imizigo

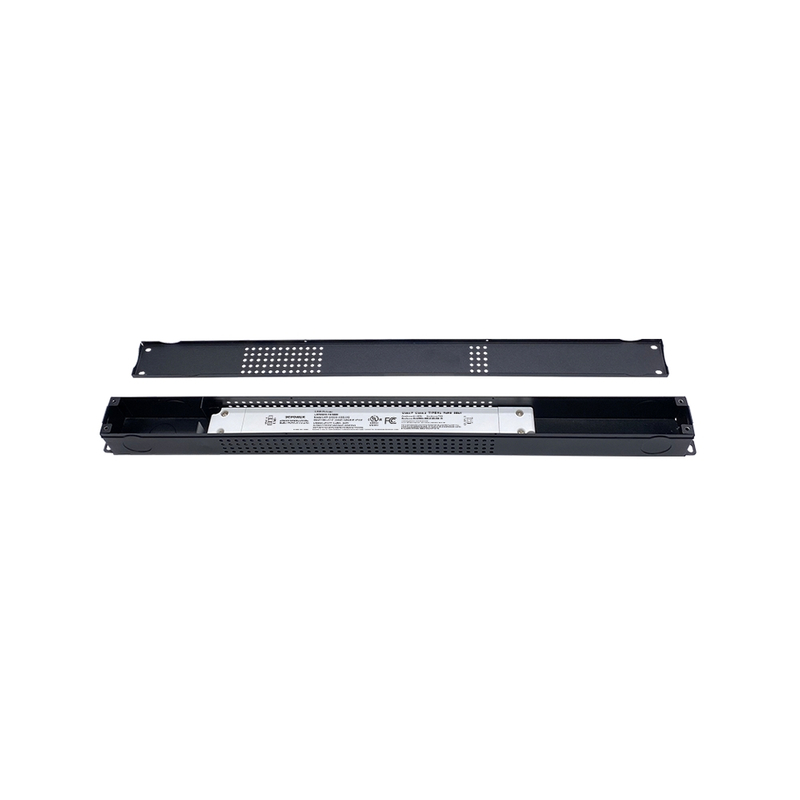

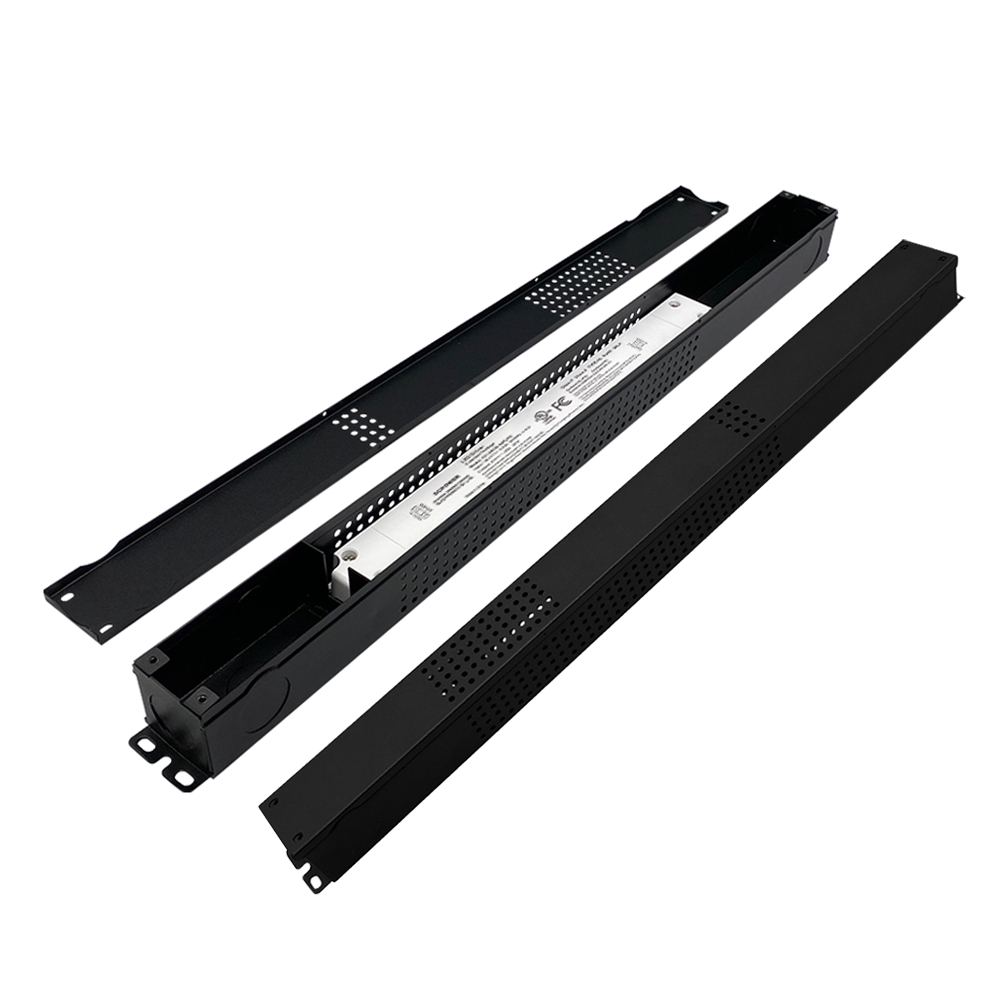

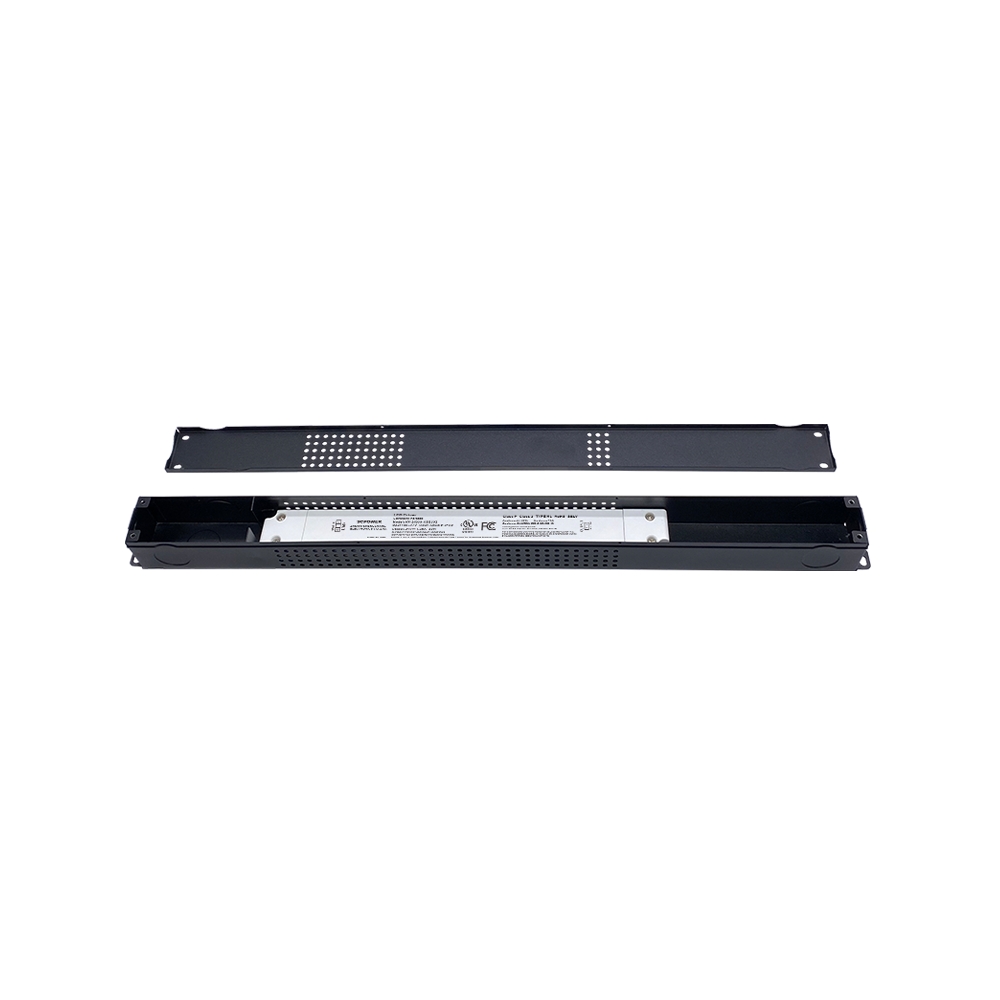

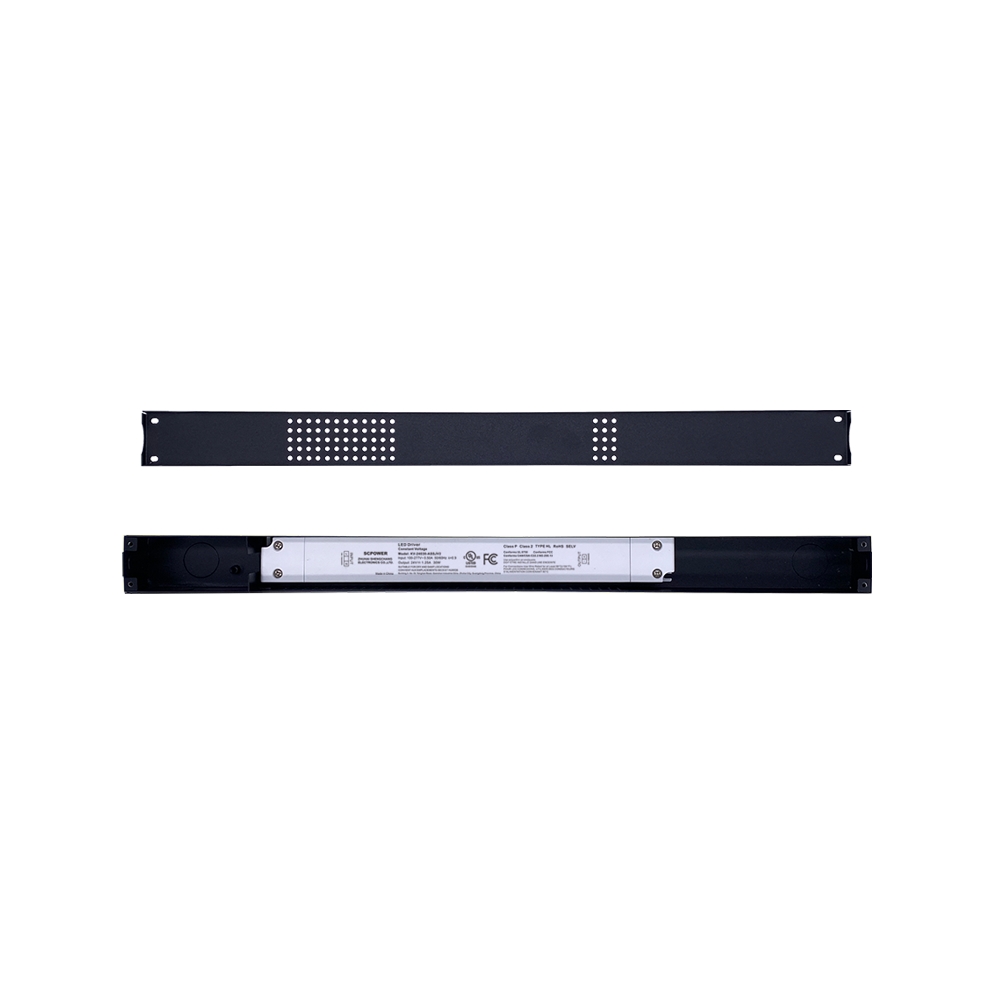

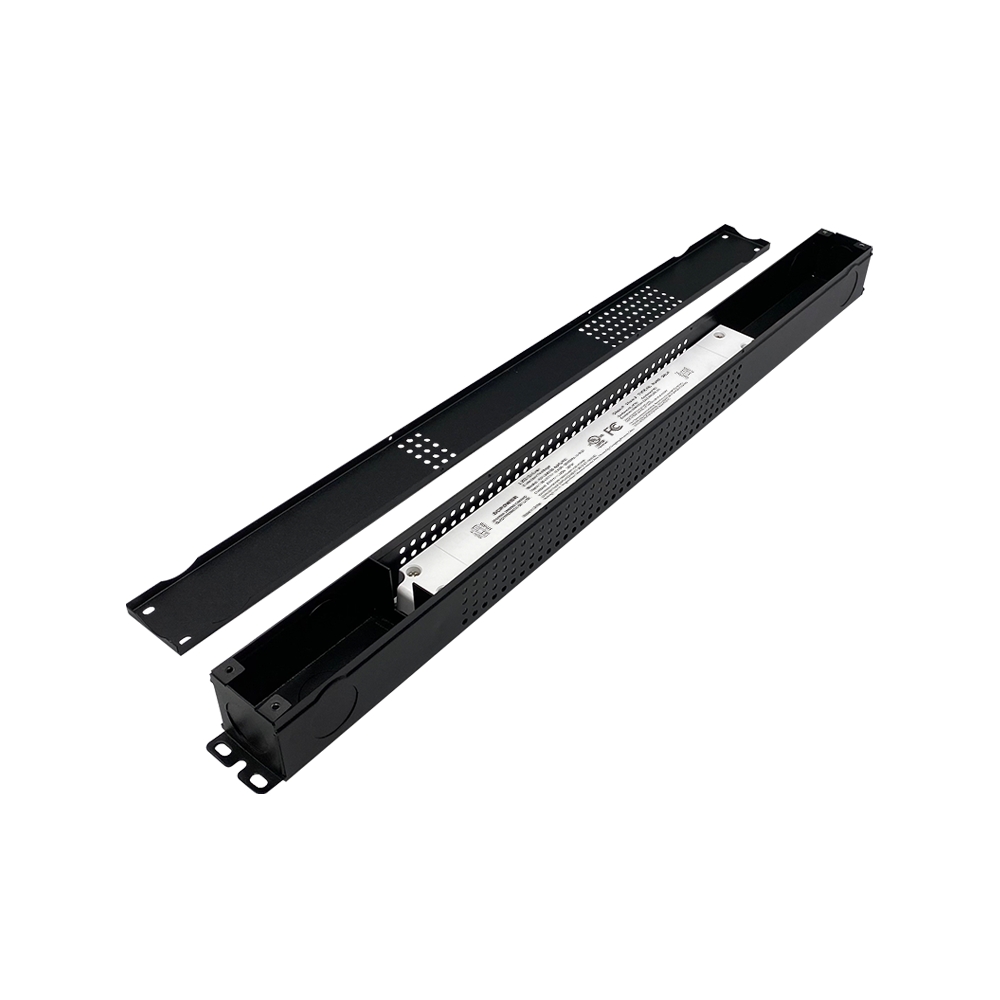

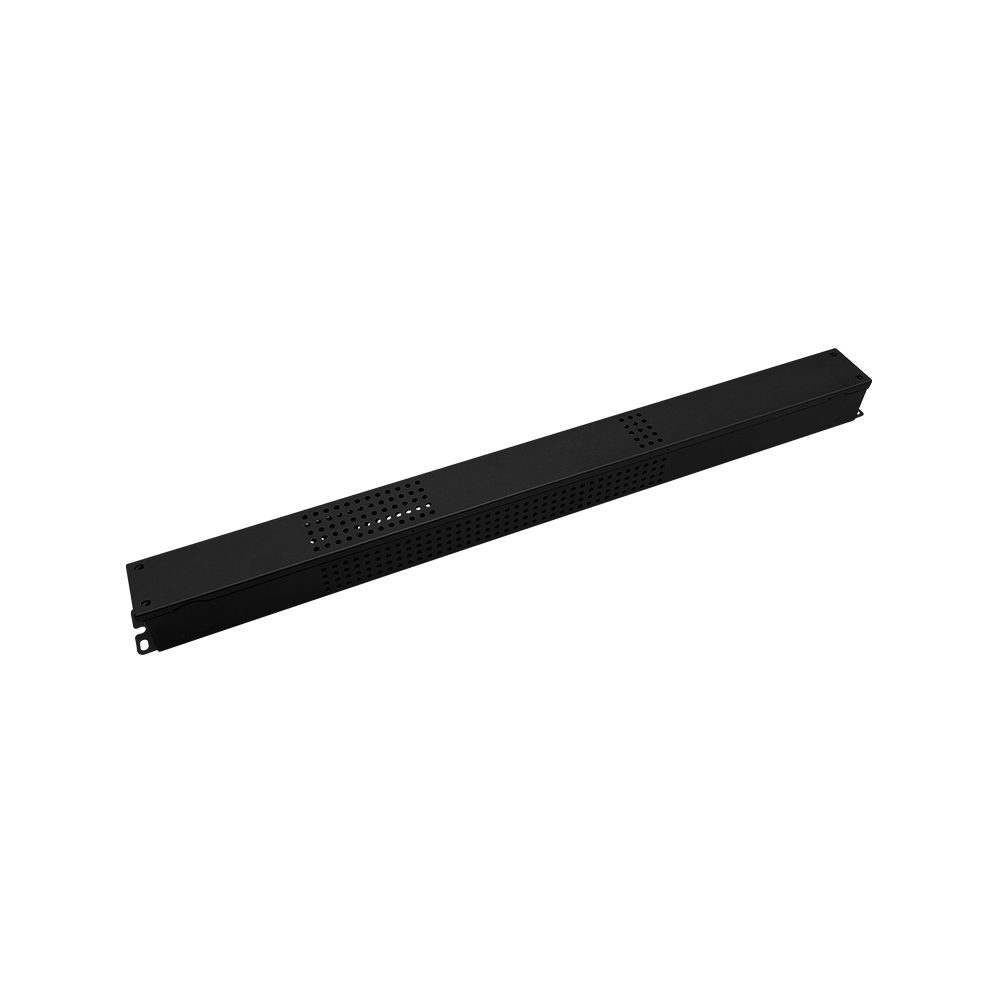

30W 36W 60W 80W 120W CV Umurongo wa Plastike Umushoferi Guhindura Amashanyarazi hamwe nagasanduku kihariye.

Icyitegererezo:
30W
36W
60W
80W
120W
Kuboneka:
Baza Ongeraho Igitebo

  • Kudasiba

  • Kwigunga

  • Umuvuduko uhoraho

  • Kudasiba

  • IP20, Kuma & Damp

  • 100-277VAC

  • 30W, 36W, 60W, 80W, 120W

  • 12/24/36 / 48V

  • UL & cUL, FCC, Icyiciro cya 2, RoHS, KUGERAHO

Ibyiza

30W 36W 60W 80W 120W CV Umurongo wa Plastike Umushoferi Guhindura Amashanyarazi hamwe nagasanduku kihariye.


Ibisohoka

Umuvuduko uhoraho

Iyinjiza rya voltage

100-277VAC

Igishushanyo cya PFC

Yubatswe mubikorwa bya PFC

Gukora neza

Kugera kuri 91%

Kurinda

Inzira ngufi / hejuru yubushyuhe / hejuru yumutwaro

Gushyushya

Gukonjesha ukoresheje umwuka wubusa

Imikorere idafite amazi

Umushoferi yubatswe mu gasanduku gahuza, ahantu humye, hatose & ahantu hatose (US)

Igikorwa cyo kugabanya

Ntibishobora

Gusaba

Bikwiranye no gukoresha amatara ya LED

Garanti

Garanti yimyaka 5

Abandi

Ubushobozi buhanitse, ingano ntoya, imbaraga nyinshi, THD yo hasi



Ibisobanuro


Imbaraga zisohoka

Umubare w'icyitegererezo

Umuvuduko w'amashanyarazi

Ibisohoka Ibiriho

Ingano

Ibiro

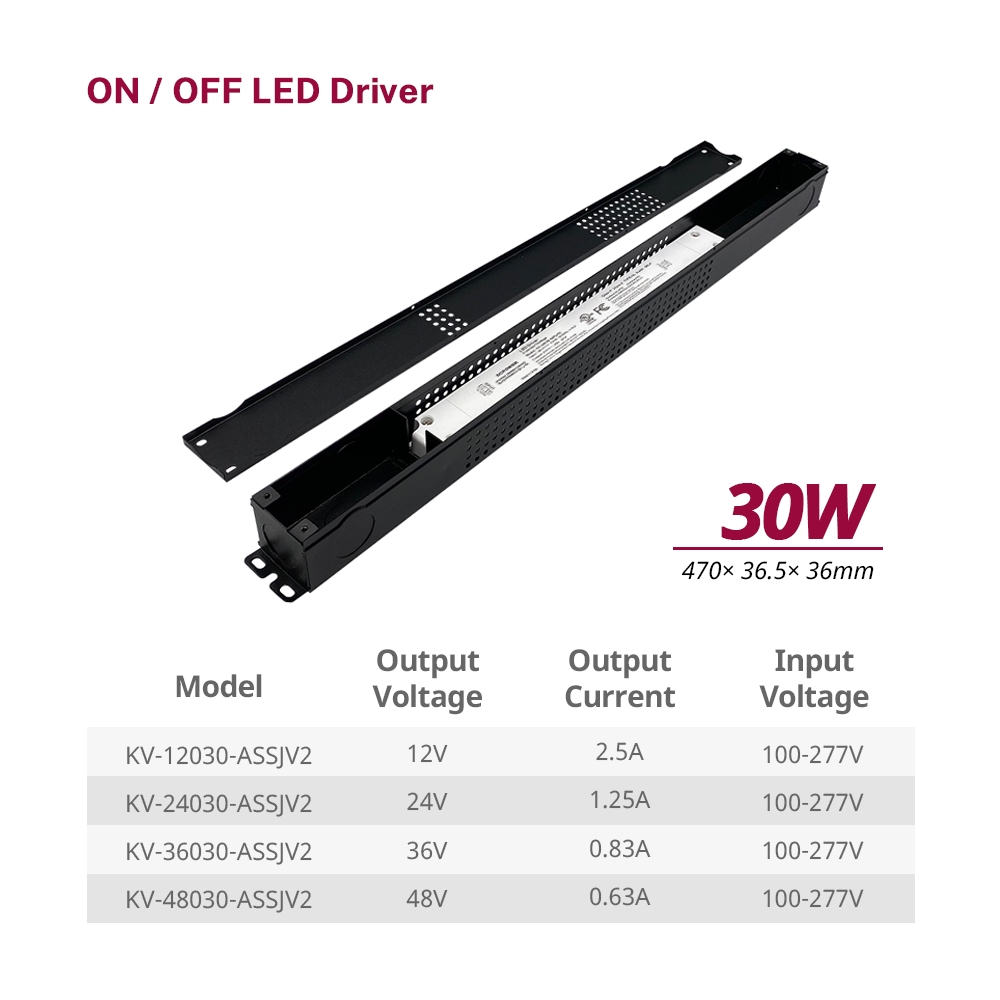

30W

KV-12030-ASSJV2

12V

2.5A

470 * 36.5 * 36mm

KV-24030-ASSJV2

24V

1.25A

KV-36030-ASSJV2

36V

0.83A

KV-48030-ASSJV2

48V

0.63A

36W

KV-12036-ASSJV2

12V

3A

KV-24036-ASSJV2

24V

1.5A

KV-36036-ASSJV2

36V

1A

KV-48036-ASSJV2

48V

0.75A

60W

KV-12060-ASSJV2

12V

5A

KV-24060-ASSJV2

24V

2.5A

KV-36060-ASSJV2

36V

1.67A

KV-48060-ASSJV2

48V

1.25A

80W

KV-12080-ASSJV2

12V

6.67A

KV-24080-ASSJV2

24V

3.34A

KV-36080-ASSJV2

36V

2.23A

KV-48080-ASSJV2

48V

1.67A

120W

KV-12120-ASSJV2

12V

10A

508 * 36.5 * 36mm

KV-24120-ASSJV2

24V

5A

KV-36120-ASSJV2

36V

3.33A

KV-48120-ASSJV2

48V

2.5A


Nta Dimmable Guhindura Amashanyarazi  Amashanyarazi


Nta Dimmable Guhindura Amashanyarazi Amashanyarazi

KVE-ASW


Incamake y'ibicuruzwa

Iyi Linear Plastike Yumushoferi Guhindura Amashanyarazi (30W 36W 60W 80W 120W) agaragaza agasanduku gahuza agasanduku gahuza kugirango gahindurwe byoroshye ahantu hafunganye. Hamwe nisi yose 100-277VAC yinjiza hamwe na IP20 yubatswe na plastike , itanga ingufu zihamye 12V / 24V / 36V / 48V DC kumatara yubucuruzi. UL / cUL / FCC yemejwe na garanti yimyaka 5.


Ibiranga ibicuruzwa

  • Wiring Freedom, Zero Urugamba: 'Gucomeka & Wibagirwe ' agasanduku gahuza gikemura amahuza mabi kure. Bikwiranye nabashoferi inyuma yumurongo / mumiyoboro mugihe itumanaho ryagerwaho. Kugabanya kwishyiriraho igihe kimwe cya kabiri vuga kugabanya byose-muri-imwe.

  • Umuvuduko Utigera Uhungabana: Icyiciro cya gisirikare (± 0.5V) kirinda LED guhindagurika. Kwikiza-tekinoroji-auto-reboots nyuma yumutwaro urenze - nta ntoki zisubirwamo. Byuzuye kuri laboratoire yuzuye / ububiko bwubuhanzi.



Gusaba


  • Kwihisha kumurongo ushyiraho: Agasanduku gahuza gatuma umushoferi ashyira mubisenge / kurukuta mugihe insinga zagerwaho. Nibyiza kumatara ya cove hamwe ninama ya LED.

  • Ibidukikije-Ubushyuhe Bwinshi: Gushyira ahitaruye agasanduku gashyizwe kubuza ubushyuhe kwiyongera mubishingwe, igikoni cyubucuruzi, nicyumba cyo gutekamo.

Kuramo spec_30W itari Dimmable LED yumushoferi KV-ASL 12V & 24V & 36V & 48V.pdf

Kuramo spec_36W itari Dimmable LED yubushoferi KV-ASL 12V & 24V.pdf

Kuramo spec_60W itari Dimmable LED yubushoferi KV-ASL 12V & 24V.pdf

Kuramo spec_96W itari LED yerekana ibinyabiziga bya KV-ASL 24V & 48V.pdf

Kuramo spec_100W itari Dimmable LED yumushoferi KV-ASL 12V & 24V & 48V.pdf

Kuramo spec_150W itari Dimmable LED yumushoferi KV-ASL 12V & 24V.pdf
