Ibicuruzwa birambuye

Uri hano: Murugo / Ibicuruzwa / Triac Dimmable LED Umushoferi / KVF-TDW Urukurikirane 100-277V CV Igipimo / 30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v

Byose
Izina ryibicuruzwa
Ijambo ryibanze
Icyitegererezo cyibicuruzwa
Incamake y'ibicuruzwa
Ibisobanuro ku bicuruzwa
Gushakisha byinshi

Icyiciro cyibicuruzwa

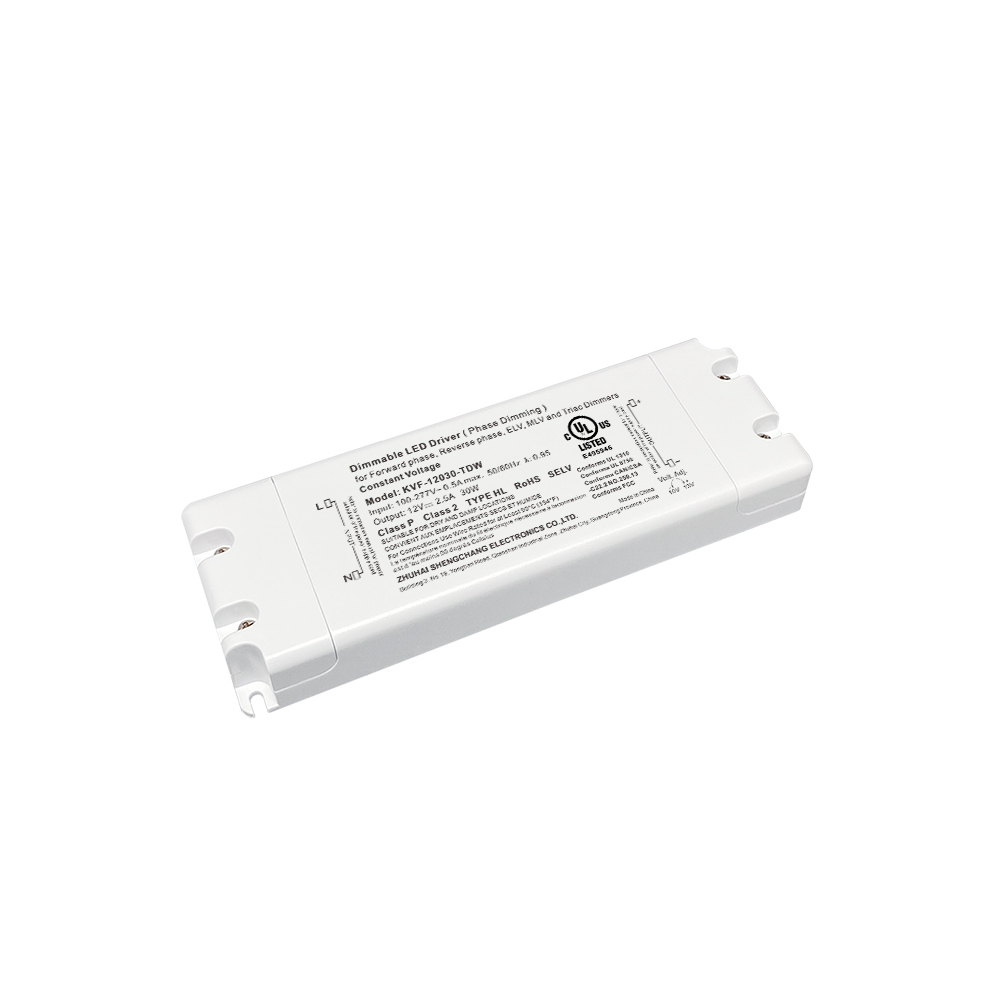

30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v

30W 12V 24V 36V 48V DC 100-277Vac (twe) Guhora Gutora Triac Yayoboye Umushoferi Mucyo

30W 12V 24V 36V 48V DC 100-277Vac (twe) Guhoraho Amajwi Triac Yayoboye Umushoferi Mucyo

30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v

Imbaraga za Ouput:	30W
Kuboneka:



Baza Ongeraho Igitebo

Ubwoko bwa Dimming:
Triac
Ubwoko bwitaruye:
Kwigunga
Ubwoko bw'ibisohoka:
Umuvuduko uhoraho
Imiyoboro isohoka:
Dimming
Igipimo cya IP:
IP20, Kuma & Damp
Umuvuduko winjiza:
100-277VAC
Imbaraga zisohoka:
30W
Umuvuduko w'amashanyarazi:
12/24/36 / 48V
Icyemezo:
UL & cUL, FCC, Icyiciro cya 2, CE, RoHS, KUGERAHO

Ibyiza

30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v

Ibisohoka:	Umuvuduko uhoraho
Urwego:	100-277VAC
Igishushanyo cya PFC:	Byubatswe mubikorwa bya PFC
Gukora neza:	Kugera kuri 86%
Kurinda:	Inzira ngufi / hejuru yumutwaro / hejuru yubushyuhe
Gukwirakwiza ubushyuhe:	Gukonjesha ukoresheje umwuka wubusa
Imikorere idakoresha amazi: Ibiranga ibara:	Amazu yuzuye ya plastike arinzwe, kubutaka bwumutse, ahantu hatose Kuringaniza neza voltage kuri knob
Igikorwa cyo kugabanya:	Icyiciro cya dimming: korana na Imbere Icyiciro, MLV na Reverse phase, ELV, TRIAC dimmers
Urwego ruciriritse:	0-100%
Gusaba:	Bikwiranye no gukoresha amatara ya LED
Garanti:	Garanti yimyaka 5
Abandi:	Ibisohoka bya PWM, Imbaraga zikomeye PF≥0.95, dimmer-free dimming

Ibisobanuro

Umubare w'icyitegererezo	KVF-12030-TDW	KVF-24030-TDW	KVF-36030-TDW	KVF-43030-TDW
Umuvuduko w'amashanyarazi	12V	24V	36V	48V
Ibisohoka Ibiriho	2.5A	1.25A	0.83A	0.63A
Imbaraga zisohoka	30W
Iyinjiza Umuvuduko	100-277
Imbaraga	0.99
Ingano	155 * 24 * 20mm
NW	0.21kg

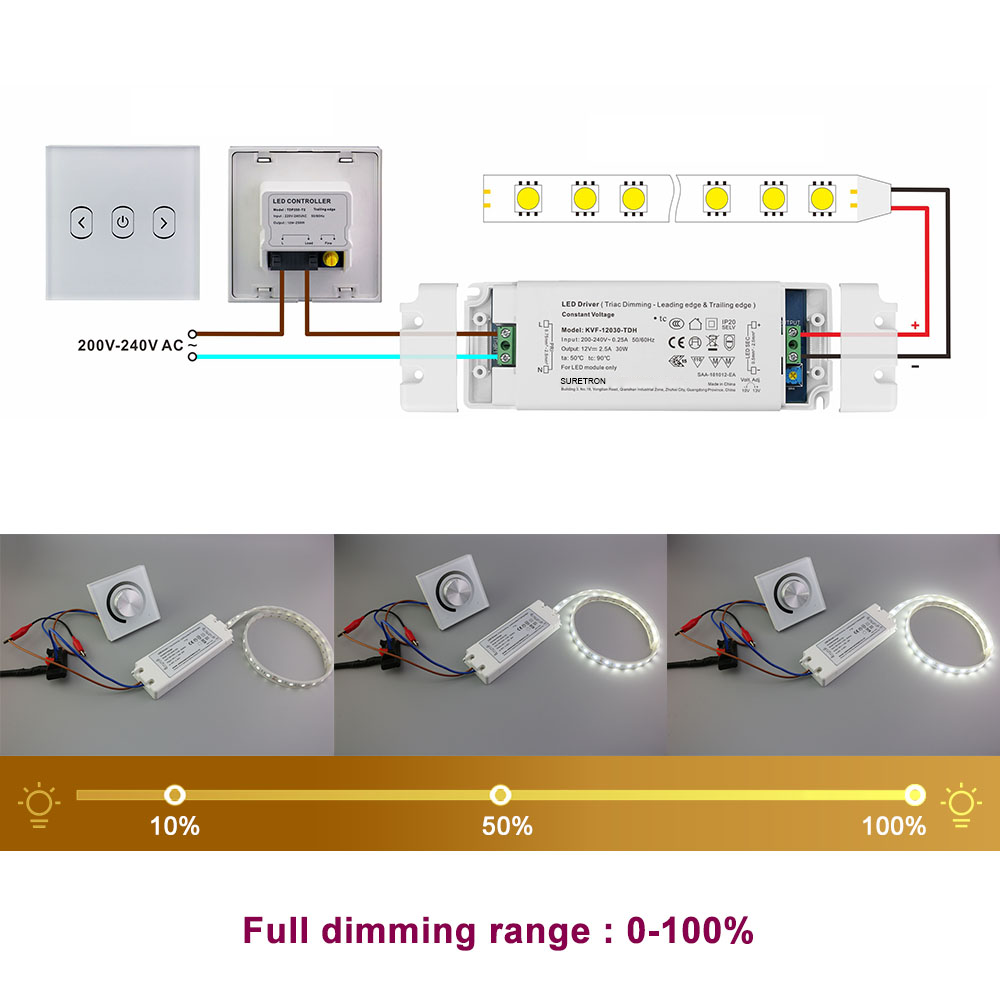

Triac LED Umushoferi Wiring Igishushanyo

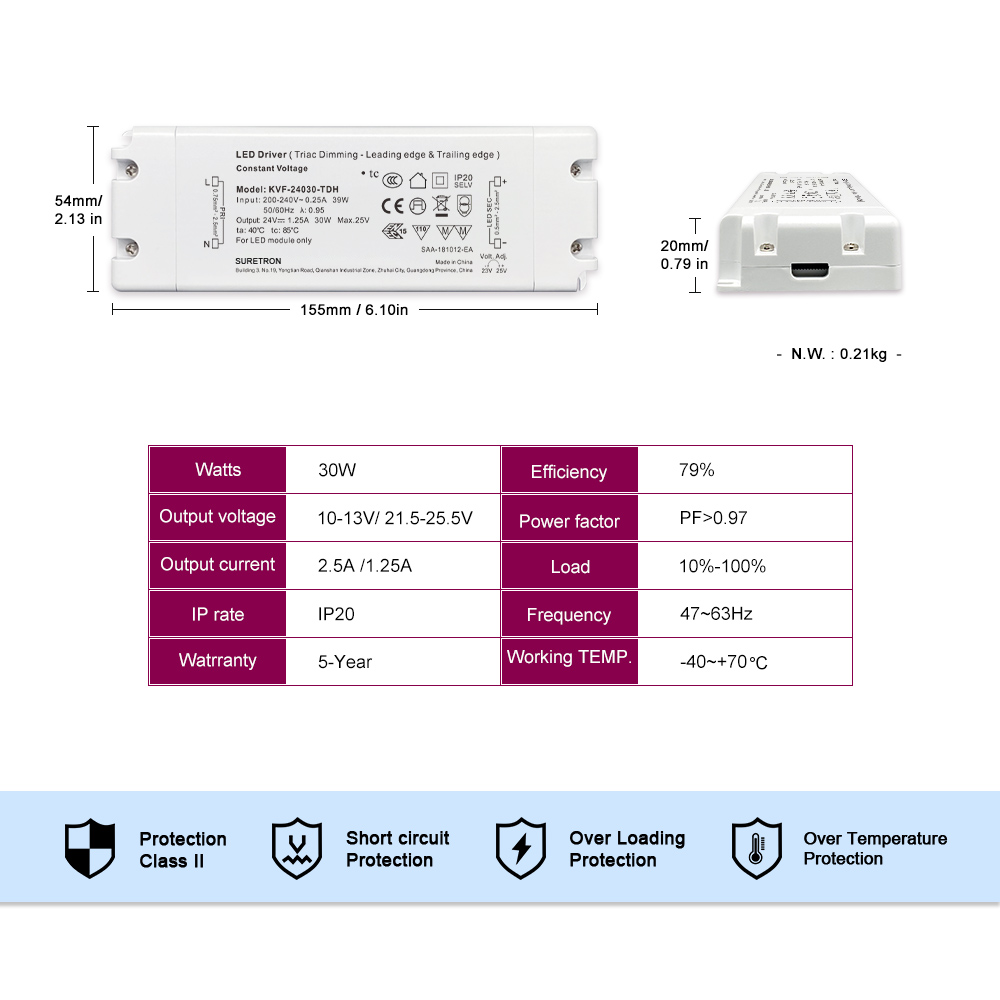

Triac LED Umushoferi Ingano （reba ibikururwa）

30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v

100-277 Volt AC yinjiza, 12V 24V DC isohoka, 30W Imbaraga zisohoka, umuyoboro 1 PWM uhoraho voltage Triac Dimmable LED Amashanyarazi

Ikoranabuhanga rishya ridafite gusudira: Amatara ya COB akoresha ikoranabuhanga rigezweho ryo gusudira kugirango umenye neza ko umurongo wose utazahagarika ibibara byirabura mugihe bikoreshwa, bitanga urumuri ruhoraho kandi ruhagije.

30W Triac Dimmable LED Amashanyarazi CV 100 volt ac kugeza 12v 24v 36v 48v (1)
