Building 3, No.19 Yongtian Rd., Xiangzhou, Zhuhai city, Guangdong province, China
 |
Triac 0-10V
Non isolated
Constant Voltage
Dimming
IP66, Dry & Damp, Wet
100-277VAC
150W, 200W, 400W, 600W
UL & cUL, FCC, CE, RoHS, REACH

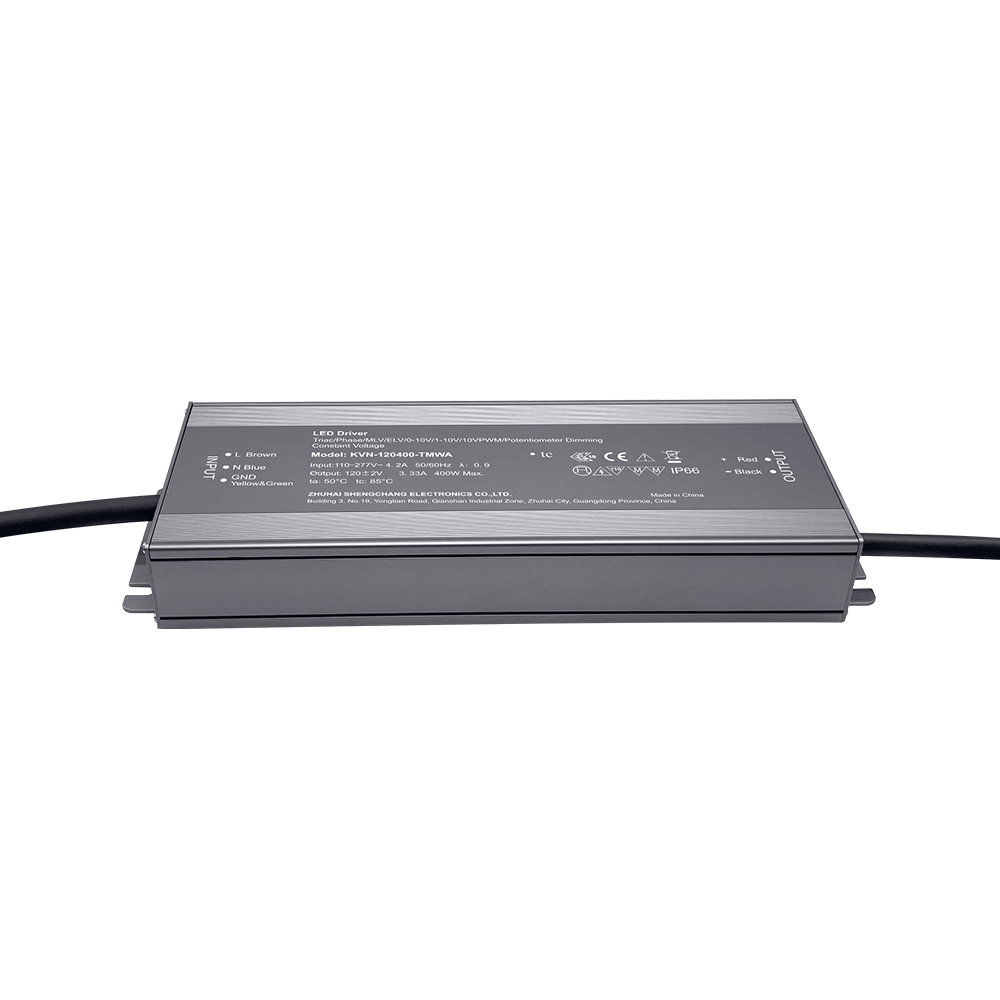

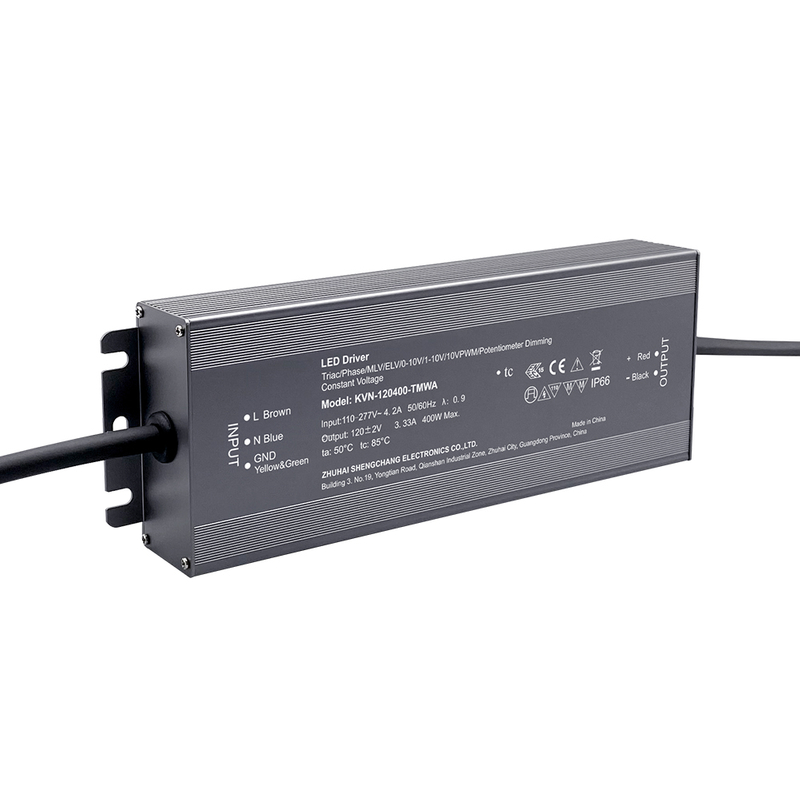

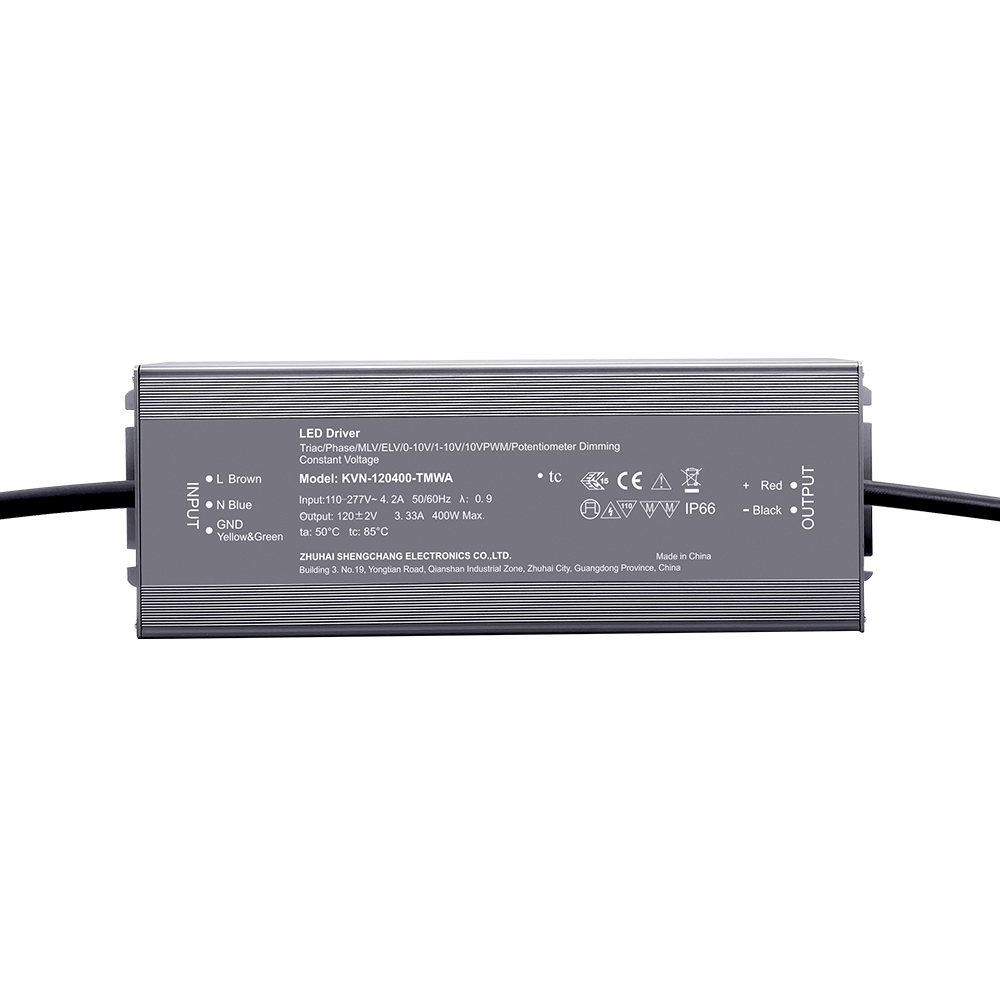

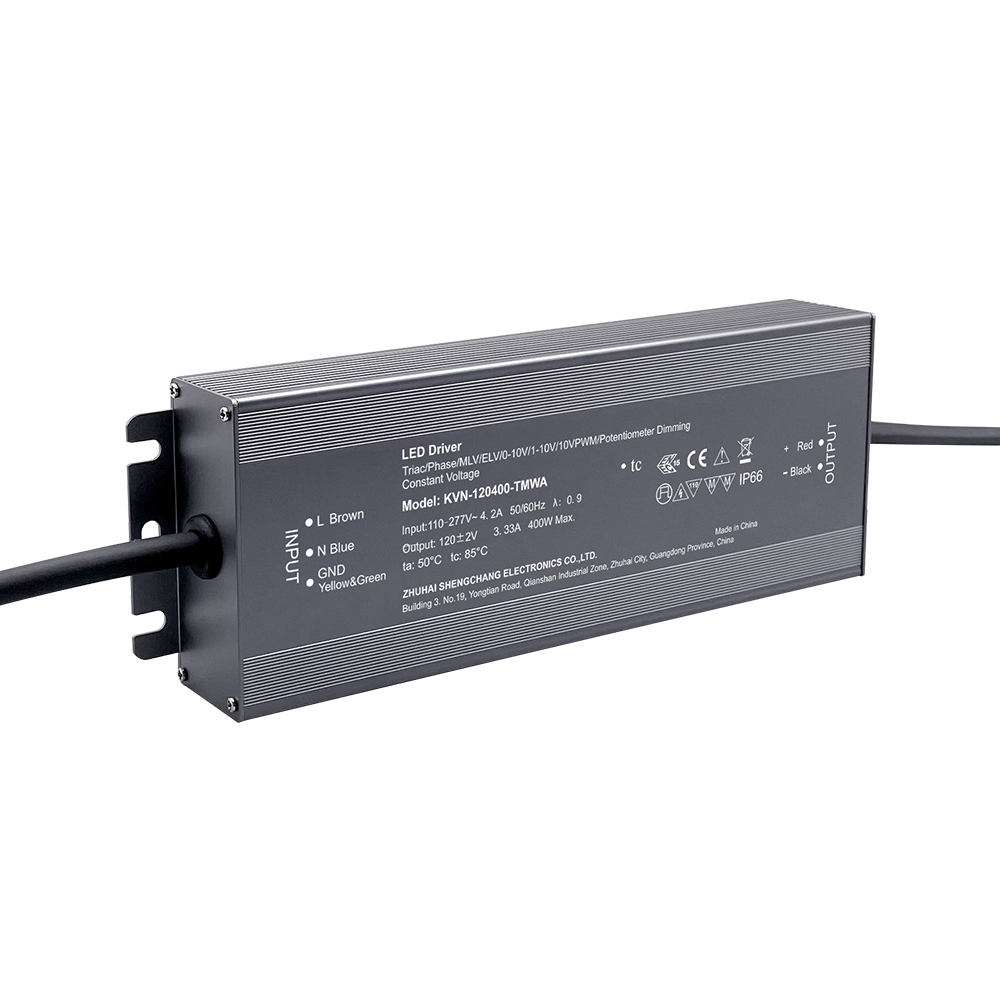

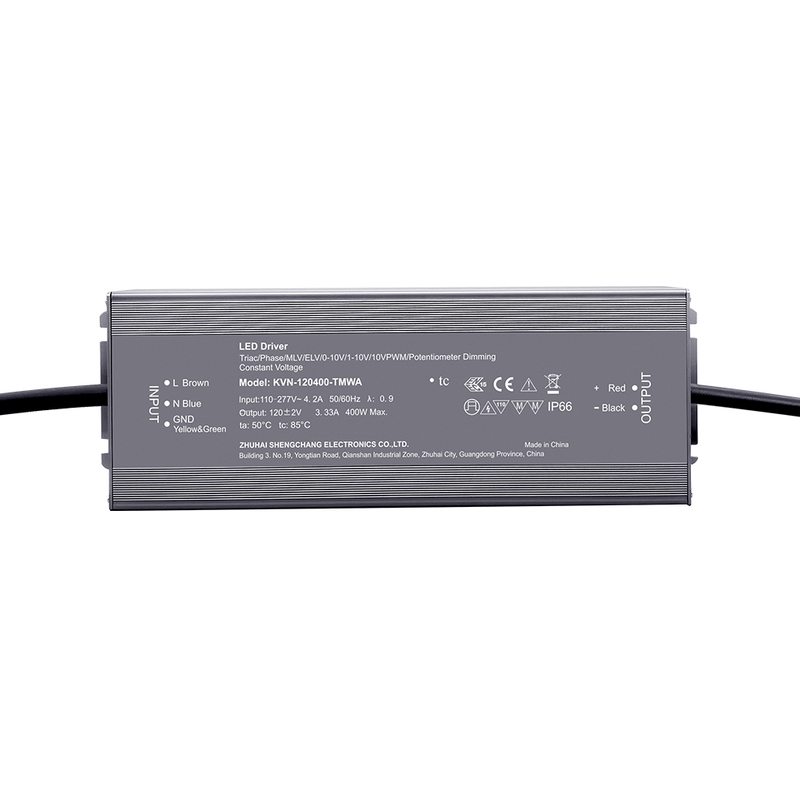

150W 200W 400W 600W CV Triac 0-10V LED Strip Power Supply 100-277V to 120V 1.25 5 A DC for LED Light
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | High power factor active PFC correction 0.98or more |
Efficiency: | Up to 91.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations |
Dimming function: | With a variety of dimming options: thyristor / 0-10V / 1-10V / 10V PWM / potentiometer / DMX512 / DALI-2 DT6 / Casambi / graffiti |
Dimming range: | 0.09%-100%（244Hz）、0.1%-100%（800Hz）、0.1%-100%（4KHz）、0.15%-100%（20KHz） |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TMWA | 120V | 1.25A | 200*78*25mm | |
200W | KVN-120200-TMWA | 120V | 1.67A | ||
400W | KVN-120400-TMWA | 120V | 3.33A | 232*78*32mm | |
600W | KVN-120600-TMWA | 120V | 5A | 279*85*40mm |
Triac 0-10V LED Strip Power Supply Wiring Diagram
100-277 Volt AC input, 120V DC output, constant voltage LED driver with Triac/DALI-2/0-10V 5-in-1 dimming, high PFC 0.98 for flicker-free LED strip lighting.
New Technology Without Welding: COB Strip Lights apply the latest weldless technology to ensure that the entire strip will not have interrupted black spots when in use, providing continuous and sufficient light.
150W 200W 400W 600W CV Triac 0-10V LED Strip Power Supply 100-277V to 120V 1.25 5 A DC for LED Light
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | High power factor active PFC correction 0.98or more |
Efficiency: | Up to 91.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations |
Dimming function: | With a variety of dimming options: thyristor / 0-10V / 1-10V / 10V PWM / potentiometer / DMX512 / DALI-2 DT6 / Casambi / graffiti |
Dimming range: | 0.09%-100%（244Hz）、0.1%-100%（800Hz）、0.1%-100%（4KHz）、0.15%-100%（20KHz） |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TMWA | 120V | 1.25A | 200*78*25mm | |
200W | KVN-120200-TMWA | 120V | 1.67A | ||
400W | KVN-120400-TMWA | 120V | 3.33A | 232*78*32mm | |
600W | KVN-120600-TMWA | 120V | 5A | 279*85*40mm |
Triac 0-10V LED Strip Power Supply Wiring Diagram
100-277 Volt AC input, 120V DC output, constant voltage LED driver with Triac/DALI-2/0-10V 5-in-1 dimming, high PFC 0.98 for flicker-free LED strip lighting.
New Technology Without Welding: COB Strip Lights apply the latest weldless technology to ensure that the entire strip will not have interrupted black spots when in use, providing continuous and sufficient light.
