DMX512
Non isolated
Constant Voltage
Dimming
IP66, Dry & Damp, Wet
110-277VAC
150W, 200W, 400W, 600W
CE, RoHS, REACH

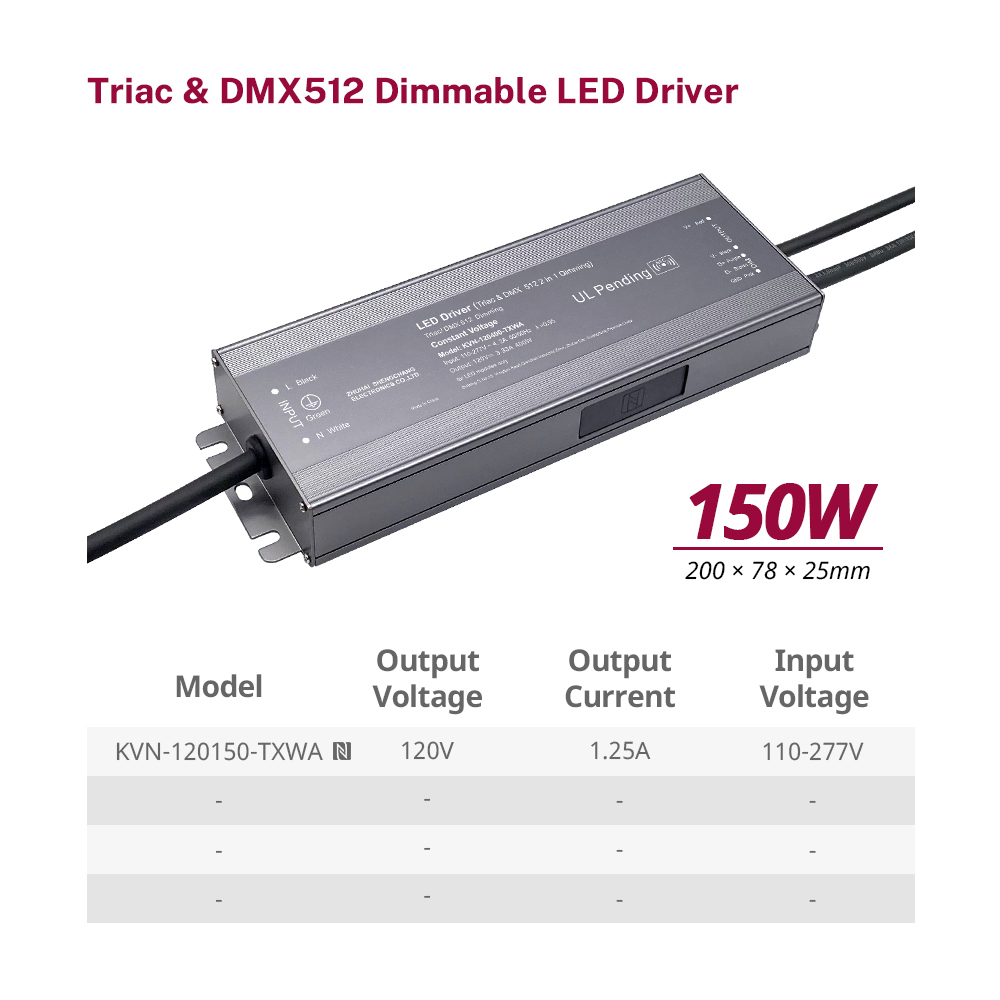

150W 200W 400W 600W CV Triac DMX 512 LED Strip Power Supply for 120 VDC 1.25 5 Amp LED Lights
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 94% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection aluminum housing, for dry, damp and wet locations |
Dimming function: | DMX512 and RDM dim. Digital dimming, single light control, DMX512 signal-side isolation Phase dimming: work with leading edge and trailing edge, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Others: | Strong compatibility, PWM output, frequency selectable, flicker-free dimming Electrical safety isolation between dimming end and output end; Output non-isolation |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TXWA | 120V | 1.25A | 200*78*25mm | |
200W | KVN-120200-TXWA | 120V | 1.67A | ||
400W | KVN-120400-TXWA | 120V | 3.33A | 232*78*32mm | |
600W | KVN-120600-TXWA | 120V | 5A | 279*85*40mm |
Triac DMX 512 LED Strip Power Supply Wiring Diagram
