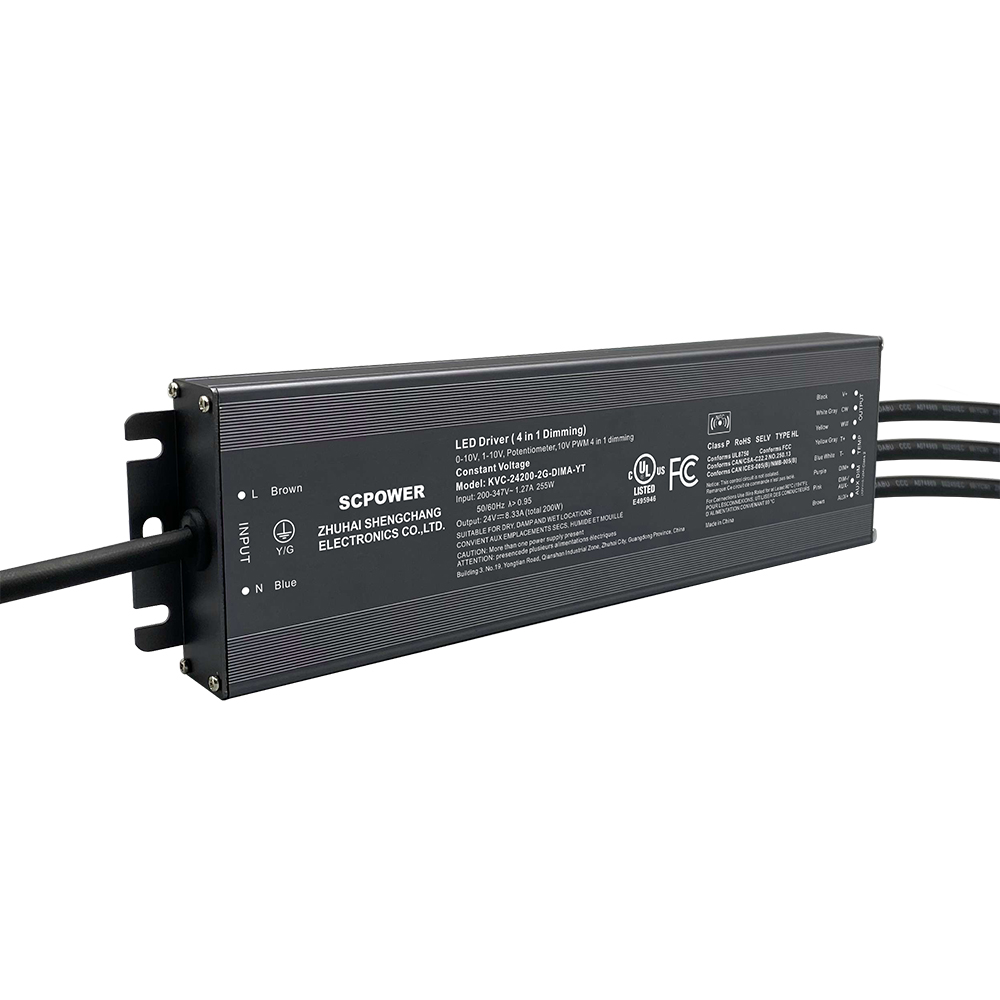

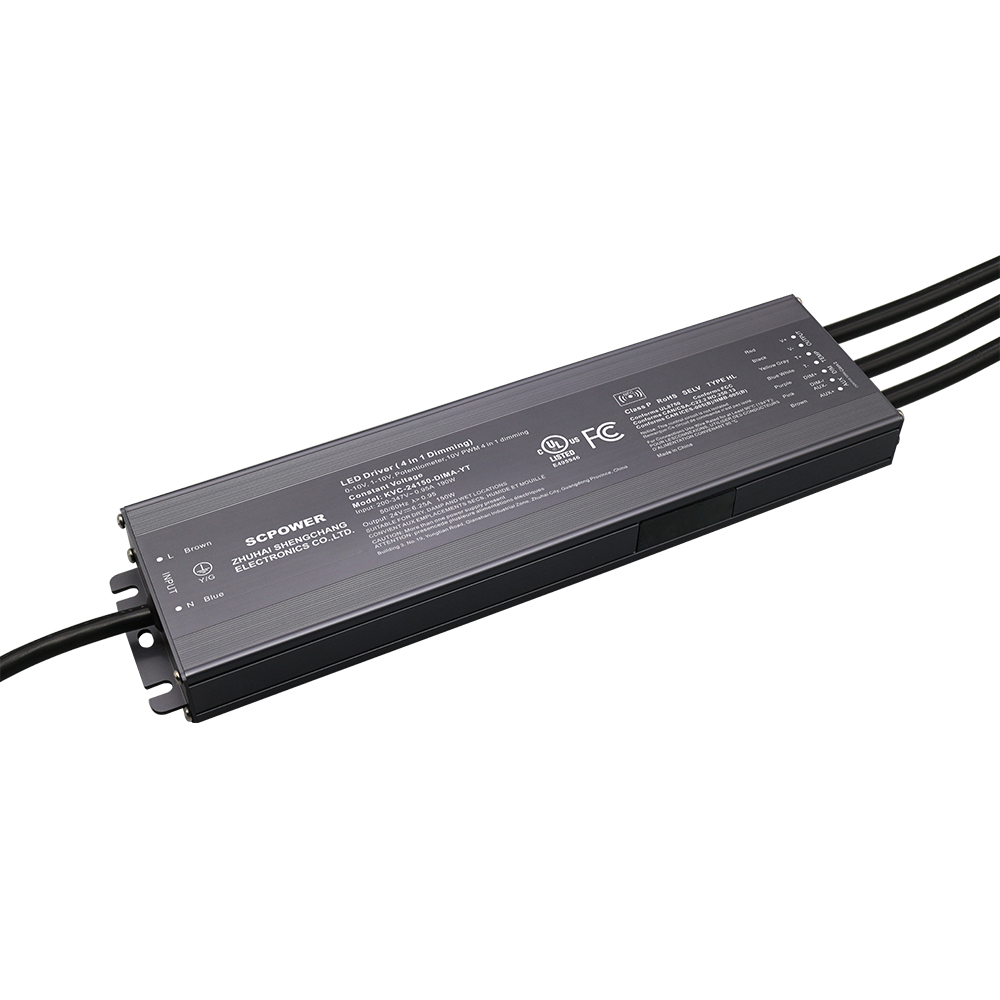

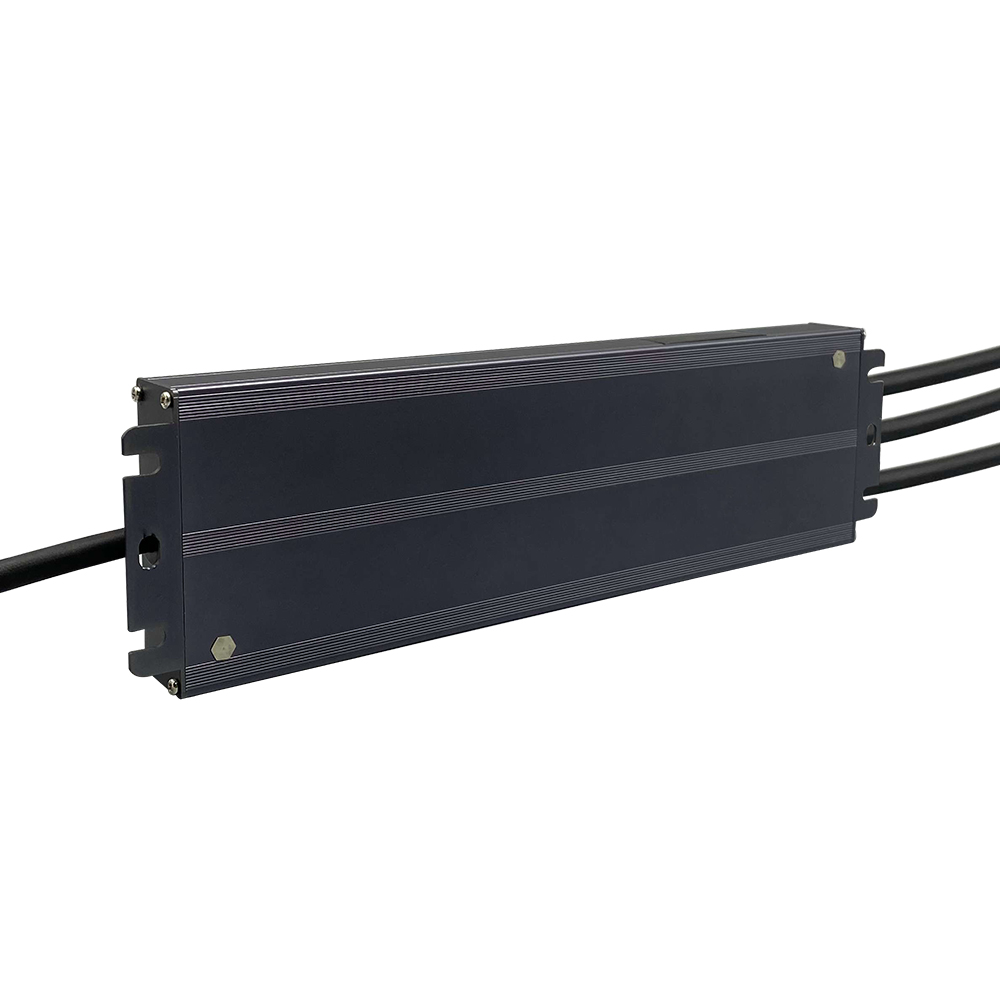

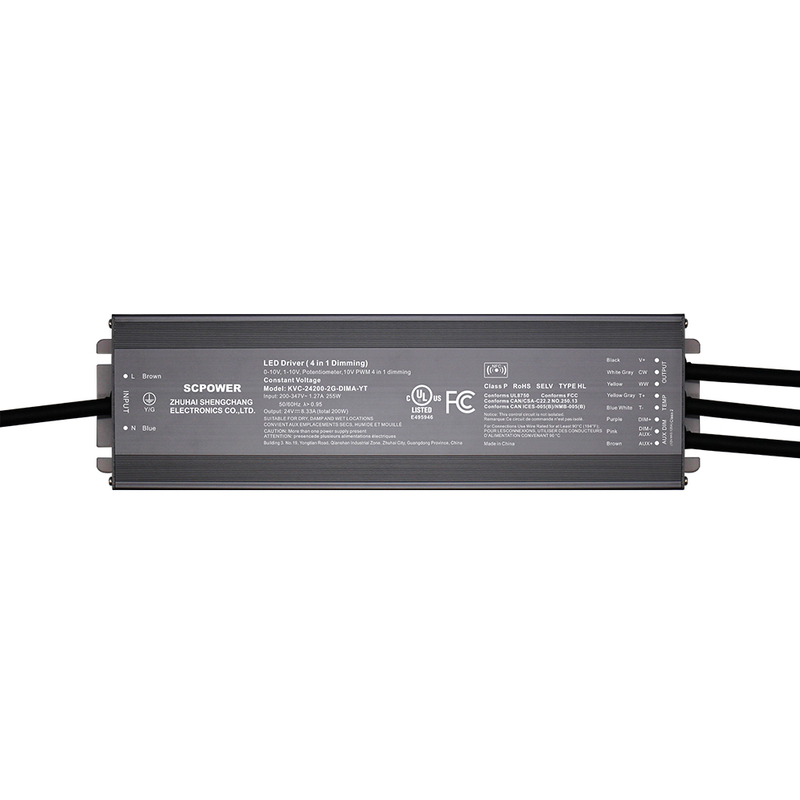

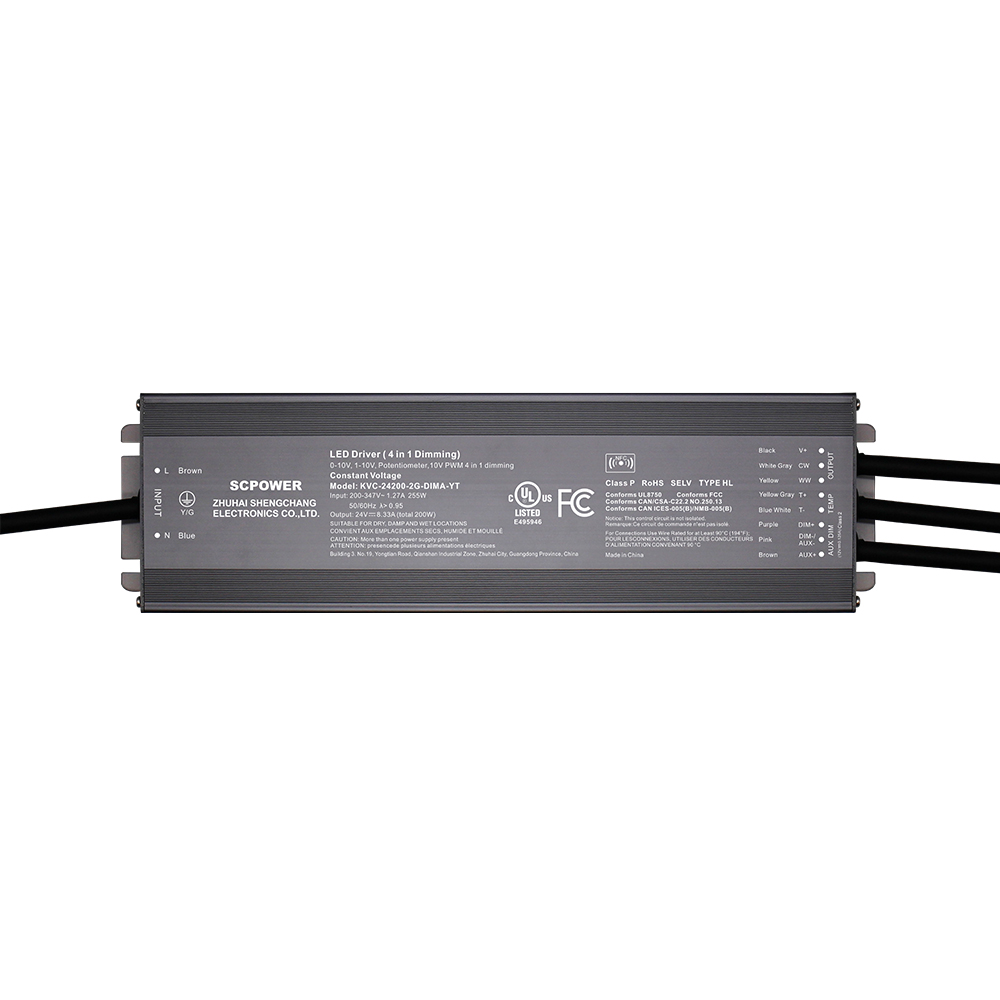

200W CCT 0-10V Dimmable Constant Voltage LED Driver 12V 24V 36V 48V DC
Flicker-free,output dimming frequency 20KHz reach the exemption level,
Digital dimming, single light control,with auxiliary power supply & temperature control
Output: | Constant Voltage |
Range: | 200-347VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 88% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |

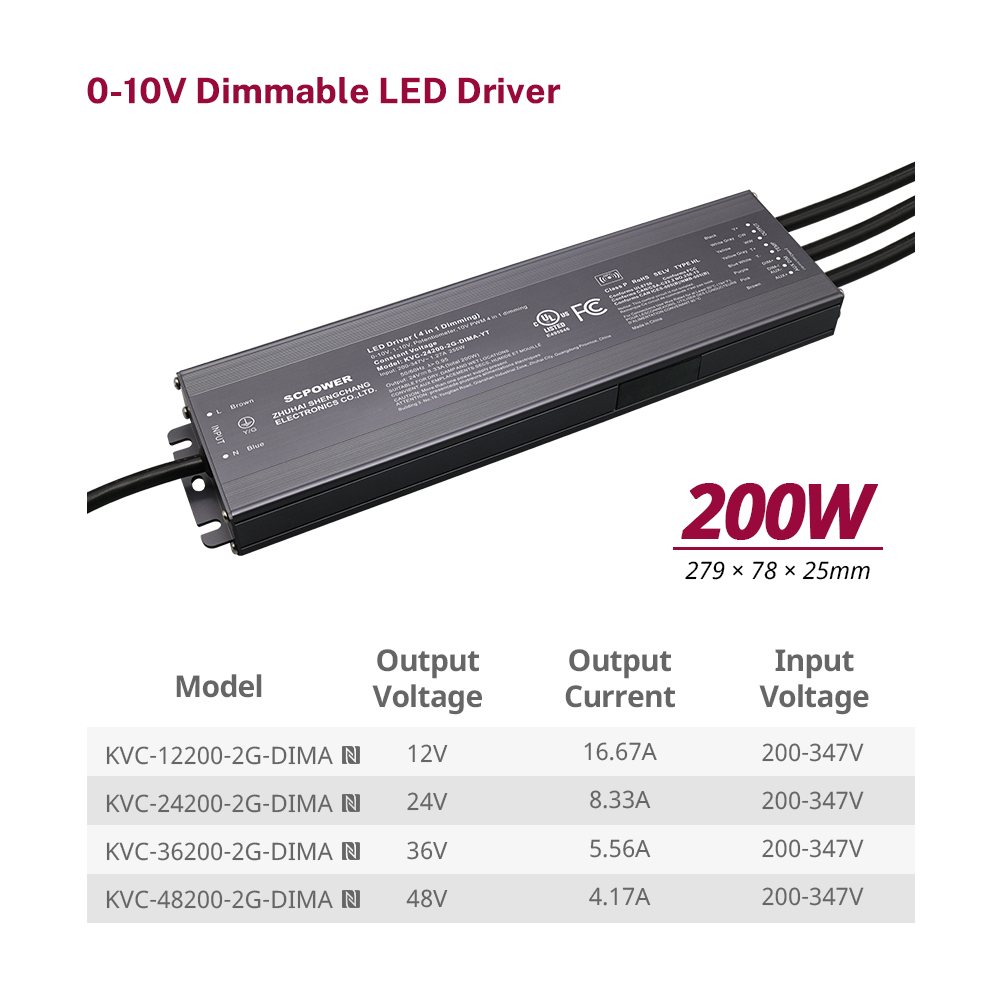

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
200W | KVC-12200-2G-DIMA | 12V | 16.67A | 279*78*25mm |
|
KVC-24200-2G-DIMA | 24V | 8.33A |
KVC-36200-2G-DIMA | 36V | 5.56A |
KVC-48200-2G-DIMA | 48V | 4.16A |
Product Overview
Offering selectable output voltages (12V, 24V, 36V, 48V DC) and seamless 0-10V dimming, it adjusts both brightness and color temperature (2700K-6500K) to match diverse lighting needs. This driver is engineered for commercial and residential applications requiring dynamic white light control, combining versatility with energy efficiency.
Key Features
Multi-Voltage Output: Switchable 12V/24V/36V/48V DC output adapts to different CCT LED fixtures, eliminating the need for multiple driver models.
Dual Control Capabilities: 0-10V dimming (0.1%-100% brightness) and CCT adjustment (warm white to cool white) for personalized lighting environments.
High Power Stability: Constant voltage output with ±2% tolerance ensures consistent performance across CCT LED panels, downlights, and troffers.
Eco-Friendly Performance: Efficiency ≥85% and PFC ≥0.9 reduce energy waste, while low ripple (<1%) protects LED lifespan.
Safety First: Class II insulation and built-in over-voltage, short-circuit protection; no grounding required for simplified installation.
Scenario-Based Solutions
Office Workspaces
For open-plan offices, this 200W CCT driver powers 24V CCT LED troffers. Employees use 0-10V dimmers to adjust brightness from 100% (task work) to 50% (meetings), while managers tune color temperature—cool white (6500K) for morning focus, warm white (3000K) for afternoon productivity. The multi-voltage design supports future fixture upgrades without driver replacement.
Healthcare Facilities
In clinics and exam rooms, the driver controls 12V CCT LED exam lights. Doctors dim brightness to 70% during patient consultations to reduce glare, switching to cool white (5000K) for accurate diagnosis. The low-ripple output minimizes eye strain, and Class II insulation ensures patient safety.
FAQ
Q: What color temperature range does this CCT driver support?
A: It works with CCT LED fixtures ranging from 2700K (warm white) to 6500K (cool white), compatible with most tunable white LED modules.
Q: Can I use it with both 12V and 24V LED fixtures simultaneously?
A: No, the output voltage is selectable (one voltage at a time). For mixed-voltage setups, we recommend pairing multiple drivers or consulting our technical team.
Q: Does it require a separate CCT controller?
A: No, it integrates CCT control with 0-10V dimming—simply connect a compatible 0-10V/CCT control panel for dual adjustments.
