| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
110-277VAC
500W, 600W
24/ 36/ 48V
UL & cUL, FCC, CE, RoHS, REACH

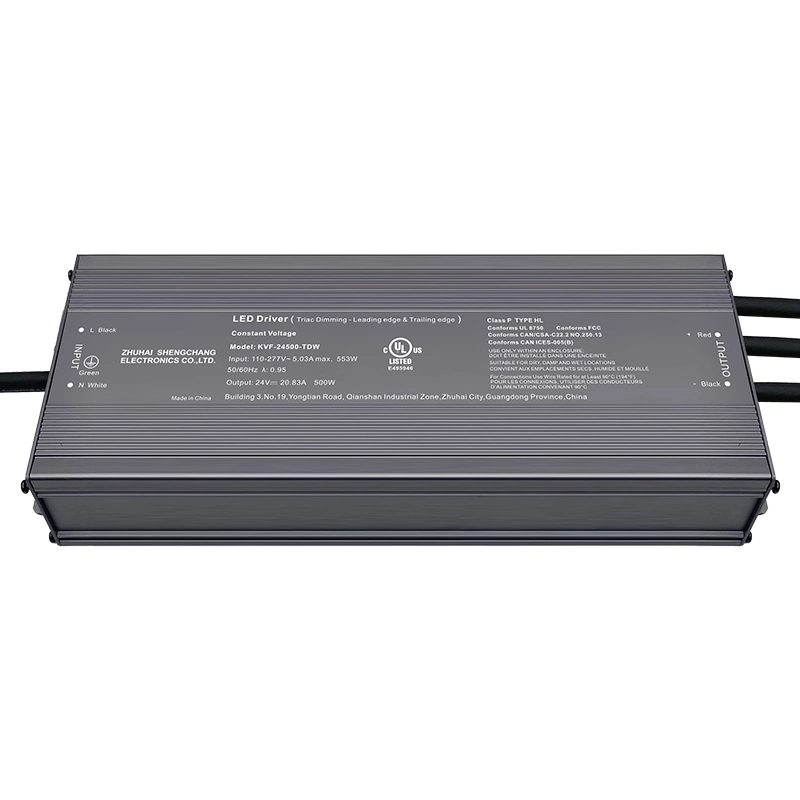

500W 600W Triac Dimmable LED Power Supply CV for led flicker free
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection aluminum housing, for dry, damp and wet locations |
Dimming function: | Phase dimming: Work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
500W | KVF-12150-TDW | 12V | 12.5A | 256*78*47mm | 1.45kg |
KVF-24150-TDW | 24V | 6.25A | |||
KVF-36150-TDW | 36V | 4.17A | |||
KVF-48150-TDW | 48V | 3.13A | |||
600W | KVF-12200-TDW | 12V | 16.67A | ||
KVF-24200-TDW | 24V | 8.34A | |||
KVF-36200-TDW | 36V | 5.56A | |||
KVF-48200-TDW | 48V | 4.17A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
500W 600W Triac Dimmable LED Power Supply CV for led flicker free
high-wattage 500W 600W
Long Power Life
Triac Dimmable LED Power Supply is compatible with Smart Triac ELV Dimmer, to remotely control the light brightness
NOTE SMARTER, NOT HARDER: Focus on dimming your led lights and spend less time perfecting them;
MORE WOW, LESS WORK: Jump seamlessly between triac 0-10v dimmers without the wait and see lighting in high quality with our technology
