Introduction
Did you know that a faulty LED driver can ruin your lighting system's efficiency? Testing your LED driver is crucial for optimal performance. In this article, we will dive into how to properly test an LED driver.
You will learn the best methods and tools to assess its functionality and ensure it runs efficiently. We’ll also cover key features and tips to maintain the longevity of your LED driver.
What is an LED Driver?
The Role of an LED Driver

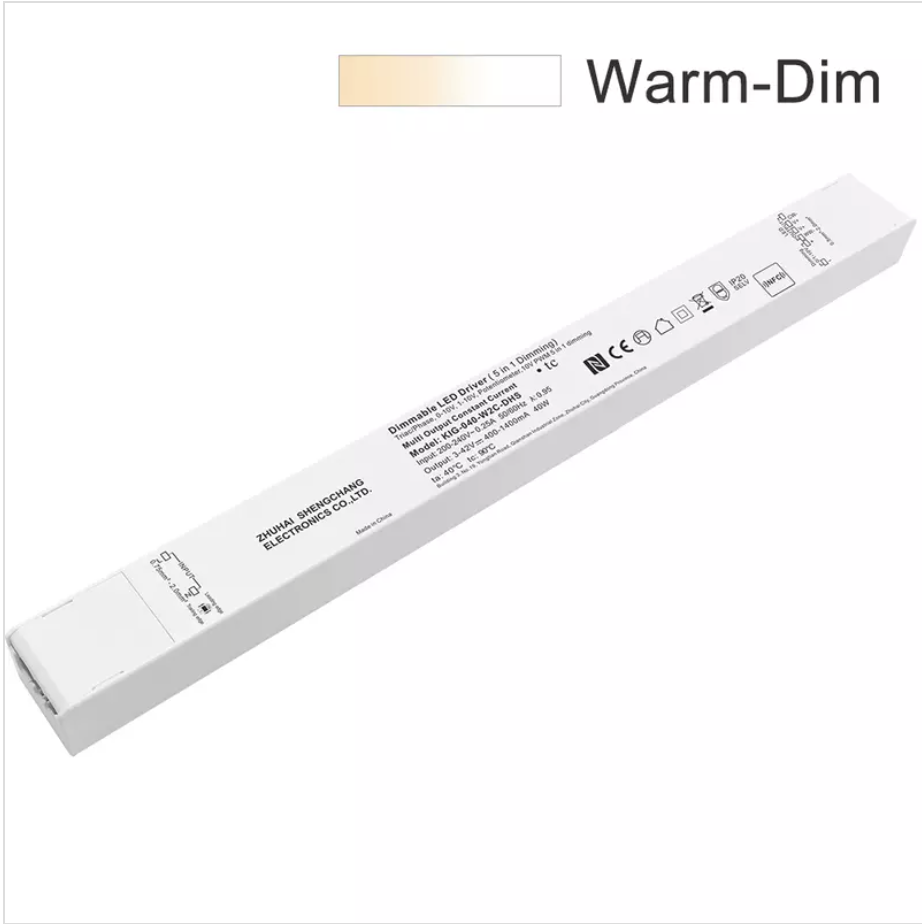

An LED driver is an electrical device that provides power to an LED light source. Unlike traditional incandescent bulbs, LEDs require a constant current to maintain their brightness, and they do not operate well with a fluctuating power supply. The LED driver stabilizes the power supply, either by regulating the current or the voltage, depending on the type of LED being used.
LED drivers come in two primary types: constant current drivers and constant voltage drivers. Constant current drivers are designed to ensure a steady current is delivered to the LEDs, which is important for LEDs that require a specific amount of current to work properly. On the other hand, constant voltage drivers provide a fixed voltage to the LEDs, and the current varies depending on the LED’s load.
Types of LED Drivers
When testing LED drivers, it’s essential to know the type of driver you're working with, as testing procedures may differ between constant current and constant voltage drivers.
Driver Type | Description | Common Applications |
Constant Current | Regulates current to ensure a steady supply to LEDs. Voltage varies based on load. | Used in LEDs with fixed current requirements. |
Constant Voltage | Maintains a fixed voltage; current varies depending on the load. | Suitable for LED strips and decorative lighting. |
By knowing the type of driver in your system, you will be able to conduct the appropriate tests to ensure proper functionality.
Why Choose an LED Driver?
The Importance of Testing Your LED Driver
Testing your LED driver is essential to ensure the health and performance of your LED lighting system. Over time, LED drivers can deteriorate, leading to inefficiencies, instability in current or voltage, or outright failure. A malfunctioning LED driver can result in flickering lights, dim lighting, or total system failure.
Regular testing allows you to identify these issues early on and address them before they escalate. It also ensures that the driver is operating within the optimal parameters, reducing the risk of overheating and increasing the lifespan of both the driver and the LEDs.
Benefits of Regular Testing
Performing regular tests on your LED driver offers several key benefits:
1. Improved Energy Efficiency: When the LED driver is working correctly, it ensures that the power supplied to the LEDs is used efficiently. Poor driver performance can result in energy wastage, which can increase operating costs.
2. Extended Lifespan: Regular testing can help identify potential issues that could shorten the life of your LED driver and LED lights. Addressing these issues early helps to extend the system’s operational lifespan.
3. Prevention of System Failures: Testing allows you to catch problems like voltage surges or current inconsistencies before they cause the system to fail, thus reducing downtime and unexpected repair costs.
Essential Tools for Testing LED Drivers
Tools for Testing LED Drivers
To effectively test an LED driver, you'll need several tools, ranging from basic multimeters to more advanced testing equipment. Here’s a rundown of essential tools:
● Digital Multimeter: This is a must-have tool for measuring voltage and current. It allows you to check the output voltage and current from the LED driver to ensure they align with the specifications of the driver and LEDs.
● Power Analyzer: This tool is particularly useful when you need to measure the efficiency of the LED driver. It provides in-depth insights into power consumption and helps calculate how much energy is wasted.
● Oscilloscope: If you need to analyze the waveform of the driver’s output, an oscilloscope will help. It’s ideal for detecting issues like voltage spikes or fluctuations in the output that may not be visible with a multimeter.
● Thermal Camera: Overheating is a common issue with malfunctioning LED drivers. A thermal camera allows you to detect overheating by providing a visual image of temperature distribution across the driver and its components.
LED Driver Current Measurement
A crucial aspect of testing LED drivers is measuring the current. The current ensures that the correct amount of power is being delivered to the LED. If the current is too high, it can cause the LED to overheat, while too low a current will result in insufficient brightness.
A digital multimeter can be used to measure the current output. Set the multimeter to measure DC current, and place it in series with the LED driver’s output. Compare the reading with the specifications listed on the LED driver. If the current is not within the expected range, there may be an issue with the driver that needs to be addressed.
LED Driver Testing Equipment
While a digital multimeter will suffice for most basic tests, more complex measurements may require specialized equipment. A power analyzer can measure the efficiency of the driver by comparing the input and output power. This will help you determine how much power is being wasted, which is critical for energy-efficient lighting systems.
A load tester is another valuable tool. It simulates various loading conditions, allowing you to test the driver under different operational scenarios. By using this tool, you can analyze how the LED driver behaves under different loads, helping to identify potential issues with voltage regulation or performance stability.
How to Test an LED Driver: Step-by-Step
Preparing for the Test
Before starting any testing procedure, safety is paramount. Ensure the LED driver is disconnected from the power supply to avoid electrical shock. Make sure the testing area is dry and free from conductive materials. If working with AC-powered drivers, make sure the circuit is de-energized before proceeding.
Gather the necessary tools, including the digital multimeter, testing leads, and any additional equipment such as an oscilloscope or power analyzer.
Measuring Voltage and Current Output
Begin by testing the output voltage of the LED driver. Set your multimeter to measure DC voltage, and then measure the voltage across the positive and negative terminals of the LED driver. Compare this reading to the driver’s specified voltage range. If it’s outside the expected range, there could be an issue with the driver.
Next, measure the current output using your digital multimeter. Set the multimeter to measure DC current and place it in series with the driver’s output. Ensure the current is within the specified range for the LED being used. An incorrect current can result in malfunctioning LEDs, overheating, or shortened lifespan.
Measurement Type | Tool Used | Key Test Parameter | Expected Range |
Voltage | Digital Multimeter | Output voltage across LED terminals | Driver specification (e.g., 12V) |
Current | Digital Multimeter | Current passing through LED driver | Driver specification (e.g., 350mA) |
Testing Efficiency
Efficiency is a crucial factor when evaluating the performance of an LED driver. To test efficiency, you will need to compare the input and output power. A power analyzer can help you calculate the efficiency by measuring the input power and the output power of the driver. The efficiency is calculated as follows:
Efficiency=Output PowerInput Power×100\text{Efficiency} = \frac{\text{Output Power}}{\text{Input Power}} \times 100For example, if the input power is 50W and the output power is 40W, the efficiency is 80%. An efficient driver uses less energy to produce the same light output, making it more cost-effective in the long run.
Troubleshooting LED Drivers
Common Issues with LED Drivers
Some of the most common problems with LED drivers include:
1. Flickering LEDs: This is often caused by unstable voltage or current being supplied to the LED lights.
2. Dimming LEDs: Dimming can occur when the driver is not providing enough current, or there is an issue with the voltage regulation.
3. Overheating: Overheating is a frequent issue, especially if the driver is not receiving adequate ventilation. Excessive heat can lead to failure.
Using a multimeter to measure voltage and current can help you identify whether the driver is the root cause of these problems. If the readings are outside the expected range, you may need to replace the driver or make adjustments to the power supply.
How to Fix Common LED Driver Failures
If you encounter issues with your LED driver, here are some troubleshooting steps:
1. Check Power Supply: Ensure the power supply is functioning correctly and providing stable voltage.
2. Examine Connections: Loose or faulty connections can cause unstable voltage or current, leading to flickering or dimming.
3. Replace the Driver: If the driver is malfunctioning and cannot be repaired, it may be time to replace it with a new one.
Advanced Troubleshooting Tools
For more complex issues, you can use advanced diagnostic tools such as power analyzers, oscilloscopes, and thermal cameras. These tools can help detect underlying problems such as power loss, voltage spikes, or overheating that might not be visible with a standard multimeter.
Thermal cameras are particularly useful for identifying heat issues, which are common in LED drivers under load. Overheating can cause significant damage to the driver, so identifying hot spots early can prevent further damage.
Conclusion
Testing your LED driver ensures it performs efficiently and prevents system malfunctions. By using the right tools and methods, you can accurately check its functionality and avoid costly failures. Zhuhai Shengchang Electronics Co., Ltd. offers high-quality LED drivers known for their reliability and performance. Their products provide exceptional value by enhancing lighting efficiency and longevity.
FAQ
Q: How can I test an LED driver?
A: To test an LED driver, measure the output voltage and current using a multimeter. Check for consistent performance and proper lighting. You can also use specific Best Dimmable LED Driver Manufacturer and Supplier - SURETRON to assess its functionality.
Q: What is the best method for testing LED driver efficiency?
A: Testing LED driver efficiency involves measuring the power input and output. You can compare the two values to determine how well the driver converts electrical power into light. Tools like watt meters can help assess efficiency.
Q: Why should I test my LED driver regularly?
A: Regular testing ensures your Best Dimmable LED Driver Manufacturer and Supplier - SURETRON is working properly and prevents premature failures. It also helps identify inefficiencies or problems early, saving you maintenance costs and improving lifespan.
Q: How do I measure current from an LED driver?
A: To measure current, use a multimeter set to the appropriate range and connect it in series with the driver’s output. This will allow you to see the current drawn by the LED array, which is crucial for testing its performance.
Q: Can LED drivers cause efficiency issues?
A: Yes, an inefficient LED driver can lead to lower energy conversion, wasting power and generating excess heat. Regular Best Dimmable LED Driver Manufacturer and Supplier - SURETRON can help detect such inefficiencies.
