In real-world projects, Suretron engineers have found that different issues involving dimmable drivers may require completely different troubleshooting approaches. If there is no output at startup, the load may need to be checked first. If dimming performance is abnormal, the control signal and wiring should be examined. Communication issues require further investigation based on the specific communication protocol and on-site wiring.
Therefore, when a dimmable driver malfunctions, it is important not to simply ask whether the driver itself is faulty. Instead, narrow down the possible causes based on the symptoms.

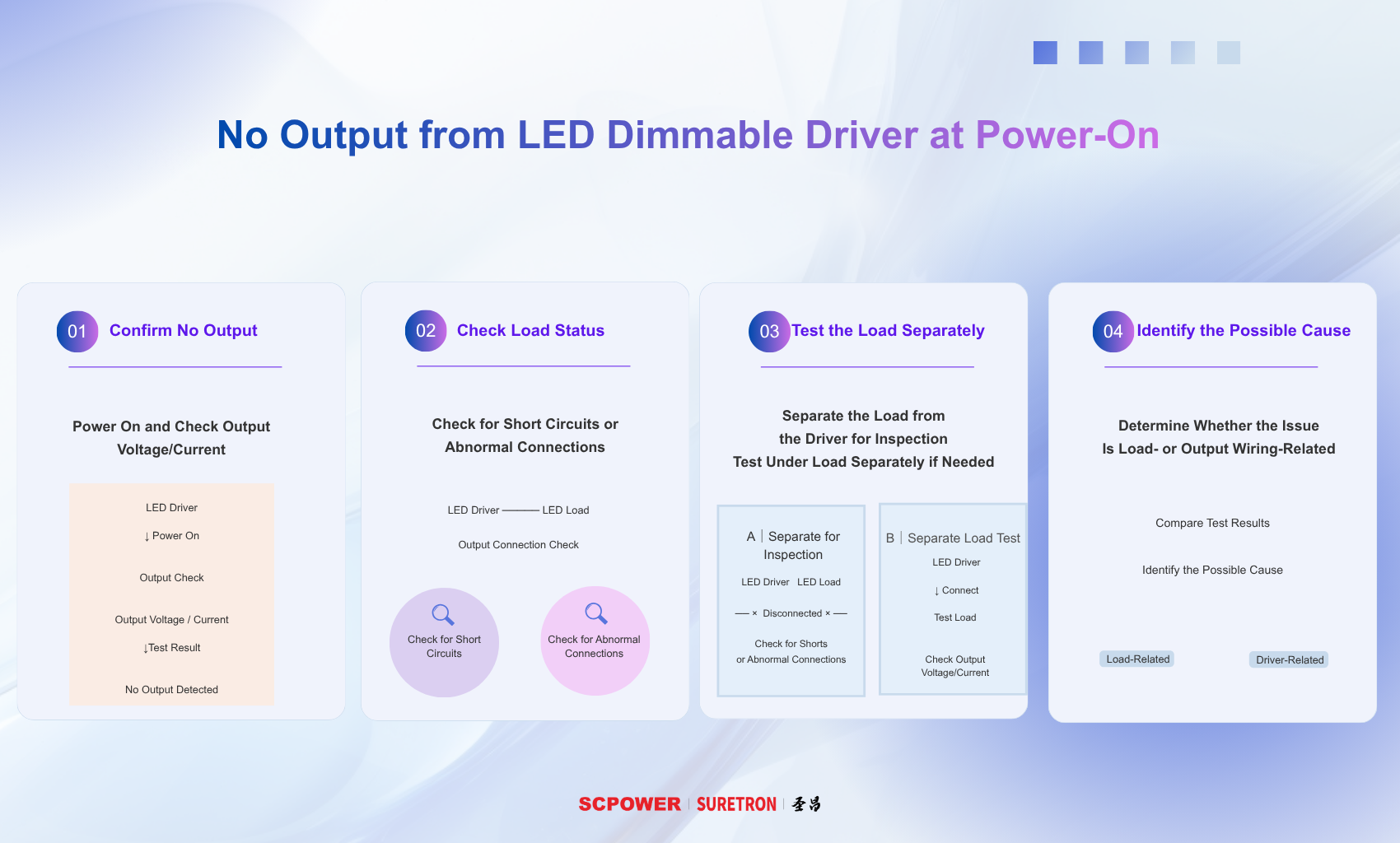

1. No Output from the Dimmable Driver at Startup
When there is no output after power-on, start by checking the load connected to the output terminals. In particular, a short circuit or improper connection at the output may prevent the driver from establishing normal output.
To investigate, disconnect the load from the driver and check them separately. If necessary, perform a standalone load test to observe the driver's output under different load conditions. Comparing the test results can help determine whether the issue is related to the load or output wiring, rather than immediately concluding that the driver is faulty.

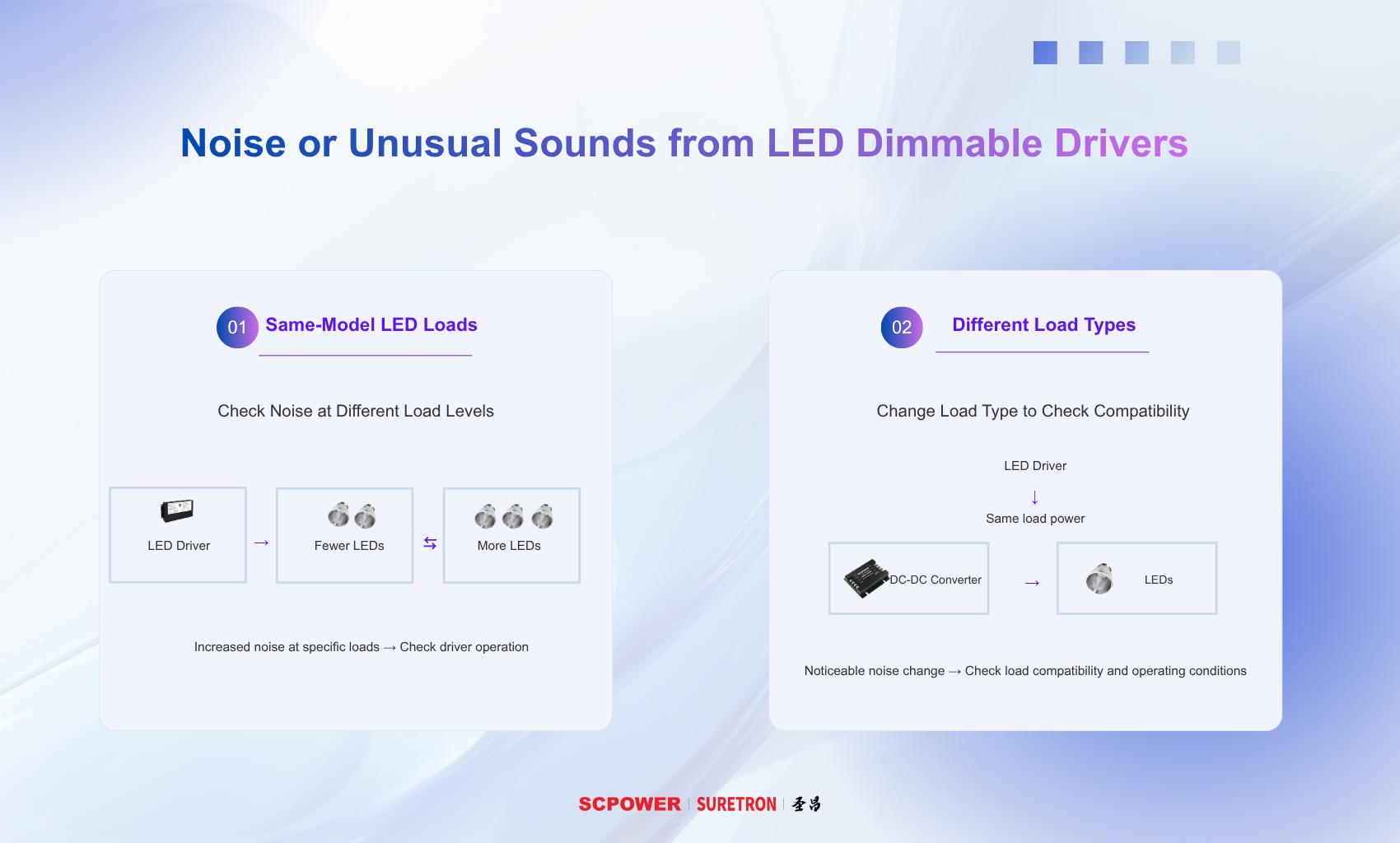

2. Noise or Unusual Sounds from the Dimmable Driver
Noise or unusual sounds should be assessed in the context of the driver's actual operating conditions. In addition to checking the driver itself, examine the compatibility between the driver and the load. You can also vary the load conditions and observe whether the noise changes accordingly.
Comparing the results under different load conditions can help determine whether the issue is load-related.

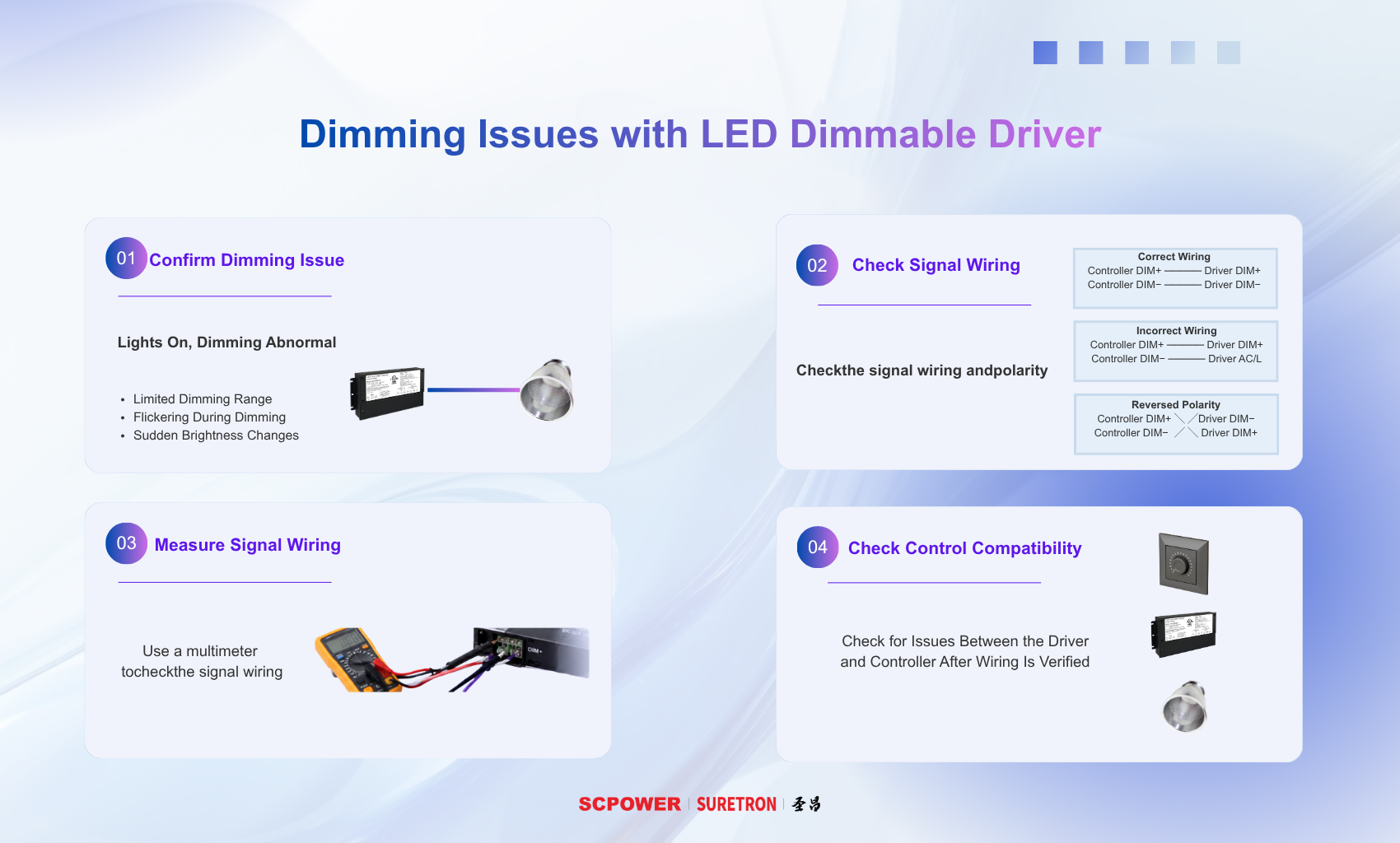

3. Abnormal Dimming Performance
If the lights turn on normally but dimming performance is abnormal, the dimming signal wiring is a key area to check first. Incorrect wiring or reversed signal polarity may prevent the dimming signal from being transmitted properly.
After checking the on-site wiring, use a multimeter to measure the relevant circuits and verify whether the dimming signal wiring is functioning correctly. Once wiring issues have been ruled out, further investigation can focus on compatibility or communication issues between the dimmable driver and the control device.

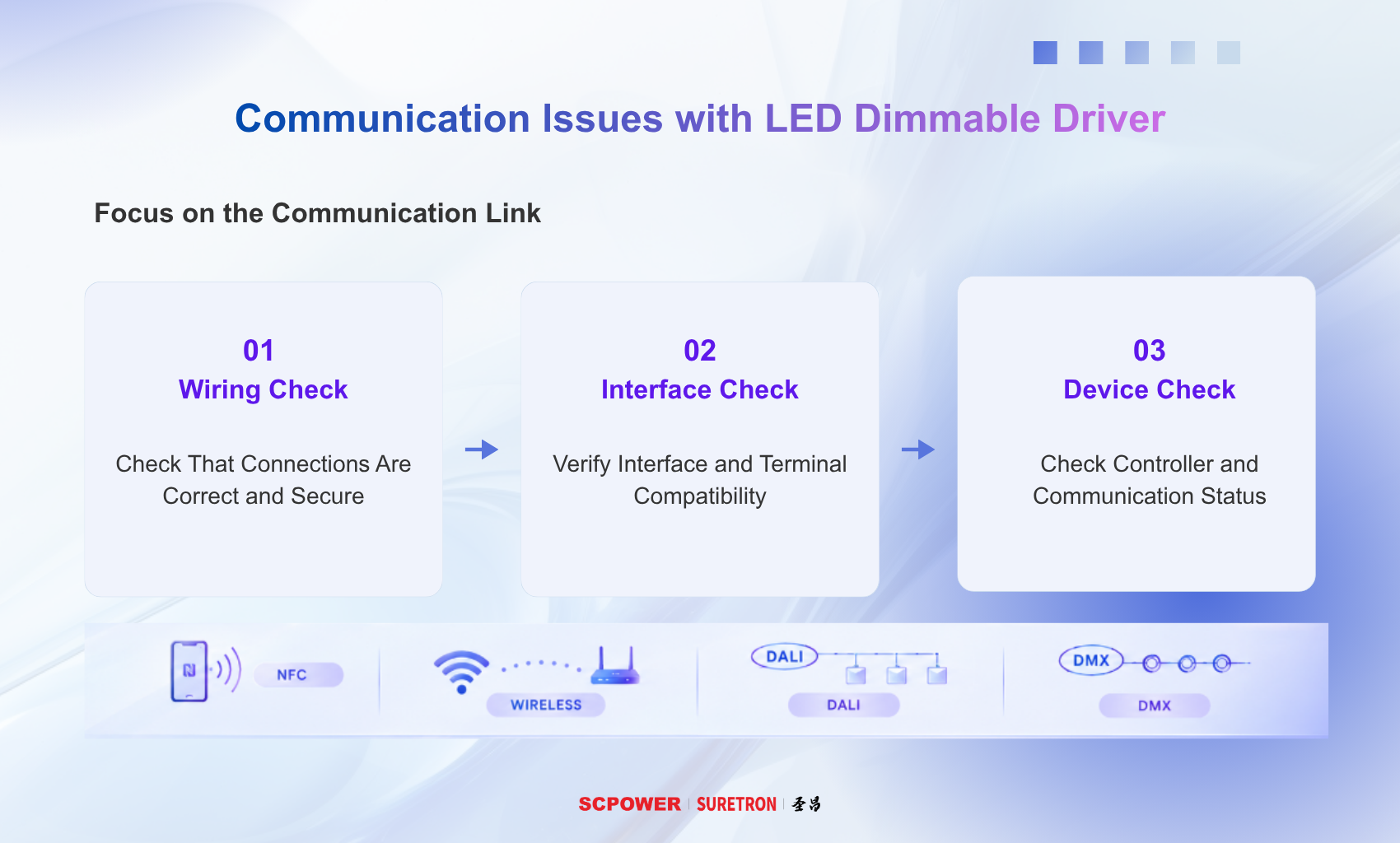

4. Communication Issues with the Dimmable Driver
When communication problems occur, the primary focus should be the communication link. The wiring, interfaces, and status of the connected communication devices may all affect proper communication.
NFC, wireless, DALI, and DMX use different communication and control methods. Therefore, troubleshooting should be tailored to the specific protocol and on-site connection configuration to identify the source of the issue.
When troubleshooting a dimmable driver, first identify the symptoms and determine which areas require attention. Then use load testing, circuit measurements, or communication link checks to progressively narrow down the possible causes.
This approach—”identify the symptoms, locate the potential problem, and verify the cause”—helps streamline troubleshooting and makes subsequent corrective actions more targeted.
