Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP66, Dry & Damp, Wet
100-277VAC
300W, 180W, 192W, 288W
UL & cUL, FCC, Class 2, SAA, CE, RoHS, REACH

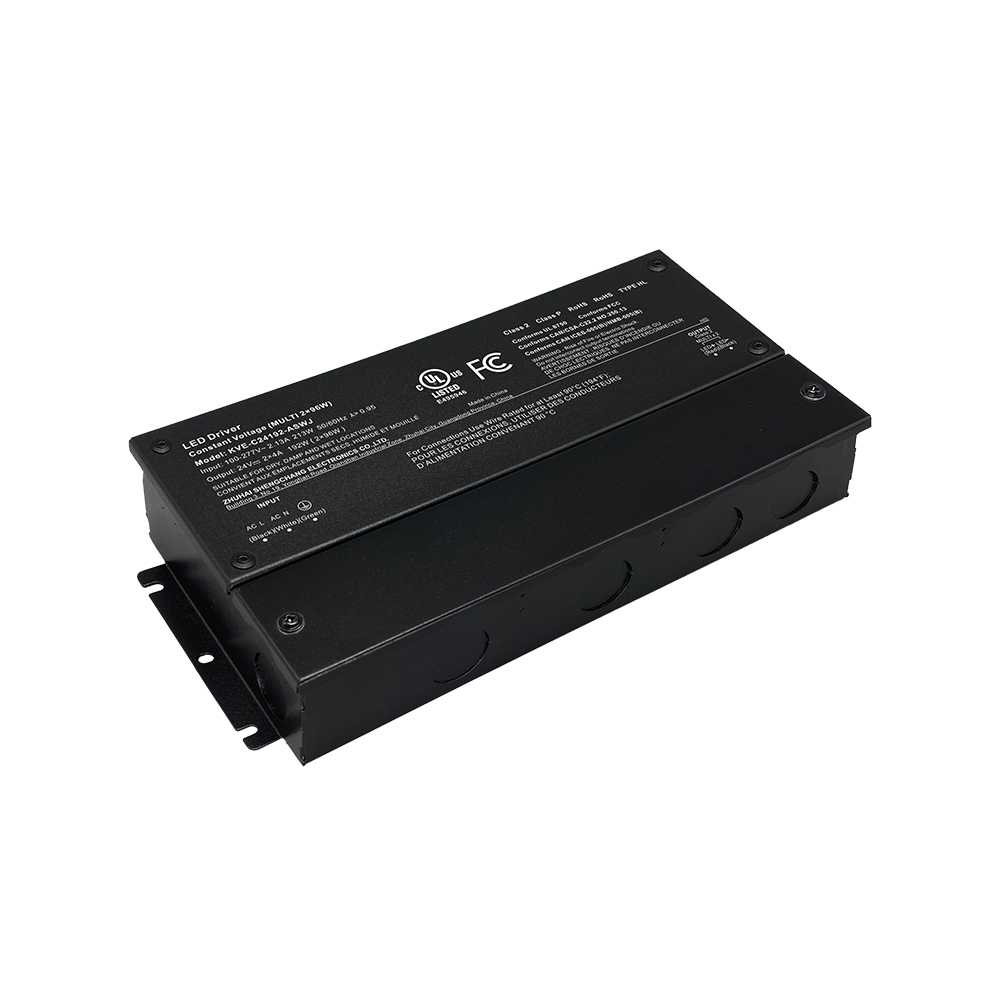

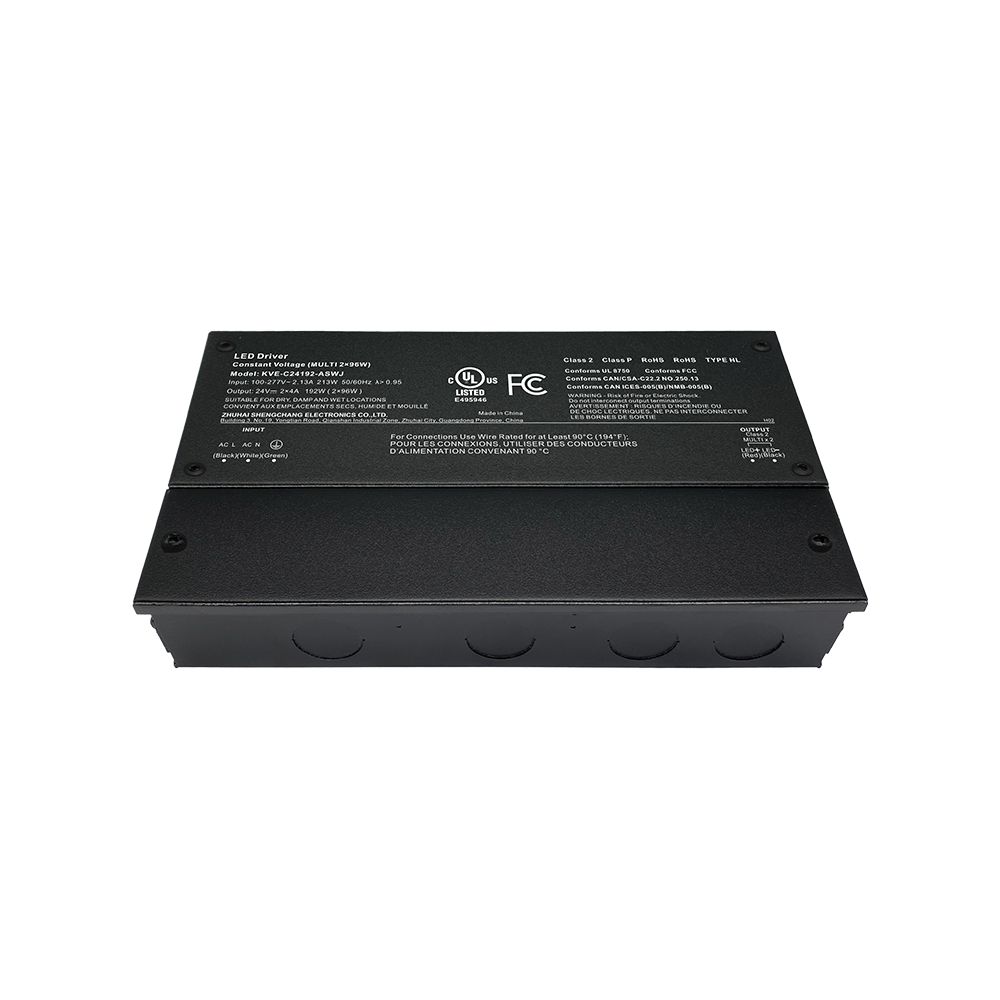

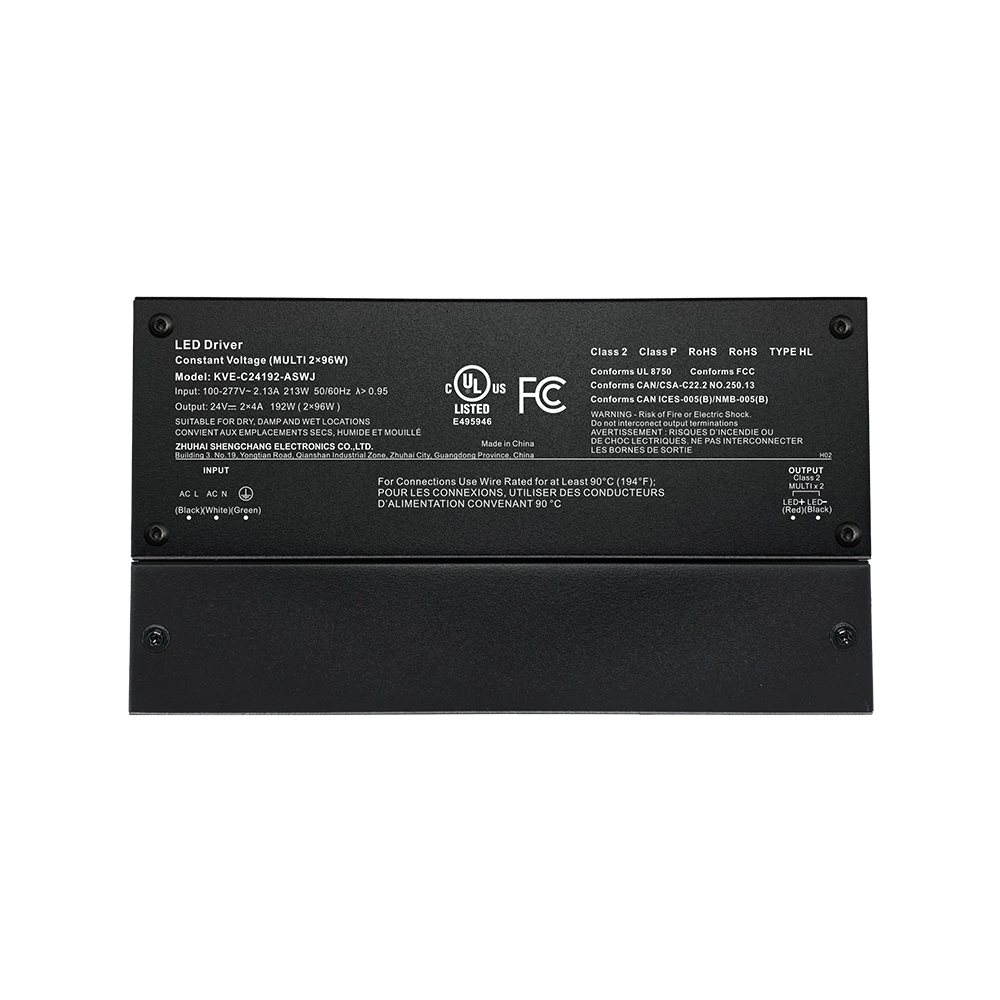

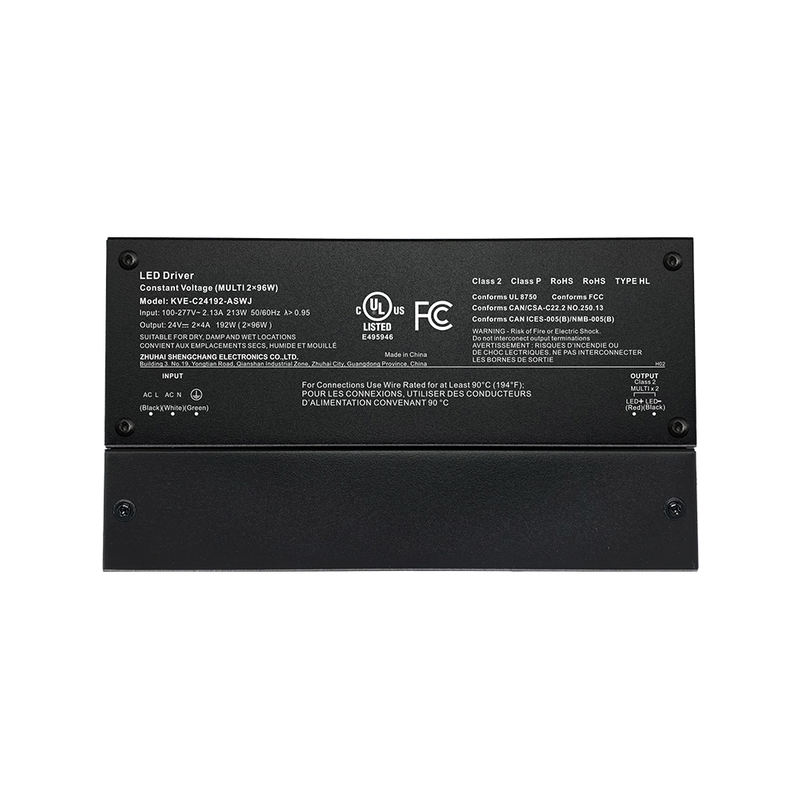

30W 60W 80W 96W 100W 120W 150W 200W 300W 500W 600W CV Iron Built-in Junction Box Driver Switching Power Supply 5-Y Warranty
Output |
Constant Voltage |
Range |
100-277VAC |
PFC design |
Built-in active PFC function |
Efficiency |
Up to 92.5% |
Protections |
Short circuit/ over load/ over temperature |
Heat dissipation |
Cooling by free air convection |
Waterproof performance |

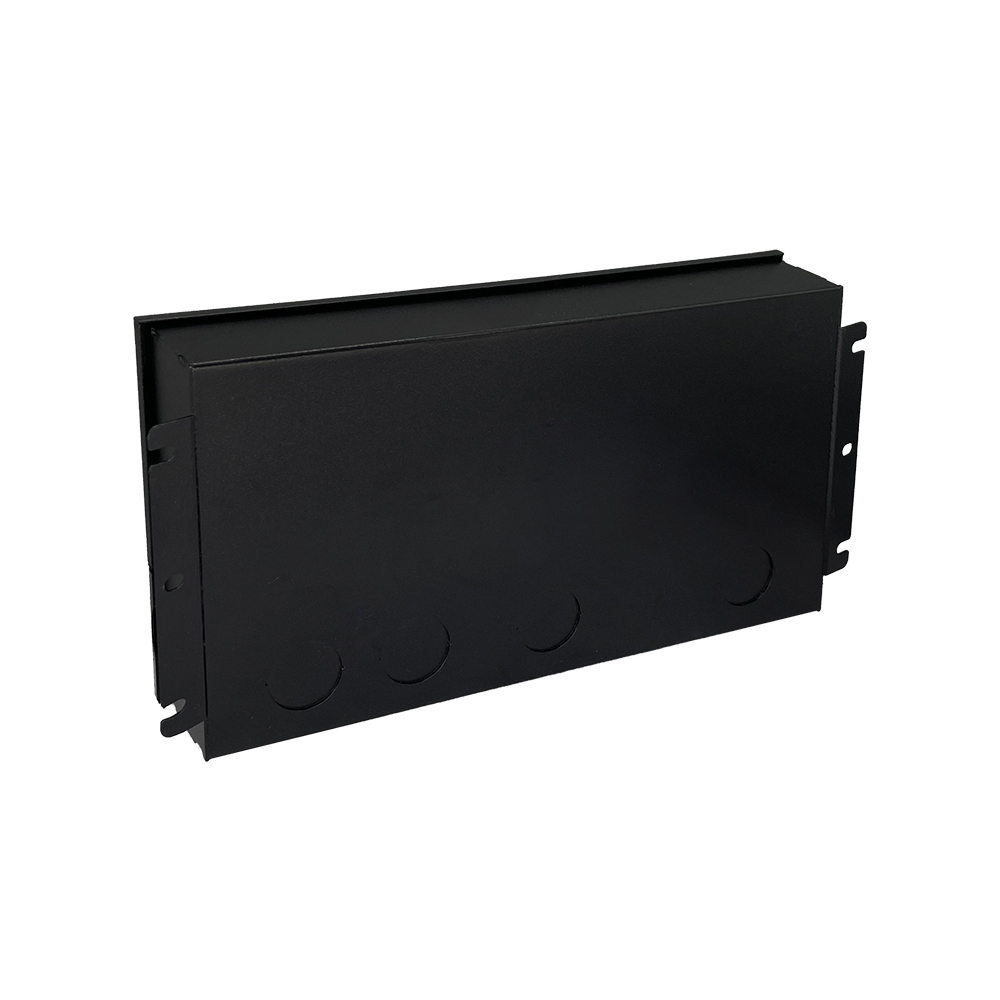

Full protection iron housing, for dry, damp & wet locations(US) |
Dimming function |
Non-Dimmable |
Application |
Suitable for LED lighting and moving sign applications |
Warranty |
5 years warranty |
Others |
High efficiency, small size, high power factor, low THD |
Output Power |
Model Number |
Output Voltage |
Output Current |
Size |
Weight |

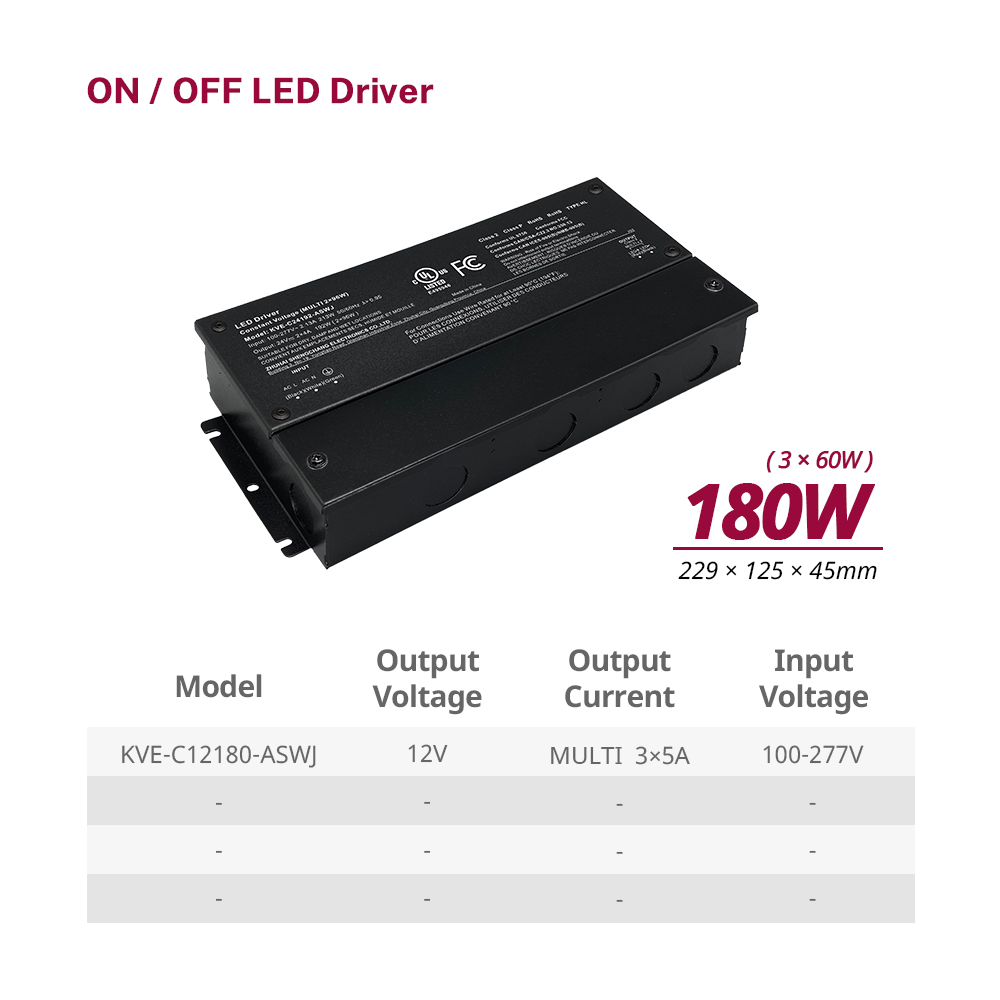

180W |
KVE-C12180-ASWJ |
12V,MULTI |
3*5A |
229*125*45mm |
|
192W |

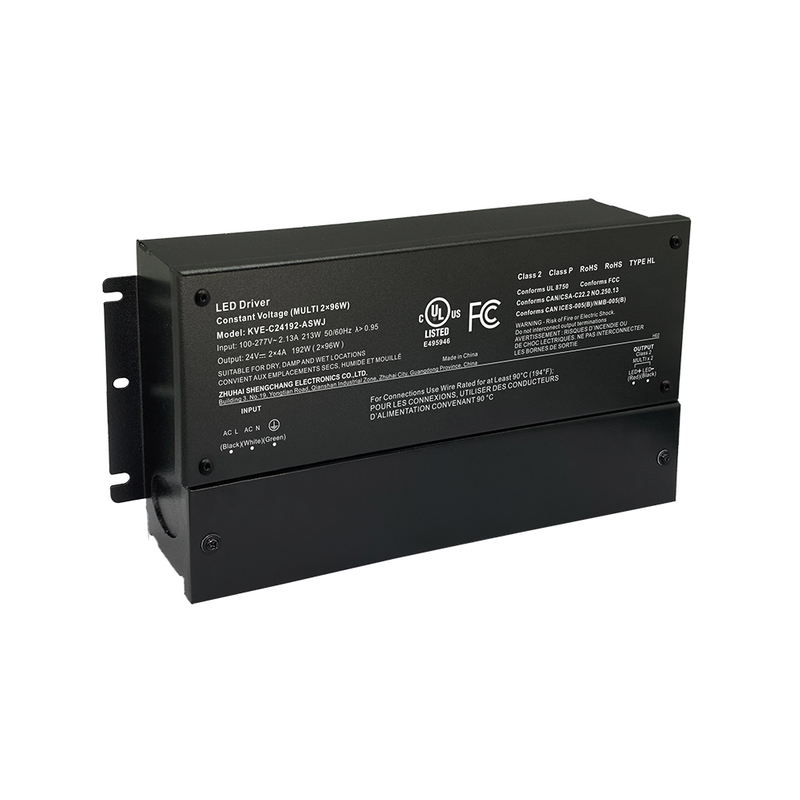

KVE-C24192-ASWJ |
24V,MULTI |
2*4A |
2.11kg |
|
KVE-C36192-ASWJ |
36V,MULTI |
2*2.67A |
|||
KVE-C48192-ASWJ |
48V,MULTI |
2*2A |
|||
288W |
KVE-C24288-ASWJ |
12V,MULTI |
3*5A |
293*125*45mm |
2.45kg |
KVE-36288-ASWJ |
24V,MULTI |
2*4A |
|||
KVE-C48288-ASWJ |
36V,MULTI |
2*2.67A |
|||
300W |
KVE-C12300-ASWJ |
12V,MULTI |
5*5A |
||
No Dimmable Switching Power Supply Wiring Diagram
The Class 2 Flicker-free Switching Power Supply ultra-reliable performance for commercial LED systems. With its rugged iron housing and industry-leading certifications (UL/Class 2/FCC), it operates in dry/wet locations. Achieve 92.5% peak efficiency and active PFC for energy savings while enjoying 5-year warranty protection.
Industrial-Grade Protection: Full iron enclosure withstands dry/damp/wet conditions (US standards). Automatic recovery from short circuits, overloads (≤120%), and overheating (100℃±10℃ shutdown).
Premium Energy Savings: 92.5% max efficiency with active PFC (PF≥0.99@120VAC). Reduces electricity costs and meets strict ANSI C82.77-10 harmonic standards.
All-Weather Durability: Works from -40℃ to +60℃ with humidity up to 95% RH. Ideal for cold storage, outdoor signage, and industrial zones.
Simplified Installation: Dual 24V/48V outputs (2×4A or 2×2A). Pre-wired with 18AWG input/16AWG output cables. MCB compatibility tables included for easy circuit planning.
Zero-Flicker Performance: Non-dimmable design ensures flicker-free lighting for sensitive applications like medical facilities and high-traffic retail spaces.
Safety Certification
Passes UL / FCC / Type HL/ Class P / Class 2 / SELV / CE / RoHS / REACH. It meeting international electrical and environmental standards for worry-free installations.
Indoor Applications
Cold Storage Lighting: Starts instantly at -40°F in freezers and refrigerated displays.
Industrial Zones: Durable iron housing resists corrosion in factories/warehouses.
Safety-Critical Areas: SELV Class 2 certified for wet locations like parking garages and gas stations.
High-Efficiency Projects: 92.5% efficiency reduces CO₂ footprint in green buildings.
Quality Assurance
Backed by a 5-year warranty for comfortable lighting.
