Kurukuru/ka tɛmɛ funteni kan/ka tɛmɛ voltage lakanani kan/undervoltage lakanani .
Funteni bɔli:
Cooling by free air convection .
Ji tɛ se ka don min na:
Aw bɛ yɔrɔ ɲiginnenw, jalenw ani yɔrɔ ɲiginnenw sɔrɔ .
Waleyali:
A bɛnnen don LED yeelen kɛli ma .
Garanti:
San 5 garanti .
Dɔ wɛrɛw:
Flicker-free dimming .
A ɲɛfɔli .
Numéro de modèle .
Bɔli fanga .
Output voltage .
Output current .
Kundama
NDH-1K5W180-DMXA .
1500W .
176-500VDC .
1000-1800mA .
500*150*82mm .
NDH-1K8W210-DMXA .
1800W .
186-500VDC .
1200-2100mA .

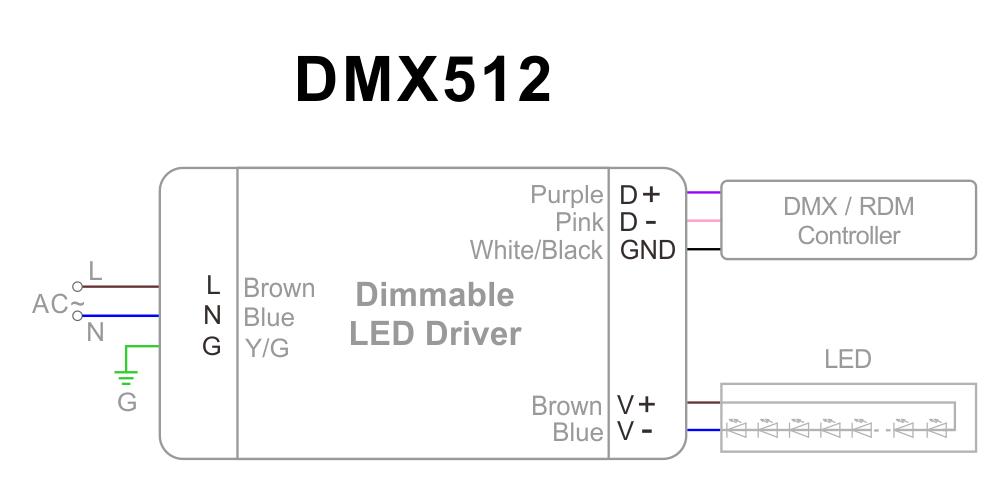

DMX non isolated LED driver wiring diagram .
DMX non isolated LED driver wiring diagram .
Cogojirali
1500W/1800W DMX LED Driver bɛ ni Triple-Channel Independent Control (500W/600W kelen-kelen bɛɛ) ye, o bɛ 180–528VAC ultra-wide input ani non-isolated topology dɛmɛ 97% peak efficiency la.ni IP67 ji tɛ se ka don, 10KV Surge Protection, ani Isolated DMX controls, a bɛ baara kɛ ni dannaya ye ani ka se ka baara kɛ.
Suguya
Triple-channel flexibilité: A bɛ 3×500W/600W bɔli (176–500V/1.8A walima 2.1A kelen-kelen bɛɛ) kɔlɔsi a yɛrɛma walasa ka yeelen sigicogo caman kɛ zone caman na.
Ultra-High Efficiency & Stability: A bɛ 97% sɔrɔ a ka baarakɛcogo la (480VAC), PF≥0.95 (200VAC), ani a bɛ baara kɛ -40°C fo +50°C ni sanga 50.000 ye.
Suite de protection robust: OVP/SCP/OTP (70°C tigɛ), anti-overload min bɛ se ka wuli tuma bɛɛ, ani 10kV sanpɛrɛn jiginni (DM/CM).
Theme Park Installations: IP67-rated for extero ride yeelen, pixel-mapped displays, ani ji tɛ se ka don fɛn minnu na.
Aw ye komandi kɛ sisan ani ka aw ka yeelenko kɛcogo sɛmɛntiya .
Nafa
1500W 1800W DMX Non isolée Driver 220-480VAC .
Bɔli suguya:
Kuran min bɛ to sen na tuma bɛɛ .
Donanw ka yɔrɔ:
220-480VAC .
Lakanali:
Kurukuru/ka tɛmɛ funteni kan/ka tɛmɛ voltage lakanani kan/undervoltage lakanani .
Funteni bɔli:
Cooling by free air convection .
Ji tɛ se ka don min na:
Aw bɛ yɔrɔ ɲiginnenw, jalenw ani yɔrɔ ɲiginnenw sɔrɔ .
Waleyali:
A bɛnnen don LED yeelen kɛli ma .
Garanti:
San 5 garanti .
Dɔ wɛrɛw:
Flicker-free dimming .
A ɲɛfɔli .
Numéro de modèle .
Bɔli fanga .
Output voltage .
Output current .
Kundama
NDH-1K5W180-DMXA .
1500W .
176-500VDC .
1000-1800mA .
500*150*82mm .
NDH-1K8W210-DMXA .
1800W .
186-500VDC .
1200-2100mA .
DMX non isolated LED driver wiring diagram .
DMX non isolated LED driver wiring diagram .
Cogojirali
1500W/1800W DMX LED Driver bɛ ni Triple-Channel Independent Control (500W/600W kelen-kelen bɛɛ) ye, o bɛ 180–528VAC ultra-wide input ani non-isolated topology dɛmɛ 97% peak efficiency la.ni IP67 ji tɛ se ka don, 10KV Surge Protection, ani Isolated DMX controls, a bɛ baara kɛ ni dannaya ye ani ka se ka baara kɛ.
Suguya
Triple-channel flexibilité: A bɛ 3×500W/600W bɔli (176–500V/1.8A walima 2.1A kelen-kelen bɛɛ) kɔlɔsi a yɛrɛma walasa ka yeelen sigicogo caman kɛ zone caman na.
Ultra-High Efficiency & Stability: A bɛ 97% sɔrɔ a ka baarakɛcogo la (480VAC), PF≥0.95 (200VAC), ani a bɛ baara kɛ -40°C fo +50°C ni sanga 50.000 ye.
Suite de protection robust: OVP/SCP/OTP (70°C tigɛ), anti-overload min bɛ se ka wuli tuma bɛɛ, ani 10kV sanpɛrɛn jiginni (DM/CM).
Theme Park Installations: IP67-rated for extero ride yeelen, pixel-mapped displays, ani ji tɛ se ka don fɛn minnu na.
Aw ye komandi kɛ sisan ani ka aw ka yeelenko kɛcogo sɛmɛntiya .
