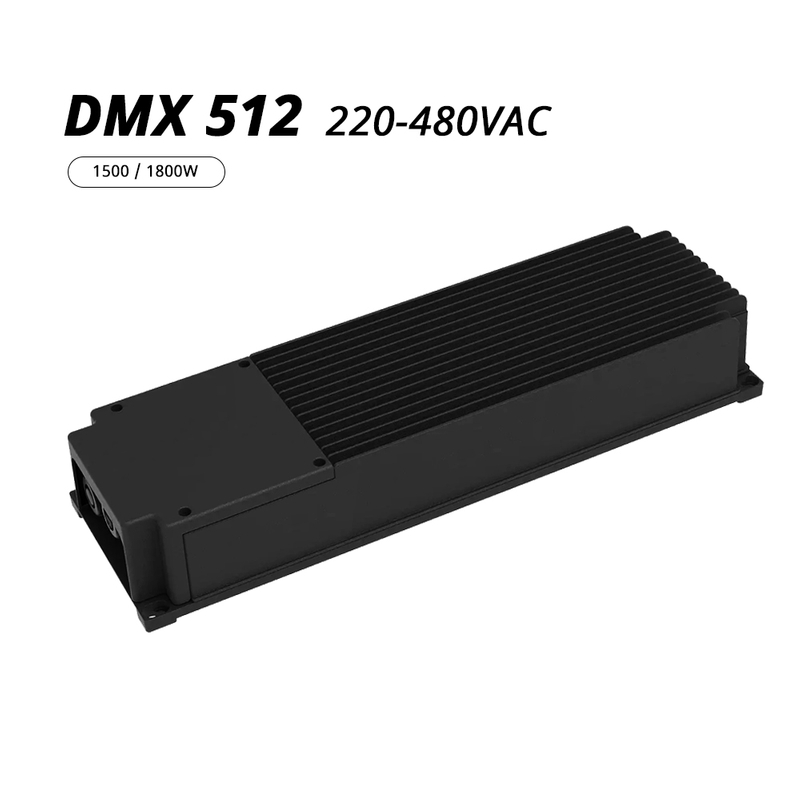

1500W 1800W DMX Non Isolated LED Driver 220-480VAC
Output Type:
Constant Current
Input Range:
220-480VAC
Protections:
short circuit/over temperature/over voltage protection/undervoltage protection
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For Wet, dry and damp locations
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
Flicker-free dimming
Specification
Model Number
Output Power
Output Voltage
Output Current
Size
NDH-1K5W180-DMXA
1500W
176-500VDC
1000-1800mA
500*150*82mm
NDH-1K8W210-DMXA
1800W
186-500VDC
1200-2100mA
DMX Non Isolated LED Driver Wiring Diagram
DMX Non Isolated LED Driver Wiring Diagram
Description
The 1500W/1800W DMX LED driver features triple-channel independent control (500W/600W per channel), supporting 180–528VAC ultra-wide input and non-isolated topology for 97% peak efficiency.With IP67 waterproof rating, 10kV surge protection, and isolated DMX controls, it delivers reliable performance in industrial and outdoor environments.
Features
Triple-Channel Flexibility: Independently controls 3×500W/600W outputs (176–500V/1.8A or 2.1A per channel) for complex multi-zone lighting setups.
Ultra-High Efficiency & Stability: Achieves 97% efficiency (480VAC), PF≥0.95 (200VAC), and operates at -40°C to +50°C with 50,000-hour lifespan.
Theme Park Installations: IP67-rated for outdoor ride lighting, pixel-mapped displays, and waterproof architectural accents.
Order Now and Transform Your Lighting Experience
