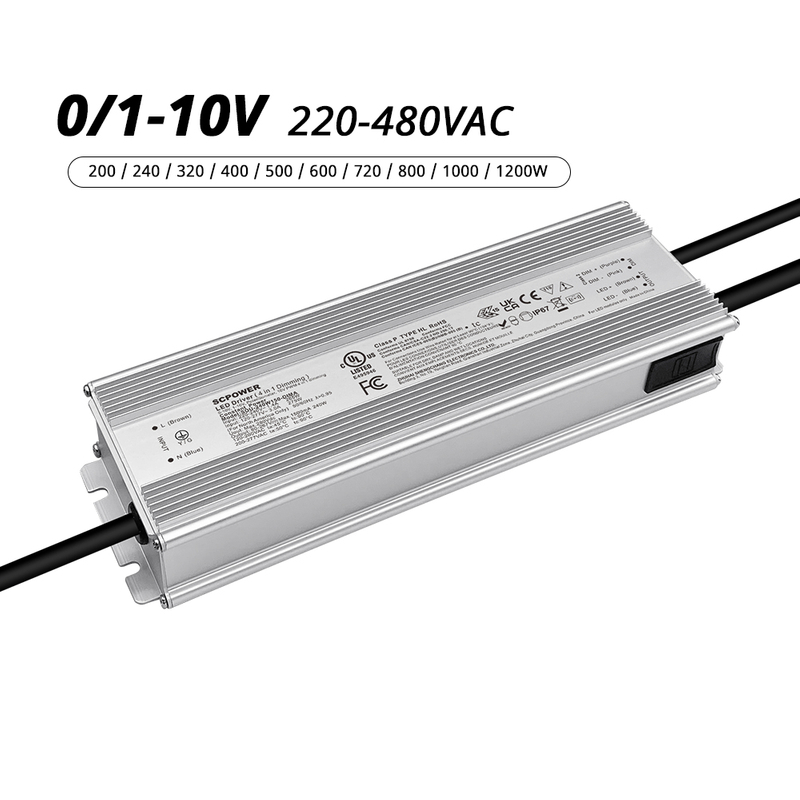

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W Non Isolated LED Driver 220-480VAC
Output Type:
Constant Current
Input Range:
220-480VAC
Protections:
short circuit/over temperature/over voltage protection/undervoltage protection
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For Wet, dry and damp locations
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
Flicker-free dimming
Specification
Model Number
Output Power
Output Voltage
Output Current
Size
NDH-200W110-DIMA
200W
160-260V
110-1100mA
210*67.3*31.3mm
NDH-240W133-DIMA
240W
160-260V
133-1330mA
232.6*67.3*31.3mm
NDH-320W178-DIMA
320W
160-260V
178-1780mA
NDH-400W140-DIMA
400W
180-500V
140-1400mA
253.6*78*42.5mm
NDH-500W278-DIMA
500W
186-500V
175-1750mA
NDH-600W210-DIMA
600W
186-500V
210-2100mA
279.4*89.5*44.5mm
NDH-720W252-DIMA
720W
186-500V
252-2520mA
NDH-800W270-DIMA
800W
186-500V
270-2700mA
279.4*89.5*44.5mm
NDH-800W280-DIMA
186-500V
280-2800mA
302.4*89.5*44.5mm
NDH-1K0W350-DIMA
1000W
186-500V
350-3500mA
390*89.5*44.5mm
NDH-1K2W420-DIMA
1200W
186-500V
420-4200mA
0-10V Non Isolated LED Driver Wiring Diagram
0-10V Non Isolated LED Driver Wiring Diagram
Description
Non-Isolated LED Driver (100W-1200W, 220-480VAC). Powering high-efficiency lighting systems with ultra-wide voltage compatibility and intelligent control.
Features
Self-Adaptive Brightness: Auto-adjusts current to compensate for LED decay, ensuring consistent lumen
Industrial-Grade Protection: IP67-rated, surge-proof (6kV DM/10kV CM), with OTP/OVP/SCP safeguards for
harsh environments.
Applications
Stadium & Arena Lighting: Uniform floodlights for sports fields.
Smart Street Lighting: Road lights with surge protection.
Agricultural Grow Lights: Timer-dimmable plant lights for greenhouses.
Industrial Lighting: High-bay lights in warehouses/factories.
Order Now and Transform Your Lighting Experience
