| Ouput Power: | |
|---|---|
DALI-2 D4i
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
220-480VAC
1500W, 1800W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

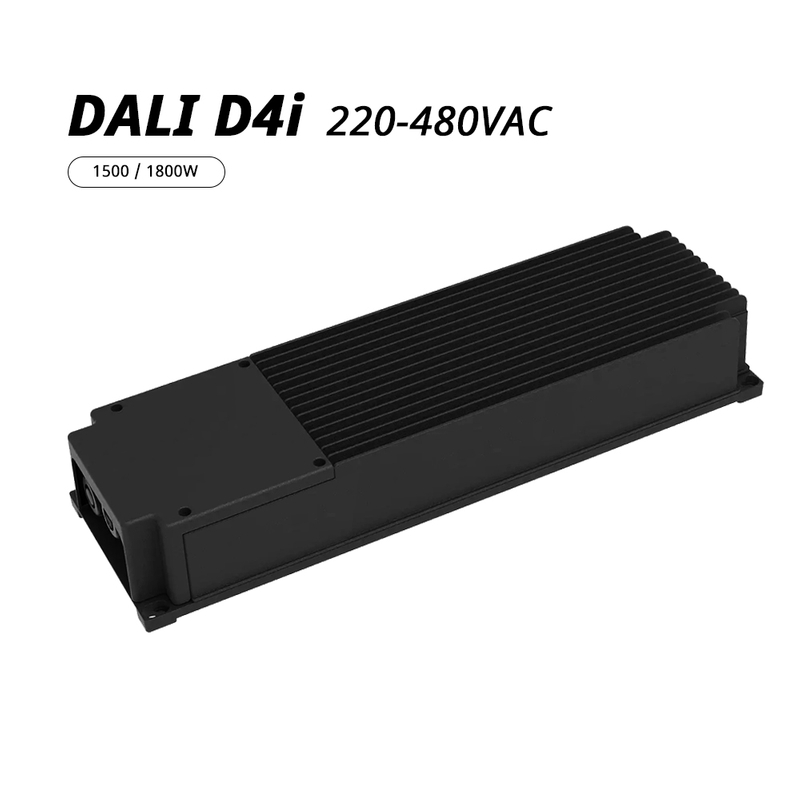

1500W 1800W DALI-2 D4i Non Isolated LED Driver 220-480VAC
Output Type: | Constant Current |
Input Range: | 220-480VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |
NDH-1K5W180-D4IA | 1500W | 176-500VDC | 1000-1800mA | 500*150*82mm |
NDH-1K8W210-D4IA | 1800W | 186-500VDC | 1200-2100mA |
Description
The 1500W 1800W DALI-2 D4i Non-Isolated LED Driver delivers ultra-high power for industrial and large-scale commercial lighting systems. With a triple-channel output and 220-480VAC wide input voltage, it ensures stable operation in outdoor environments. Certified for DALI-2 and D4i, it supports intelligent dimming, energy monitoring, and IoT integration, featuring surge protection up to 10kV and an IP67 rating.
Features
DM 10kV / CM 10kV Surge Protection: Withstands lightning strikes and grid fluctuations for industrial safety.
Output Lumen Compensation: Automatically increases current to offset LED aging, maintaining consistent brightness.
Adaptive Midnight Dimming: Self-adjusts dimming curves based on historical operation patterns.
Triple-Channel Output (500W/600W×3): Independently controls three LED circuits, enabling complex lighting designs.
D4i Energy Monitoring: Tracks real-time power consumption and reports data via DALI-2 for smart energy management.
Applications
Stadium Floodlighting: Powers high-bay fixtures with per-channel control for dynamic event lighting.
Smart Industrial Warehouses: Enables zone-specific dimming and energy analytics via D4i.
High-Temperature Foundries: Operates at -40°C to +50°C with thermal management.
Order Now and Transform Your Lighting Experience
