DALI-2 D4i
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
220-480VAC
100W, 150W, 200W, 240W, 320W, 400W, 500W, 600W, 720W, 800W, 1200W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

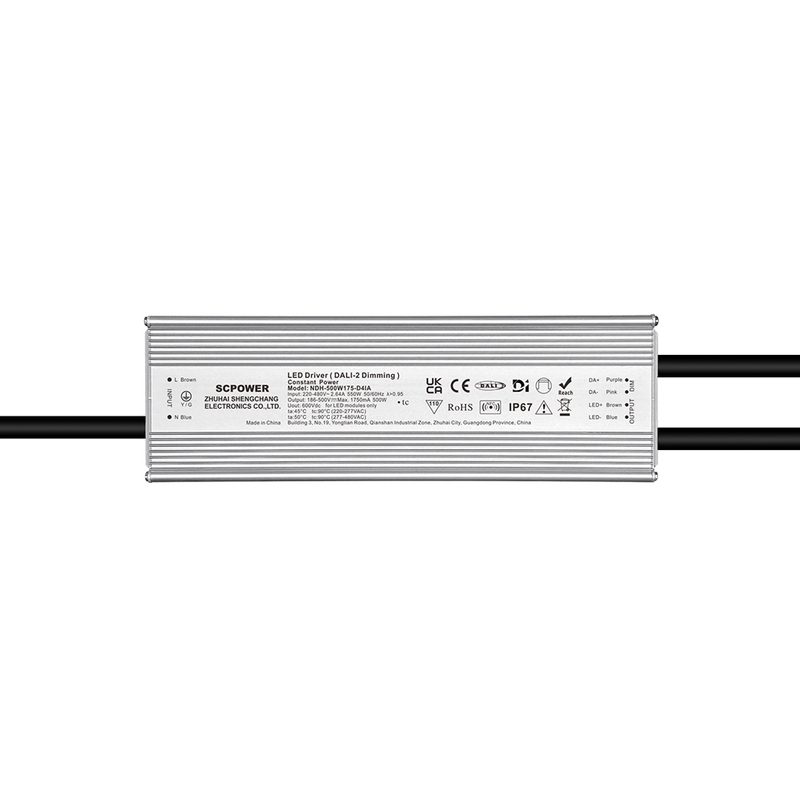

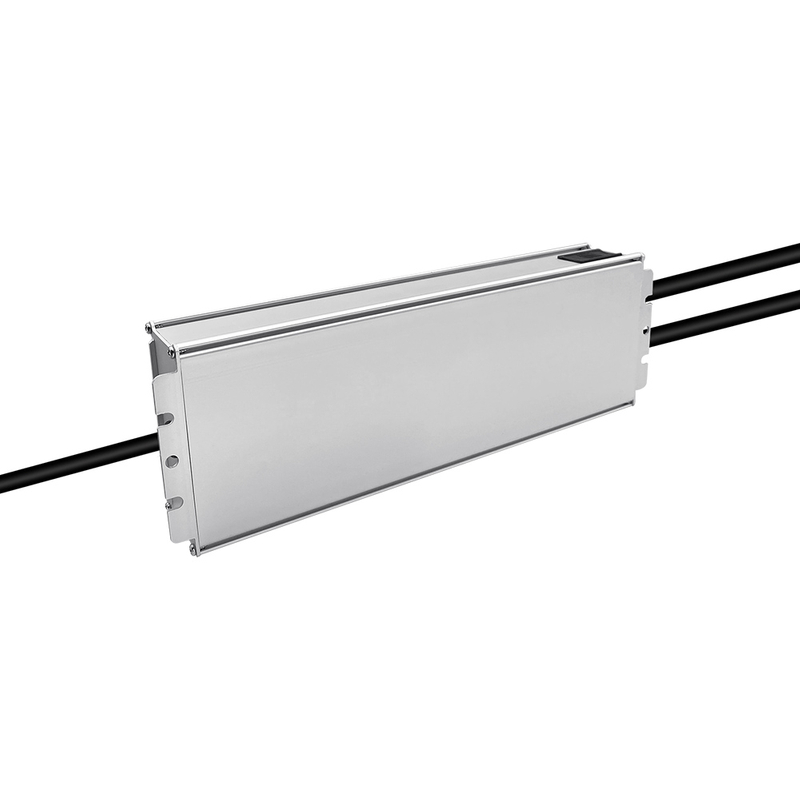

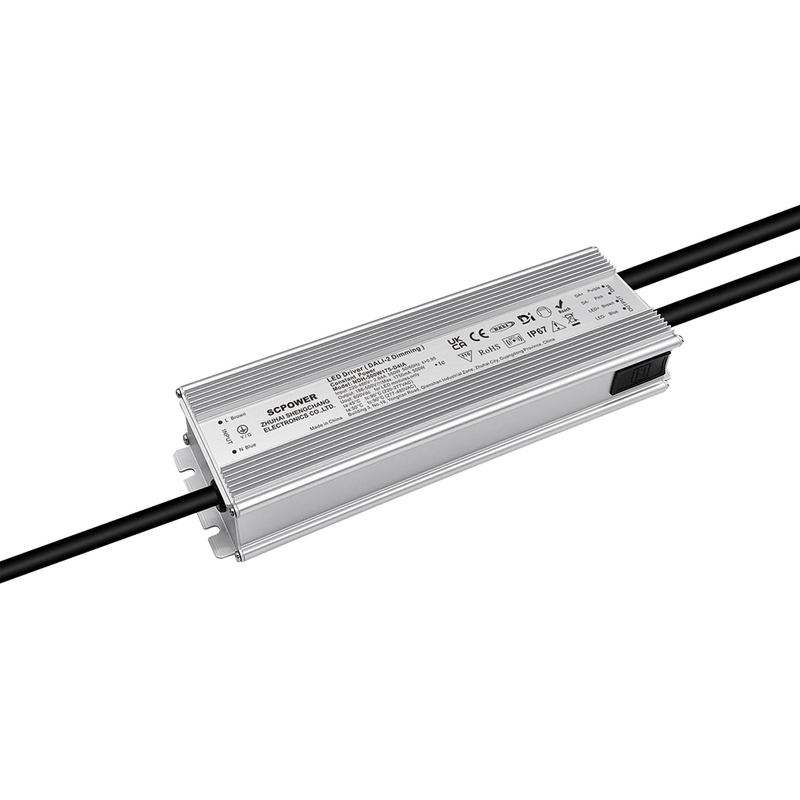

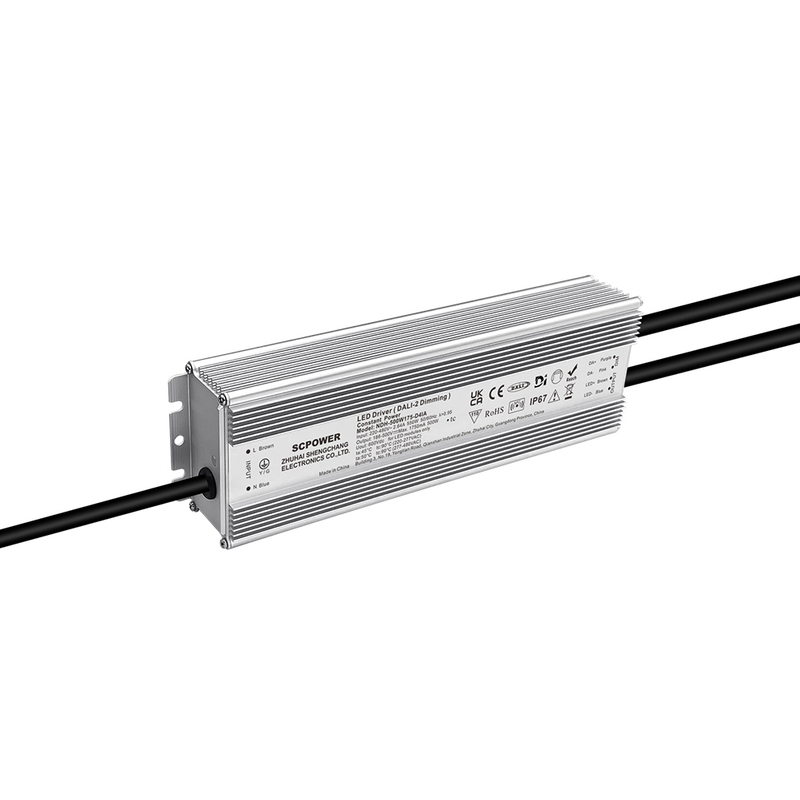

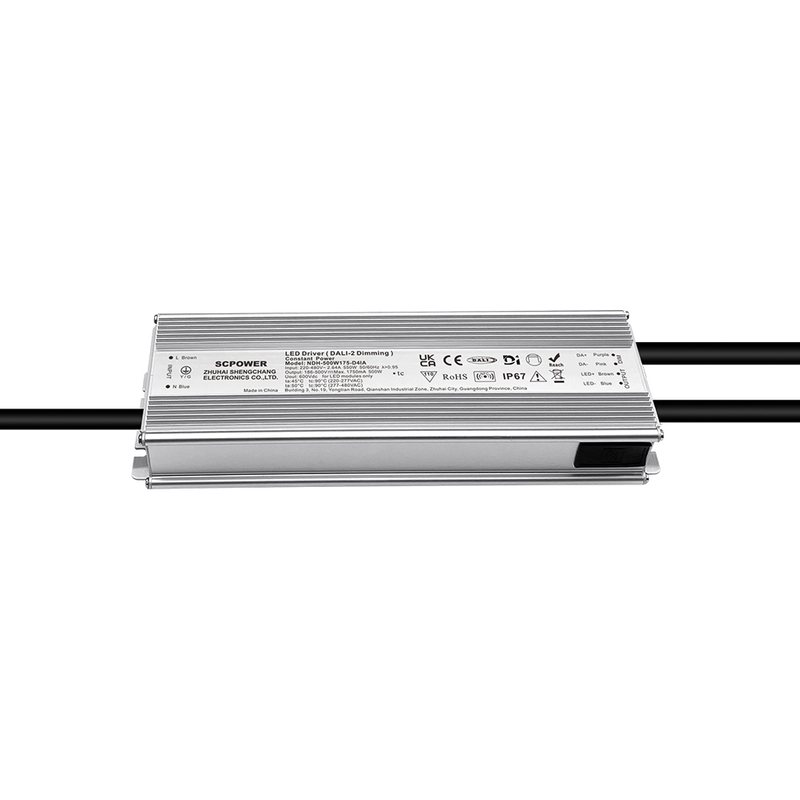

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W DALI-2 D4i Non Isolated LED Driver 220-480VAC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |

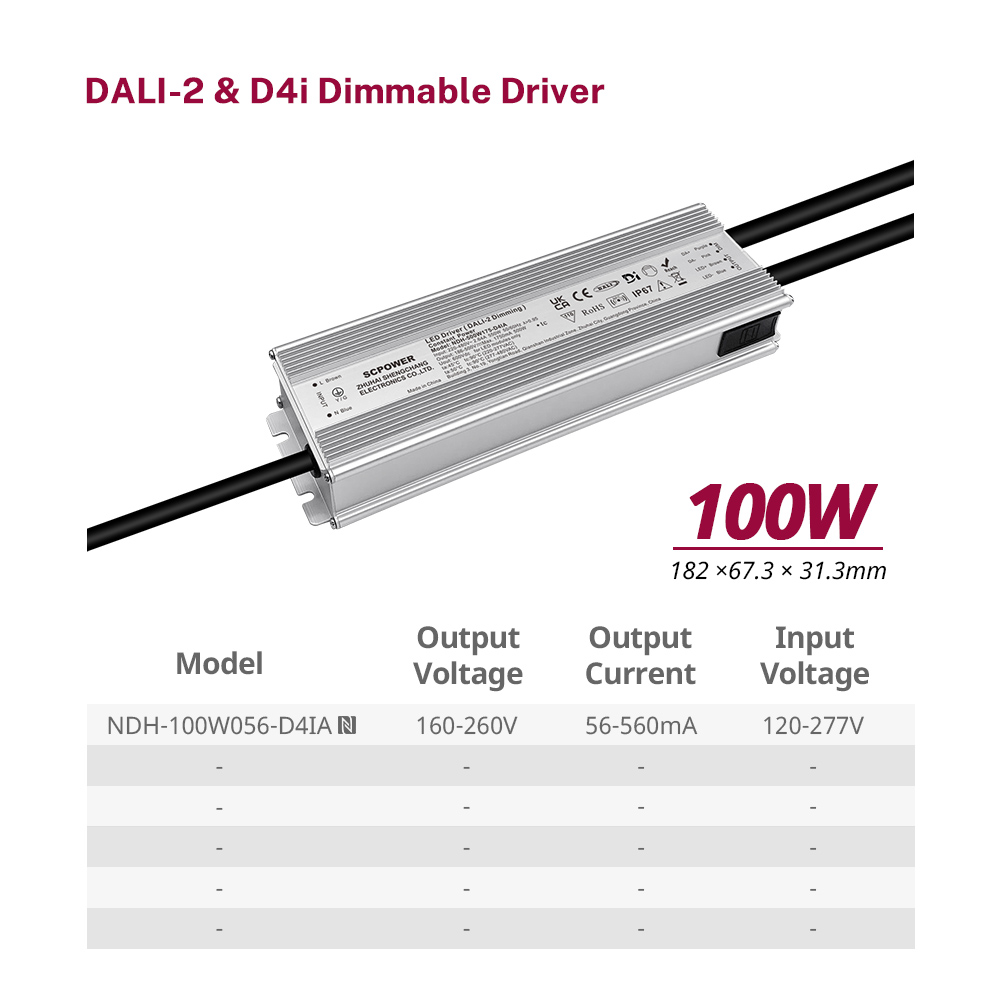

NDH-100W056-D4IA | 100W | 160-260V | 56-560mA | 182*67.3*31.3mm |
NDH-150W083-D4IA | 150W | 160-260V | 83-830mA | 210*67.3*31.3mm |
NDH-200W110-D4IA | 200W | 160-260V | 110-1100mA | |
NDH-240W133-D4IA | 240W | 160-260V | 133-1330mA | 232.6*67.3*31.3mm |
NDH-320W178-D4IA | 320W | 160-260V | 178-1780mA | |
NDH-400W140-D4IA | 400W | 180-500V | 140-1400mA | 253.6*78*42.5mm |
NDH-500W278-D4IA | 500W | 186-500V | 175-1750mA | |
NDH-600W210-D4IA | 600W | 186-500V | 210-2100mA | 279.4*89.5*44.5mm |
NDH-720W252-D4IA | 720W | 186-500V | 252-2520mA | |
NDH-800W270-D4IA | 800W | 186-500V | 270-2700mA | 279.4*89.5*44.5mm |
NDH-800W280-D4IA | 186-500V | 280-2800mA | 302.4*89.5*44.5mm | |
NDH-1K0W350-D4IA | 1000W | 186-500V | 350-3500mA | 390*89.5*44.5mm |
NDH-1K2W420-D4IA | 1200W | 186-500V | 420-4200mA |

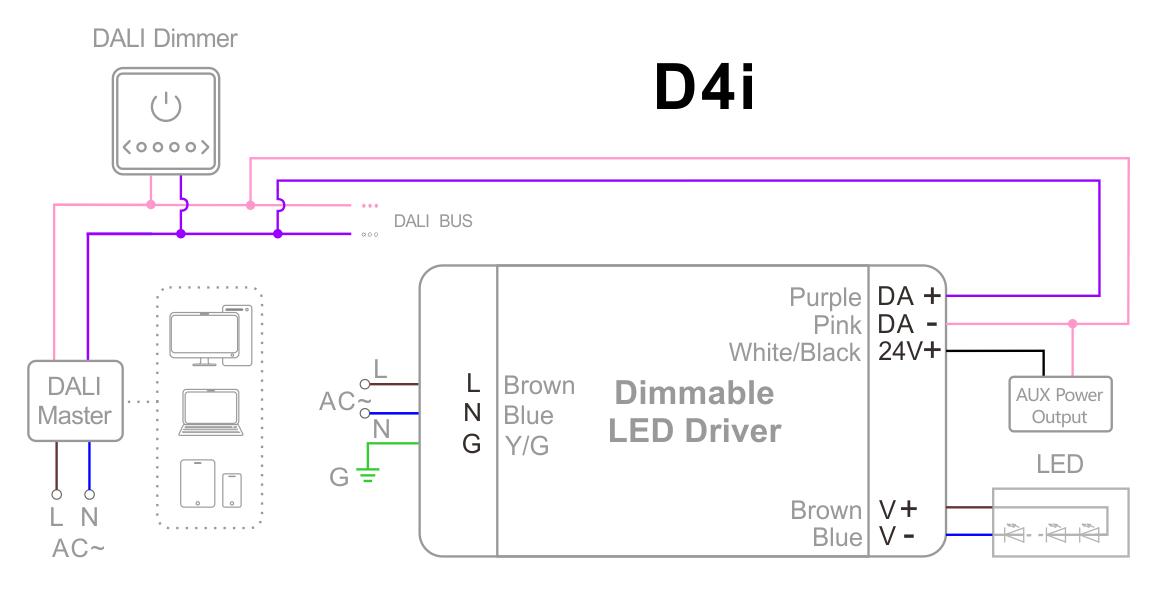

DALI-2 D4i Non Isolated LED Driver Wiring Diagram
Description
The 100W-1200W DALI-2 D4i Non-Isolated LED Driver is a high-performance power supply designed for industrial and commercial LED lighting applications. Supporting a wide input voltage range of 220-480VAC, it ensures stable and efficient operation for high-power LED systems. With DALI-2 and D4i certification, it offers advanced dimming control and smart lighting integration, making it ideal for modern intelligent lighting.
Dual Dimming Compatibility:
Real-Time Thermal Management: Built-in sensors prevent overheating, extending lifespan in high-temperature environments.
Surge Protection: Withstands voltage spikes, ideal for areas with unstable power grids.
Plug-and-Play Installation: No complex wiring; integrates seamlessly with DALI-2 controllers.
Over-temperature protection: 70℃ over-temperature shutdown of output voltage, which can be automatically restored after the temperature drops.
Time-controlled dimming control: three modes: adaptive-midpoint alignment, adaptive-percentage and conventional timing.
Applications:
Greenhouse Smart Farming: Powers adjustable LED grow lights with dimming for optimal plant growth cycles.
Museum & Art Gallery Lighting: Delivers flicker-free, precise brightness control to protect sensitive artifacts.
Underground Parking Automation: Integrates with motion sensors for on-demand lighting, cutting energy costs.
Portable Film Set Lighting: Rugged design supports high-wattage LED panels for outdoor filming.
Disaster Relief Temporary Lighting: Operates reliably under unstable voltage for emergency sites.
Order Now and Transform Your Lighting Experience
