DMX512
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
220-480VAC
100W, 150W, 200W, 240W, 320W, 400W, 500W, 600W, 720W, 800W, 1200W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

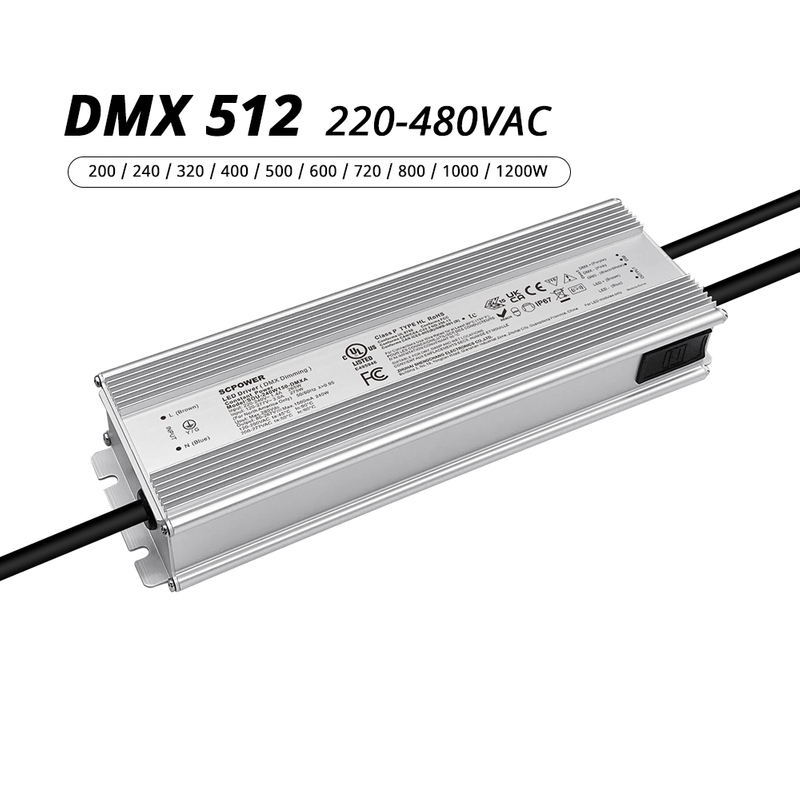

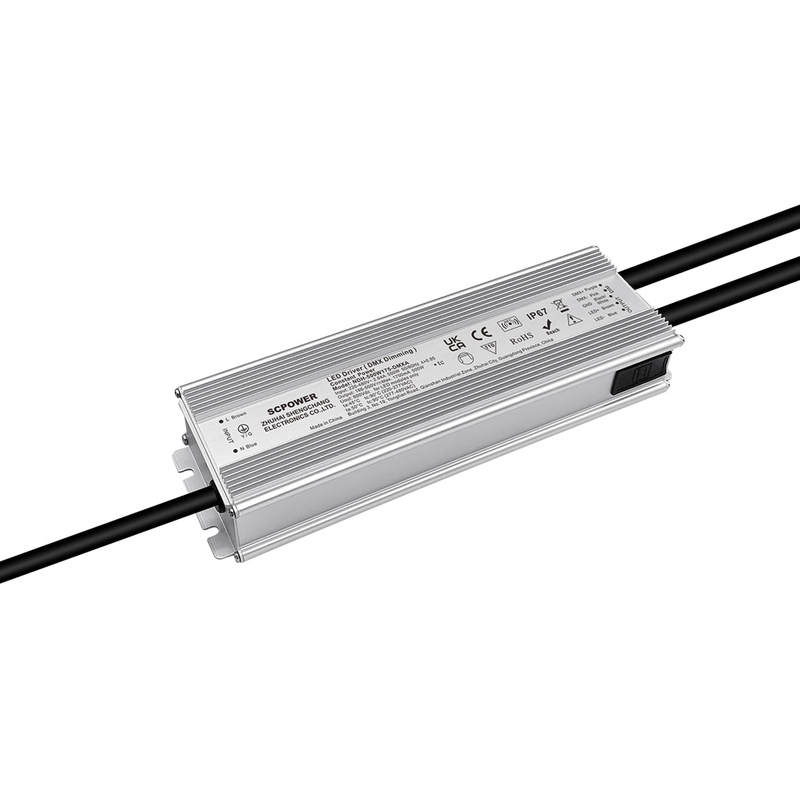

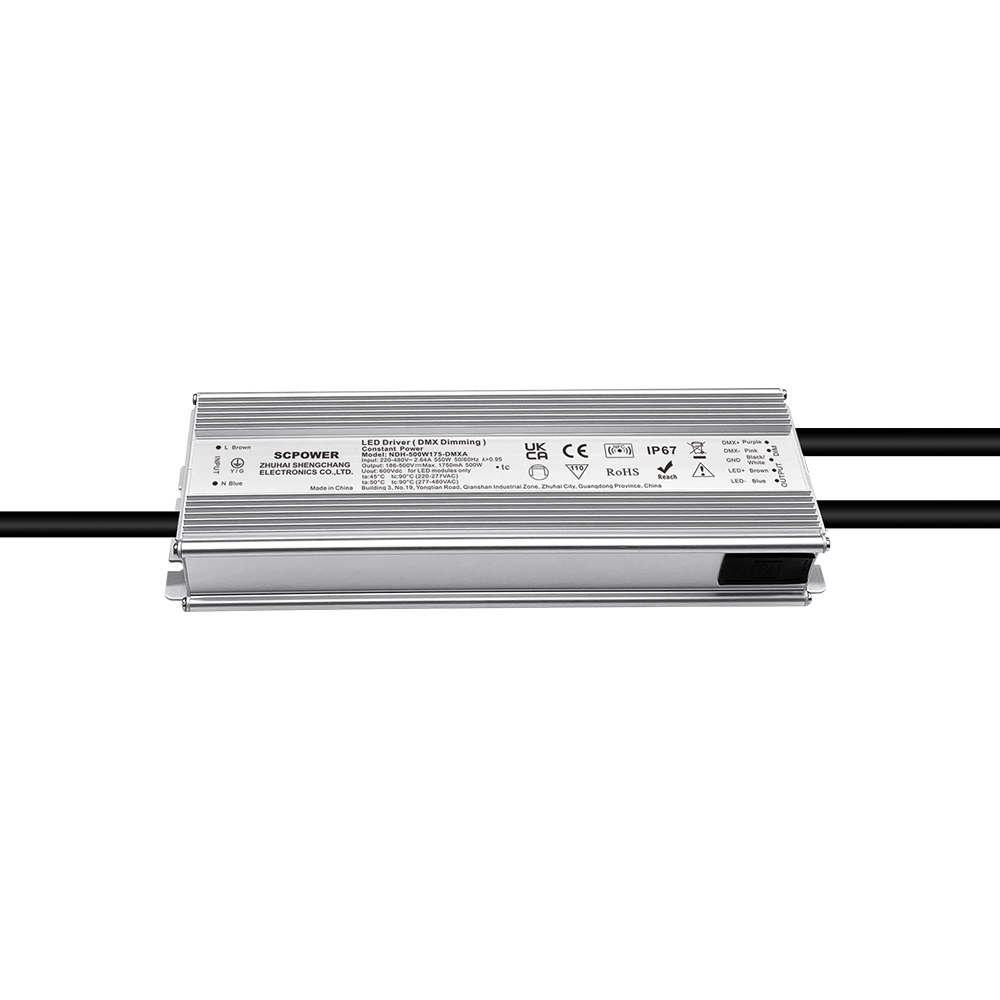

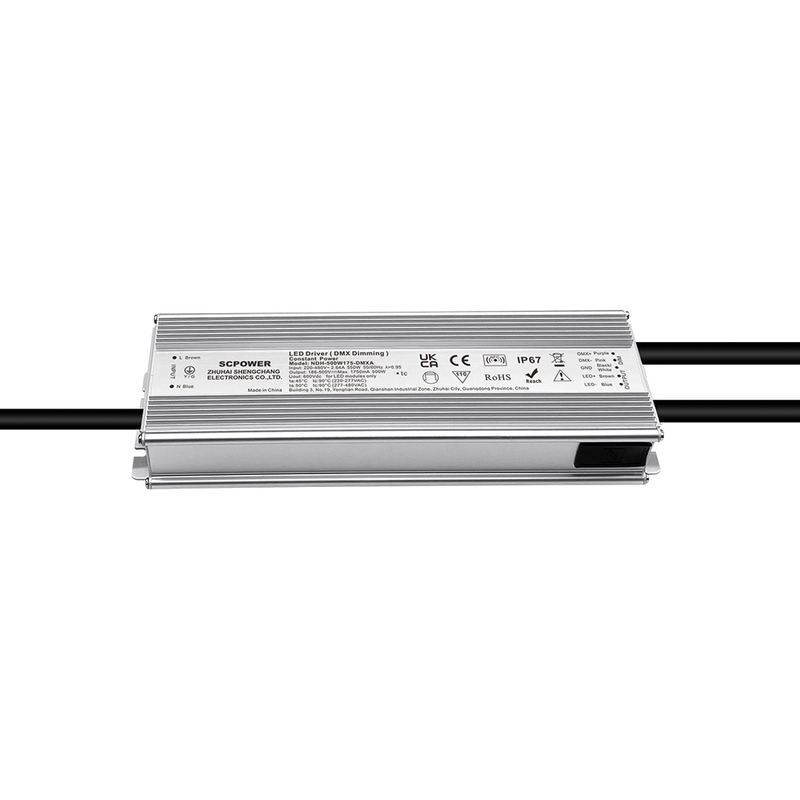

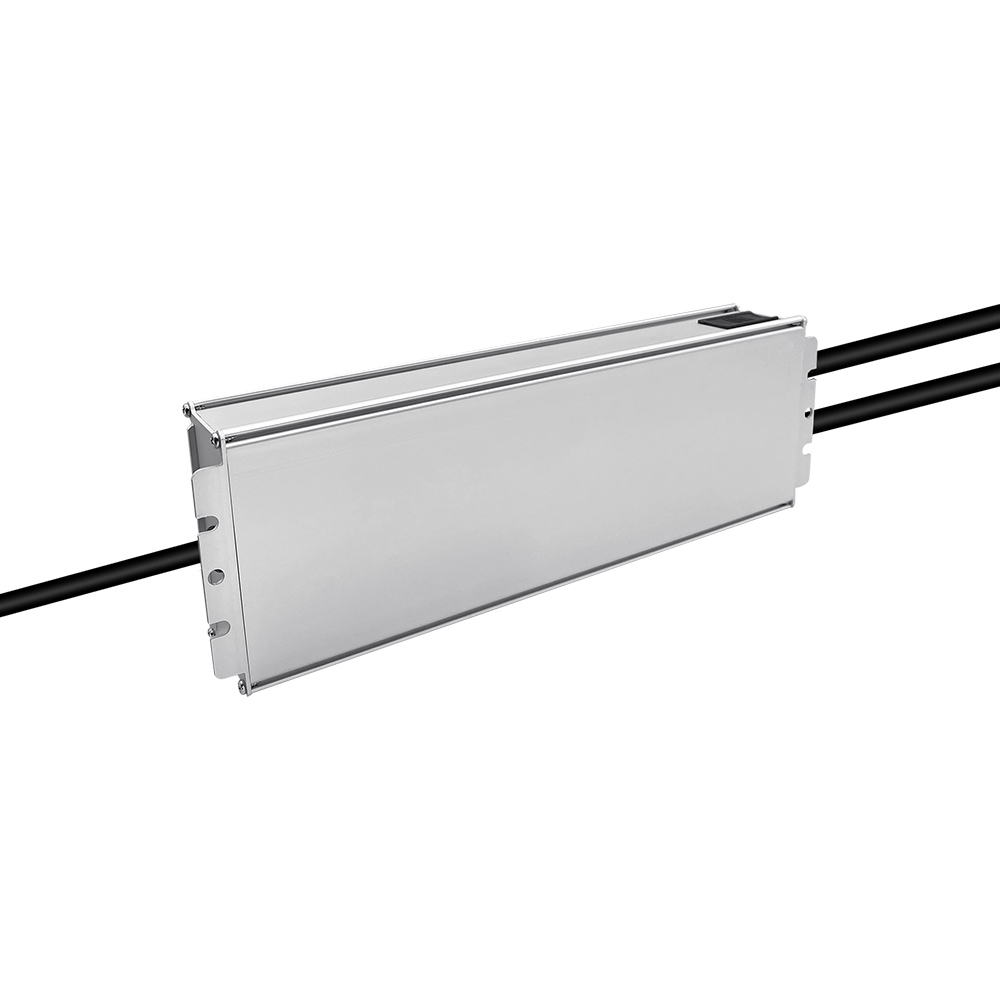

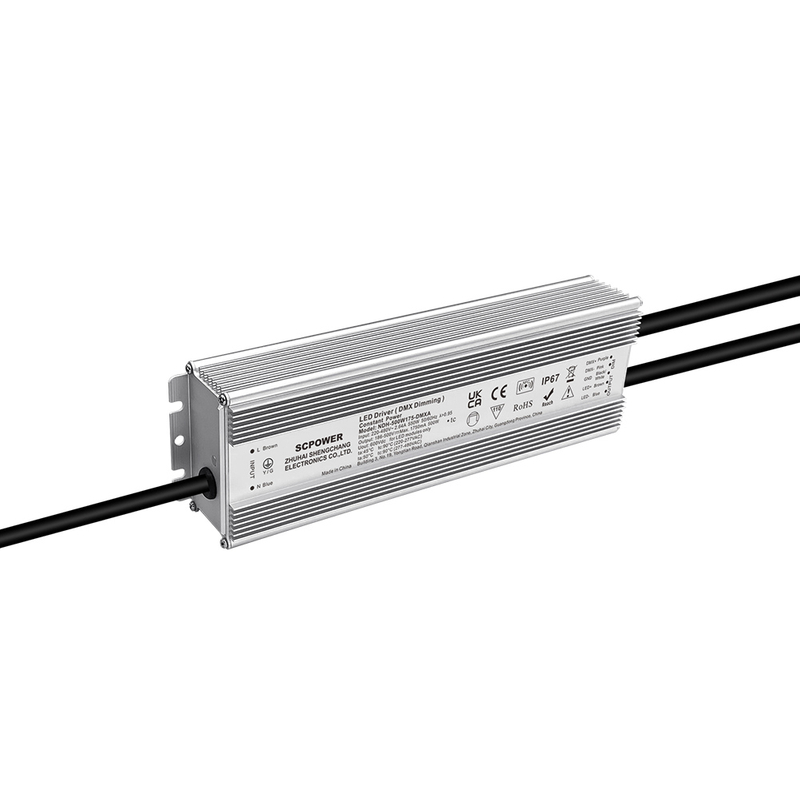

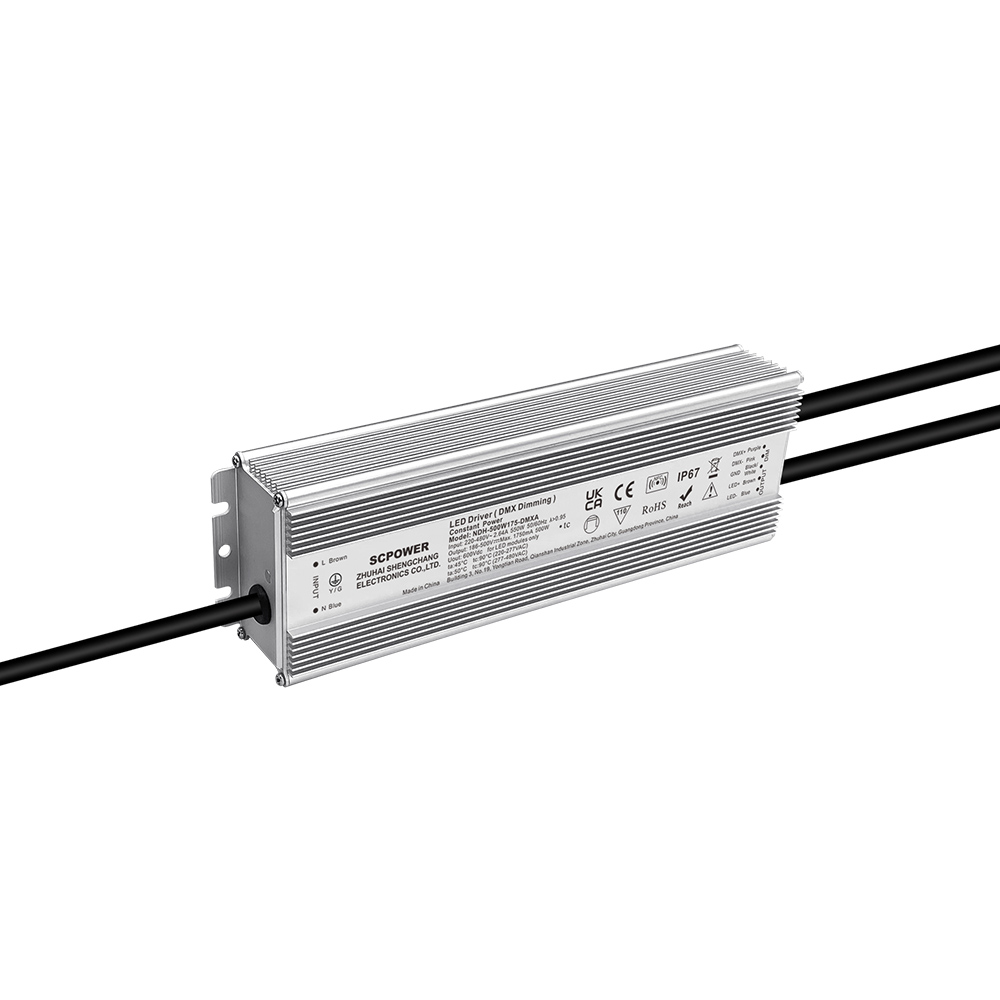

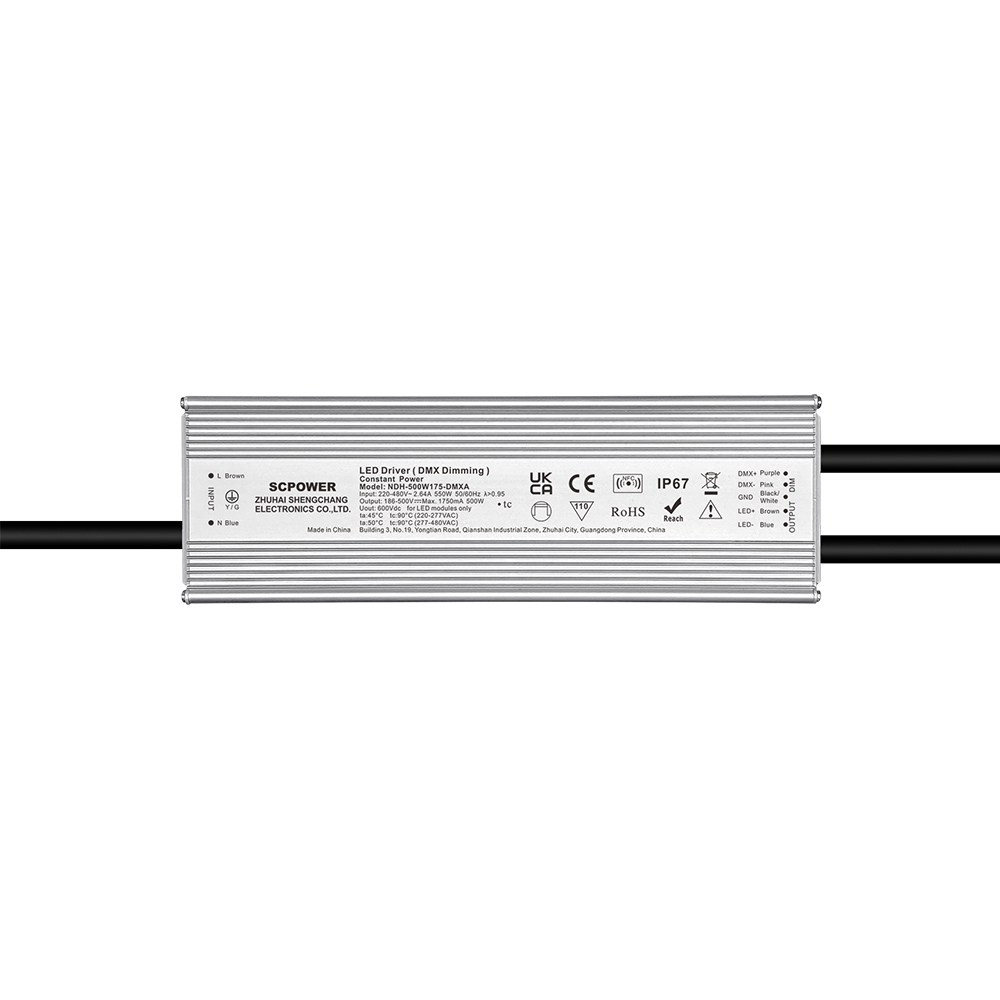

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W DMX Non Isolated LED Driver 220-480VAC
Output Type: | Constant Current |
Input Range: | 220-480VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |
NDH-100W056-DMXA | 100W | 160-260V | 56-560mA | 182*67.3*31.3mm |
NDH-150W083-DMXA | 150W | 160-260V | 83-830mA | 210*67.3*31.3mm |
NDH-200W110-DMXA | 200W | 160-260V | 110-1100mA | |
NDH-240W133-DMXA | 240W | 160-260V | 133-1330mA | 232.6*67.3*31.3mm |
NDH-320W178-DMXA | 320W | 160-260V | 178-1780mA | |
NDH-400W140-DMXA | 400W | 180-500V | 140-1400mA | 253.6*78*42.5mm |
NDH-500W278-DMXA | 500W | 186-500V | 175-1750mA | |
NDH-600W210-DMXA | 600W | 186-500V | 210-2100mA | 279.4*89.5*44.5mm |
NDH-720W252-DMXA | 720W | 186-500V | 252-2520mA | |
NDH-800W270-DMXA | 800W | 186-500V | 270-2700mA | 279.4*89.5*44.5mm |
NDH-800W280-DMXA | 186-500V | 280-2800mA | 302.4*89.5*44.5mm | |
NDH-1K0W350-DMXA | 1000W | 186-500V | 350-3500mA | 390*89.5*44.5mm |
NDH-1K2W420-DMXA | 1200W | 186-500V | 420-4200mA |

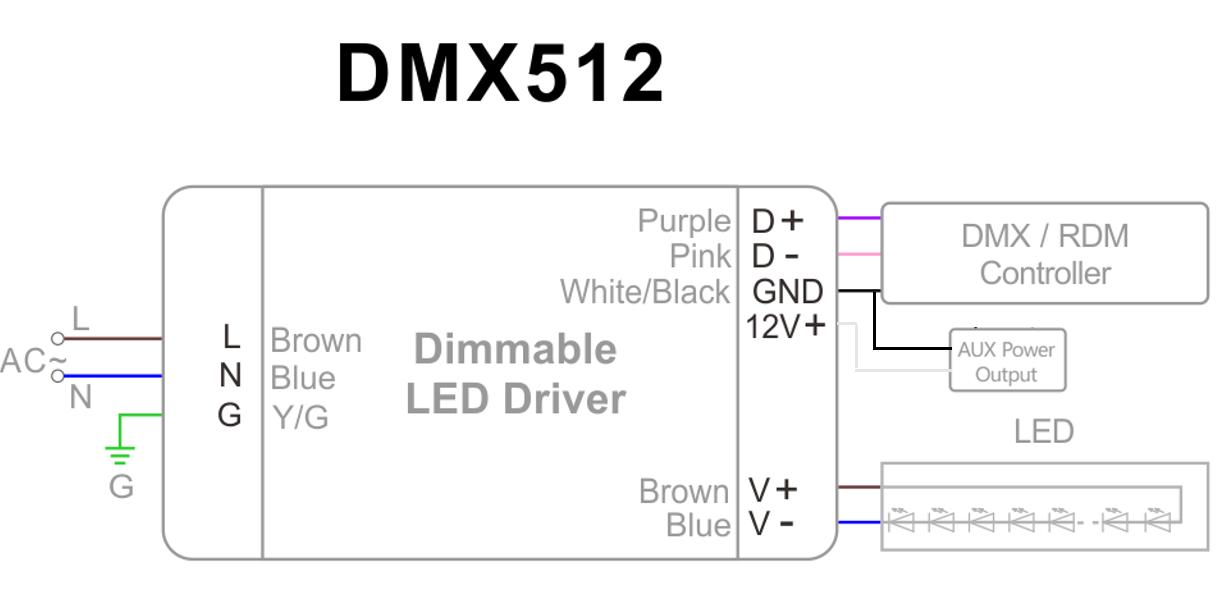

DMX Non Isolated LED Driver Wiring Diagram
Product Description:
This high-power DMX LED driver series offers a wide range of wattages from 100W to 1200W, Featuring a universal AC input voltage range of 220-480VAC. The non-isolated design prioritizes high efficiency and cost-effectiveness, making it suitable for controlled environments where electrical isolation is not the primary requirement.
Dual Dimming Compatibility:
Robust Protections: Includes Over-Voltage, Short-Circuit, Over-Temperature, 70°C cutoff.
Smart Features: 5-year warranty, and MCU-based functions (e.g., adaptive dimming curves).
Lightning protection design: It can meet the differential mode 6kV / common mode 10kV.
All-round Protection: Short circuit protection, overload protection, over temperature protection.
High Efficiency & PF: Achieves >92% efficiency (277VAC) and PF≥0.99 (120VAC) with low THD (<10%).
Applications:
Outdoor Event Lighting: Enables temporary setups (e.g., exhibitions, festivals) with IP67-rated weather resistance.
Stage & Entertainment Lighting: Powers DMX-controlled LED moving heads, beam lights, and stage wash systems for concerts and theaters.
Order Now and Transform Your Lighting Experience
