Fɛn dilannenw Detail

Aw bɛ yan: So / Fɛn minnu bɛ dilan / Seko ni dɔnko yeelen LED Driver / NDH Seri Non Isolé 220-480VAC. Bamako, Mali / 100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W 0-10V Non Isolated LED Driver 220-480VAC

Bɛɛ
Fɛn dilannen Tɔgɔ
Fɛn dilannenw ka daɲɛ koloma
Produit Model (Fɔcogo Modeli) ye
Fɛn dilannenw ka ɲɛfɔli kuncɛlen
Fɛn dilannenw ɲɛfɔli
Foro caman ɲinini

Fɛn dilannenw ka kulu

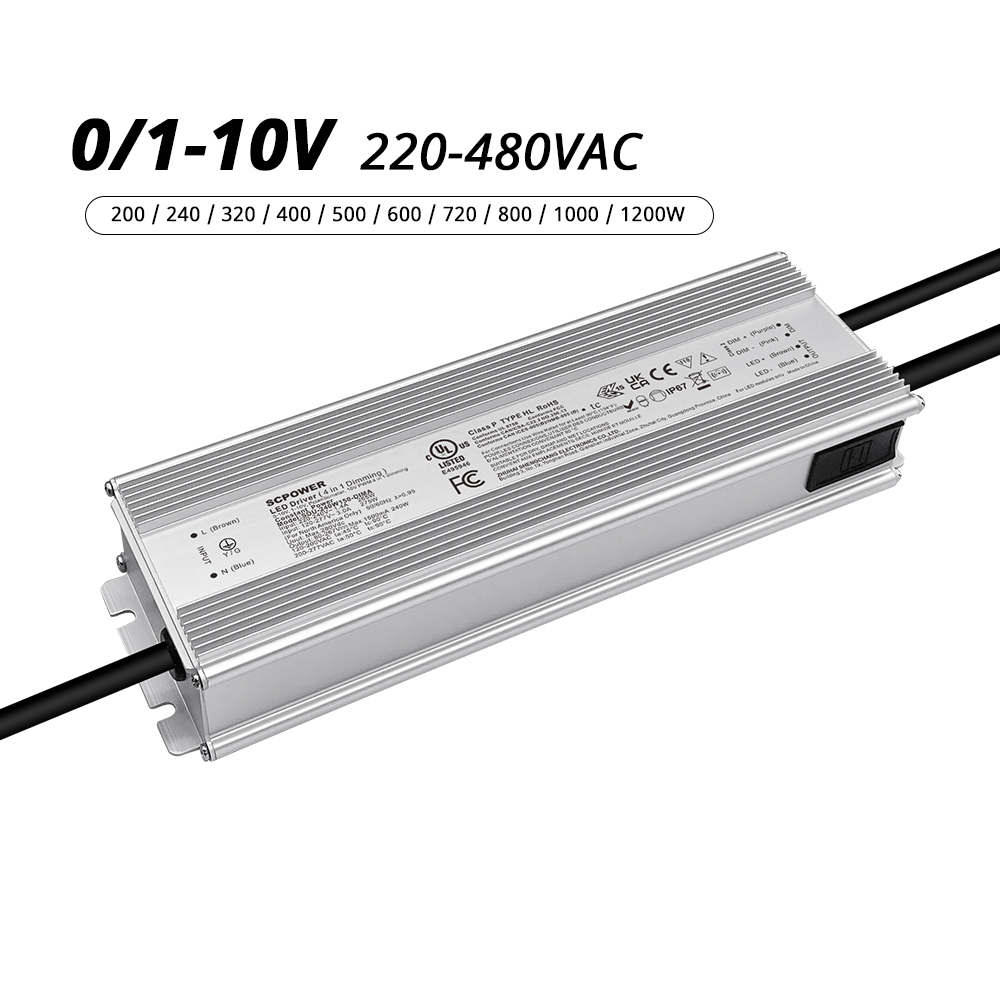

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W Non Isolated LED Driver 220-480VAC

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W 0-10V min tɛ kelen ye LED Driver 220-480VAC

Ouput Seko ni dɔnko:	100W ye 150W ye 200W ye 240W ye 320W ye 400W ye 500W ye 600W ye 720W ye 800W ye 1200W ye
A sɔrɔli:



Aw ye ɲininkali kɛ Aw bɛ a fara Basket kan

Dimming suguya:
0-10V ye
Isolated Type:
Non isolé (ka bɔ ɲɔgɔn na).
Bɔli suguya:
Kuran min bɛ kɛ tuma bɛɛ
Bɔli siraw:
Dimming (Dimming) bɛ kɛ
IP hakɛ:
IP67, Jalen & Ji, Ji
Voltage min bɛ don a kɔnɔ:
220-480VAC ye
Bɔli Sebaaya:
100W, 150W, 200W, 240W, 320W, 400W, 500W, 600W, 720W, 800W, 1200W
Voltage de bɔli: 1.1.
12-54V 24-93V ye
Seereyali:
UL & cUL, FCC, CE, RoHS, ƝƐNABƆLI

Nafa

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W 0-10V min tɛ kelen ye LED Driver 220-480VAC

Bɔli suguya:	Kuran min bɛ kɛ tuma bɛɛ
Donanw ka yɔrɔ:	220-480VAC ye
Lakanali minnu bɛ kɛ:	short circuit/over temperature/over voltage lakanani/undervoltage lakanani
Funteni bɔli:	Nɛnɛ bɛ kɛ ni fiɲɛ jiginni ye fu
Ji-yɔrɔ-ko baarakɛcogo:	Ka ɲɛsin yɔrɔw ma minnu ɲiginnen don, yɔrɔ jalenw ani yɔrɔ nɔgɔlenw na
Waleyali:	A bɛnnen don LED yeelenbɔcogo ma
Garanti min bɛ s�47=2024香港春灯展, Bamako, Mali	San 5 garanti
Dɔ wɛrɛw:	Dimi min tɛ flicker ye

Kɛrɛnkɛrɛnnenya la

Model Numɛri	Bɔli Sebaaya	Voltage (Bɔli) min bɛ bɔ	Bɔli Kuran	Kundama
NDH-100W056-DIMA ye baara kɛ ni a ye	100W ye	160-260V ye	56-560mA ye	18267,331,3mm ye

NDH-150W083-DIMA ye baara kɛ	150W ye	160-260V ye	83-830mA ye	21067,331,3mm ye
NDH-200W110-DIMA ye baara kɛ ni a ye	200W ye	160-260V ye	110-1100mA ye	21067,331,3mm ye

NDH-240W133-DIMA ye baara kɛ ni a ye	240W ye	160-260V ye	133-1330mA ye	232,667,331,3mm ye
NDH-320W178-DIMA ye baara kɛ ni a ye	320W ye	160-260V ye	178-1780mA ye	232,667,331,3mm ye

NDH-400W140-DIMA ye baara kɛ ni a ye	400W ye	180-500V ye	140-1400mA ye	253,67842,5mm ye
NDH-500W278-DIMA ye baara kɛ ni a ye	500W ye	186-500V ye	175-1750mA ye	253,67842,5mm ye

NDH-600W210-DIMA ye baara kɛ ni a ye	600W ye	186-500V ye	210-2100mA ye	279,489,544,5mm ye
NDH-720W252-DIMA ye baara kɛ ni a ye	720W ye	186-500V ye	252-2520mA ye	279,489,544,5mm ye

NDH-800W270-DIMA ye baara kɛ ni a ye	800W ye	186-500V ye	270-2700mA ye	279,489,544,5mm ye
NDH-800W280-DIMA ye baara kɛ ni a ye	800W ye	186-500V ye	280-2800mA ye	302,489,544,5mm ye

NDH-1K0W350-DIMA ye baara kɛ	1000W ye	186-500V ye	350-3500mA ye	39089,544,5mm ye
NDH-1K2W420-DIMA ye baara kɛ ni a ye	1200W ye	186-500V ye	420-4200mA ye	39089,544,5mm ye

0-10V Non Isolated LED Sofɛrɛ Wiring Ja

0-10V Non Isolated LED Sofɛrɛ Wiring Ja

NDH-DIM (NDH-DIM) ye

Cogojirali

0-10V LED bolifɛn min tɛ a dan na (100W-1200W, 220-480VAC). Ka fanga di yeelenbɔlanw ma minnu bɛ baara kɛ kosɛbɛ ni ultra-wide voltage compatibility ani intelligent control ye.

Suguya

Self-Adaptive Brightness: A bɛ kuran ladilan a yɛrɛma walasa ka LED tiɲɛni kunbɛn, ka a to lumen bɛ kɛ cogo kelen na

bɔli bɛ kɛ sanga 50.000 ni kɔ kɔnɔ.

Lakanali ni baarakɛcogo ɲuman sɛgɛsɛgɛlen: UL/CUL/CE/CCC ka seereyaw, ≥92% baarakɛcogo ɲuman, PF≥0.99, THD≤10%, ani san 5 garanti.
Industri-Grade Protection: IP67-rated, surge-proof (6kV DM/10kV CM), ni OTP/OVP/SCP lakanani ye for
sigida gɛlɛnw.

Aplikasi minnu bɛ kɛ

Stade & Arena yeelen: Uniform floodlights ka ɲɛsin farikoloɲɛnajɛyɔrɔw ma.
Smart Street Lighting: Sirako yeelen minnu bɛ ni jikuruw lakanani ye.
Sɛnɛfɛnw falenni yeelenw: Fɛnɲɛnɛmaw yeelen minnu bɛ se ka dimi waati jateminɛnan na, minnu bɛ kɛ seriw kama.
Industriw ka yeelen: High-bay yeelenw bɛ kɛ fɛnmarayɔrɔw/iziniw kɔnɔ.

Aw ye komandi kɛ sisan ani ka aw ka yeelenko kɛcogo sɛmɛntiya
