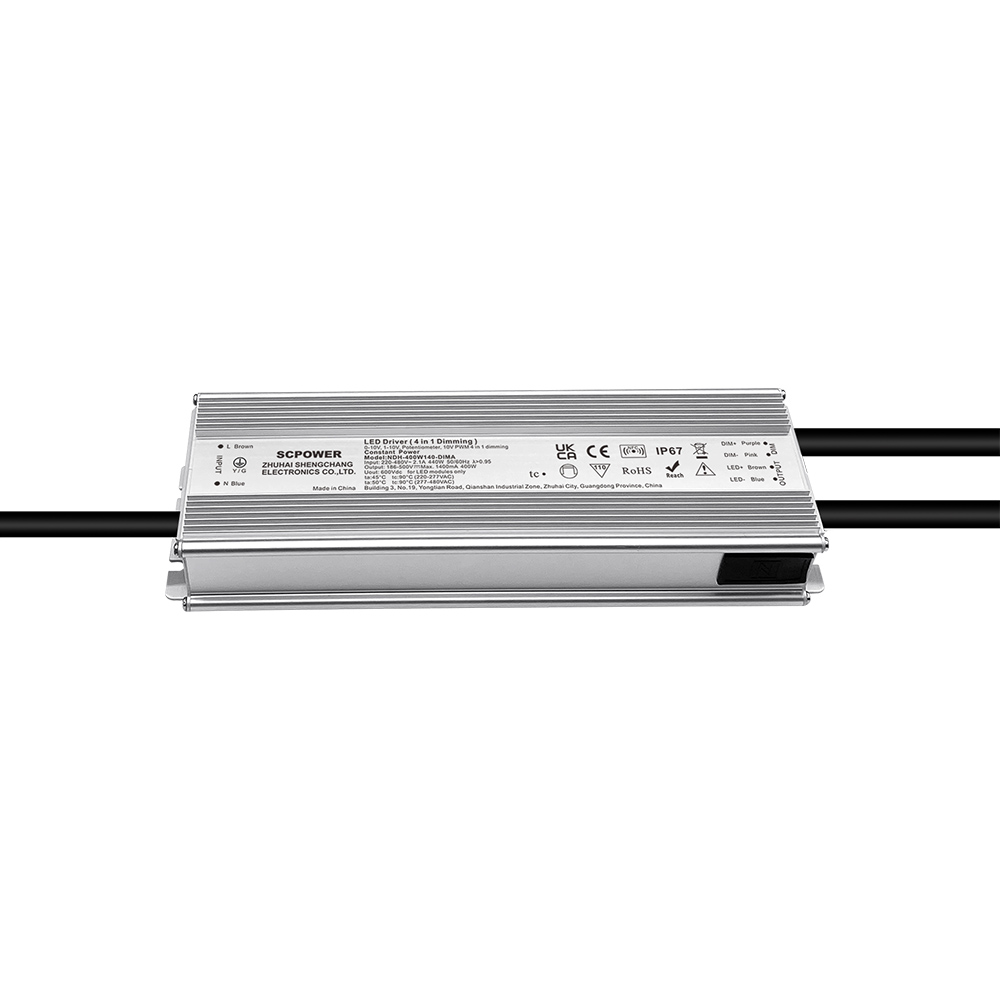

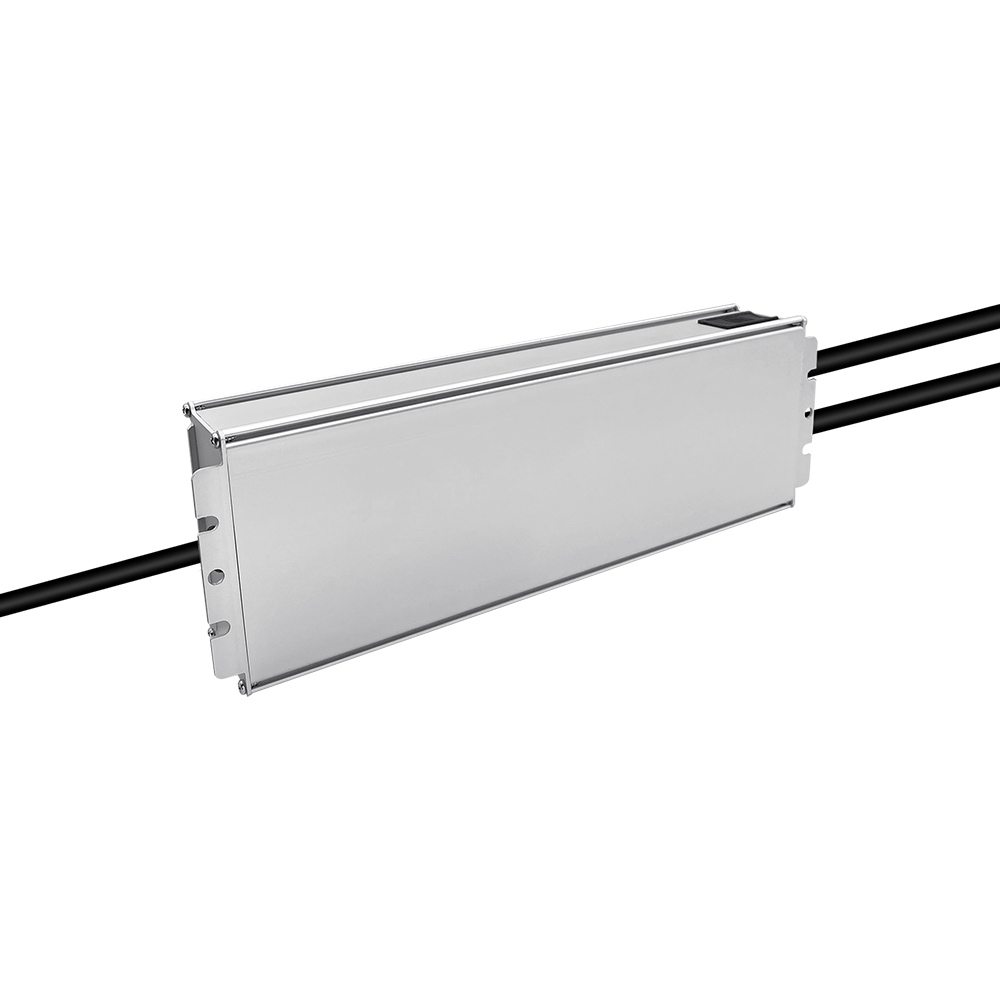

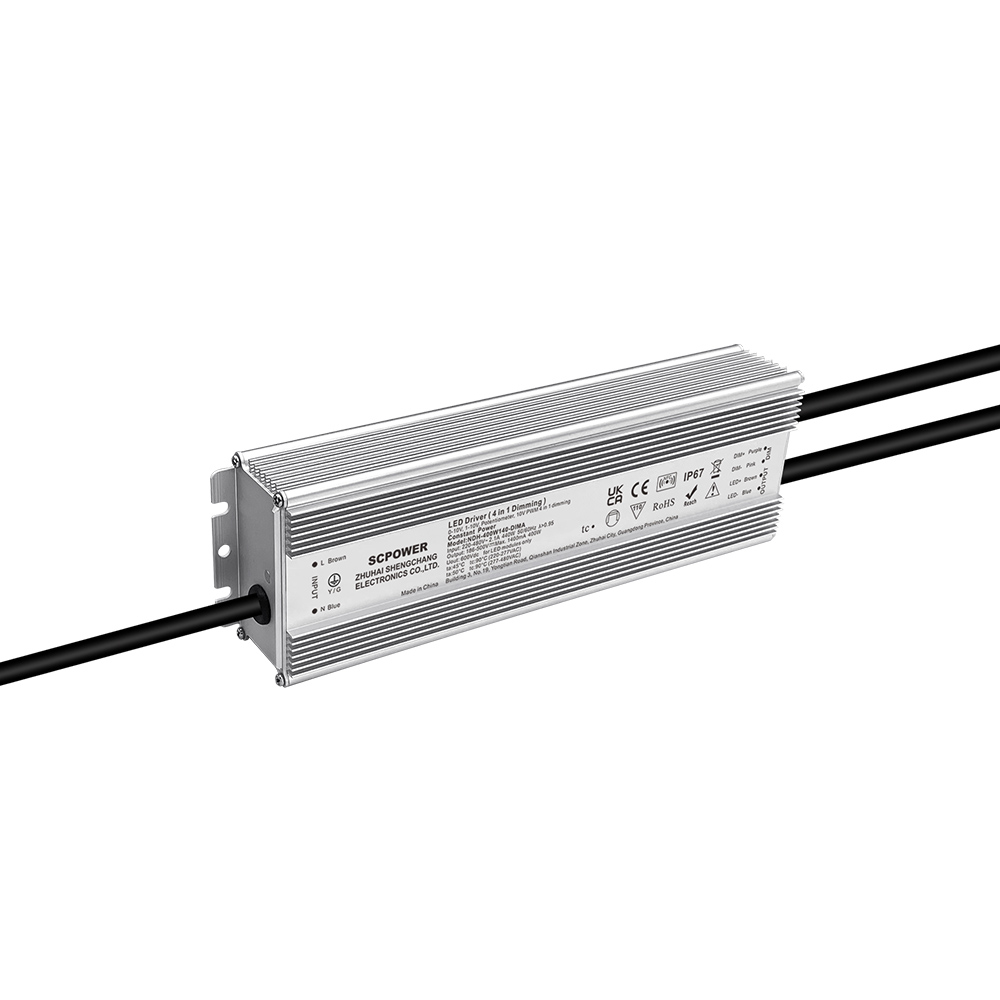

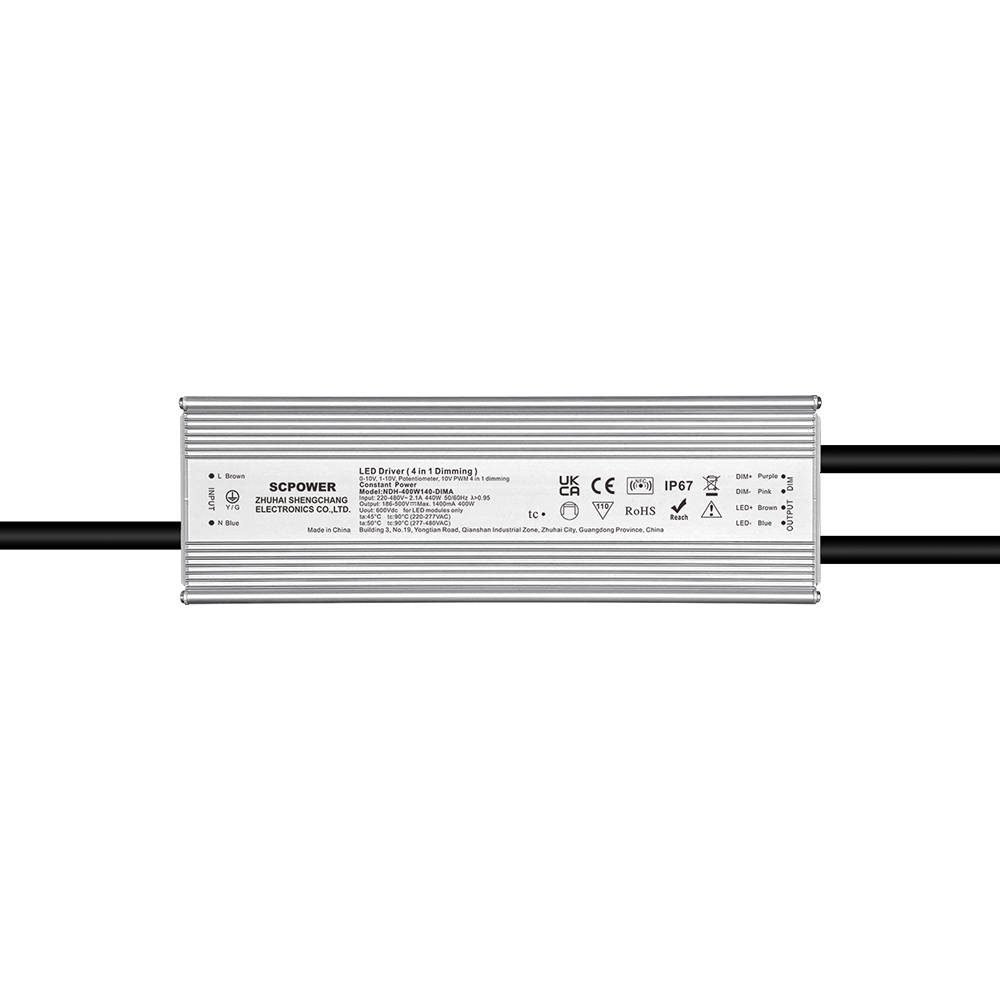

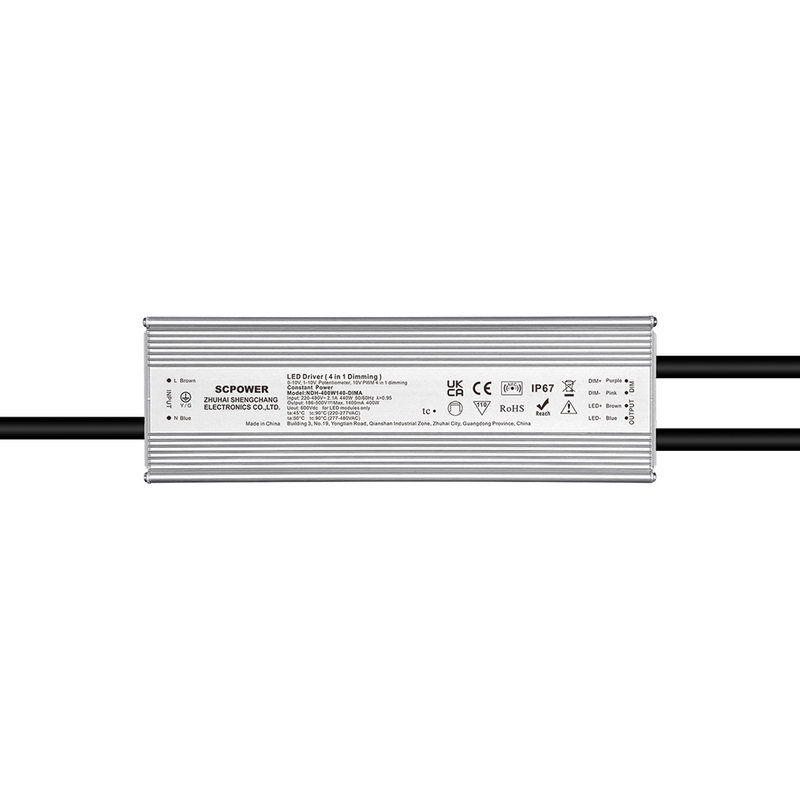

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W Umushoferi wa LED utigunze 220-480VAC

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W 0-10V Umushoferi wa LED utigunze 220-480VAC

Imbaraga za Ouput:	100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W
Kuboneka:



Baza Ongeraho Igitebo

Ubwoko bwa Dimming:
0-10V
Ubwoko bwitaruye:
Ntabwo ari wenyine
Ubwoko bw'ibisohoka:
Ihoraho
Imiyoboro isohoka:
Dimming
Igipimo cya IP:
IP67, Kuma & Damp, Itose
Umuvuduko winjiza:
220-480VAC
Imbaraga zisohoka:
100W, 150W, 200W, 240W, 320W, 400W, 500W, 600W, 720W, 800W, 1200W
Umuvuduko w'amashanyarazi:
12-54V 24-93V
Icyemezo:
UL & cUL, FCC, CE, RoHS, KUGERAHO

Ibyiza

100W 150W 200W 240W 320W 400W 500W 600W 720W 800W 1200W 0-10V Umushoferi wa LED utigunze 220-480VAC

Ubwoko bw'ibisohoka:	Ihoraho
Urutonde rwinjiza:	220-480VAC
Kurinda:	umuzunguruko mugufi / hejuru yubushyuhe / hejuru ya voltage kurinda / kurinda amashanyarazi
Gukwirakwiza ubushyuhe:	Gukonjesha ukoresheje umwuka wubusa
Imikorere idakoresha amazi:	Ahantu hatose, humye kandi hatose
Gusaba:	Bikwiranye no gukoresha amatara ya LED
Garanti:	Garanti yimyaka 5
Abandi:	Flimer-free dimming

Ibisobanuro

Umubare w'icyitegererezo	Imbaraga zisohoka	Umuvuduko w'amashanyarazi	Ibisohoka Ibiriho	Ingano
NDH-100W056-DIMA	100W	160-260V	56-560mA	182 * 67.3 * 31.3mm

NDH-150W083-DIMA	150W	160-260V	83-830mA	210 * 67.3 * 31.3mm
NDH-200W110-DIMA	200W	160-260V	110-1100mA	210 * 67.3 * 31.3mm

NDH-240W133-DIMA	240W	160-260V	133-1330mA	232.6 * 67.3 * 31.3mm
NDH-320W178-DIMA	320W	160-260V	178-1780mA	232.6 * 67.3 * 31.3mm

NDH-400W140-DIMA	400W	180-500V	140-1400mA	253.6 * 78 * 42.5mm
NDH-500W278-DIMA	500W	186-500V	175-1750mA	253.6 * 78 * 42.5mm

NDH-600W210-DIMA	600W	186-500V	210-2100mA	279.4 * 89.5 * 44.5mm
NDH-720W252-DIMA	720W	186-500V	252-2520mA	279.4 * 89.5 * 44.5mm

NDH-800W270-DIMA	800W	186-500V	270-2700mA	279.4 * 89.5 * 44.5mm
NDH-800W280-DIMA	800W	186-500V	280-2800mA	302.4 * 89.5 * 44.5mm

NDH-1K0W350-DIMA	1000W	186-500V	350-3500mA	390 * 89.5 * 44.5mm
NDH-1K2W420-DIMA	1200W	186-500V	420-4200mA	390 * 89.5 * 44.5mm

0-10V Ntigunze LED Yumushoferi Wiring Igishushanyo

0-10V Ntigunze LED Yumushoferi Wiring Igishushanyo

NDH-DIM

Ibisobanuro

0-10V Umushoferi wa LED udatandukanijwe (100W-1200W, 220-480VAC). Guha ingufu sisitemu yo kumurika cyane hamwe na ultra-rugari ya voltage ihuza hamwe no kugenzura ubwenge.

Ibiranga

Kwiyoroshya-Kwimenyekanisha Kumurika: Auto-ihindura ibyangiritse kugirango yishyure LED yangirika, ireba lumen ihoraho

gusohora amasaha arenga 50.000.

Umutekano wemejwe neza: UL / CUL / CE / CCC yemejwe, ≥92% ikora neza, PF≥0.99, THD≤10%, na garanti yimyaka 5.
Kurinda Inganda-Urwego: IP67-yerekana, irinda-hejuru (6kV DM / 10kV CM), hamwe na OTP / OVP / SCP kurinda
ibidukikije bikaze.
