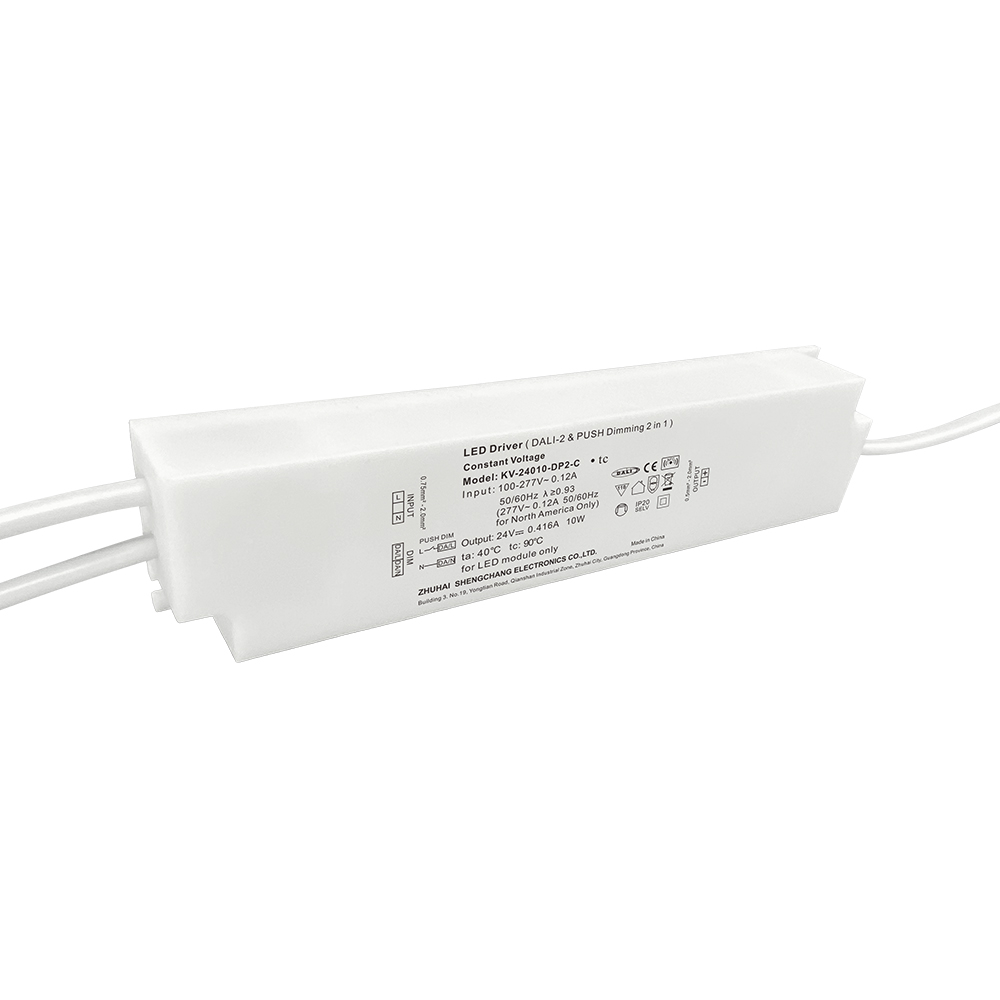

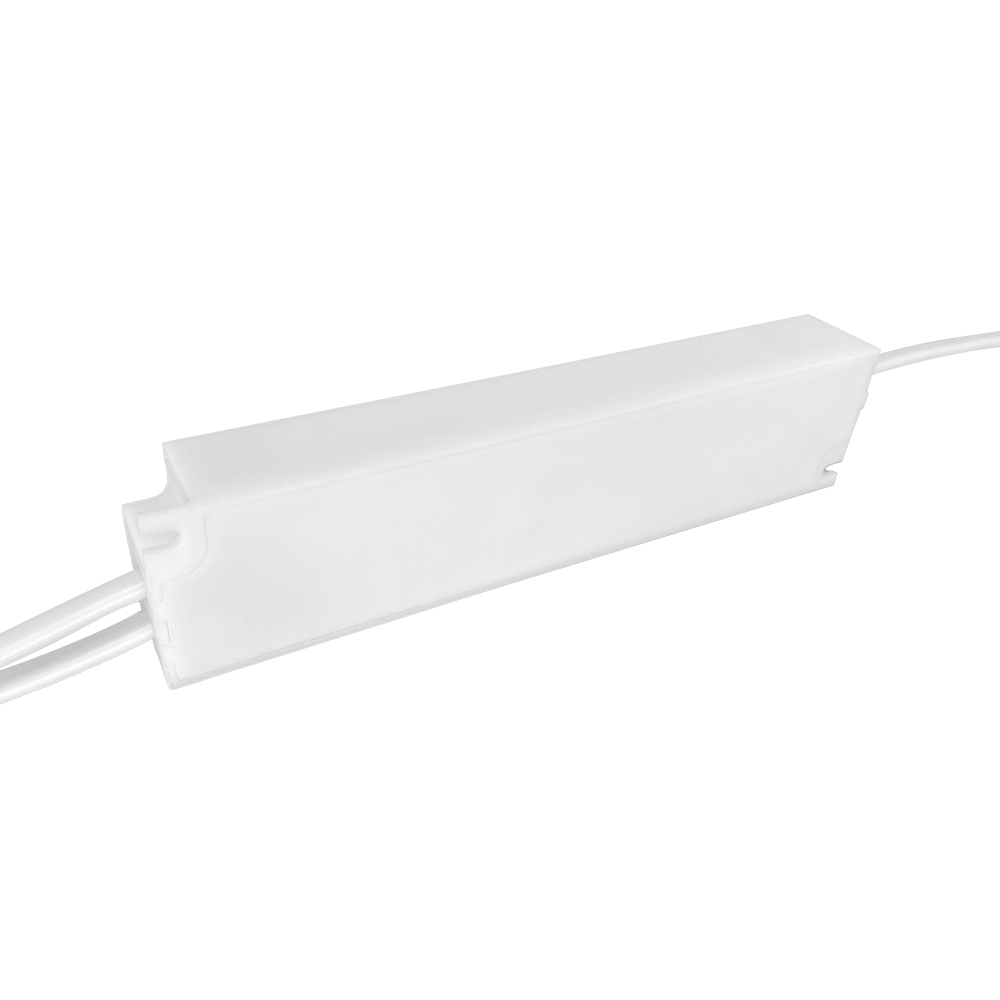

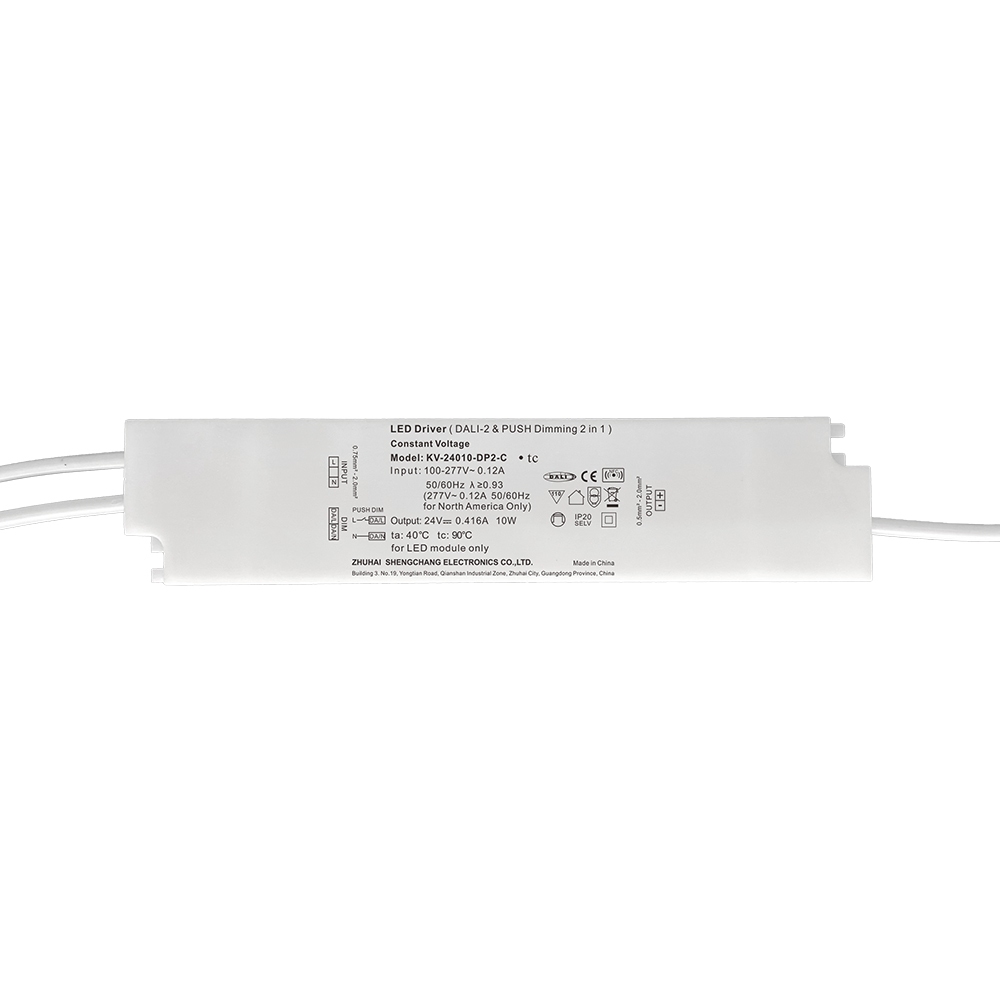

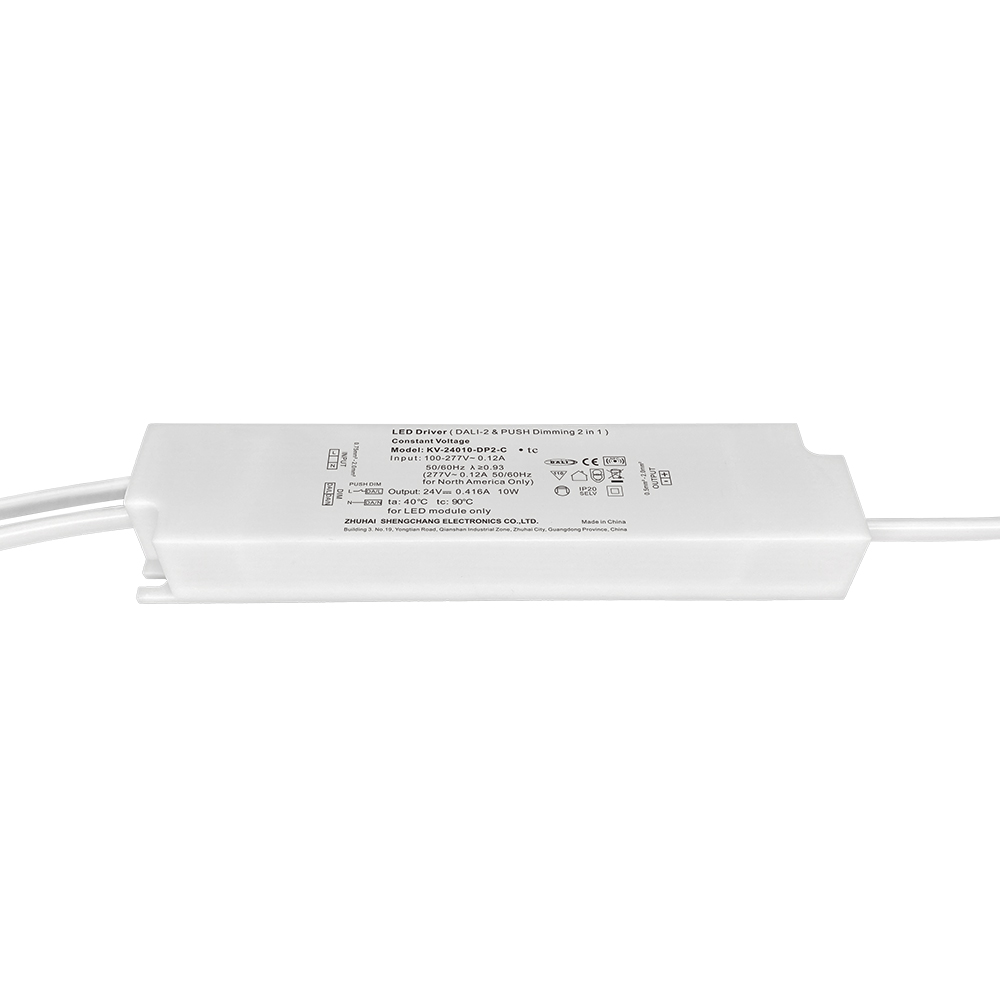

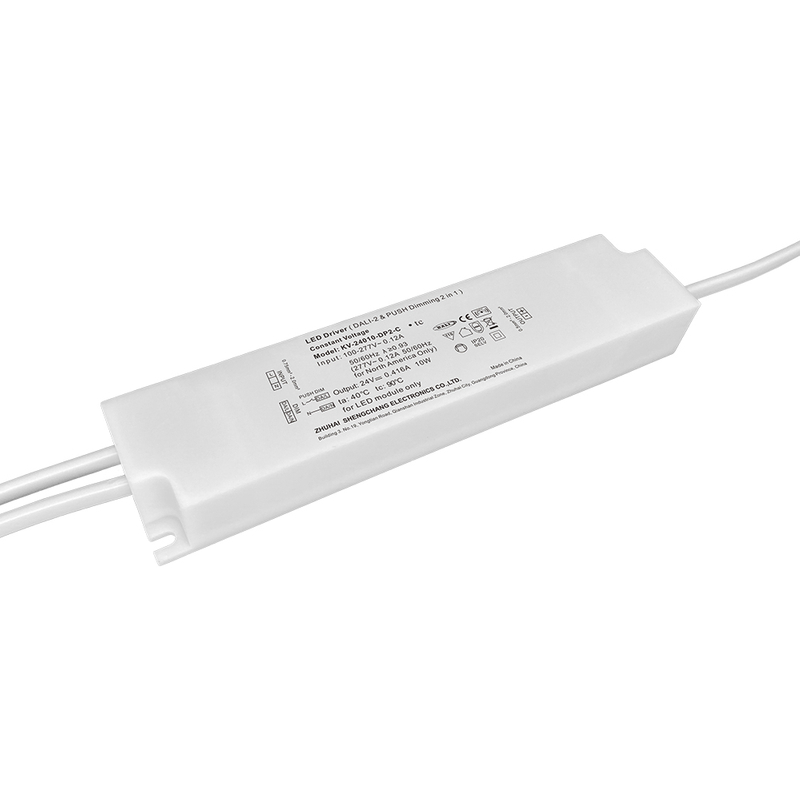

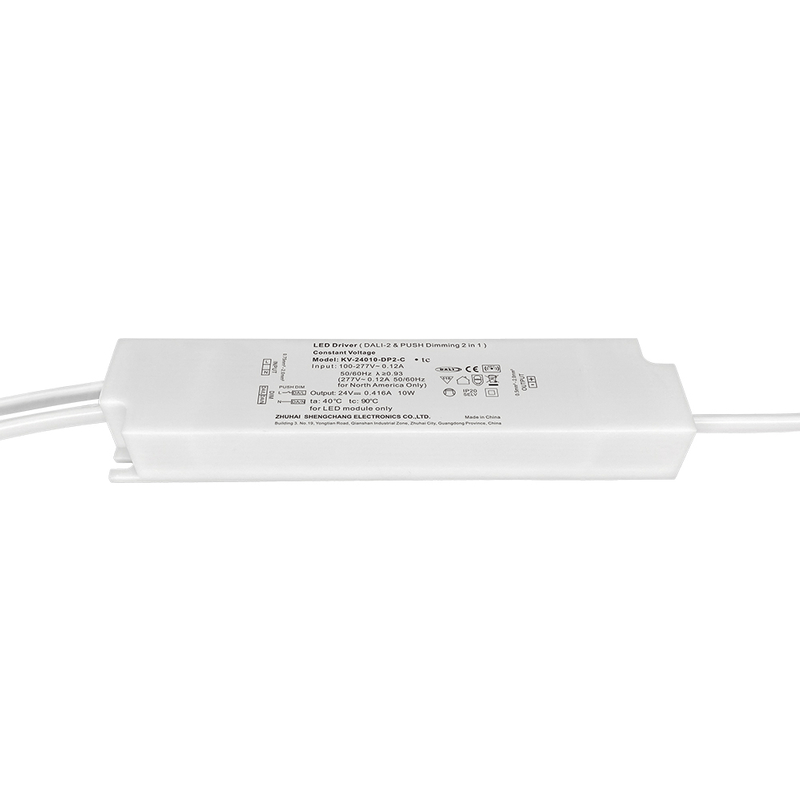

DP2 10W 20W CV DALI 2 Push LED Driver na may PVC Insulated Wire

Kapangyarihan ng Ouput:
10W
20W
Availability:
Magtanong Idagdag sa Basket

  • DALI-2 Push

  • Nakahiwalay

  • Patuloy na Boltahe

  • Pagdidilim

  • IP20

  • 100-277VAC

  • 10W, 20W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2

Advantage

DP2 10W 20W CV DALI 2 Push LED Driver na may PVC Insulated Wire


· Input Voltage 100-277V AC

·4K Hz PWM frequency, Flicker Free, makinis na pagdidilim

· Built-in na aktibong PFC function

· Kahusayan hanggang sa%

· Mga Proteksyon: short circuit, over load, over temperature

· Paglamig sa pamamagitan ng libreng air convection

· Full aluminum protection housing, para sa tuyo, mamasa at basa na mga lokasyon （ US ）

· Dimming function:  DALI-2 dimming, Push Dimming

· NFC function:   I-adjust nang bahagya ang output voltage

· Dimming range: 0-100%

· Angkop para sa aplikasyon ng pag-iilaw na may digital dimming

· Disenyo ng IP20

· Warranty 5 taon


Pagtutukoy


Lakas ng Output

Numero ng Modelo

Output Voltage

Kasalukuyang Output

Sukat

Timbang

10W

KV-12010-DP2-C

12V

0.83A

146*33*20mm (L*W*H)

KV-24010-DP2-C

24V

0.42A

KV-36010-DP2-C

36V

0.28A

KV-48010-DP2-C

48V

0.21A

20W

KV-12020-DP2-C

12V

1.67A

KV-24020-DP2-C

24V

0.83A

KV-36020-DP2-C

36V

0.56A

KV-48020-DP2-C

48V

0.42A


download spec_10W DALI-2 PUSH dim. CV driver KV-DP2-C 12V&24V.pdf

download spec_20W DALI-2 PUSH dim. CV driver KV-DP2-C 12V&24V.pdf
