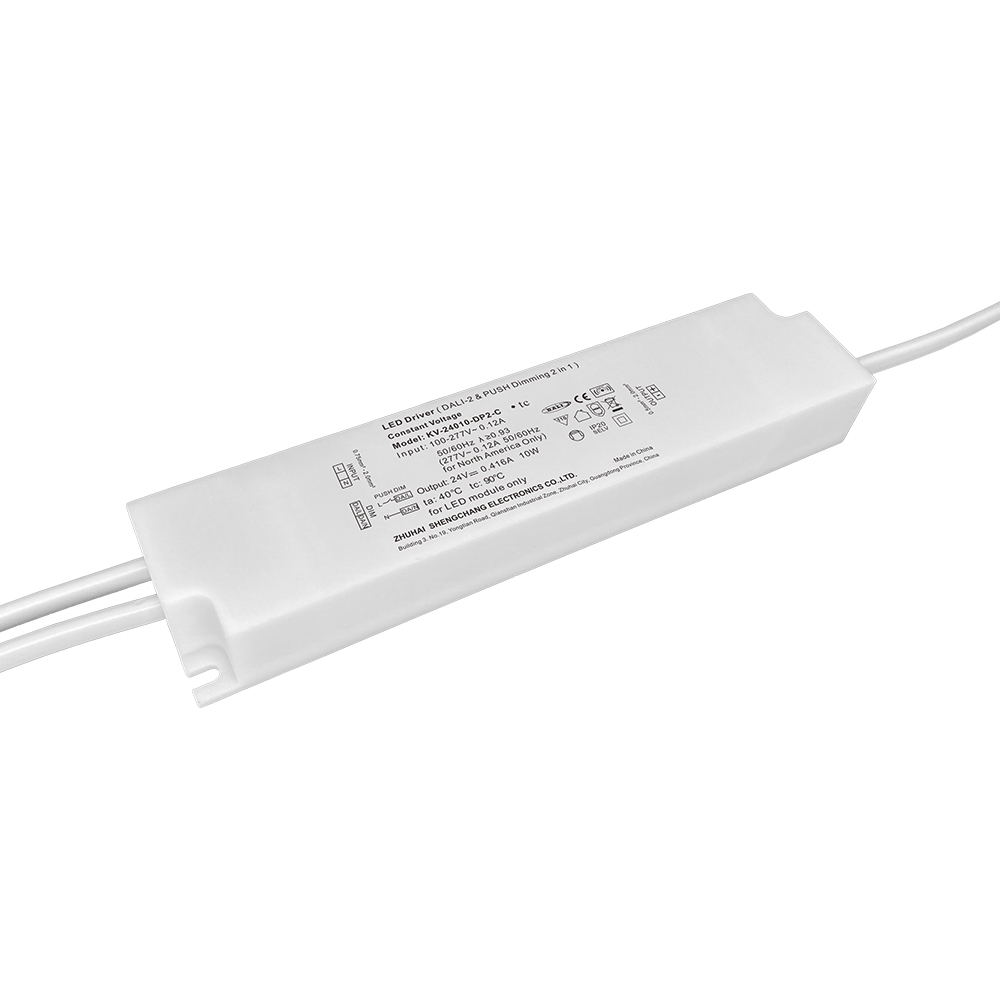

DP2 10W 20W CV DALI 2 Push LED Driver mei PVC isolearre draad

Output Power:
10W
20W
Beskikberens:
Freegje Taheakje oan Basket

  • DALI-2 Druk

  • Isolearre

  • Konstante spanning

  • Dimmen

  • IP20

  • 100-277VAC

  • 10W, 20W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Klasse 2

Foardiel

DP2 10W 20W CV DALI 2 Push LED Driver mei PVC isolearre draad


· Ynfier Voltage 100-277V AC

· 4K Hz PWM-frekwinsje, Flikkerfrij, glêd dimmen

· Ynboude aktive PFC-funksje

· Effisjinsje oant%

· Beskerming: koartsluting, oerlêst, oer temperatuer

· Koeling troch frije luchtkonveksje

· Folsleine aluminium beskerming húsfesting, foar droege, fochtige en wiete lokaasjes ( US )

· Dimmingfunksje:  DALI-2 dimming, Push Dimming

· NFC-funksje:   Pas de útfierspanning in bytsje oan

· Dimming berik: 0-100%

· Geskikt foar it tapassen fan ferljochting mei digitale dimming

·IP20 Untwerp

· Garânsje 5 jier


Spesifikaasje


Output Power

Model Number

Output Voltage

Output Strom

Grutte

Gewicht

10W

KV-12010-DP2-C

12V

0.83A

146*33*20mm (L*W*H)

KV-24010-DP2-C

24V

0.42A

KV-36010-DP2-C

36V

0.28A

KV-48010-DP2-C

48V

0.21A

20W

KV-12020-DP2-C

12V

1.67A

KV-24020-DP2-C

24V

0.83A

KV-36020-DP2-C

36V

0.56A

KV-48020-DP2-C

48V

0.42A


download spec_10W DALI-2 PUSH dim. CV stjoerprogramma KV-DP2-C 12V & 24V.pdf

download spec_20W DALI-2 PUSH dim. CV stjoerprogramma KV-DP2-C 12V & 24V.pdf
