Ditiɛl fɔ di Prodakt dɛn

Yu de ya: Os / Prodakt dɛn we dɛn kin mek / Triac Dimmable LED Drayva we yu kin yuz / KVF-TDW seri 100-277v cv standad / 150W 200W Triac Dimmable LED Pawa Saplai CV 12Volt 24Volt 36Volt 48Volt

Di Kategori fɔ Prodakt

we dɛn de lod

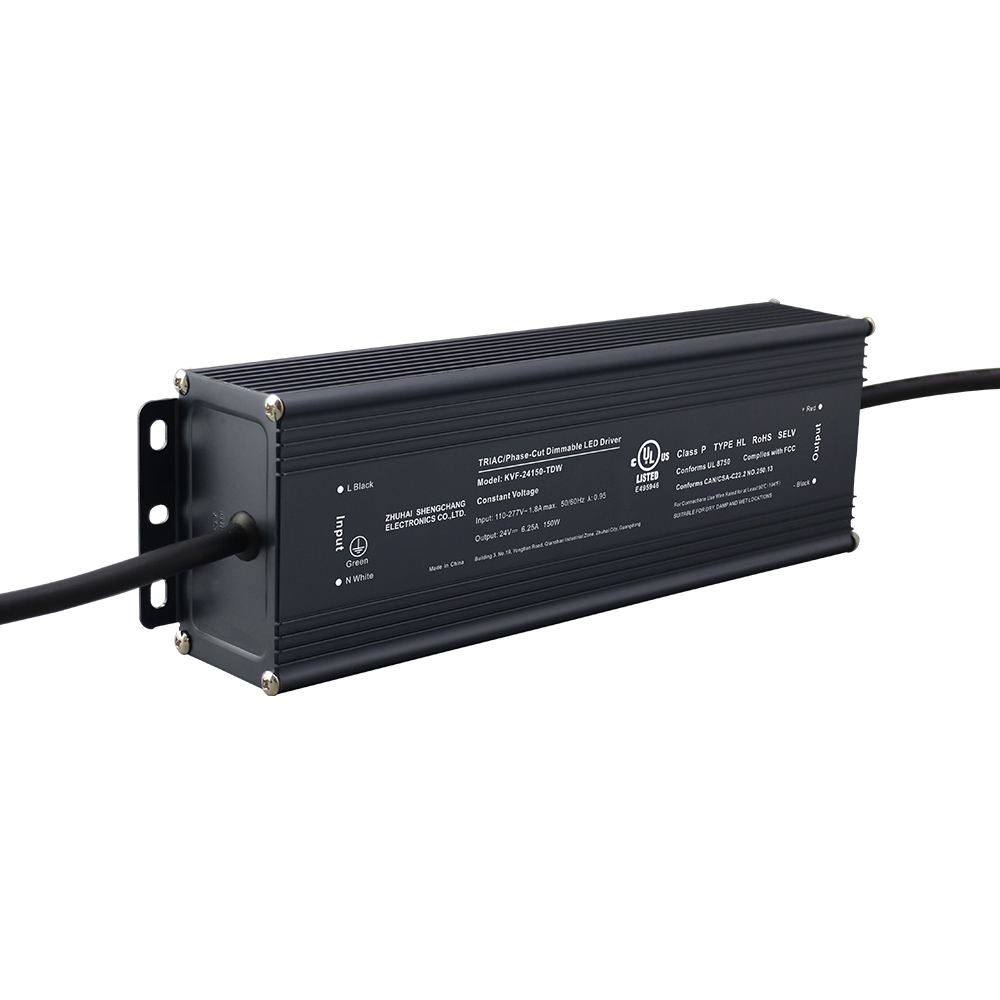

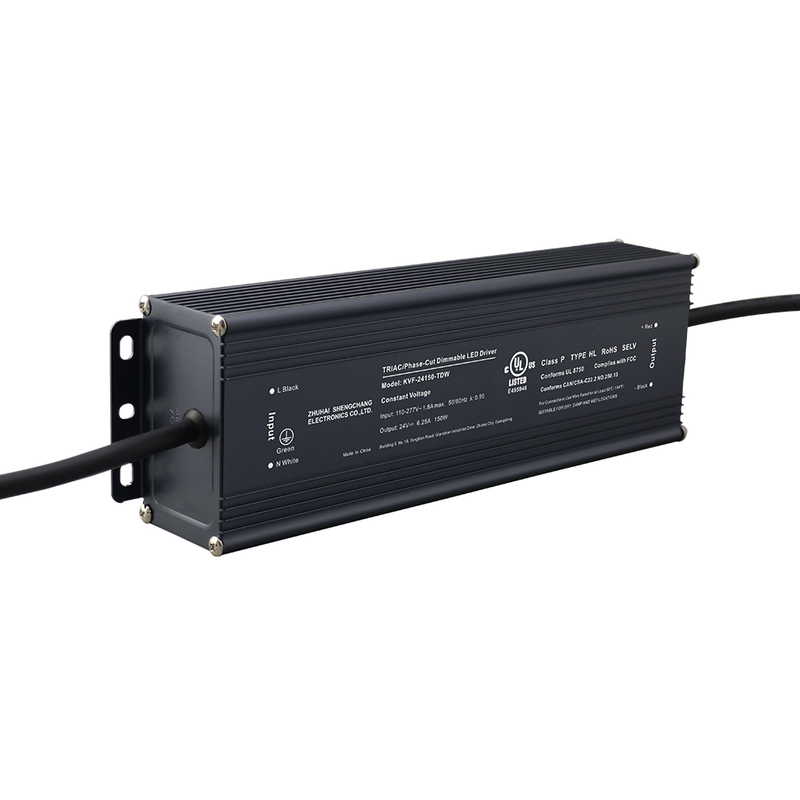

150W 200W Triac Dimmable LED Pawa Saplai CV 12Volt 24Volt 36Volt 48Volt

Ouput Pawa: .
150W na di 150W
200W we yu de yuz
Di tin dɛn we yu kin gɛt:
Aks kwɛstyɔn Add to Basket na di say we yu de

  • Triac bin de tɔk bɔt am

  • Fa say

  • Kɔnstant Vɔltɛm

  • Dimming

  • IP66, Dray & Damp, Wet

  • 110-277VAC we yu go yuz

  • 150W, 200W, yu kin yuz am

  • 12/ 24/ 36/ 48V. Di wan dɛn we de wok

  • UL & cUL, FCC, C. E., RoHS, RƐCH

Bɛnifit

150W 200W Triac Dimmable LED Pawa Saplai CV 12Volt 24Volt 36Volt 48Volt


Di tin we dɛn kin du: .

Kɔnstant Vɔltɛm

Te:

110-277VAC we yu go yuz

PFC dizayn: .

Bilt-in aktif PFC funkshɔn

Ɔganayz:

I go rich 87% .

Di tin dɛn we go protɛkt wi:

Short sirkit/ ova lod/ ova temperechur

Di we aw di ɔt de pwɛl:

Kulin bay fri ay kɔnvɛkshɔn

Watapruf pefɔmɛns:

Ful protɛkshɔn aluminiɔm haus, fɔ indo dray, damp ɛn wet ples dɛn

Dimming funkshɔn: .

Faz dimin: wok wit Fɔwad faz, MLV ɛn Rivas faz , ELV, TRIAC dim.

Dimming rɛnj: .

0-100% na di .

Aplay fɔm:

I fayn fɔ di aplikeshɔn fɔ LED layt

Waranti:

5 ia warranty

Ɔda wan dɛn:

PWM autput, Ay pawa faktɔ PF≥0.95, flik-fri dimin


Spɛsifikeshɔn


Ɔtput Pawa

Mɔdel Nɔmba

Ɔtput Vɔltɛm

Ɔtput Kɔrɛnt

Sayz

We

150W na di 150W

KVF-12150-TDW, di wan dɛn we de wok

12V

12.5A

256 * 78 * 47 mm

1,45kg we yu de yuz

KVF-24150-TDW, di wan dɛn we de wok

24V

6.25A

KVF-36150-TDW, di wan dɛn we de wok

36V

4.17A

KVF-48150-TDW, di wan dɛn we de wok

48V

3.13A

200W we yu de yuz

KVF-12200-TDW, di wan dɛn we de wok

12V

16.67A

KVF-24200-TDW, di wan dɛn we de wok

24V

8.34A

KVF-36200-TDW, di wan dɛn we de wok

36V

5.56A

KVF-48200-TDW, di wan dɛn we de wok

48V

4.17A


Triac LED draiva wiring diagram

Triac LED draiva wiring diagram


Triac LED draiva wiring diagram (1) .Triac LED draiva wiring diagram (2) .


Triac LED Drayva Sayz(luk di spec dawlod)




Triac Dimmable LED Pawa Saplai 12V 150W, 24V 150W, 12V 200W 24V 200W IP66 Input 100-2770V AC


dɔŋlod spec_triac dim CV 150W KVF-TDW.pdf. Di wan dɛn we de wok fɔ di kɔmni

dɔŋlod spec_triac dim CV 200W KVF-TDW.pdf. Di wan dɛn we de wok fɔ di kɔmni
