Ditiɛl fɔ di Prodakt dɛn

Yu de ya: Os / Prodakt dɛn we dɛn kin mek / Triac Dimmable LED Drayva we yu kin yuz / KVF-TDW seri 100-277v cv standad / 300W Triac Dimmable LED Pawa Saplai CV 100vac to 277vac

Di Kategori fɔ Prodakt

we dɛn de lod

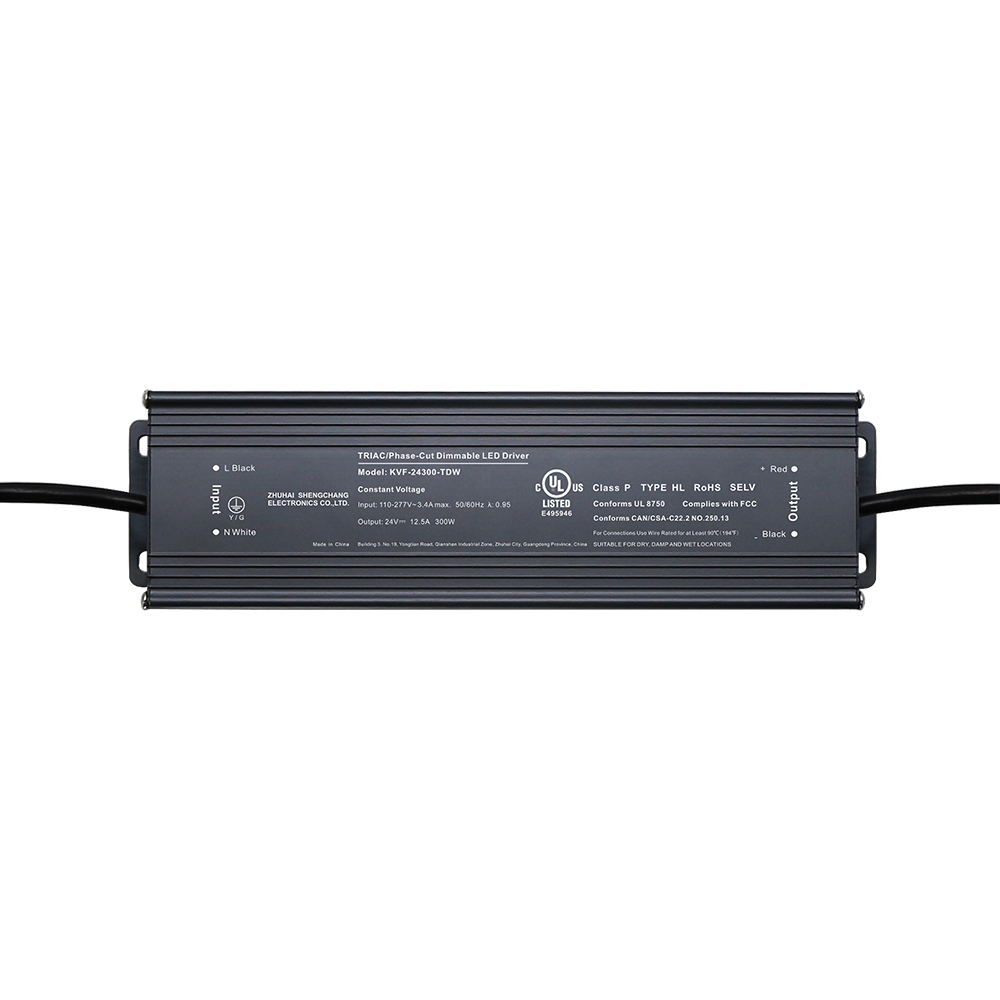

300W triac dimmable LED pawa suplai Cv 100vac to 277vac

Ouput Pawa: .
300W we yu de yuz
Di tin dɛn we yu kin gɛt:
Aks kwɛstyɔn Add to Basket na di say we yu de

  • KVF-TDW we de na di wɔl

  • Triac

  • Fa say

  • Kɔnstant Vɔltɛm

  • Dimming

  • IP66, Dray & Damp, Wet

  • 110-277VAC we yu go yuz

  • 300W we yu de yuz

  • 12/ 24/ 36/ 48V. Di wan dɛn we de wok

  • UL & cUL, FCC, C. E., RoHS, RƐCH

Bɛnifit

300W triac dimmable LED pawa suplai Cv 100vac to 277vac


Patɛnt dɛn na Amɛrika Nɔmba 9,942,959; Nɔmba 10,039,167; Nɔmba 9,661,710; Nɔmba 9,961,724


Di tin we dɛn kin du: .

Kɔnstant Vɔltɛm

Te:

110-277VAC we yu go yuz

PFC dizayn: .

Bilt-in aktif PFC funkshɔn

Ɔganayz:

I go rich 91.7% .

Di tin dɛn we go protɛkt wi:

Short sirkit/ ova lod/ ova temperechur

Di we aw di ɔt de pwɛl:

Kulin bay fri ay kɔnvɛkshɔn

Watapruf pefɔmɛns:

Ful protɛkshɔn aluminiɔm haus, fɔ indo dray, damp ɛn wet ples dɛn

Dimming funkshɔn: .

Faz dimin: wok wit Fɔwad faz, MLV ɛn Rivas faz, ELV, TRIAC dim

Dimming rɛnj: .

0-100% na di .

Aplay fɔm:

I fayn fɔ di aplikeshɔn fɔ LED layt

Waranti:

5 ia warranty

Ɔda wan dɛn:

PWM autput, Ay pawa faktɔ PF≥0.95, flik-fri dimin


Spɛsifikeshɔn


Ɔtput Pawa

Mɔdel Nɔmba

Ɔtput VɔltaFe

Ɔtput Kɔrɛnt

Sayz

WeiFht we yu de du

300W we yu de yuz

KVF-12300-TDW, di wan dɛn we de wok

12V

25A

276 * 78 * 47 mm

1.6kg we yu de yuz

KVF-24300-TDW, di wan dɛn we de wok

24V

12.5A

KVF-36300-TDW, di wan dɛn we de wok

36V

8.33A

KVF-48300-TDW, di wan dɛn we de wok

48V

6.25A




Triac LED draiva wiring diagram

Triac LED draiva wiring diagram


Triac LED draiva wiring diagram (1) .Triac LED draiva wiring diagram (2) .


Triac LED Drayva Sayz(luk di spec dawlod)

300W triac dimmable LED pawa suplai Cv 100vac to 277vac


PAIR ISI WITH YU TRIAC 0-10V DIMMER

DIZAIN FƆ KƆMƆT: kɔmfyut ɔl di de wit di nyu fri-flicker-tip dizayn we de mek di yay gɛt wɛlbɔdi fɔ lɔng tɛm


dɔŋlod spec_300W Triak dim. CV drayva KVF-TDW 12V&24V&36V&48V.pdf
