Ditiɛl fɔ di Prodakt dɛn

Yu de ya: Os / Prodakt dɛn we dɛn kin mek / DALI-2 Dimmable LED Drayva we yu kin yuz / Konstant Vɔltɛm DT8 RGB CW 1-5 Chanɛl (KV-C-DP2 Seri) . / DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

Ɔl
Di Nem fɔ Prodak
Prodakt Kiwɔd
Prodakt Mɔdel
Sɔma fɔ di Prodak
Diskripshɔn fɔ di Prodak
Multi Fild Sɔch

Di Kategori fɔ Prodakt

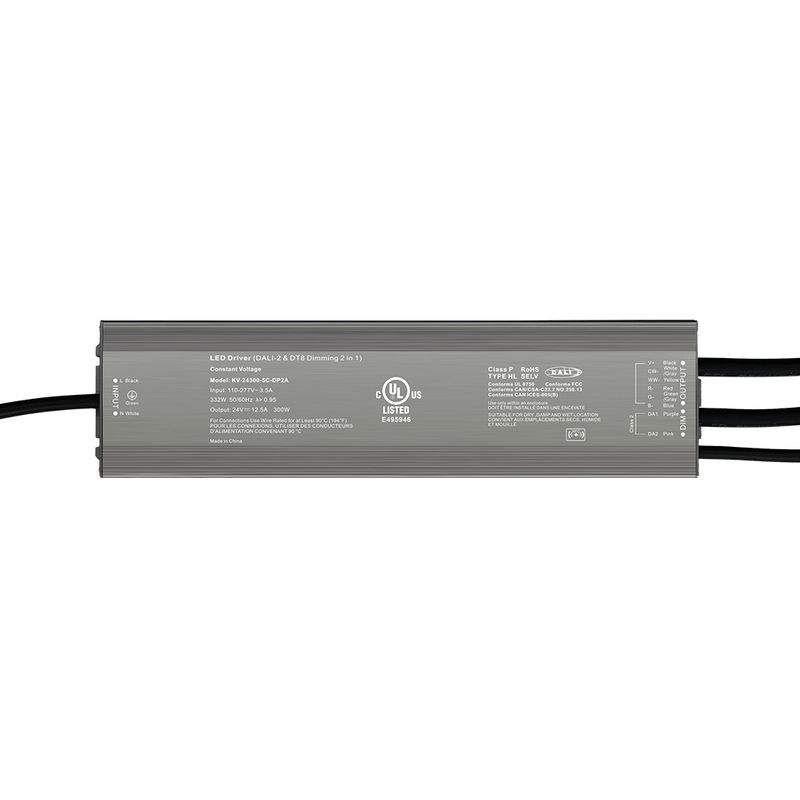

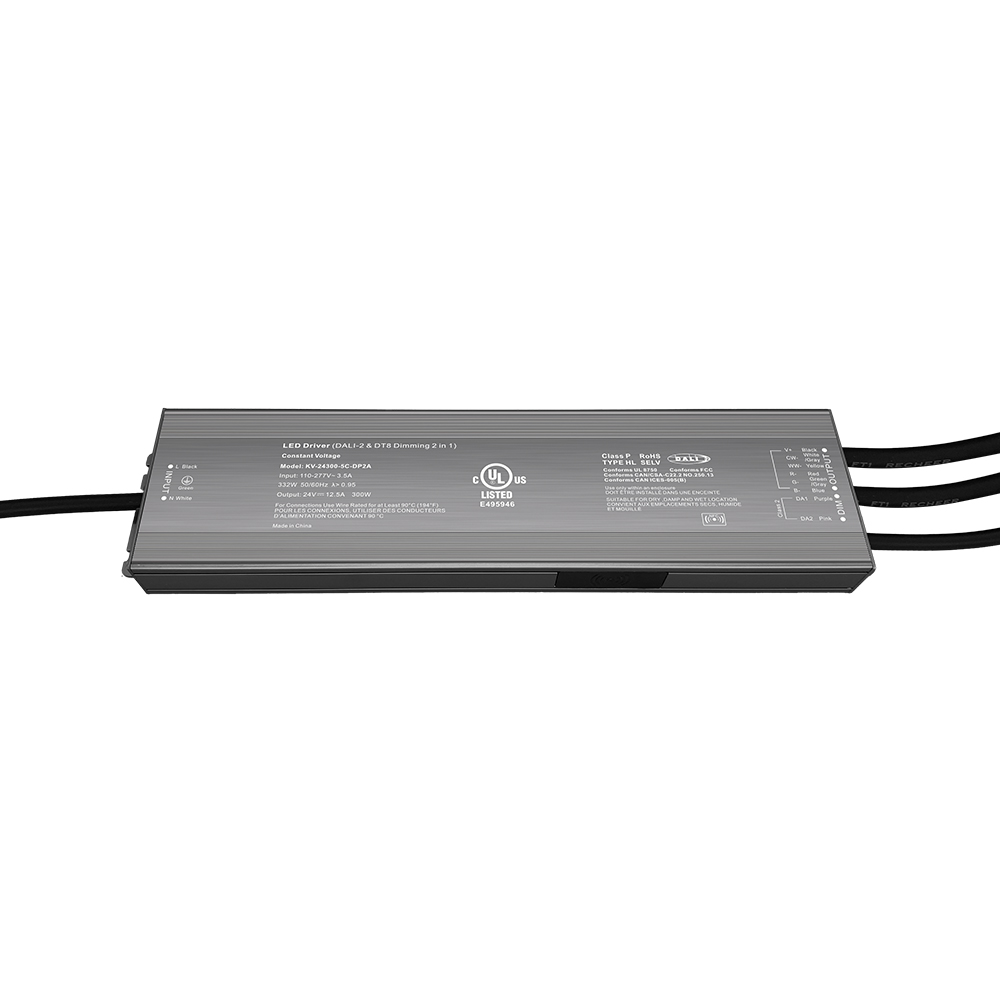

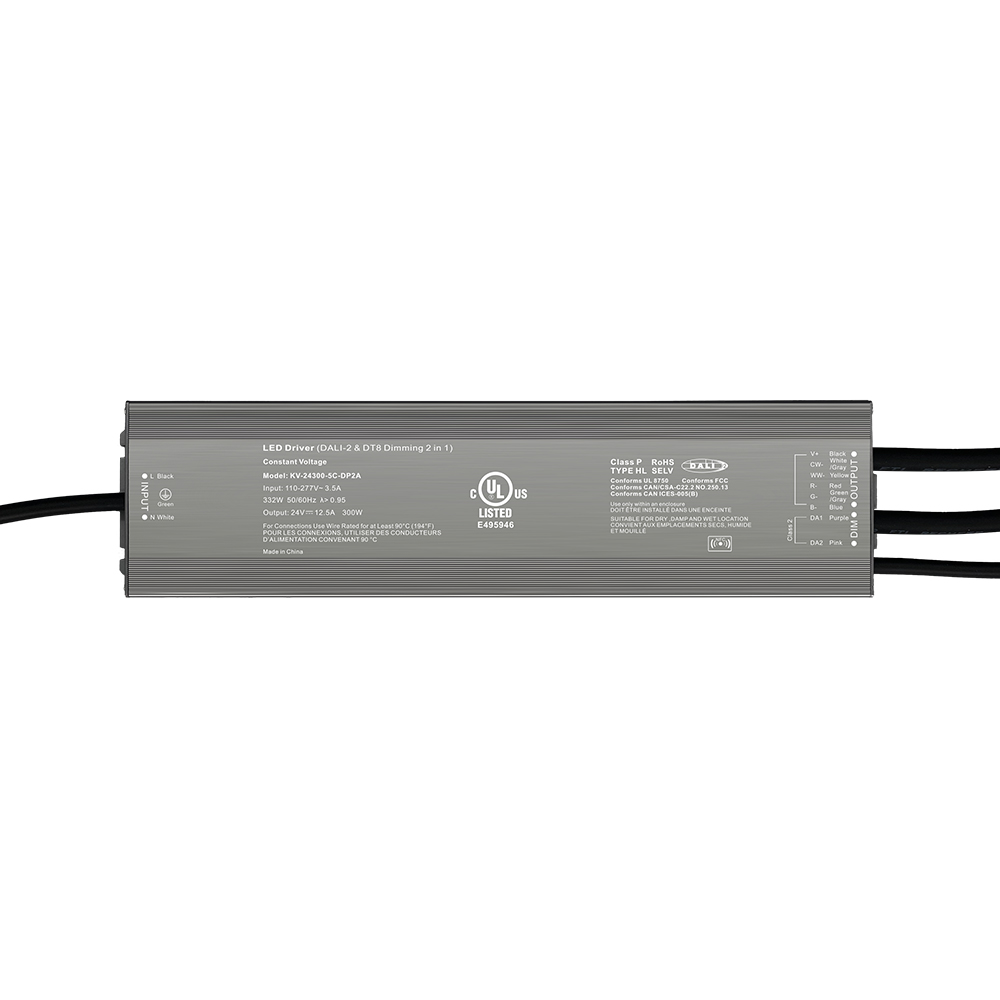

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

DP2 300W CV RGB CW DALI 2 Push Dimmable LED Drayva 12Vdc 24Vdc 36Vdc 48Vdc

Ouput Pawa: .	300W we yu de yuz
Di tin dɛn we yu kin gɛt:



Aks kwɛstyɔn Add to Basket na di say we yu de

Dim Tayp: .
DALI-2 Push we yu de push
Tayp we dɛn Isol: .
Fa say
Tayp fɔ di Ɔtput: .
Kɔnstant Vɔltɛm
Chanɛl dɛn we dɛn kin yuz fɔ mek di ɔtput:
Dimming, CCT, RGBCW, ɛn ɔda pipul dɛn
IP Rate: 1.
IP66, Dray & Damp, Wet
Input Vɔltɛm: .
100-277VAC we yu go yuz
Ɔtput Pawa: .
300W we yu de yuz
Ɔtput Vɔltɛm: .
12/ 24/ 36/ 48V. Di wan dɛn we de wok
Sɛtifiket: .
UL & cUL, FCC, ɛn ɔda pipul dɛn

Bɛnifit

DP2 10W 20W CV DALI 2 Push LED Drayva wit PVC insuled waya

Di tin we dɛn kin du: .	Kɔnstant Vɔltɛm
Te:	110-277VAC we yu go yuz
PFC dizayn: .	Bilt-in aktif PFC funkshɔn
Ɔganayz:	I go rich 93.8% .
Di tin dɛn we go protɛkt wi:	Short sirkit/ ova lod/ ova temperechur
Di we aw di ɔt de pwɛl:	Kulin bay fri ay kɔnvɛkshɔn
Watapruf pefɔmɛns:	IP66 (EU) we dɛn kɔl; Ful Aluminium haus, fɔ dray, damp ɛn wet ples (US)
Di tin dɛn we dɛn mek fɔ disayn:	1)Ajɔst ɔtput vɔlɔt smɔl 2) sɛt ap adrɛs Flicker fri, 4KHZ PWM autput fɔ rich di stroboskɔpik ɛksɛmpshɔn lɛvɛl
Dimming funkshɔn: .	DALI-2 we de mek di tin nɔ klia. Dijital dimin wit Logaritmik kɔv (difɔlt) ɔ Linya kɔv
Dimming rɛnj: .	0-100% dim dip: 0.1%
Aplay fɔm:	I fayn fɔ LED layt ɛn muv sayn aplikeshɔn dɛn
Waranti:	5 ia warranty

Spɛsifikeshɔn

Chanɛl	Mɔdel Nɔmba	Ɔtput Pawa	Ɔtput Vɔltɛm	Ɔtput Kɔrɛnt	Sayz	We
1 Chanɛl Dimin	KV-12300-DP2A, di wan dɛn we de wok	300W we yu de yuz	12V	25A	302 * 78 * 25 mm	1,15kg we yu de yuz
	KV-24300-DP2A, di wan dɛn we de wok		24V	12.5A
	KV-36300-DP2A, di wan dɛn we de wok		36V	8.33A
	KV-48300-DP2A, di wan dɛn we de wok		48V	6.25A
2 Chanɛl dɛn CCT	KV-12300-2C-DP2A, di wan dɛn we de wok	300W we yu de yuz	12V	25A	302 * 78 * 25 mm	1,15kg we yu de yuz
	KV-24300-2C-DP2A, di wan dɛn we de wok		24V	12.5A
	KV-36300-2C-DP2A, di wan dɛn we de wok		36V	8.33A
	KV-48300-2C-DP2A, di wan dɛn we de wok		48V	6.25A
3 Chanɛl dɛn RGB	KV-12300-3C-DP2A, di wan dɛn we de wok	300W we yu de yuz	12V	25A	302 * 78 * 25 mm	1,15kg we yu de yuz
	KV-24300-3C-DP2A, di wan dɛn we de wok		24V	12.5A
	KV-36300-3C-DP2A, di wan dɛn we de wok		36V	8.33A
	KV-48300-3C-DP2A, di wan dɛn we de wok		48V	6.25A
4 Chanɛl dɛn RGBW	KV-12300-4C-DP2A, di wan dɛn we de wok	300W we yu de yuz	12V	25A	302 * 78 * 25 mm	1,15kg we yu de yuz
	KV-24300-4C-DP2A, di wan dɛn we de wok		24V	12.5A
	KV-36300-4C-DP2A, di wan dɛn we de wok		36V	8.33A
	KV-48300-4C-DP2A, di wan dɛn we de wok		48V	6.25A
5 Chanɛl dɛn RGBCW	KV-12300-5C-DP2A, di wan dɛn we de wok	300W we yu de yuz	12V	25A	302 * 78 * 25 mm	1,15kg we yu de yuz
	KV-24300-5C-DP2A, di wan dɛn we de wok		24V	12.5A
	KV-36300-5C-DP2A, di wan dɛn we de wok		36V	8.33A
	KV-48300-5C-DP2A, di wan dɛn we de wok		48V	6.25A
