Ditiɛl fɔ di Prodakt dɛn

Yu de ya: Os / Prodakt dɛn we dɛn kin mek / DALI-2 Dimmable LED Drayva we yu kin yuz / Konstant Vɔltɛm DT8 RGB CW 1-5 Chanɛl (KV-C-DP2 Seri) . / DP2 60W 75W CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

Ɔl
Di Prodak Nem
Prodakt Kiwɔd
Prodakt Mɔdel
Sɔma fɔ di Prodak
Diskripshɔn fɔ di Prodak
Multi Fild Sɔch

Di Kategori fɔ Prodakt

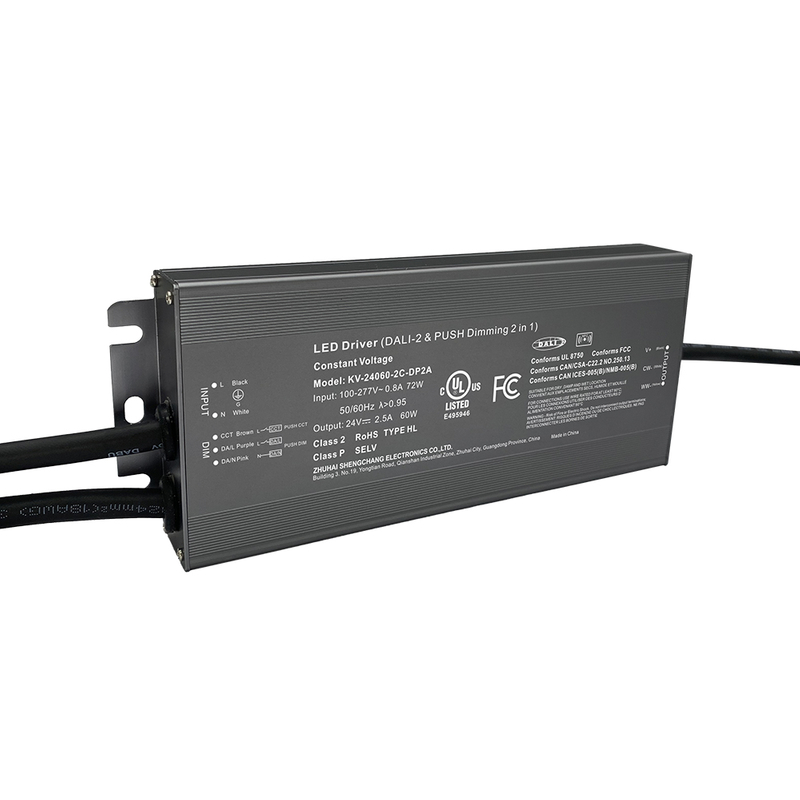

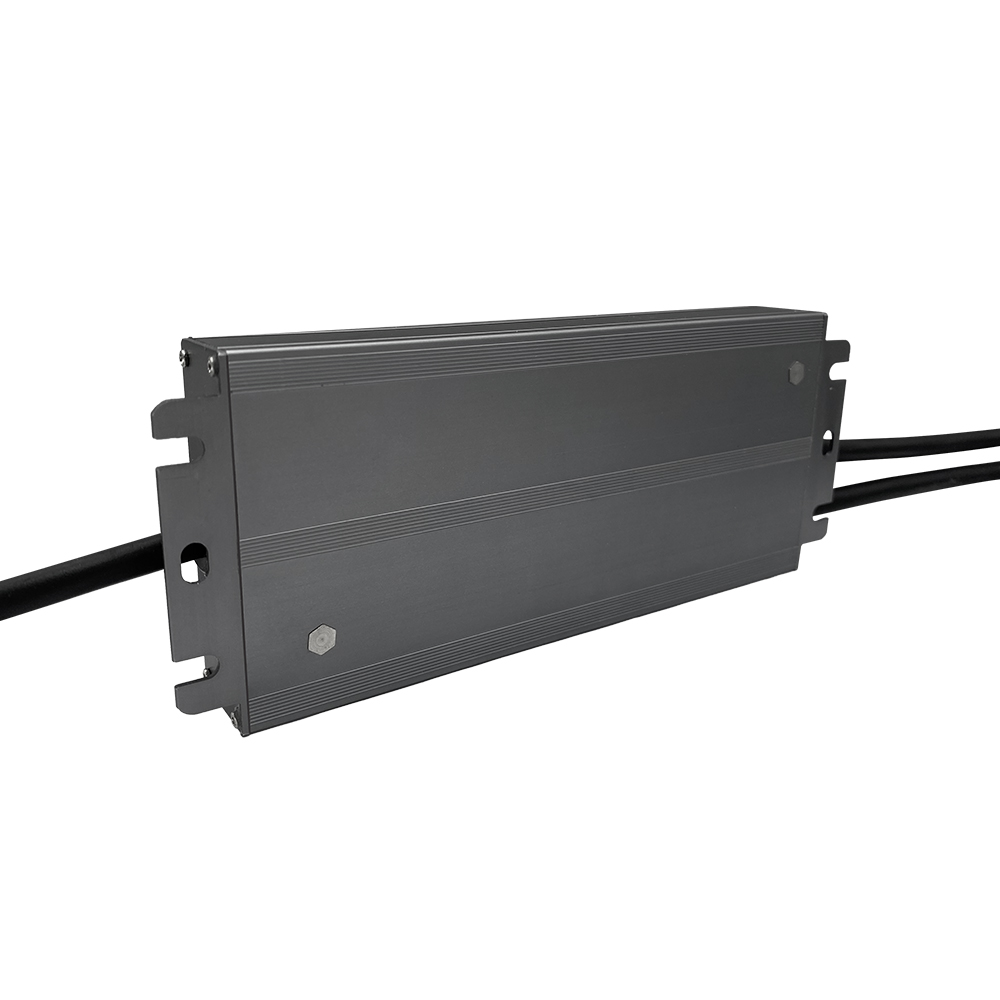

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

Ouput Pawa: .	60W 75W
Di tin dɛn we yu kin gɛt:



Aks kwɛstyɔn Add to Basket na di say we yu de

Dim Tayp: .
DALI-2 Push we yu de push
Tayp we dɛn dɔn aysol: .
Fa say
Tayp fɔ di Ɔtput: .
Kɔnstant Vɔltɛm
Chanɛl dɛn we dɛn kin yuz fɔ mek di ɔtput:
Dimming, CCT, ɛn ɔda pipul dɛn
IP Rate: 1.
IP66, Dray & Damp, Wet
Input Vɔltɛm: .
100-277VAC we yu go yuz
Ɔtput Pawa: .
60W, 75W, ɛn di ɔda wan dɛn
Ɔtput Vɔltɛm: .
12/ 24/ 36/ 48V. Di wan dɛn we de wok
Sɛtifiket: .
UL & cUL, FCC, Klas 2, ɛn ɔda pipul dɛn

Bɛnifit

DP2 60W 75w CV CCT DALI 2 Push Dimmable LED Drayva 12V 24V 36V 48V DC

Di tin we dɛn kin du: .	Kɔnstant Vɔltɛm
Te:	100-277VAC we yu go yuz
PFC dizayn: .	Bilt-in aktif PFC funkshɔn
Ɔganayz:	I go rich 90% .
Di tin dɛn we go protɛkt wi:	Short sirkit/ ova lod/ ova temperechur
Di we aw di ɔt de pwɛl:	Kulin bay fri ay kɔnvɛkshɔn
Watapruf pefɔmɛns:	IP66 (EU) we dɛn kɔl; Ful protɛkshɔn Aluminium haus, fɔ dray ɛn damp ples(US)
Dimming funkshɔn: .	DALI-2 & PUSH 2 in 1 dimming (CCT), PWM autput frikshɔn 4KHz Stroboskɔpik ɛksɛmpshɔn
Dimming rɛnj: .	0-100% dim dip: 0.1%
NFC funkshɔn: .	Fayn tyun di ɔtput vɔlɔt, rayt ɛn rid adrɛs
Aplay fɔm:	I fayn fɔ LED layt ɛn muv sayn aplikeshɔn dɛn
Waranti:	5 ia warranty

Spɛsifikeshɔn

NW	Mɔdel Nɔmba	Ɔtput Pawa	Ɔtput Vɔltɛm	Ɔtput Kɔrɛnt	Sayz	NW
1 Chanɛl Dimin	KV-12060-DP2A, di wan dɛn we de wok	60W	12V	5A	200 * 78 * 25 mm	0,83kg na di wan
	KV-24060-DP2A, di wan dɛn we de wok		24V	2.5A
	KV-36060-DP2A, di wan dɛn we de wok		36V	1.67
	KV-48060-DP2A, di wan dɛn we de wok		48V	1.25A
	KV-12075-DP2A, di wan dɛn we de wok	75W	12V	6.25A
	KV-24075-DP2A, di wan dɛn we de wok		24V	3.13A
	KV-36075-DP2A, di wan dɛn we de wok		36V	2.08A
	KV-48075-DP2A, di wan dɛn we de wok		48V	1.56A
2 Chanɛl CCT	KV-12060-2C-DP2A, di wan dɛn we de wok	60W	12V	5A
	KV-24060-2C-DP2A, di wan dɛn we de wok		24V	2.5A
	KV-36060-2C-DP2A, di wan dɛn we de wok		36V	1.67
	KV-48060-2C-DP2A, di wan dɛn we de wok		48V	1.25A
	KV-12075-2C-DP2A, di wan dɛn we de wok	75W	12V	6.25A
	KV-24075-2C-DP2A, di wan dɛn we de wok		24V	3.13A
	KV-36075-2C-DP2A, di wan dɛn we de wok		36V	2.08A
	KV-48075-2C-DP2A, di wan dɛn we de wok		48V	1.56A
