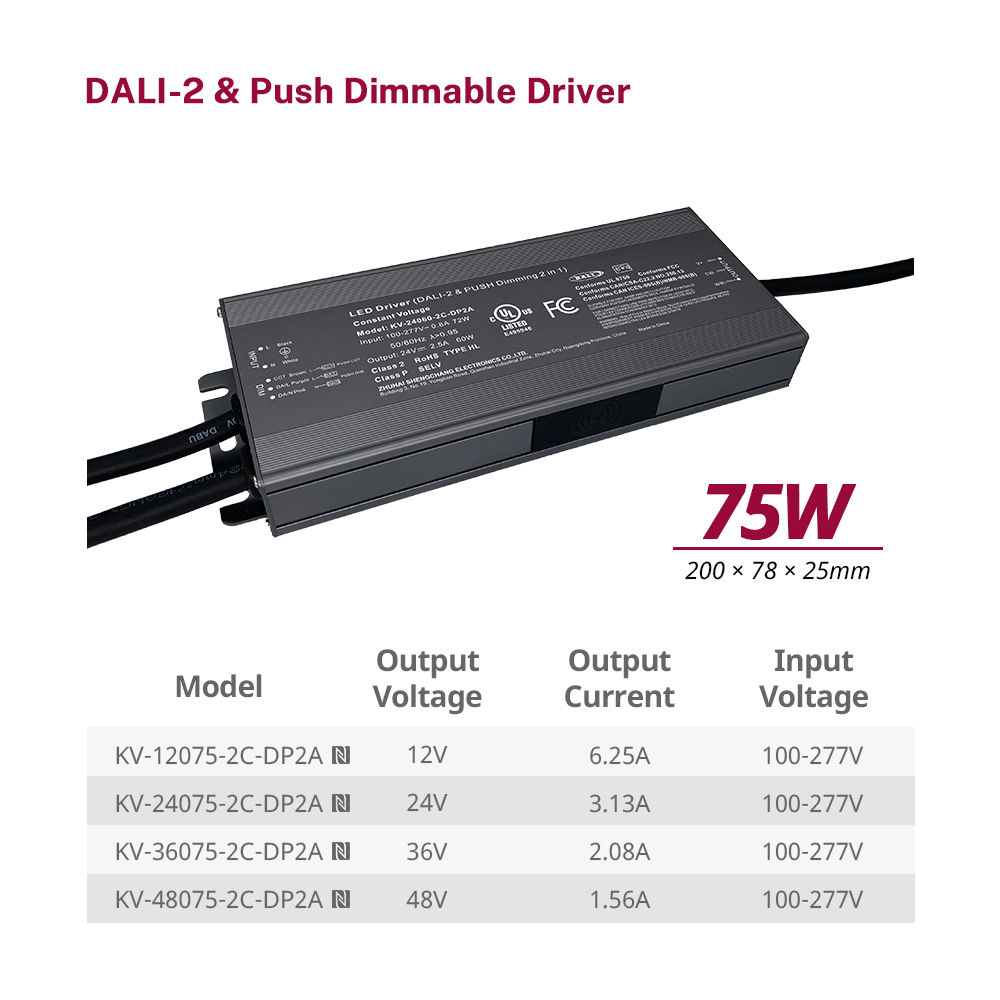

DP2 60W 75W CV CCT DALI 2 Push Dimmable LED Driver 12V 24V 36V 48V DC

Range:

100-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 90%

Protections:

Short circuit/ over load/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP66(EU); Full protection Aluminum housing, for dry and damp locations(US)

Dimming function:

DALI-2 & PUSH 2 in 1 dimming (CCT), PWM output frequency 4KHz Stroboscopic exemption

Dimming range:

0-100%   dimming depth: 0.1%

NFC function:

Fine tune the output voltage, write and read address

Application:

Suitable for LED lighting and moving sign applications

Warranty:

5 years warranty
