DALI-2 Push
Isolated
Constant Voltage
1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)
IP66, Dry & Damp, Wet
100-277VAC
80W, 96W, 100W, 120W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2
DP2 80W 96W 100W 120W CV RGB CW DALI-2 Push LED Driver 12V 24V 36V 48V DC
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 (EU); Full protection aluminum housing, for dry, damp and wet locations(US) |
Design features: | 1)Adjust output voltage slightly 2) set up address |
Dimming function: | DALI-2 dimming. Digital dimming with Logarithmic curve (default) or Linear curve |
Dimming range: | 0-100% dimming depth: 0.1% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Channel | Model Number | Output Power | Output Voltage | Output Current | Size | Weight |

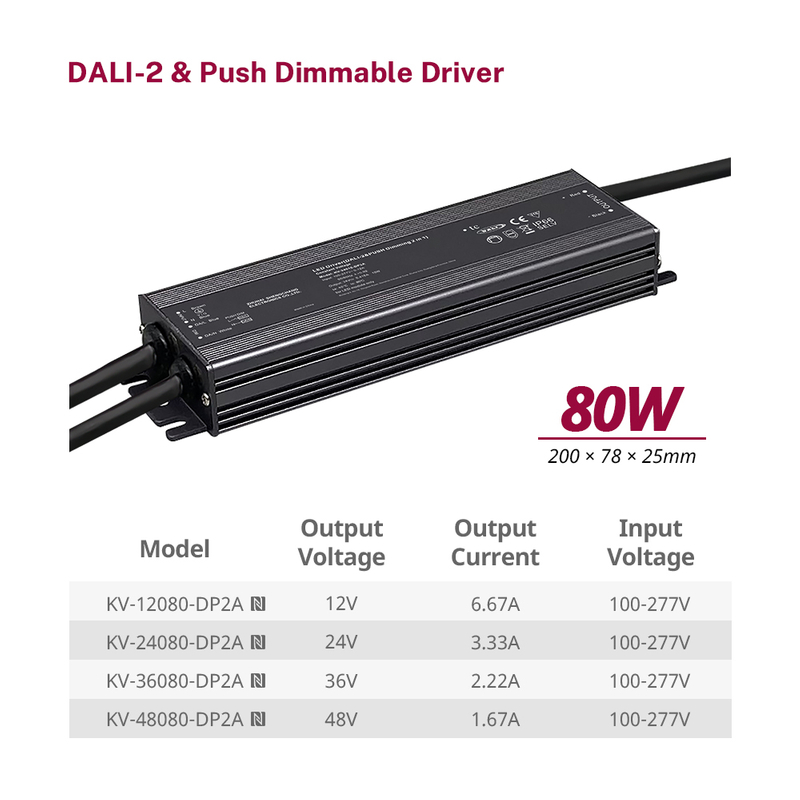

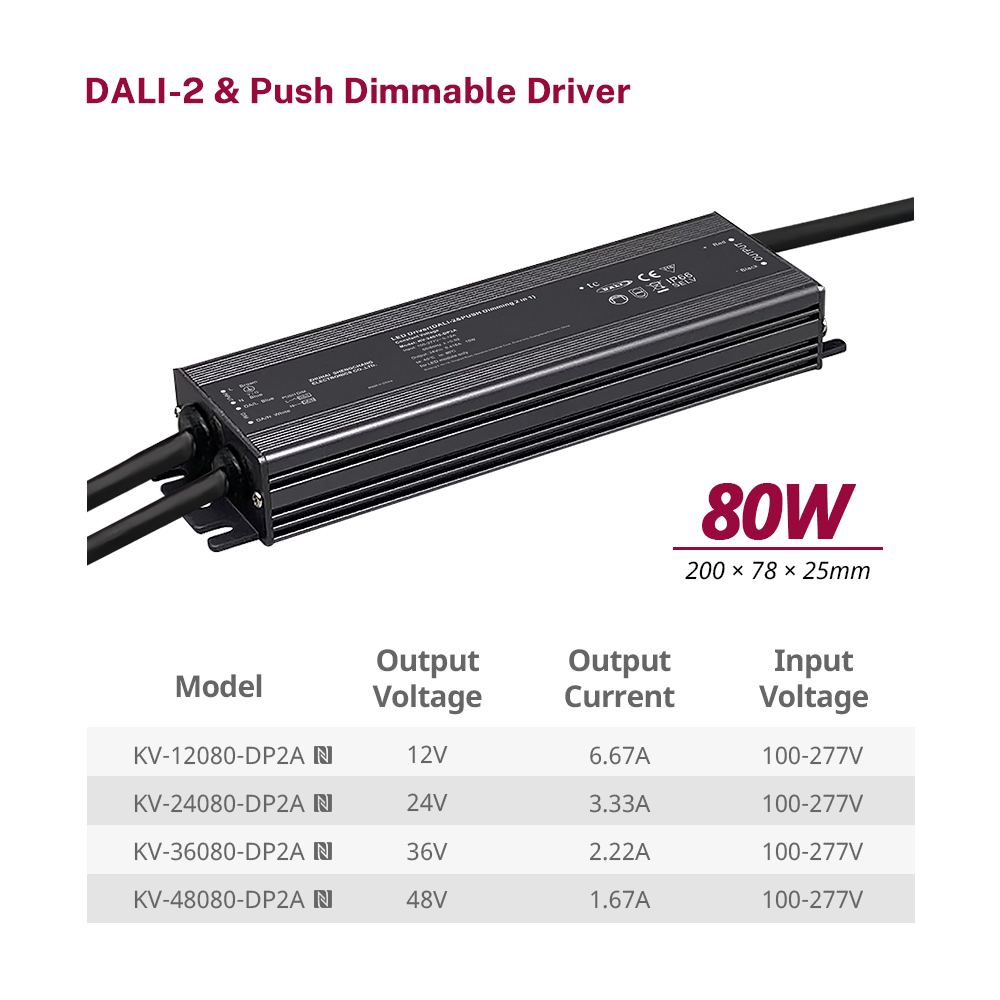

1 Channel | KV-12080-DP2A | 80W | 12V | 6.66A | 200*78*25mm | 0.83kg |
KV-24080-DP2A | 24V | 3.34A | 232*78*25mm | 0.83kg | ||
KV-36080-DP2A | 36V | 2.22A | ||||
KV-46080-DP2A | 48V | 1.67A | ||||

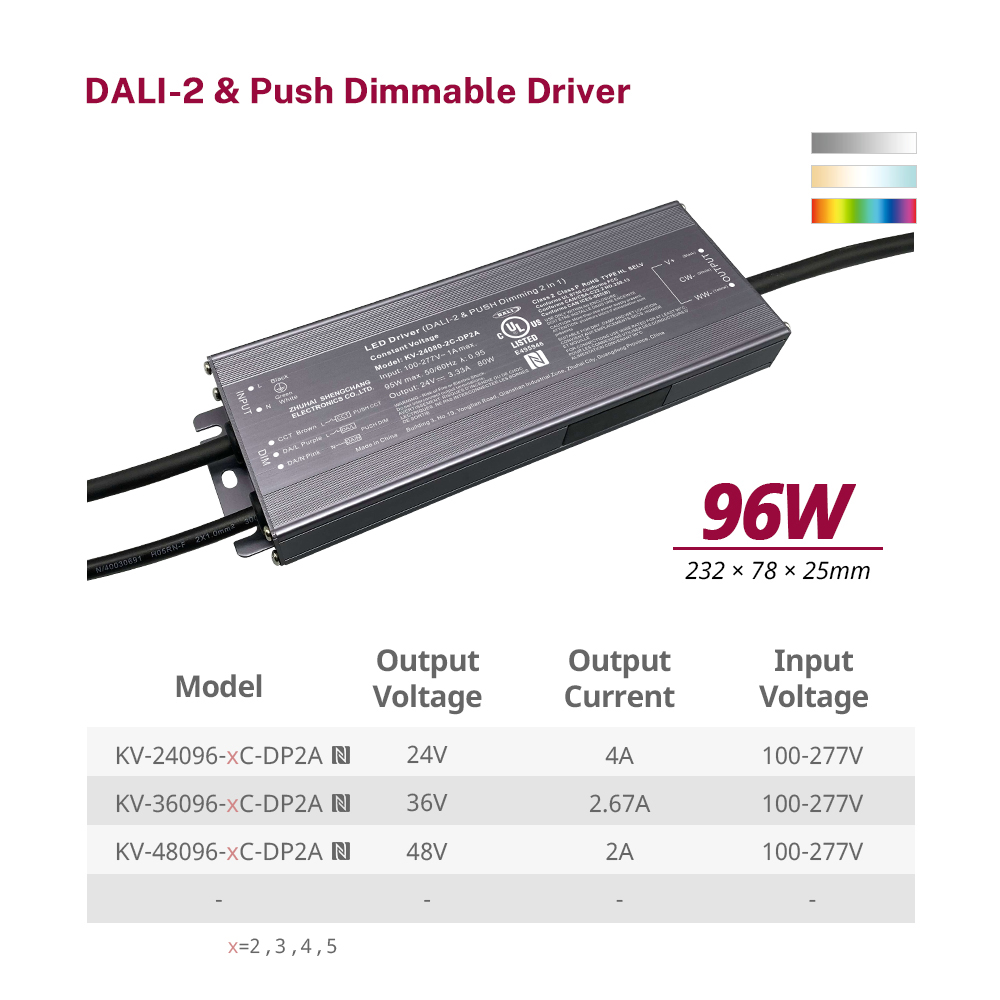

KV-24096-DP2A | 96W | 24V | 4A | |||
KV-36096-DP2A | 36V | 2.67A | ||||
KV-48096-DP2A | 48V | 2A | ||||

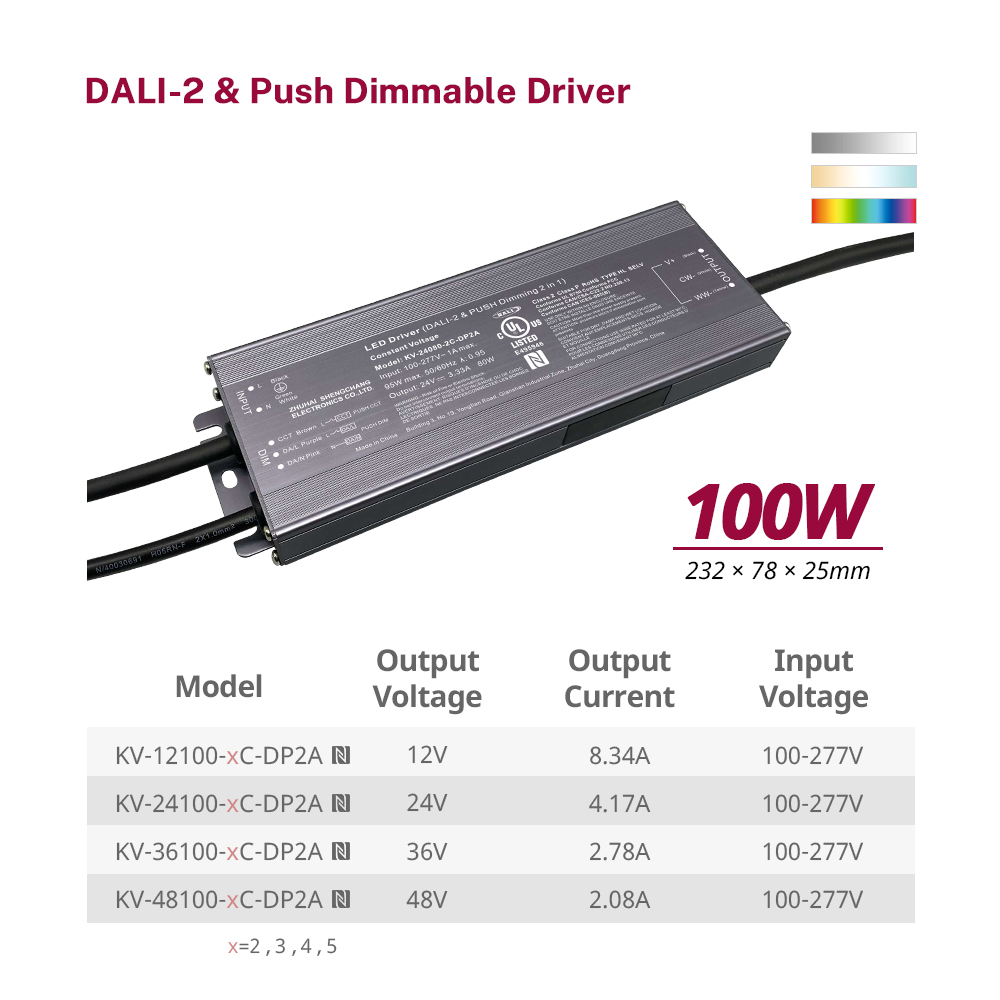

KV-12100-DP2A | 100W | 12V | 8.34A | |||
KV-24100-DP2A | 24V | 4.17A | ||||
KV-36100-DP2A | 36V | 2.78A | ||||
KV-48100-DP2A | 48V | 2.09A | ||||
KV-12120-DP2A | 120W | 12V | 10A | |||
KV-24120-DP2A | 24V | 5A | ||||
KV-36120-DP2A | 36V | 3.33A | ||||
KV-48120-DP2A | 48V | 2.5A | ||||
2 Channels | KV-12080-2C-DP2A | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-2C-DP2A | 24V | 3.34A | ||||
KV-36080-2C-DP2A | 36V | 2.22A | ||||
KV-46080-2C-DP2A | 48V | 1.67A | ||||
KV-24096-2C-DP2A | 96W | 24V | 4A | |||
KV-36096-2C-DP2A | 36V | 2.67A | ||||
KV-48096-2C-DP2A | 48V | 2A | ||||
KV-12100-2C-DP2A | 100W | 12V | 8.34A | |||
KV-24100-2C-DP2A | 24V | 4.17A | ||||
KV-36100-2C-DP2A | 36V | 2.78A | ||||
KV-48100-2C-DP2A | 48V | 2.09A | ||||
KV-12120-2C-DP2A | 120W | 12V | 10A | |||
KV-24120-2C-DP2A | 24V | 5A | ||||
KV-36120-2C-DP2A | 36V | 3.33A | ||||
KV-48120-2C-DP2A | 48V | 2.5A | ||||
3 Channels | KV-12080-3C-DP2A | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-3C-DP2A | 24V | 3.34A | ||||
KV-36080-3C-DP2A | 36V | 2.22A | ||||
KV-46080-3C-DP2A | 48V | 1.67A | ||||
KV-24096-3C-DP2A | 96W | 24V | 4A | |||
KV-36096-3C-DP2A | 36V | 2.67A | ||||
KV-48096-3C-DP2A | 48V | 2A | ||||
KV-12100-3C-DP2A | 100W | 12V | 8.34A | |||
KV-24100-3C-DP2A | 24V | 4.17A | ||||
KV-36100-3C-DP2A | 36V | 2.78A | ||||
KV-48100-3C-DP2A | 48V | 2.09A | ||||
KV-12120-3C-DP2A | 120W | 12V | 10A | |||
KV-24120-3C-DP2A | 24V | 5A | ||||
KV-36120-3C-DP2A | 36V | 3.33A | ||||
KV-48120-3C-DP2A | 48V | 2.5A | ||||
4 Channels | KV-12080-4C-DP2A | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-4C-DP2A | 24V | 3.34A | ||||
KV-36080-4C-DP2A | 36V | 2.22A | ||||
KV-46080-4C-DP2A | 48V | 1.67A | ||||
KV-24096-4C-DP2A | 96W | 24V | 4A | |||
KV-36096-4C-DP2A | 36V | 2.67A | ||||
KV-48096-4C-DP2A | 48V | 2A | ||||
KV-12100-4C-DP2A | 100W | 12V | 8.34A | |||
KV-24100-4C-DP2A | 24V | 4.17A | ||||
KV-36100-4C-DP2A | 36V | 2.78A | ||||
KV-48100-4C-DP2A | 48V | 2.09A | ||||
KV-12120-4C-DP2A | 120W | 12V | 10A | |||
KV-24120-4C-DP2A | 24V | 5A | ||||
KV-36120-4C-DP2A | 36V | 3.33A | ||||
KV-48120-4C-DP2A | 48V | 2.5A | ||||
5 Channels | KV-12080-5C-DP2A | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-5C-DP2A | 24V | 3.34A | ||||
KV-36080-5C-DP2A | 36V | 2.22A | ||||
KV-46080-5C-DP2A | 48V | 1.67A | ||||
KV-24096-5C-DP2A | 96W | 24V | 4A | |||
KV-36096-5C-DP2A | 36V | 2.67A | ||||
KV-48096-5C-DP2A | 48V | 2A | ||||
KV-12100-5C-DP2A | 100W | 12V | 8.34A | |||
KV-24100-5C-DP2A | 24V | 4.17A | ||||
KV-36100-5C-DP2A | 36V | 2.78A | ||||
KV-48100-5C-DP2A | 48V | 2.09A | ||||
KV-12120-5C-DP2A | 120W | 12V | 10A | |||
KV-24120-5C-DP2A | 24V | 5A | ||||
KV-36120-5C-DP2A | 36V | 3.33A | ||||
KV-48120-5C-DP2A | 48V | 2.5A | ||||
