DP2 80W 96W 100W 120W CV RGB CW DALI-2 Push Dimming LED Driver with Junction Box from China manufacturer

Products Detail

You are here: Home / Products / DALI 2 Dimming LED Driver / Constant Voltage DALI-2 Push / DP2 80W 96W 100W 120W CV RGB CW DALI-2 Push Dimming LED Driver with Junction Box

Product Category

Online shopping

Official Store on Alibaba.com

Official Store on 1688.com

Dimming Type:
DALI-2 Push
Isolated Type:
Isolated
Output Type:
Constant Voltage
Channels:
1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)
Waterproof Performance:
IP66, Dry & Damp, Wet
Input Voltage:
100-277VAC
Output Power:
80W, 96W, 100W, 120W
Output Voltage:
12/ 24/ 36/ 48V
Certification:
UL & cUL, FCC, Class 2

Advantage

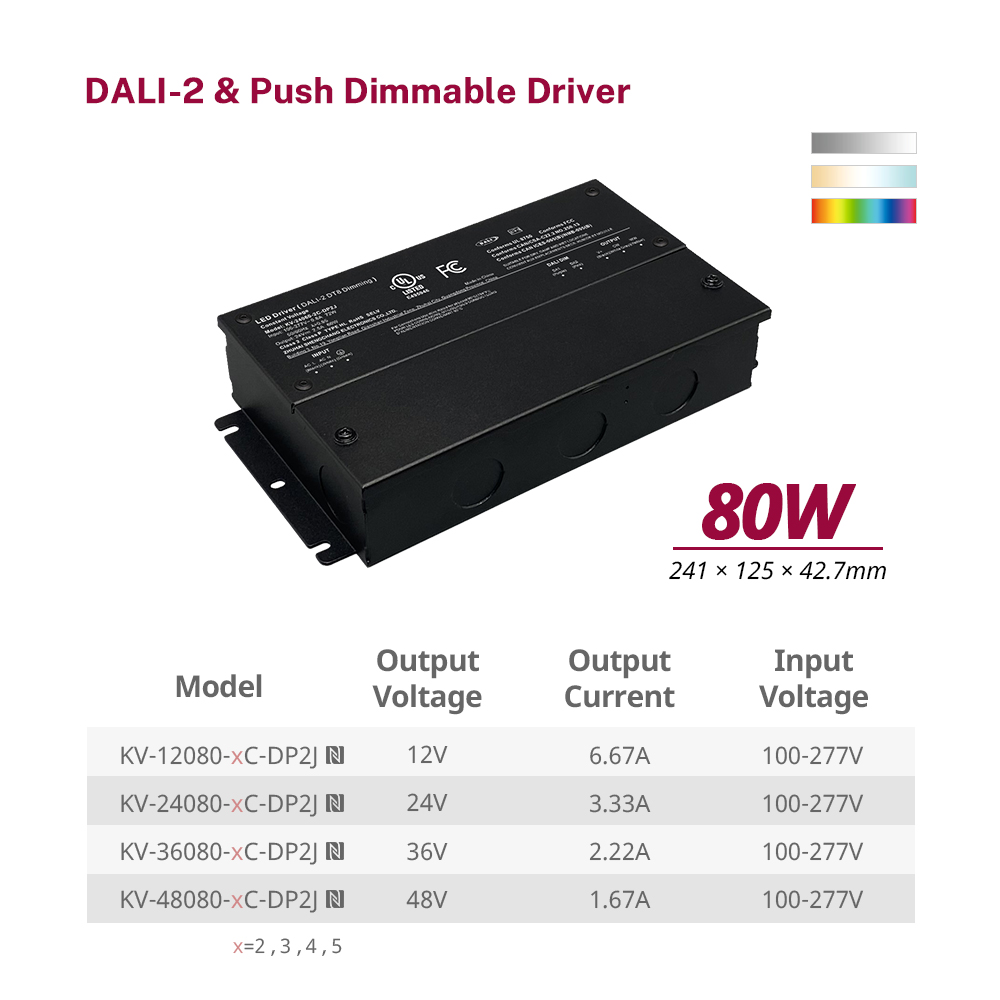

DP2 80W 96W 100W 120W CV RGB CW DALI-2 Push Dimming LED Driver with Junction Box

Output:	Constant Voltage
Range:	100-277VAC
PFC design:	Built-in active PFC function
Protections:	short circuit/ over load/ over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	Built-in Junction box driver , for dry, damp, wet locations(US)
Dimming function:	DALI-2 dimming. Digital dimming with Logarithmic curve (default) or Linear curve
Dimming range:	0-100% dimming depth: 0.1%
NFC function	1) Adjust output voltage slightly 2) set up address
Application:	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

Specification

Channel	Model Number	Output Power	Output Voltage	Output Current	Size	Weight
1 Channel Dimming	KV-12080-DP2J	80W	12V	6.66A	202.5114.242.7mm
	KV-24080-DP2J		24V	3.34A	24112542.7mm
	KV-36080-DP2J		36V	2.22A
	KV-46080-DP2J		48V	1.67A
	KV-24096-DP2J	96W	24V	4A
	KV-36096-DP2J		36V	2.67A
	KV-48096-DP2J		48V	2A
	KV-12100-DP2J	100W	12V	8.34A
	KV-24100-DP2J		24V	4.17A
	KV-36100-DP2J		36V	2.78A
	KV-48100-DP2J		48V	2.09A
	KV-12120-DP2J	120W	12V	10A
	KV-24120-DP2J		24V	5A
	KV-36120-DP2J		36V	3.33A
	KV-48120-DP2J		48V	2.5A

2 Channel CCT	KV-12080-2C-DP2J	80W	12V	6.66A	24112542.7mm
	KV-24080-2C-DP2J		24V	3.34A
	KV-36080-2C-DP2J		36V	2.22A
	KV-46080-2C-DP2J		48V	1.67A
	KV-24096-2C-DP2J	96W	24V	4A
	KV-36096-2C-DP2J		36V	2.67A
	KV-48096-2C-DP2J		48V	2A
	KV-12100-2C-DP2J	100W	12V	8.34A
	KV-24100-2C-DP2J		24V	4.17A
	KV-36100-2C-DP2J		36V	2.78A
	KV-48100-2C-DP2J		48V	2.09A
	KV-12120-2C-DP2J	120W	12V	10A
	KV-24120-2C-DP2J		24V	5A
	KV-36120-2C-DP2J		36V	3.33A
	KV-48120-2C-DP2J		48V	2.5A

3 Channel RGB	KV-12080-3C-DP2J	80W	12V	6.66A	24112542.7mm
	KV-24080-3C-DP2J		24V	3.34A
	KV-36080-3C-DP2J		36V	2.22A
	KV-46080-3C-DP2J		48V	1.67A
	KV-24096-3C-DP2J	96W	24V	4A
	KV-36096-3C-DP2J		36V	2.67A
	KV-48096-3C-DP2J		48V	2A
	KV-12100-3C-DP2J	100W	12V	8.34A
	KV-24100-3C-DP2J		24V	4.17A
	KV-36100-3C-DP2J		36V	2.78A
	KV-48100-3C-DP2J		48V	2.09A
	KV-12120-3C-DP2J	120W	12V	10A
	KV-24120-3C-DP2J		24V	5A
	KV-36120-3C-DP2J		36V	3.33A
	KV-48120-3C-DP2J		48V	2.5A

4 Channel RGBW	KV-12080-4C-DP2J	80W	12V	6.66A	24112542.7mm
	KV-24080-4C-DP2J		24V	3.34A
	KV-36080-4C-DP2J		36V	2.22A
	KV-46080-4C-DP2J		48V	1.67A
	KV-24096-4C-DP2J	96W	24V	4A
	KV-36096-4C-DP2J		36V	2.67A
	KV-48096-4C-DP2J		48V	2A
	KV-12100-4C-DP2J	100W	12V	8.34A
	KV-24100-4C-DP2J		24V	4.17A
	KV-36100-4C-DP2J		36V	2.78A
	KV-48100-4C-DP2J		48V	2.09A
	KV-12120-4C-DP2J	120W	12V	10A
	KV-24120-4C-DP2J		24V	5A
	KV-36120-4C-DP2J		36V	3.33A
	KV-48120-4C-DP2J		48V	2.5A

5 Channel RGBCW	KV-12080-5C-DP2J	80W	12V	6.66A	24112542.7mm
	KV-24080-5C-DP2J		24V	3.34A
	KV-36080-5C-DP2J		36V	2.22A
	KV-46080-5C-DP2J		48V	1.67A
	KV-24096-5C-DP2J	96W	24V	4A
	KV-36096-5C-DP2J		36V	2.67A
	KV-48096-5C-DP2J		48V	2A
	KV-12100-5C-DP2J	100W	12V	8.34A
	KV-24100-5C-DP2J		24V	4.17A
	KV-36100-5C-DP2J		36V	2.78A
	KV-48100-5C-DP2J		48V	2.09A
	KV-12120-5C-DP2J	120W	12V	10A
	KV-24120-5C-DP2J		24V	5A
	KV-36120-5C-DP2J		36V	3.33A
	KV-48120-5C-DP2J		48V	2.5A
